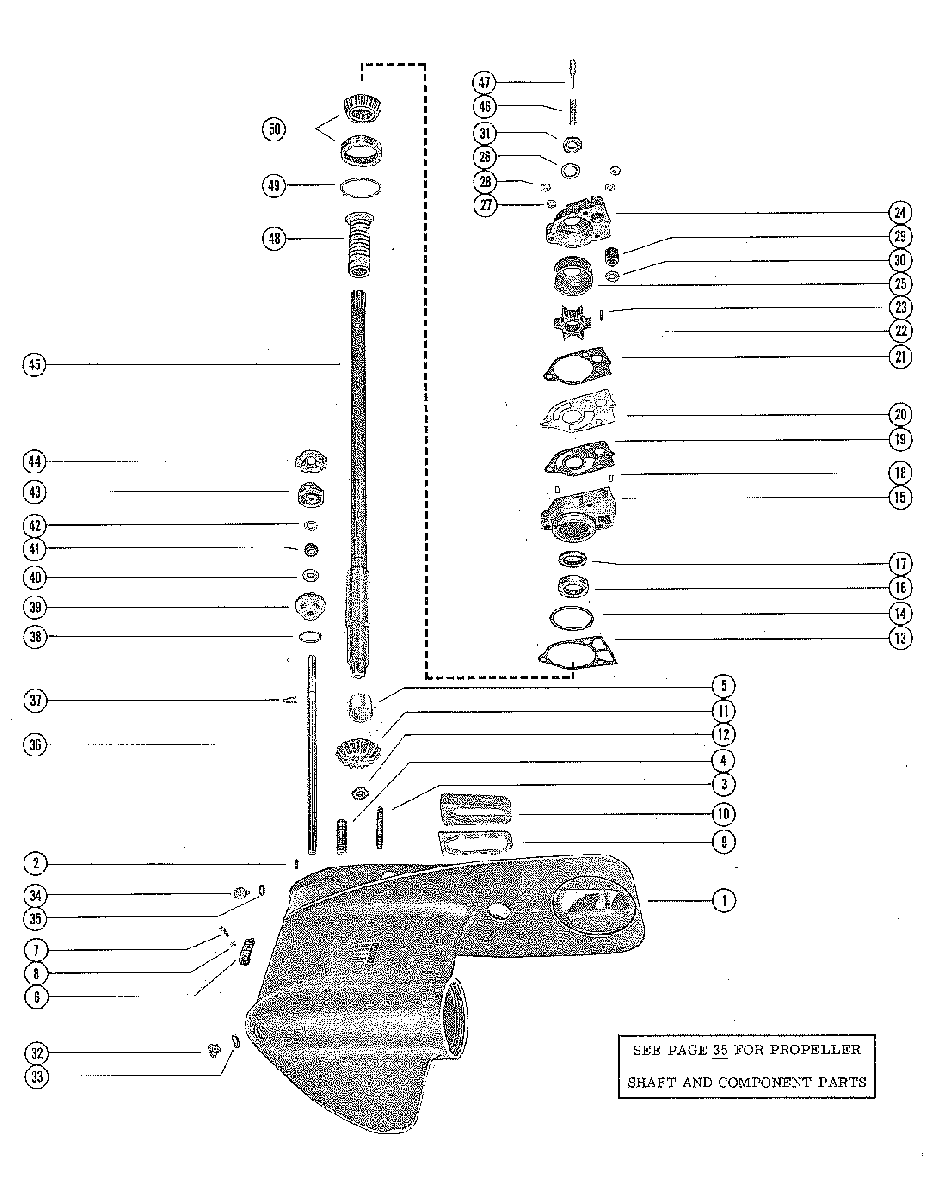

GEAR HOUSING ASSEMBLY, COMPLETE для Mercury - 650 (3 CYL.) 8006640 THRU 8042349
-
№АртикулНазвание
-
-1643-6038A19 GEAR HOUSING ASSEMBLY, COMPLETE (SHORT SHAFT)
SEE NOTE 1 IN BLOCK COMMENTS U.S. 4259239 AND BELOW AUSTR. 8029514 AND BELOW
BELGIUM 9096013 AND BELOW CAN 7058207-BELOW U.S. 3807832-BELOW AUSTR 8015539-BELOW BELGM 9046298-BELOW CAN 7029947-BELOWGEAR HOUSING ASSEMBLY, COMPLETE (SHORT SHAFT)
SEE NOTE 1 IN BLOCK COMMENTS U.S. 4259239 AND BELOW AUSTR. 8029514 AND BELOW
BELGIUM 9096013 AND BELOW CAN 7058207-BELOW U.S. 3807832-BELOW AUSTR 8015539-BELOW BELGM 9046298-BELOW CAN 7029947-BELOW -
-1643-6038A20 GEAR HOUSING ASSEMBLY, COMPLETE (LONG SHAFT)
SEE NOTE 1 IN BLOCK COMMENTS U.S. 4259239-BELOW AUSTR 8029514-BELOW BELGM 9096013-BELOW CAN 7058207-BELOW U.S. 3807832-BELOW AUSTR 8015539-BELOW BELGM 9046298-BELOW CAN 7029947-BELOWGEAR HOUSING ASSEMBLY, COMPLETE (LONG SHAFT)
SEE NOTE 1 IN BLOCK COMMENTS U.S. 4259239-BELOW AUSTR 8029514-BELOW BELGM 9096013-BELOW CAN 7058207-BELOW U.S. 3807832-BELOW AUSTR 8015539-BELOW BELGM 9046298-BELOW CAN 7029947-BELOW -
-1643-6038A9 GEAR HOUSING ASSEMBLY, COMPLETE (SHORT SHAFT)
SEE NOTE 1 IN BLOCK COMMENTS U.S. 4259240-UP
BELGM 9096014-UP
CAN 7058208-UP
U.S. 3807832-BELOW AUSTR 8015539-BELOW BELGM 9046298-BELOW CAN 7029947-BELOWGEAR HOUSING ASSEMBLY, COMPLETE (SHORT SHAFT)
SEE NOTE 1 IN BLOCK COMMENTS U.S. 4259240-UP
BELGM 9096014-UP
CAN 7058208-UP
U.S. 3807832-BELOW AUSTR 8015539-BELOW BELGM 9046298-BELOW CAN 7029947-BELOW -
-1643-6038A10 GEAR HOUSING ASSEMBLY, COMPLETE (LONG SHAFT)
SEE NOTE 1 IN BLOCK COMMENTS U.S. 4259240-UP
BELGM 9096014-UP
CAN 7058208-UP
U.S. 3807832-BELOW AUSTR 8015539-BELOW BELGM 9046298-BELOW CAN 7029947-BELOWGEAR HOUSING ASSEMBLY, COMPLETE (LONG SHAFT)
SEE NOTE 1 IN BLOCK COMMENTS U.S. 4259240-UP
BELGM 9096014-UP
CAN 7058208-UP
U.S. 3807832-BELOW AUSTR 8015539-BELOW BELGM 9046298-BELOW CAN 7029947-BELOW -
11643-6038A6 GEAR HOUSING ASSEMBLYGEAR HOUSING ASSEMBLY
-
217-21438 PIN, DOWEL - GEAR HOUSINGPIN, DOWEL - GEAR HOUSING
-
316-33778 STUD, WATER PUMP BODY/BASE TO GEAR HOUSING (2 5/8")STUD, WATER PUMP BODY/BASE TO GEAR HOUSING (2 5/8")
-
416-8M0034453 STUD, GEAR HOUSING TO DRIVE SHAFT HOUSING (2 3/16")STUD, GEAR HOUSING TO DRIVE SHAFT HOUSING (2 3/16")
-
531-62091T BEARING, ROLLER - DRIVE SHAFTBEARING, ROLLER - DRIVE SHAFT
-
672849A1 SCREEN, WATER INTAKE - STARBOARDSCREEN, WATER INTAKE - STARBOARD
-
672849A1 SCREEN, WATER INTAKE - PORTSCREEN, WATER INTAKE - PORT
-
710-36070 SCREW, SCREENS TO GEAR HOUSING (1 1/4")SCREW, SCREENS TO GEAR HOUSING (1 1/4")
-
811-859124 NUT, SCREEN TO GEAR HOUSING SCREWNUT, SCREEN TO GEAR HOUSING SCREW
-
992815 PLATE, SUPPORT - EXHAUST TUBE SEALPLATE, SUPPORT - EXHAUST TUBE SEAL
-
1037721001 SEAL, EXHAUST TUBESEAL, EXHAUST TUBE
-
1143-60245 GEAR, PINION - DRIVE SHAFTGEAR, PINION - DRIVE SHAFT
-
1211-55910 NUT, PINION GEAR TO DRIVE SHAFTNUT, PINION GEAR TO DRIVE SHAFT
-
1327-32771 GASKET, WATER PUMP BASE TO GEAR HOUSINGGASKET, WATER PUMP BASE TO GEAR HOUSING
-
1425-26855 "O" RING, WATER PUMP BASE"O" RING, WATER PUMP BASE
-
1546-77516A1 WATER PUMP BASE ASSEMBLYWATER PUMP BASE ASSEMBLY
-
1626-79831 OIL SEAL, WATER PUMP BASEOIL SEAL, WATER PUMP BASE
-
1726-90562 OIL SEAL, WATER PUMP BASEOIL SEAL, WATER PUMP BASE
-
1817-8M0084627 DOWEL PIN, WATER PUMP BASE TO WATER PUMP BODYDOWEL PIN, WATER PUMP BASE TO WATER PUMP BODY
-
1927-19553 GASKET, LOWER - WATER PUMP BASE TO FACE PLATEGASKET, LOWER - WATER PUMP BASE TO FACE PLATE
-
2032768 PLATE, FACE - WATER PUMP BASE TO WATER PUMP BODYPLATE, FACE - WATER PUMP BASE TO WATER PUMP BODY
-
2127-19551 GASKET, UPPER - FACE PLATE TO WATER PUMP BODYGASKET, UPPER - FACE PLATE TO WATER PUMP BODY
-
2247-89983T IMPELLER, WATER PUMPIMPELLER, WATER PUMP
-
2328-8M0032837 KEY, IMPELLER DRIVEKEY, IMPELLER DRIVE
-
2446-77822A1 WATER PUMP BODY ASSEMBLYWATER PUMP BODY ASSEMBLY
-
2548753 INSERT, WATER PUMP BODYINSERT, WATER PUMP BODY
-
2626-32121 OIL SEAL, WATER PUMP BODYOIL SEAL, WATER PUMP BODY
-
2712-29245 WASHER, WATER PUMP BODY AND BASE STUDSWASHER, WATER PUMP BODY AND BASE STUDS
-
2811-826709109 NUT, WATER PUMP BODY AND BASE STUDSNUT, WATER PUMP BODY AND BASE STUDS
-
2926-38452 SEAL, WATER PUMP BODY TO WATER TUBESEAL, WATER PUMP BODY TO WATER TUBE
-
3012-38453 WASHER, CUPPED - WATER TUBE SEALWASHER, CUPPED - WATER TUBE SEAL
-
3125-20273 RING, RUBBER - CENTRIFUGAL SLINGERRING, RUBBER - CENTRIFUGAL SLINGER
-
3210-79953Q04 SCREW, GREASE FILLER AND VENT HOLESCREW, GREASE FILLER AND VENT HOLE
-
3312-191833 WASHER, GREASE FILLER AND VENT HOLE SCREWWASHER, GREASE FILLER AND VENT HOLE SCREW
-
3419-48750 PLUG, GEAR HOUSING FLUSHING HOLEPLUG, GEAR HOUSING FLUSHING HOLE
-
3512-49221 WASHER, GEAR HOUSING FLUSHING HOLEWASHER, GEAR HOUSING FLUSHING HOLE
-
3676063A1 SHAFT ASSEMBLY, SHIFT - LOWER
UNITED STATES 4259239 AND BELOW
AUSTRALIA 8029514 AND BELOW
BELGIUM 9096013 AND BELOW
CANADA 7058207 AND BELOWSHAFT ASSEMBLY, SHIFT - LOWER
UNITED STATES 4259239 AND BELOW
AUSTRALIA 8029514 AND BELOW
BELGIUM 9096013 AND BELOW
CANADA 7058207 AND BELOW -
3669787A1 SHAFT ASSEMBLY, SHIFT - LOWER
UNITED STATES 4259240 AND UP
BELGIUM 9096014 AND UP
CANADA 7058208 AND UPSHAFT ASSEMBLY, SHIFT - LOWER
UNITED STATES 4259240 AND UP
BELGIUM 9096014 AND UP
CANADA 7058208 AND UP -
3753-29641 CLIP, RETAINING - SHIFT SHAFTCLIP, RETAINING - SHIFT SHAFT
-
3825-25439 "O" RING, SHIFT SHAFT BUSHING"O" RING, SHIFT SHAFT BUSHING
-
3923-77631A2 BUSHING ASSEMBLY, SHIFT SHAFTBUSHING ASSEMBLY, SHIFT SHAFT
-
4026-24590 OIL SEAL, SHIFT SHAFT BUSHING (LOWER)OIL SEAL, SHIFT SHAFT BUSHING (LOWER)
-
4126-892361 OIL SEAL, SHIFT SHAFT BUSHING (UPPER)OIL SEAL, SHIFT SHAFT BUSHING (UPPER)
-
4212-31266 WASHER, RUBBER - SHIFT SHAFT BUSHINGWASHER, RUBBER - SHIFT SHAFT BUSHING
-
4378036 BASE, LOWER - REVERSE LOCKINGBASE, LOWER - REVERSE LOCKING
-
4443308T1 CAM, REVERSE LOCKING
UNITED STATES 4259239 AND BELOW
AUSTRALIA 8029514 AND BELOW
BELGIUM 9096013 AND BELOW
CANADA 7058207 AND BELOWCAM, REVERSE LOCKING
UNITED STATES 4259239 AND BELOW
AUSTRALIA 8029514 AND BELOW
BELGIUM 9096013 AND BELOW
CANADA 7058207 AND BELOW -
4469542 CAM, REVERSE LOCKING
UNITED STATES 4259240 AND UP
BELGIUM 9096014 AND UP
CANADA 7058208 AND UPCAM, REVERSE LOCKING
UNITED STATES 4259240 AND UP
BELGIUM 9096014 AND UP
CANADA 7058208 AND UP -
4545-76089A2 DRIVE SHAFT ASSEMBLY (SHORT SHAFT)DRIVE SHAFT ASSEMBLY (SHORT SHAFT)
-
4545-76088A2 DRIVE SHAFT ASSEMBLY (LONG SHAFT)DRIVE SHAFT ASSEMBLY (LONG SHAFT)
-
4624-20254 SPRING, COMPRESSION - DRIVE SHAFTSPRING, COMPRESSION - DRIVE SHAFT
-
4717-30545 PIN, DRIVE SHAFTPIN, DRIVE SHAFT
-
4888181 SLEEVE, LUBRICATION - DRIVE SHAFTSLEEVE, LUBRICATION - DRIVE SHAFT
-
4915-20929A1 SHIM, BEARING TO GEAR HOUSING (.002-3-5-10)SHIM, BEARING TO GEAR HOUSING (.002-3-5-10)
-
5031-38146A1 ROLLER BEARING ASSEMBLY, TAPERED - DRIVE SHAFTROLLER BEARING ASSEMBLY, TAPERED - DRIVE SHAFT
