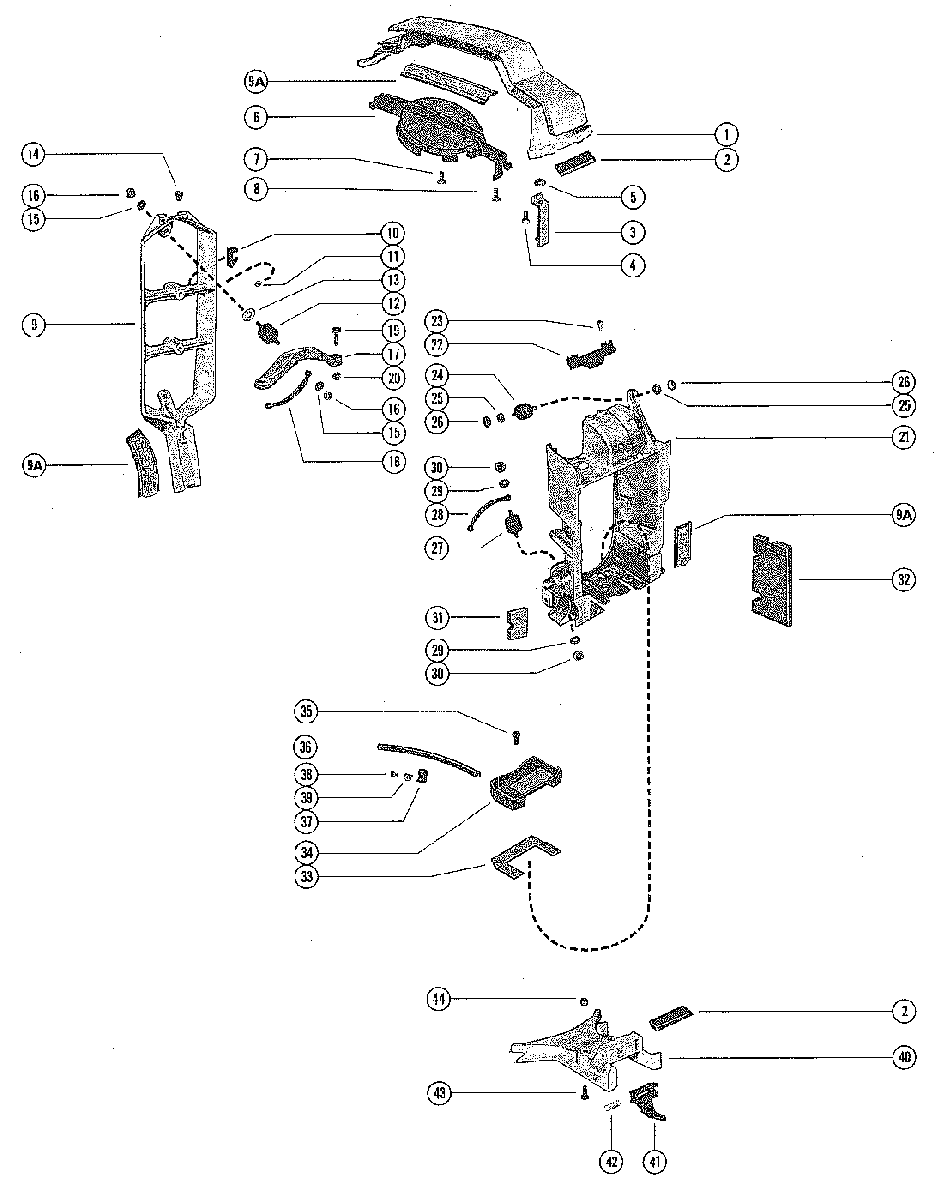

COWL SUPPORT BRACKETS для Mercury - 650 (3 CYL.) 8006640 THRU 8042349
-
№АртикулНазвание
-
164956 BRACKET, COWL SUPPORT - TOP
UNITED STATES 4042111 AND BELOW
AUSTRALIA 8021839 AND BELOW
BELGIUM 9067868 AND BELOW
CANADA 7039237 AND BELOWBRACKET, COWL SUPPORT - TOP
UNITED STATES 4042111 AND BELOW
AUSTRALIA 8021839 AND BELOW
BELGIUM 9067868 AND BELOW
CANADA 7039237 AND BELOW -
173641A1 BRACKET, COWL SUPPORT - TOP
UNITED STATES 4042112 AND UP
AUSTRALIA 8021840 AND UP
BELGIUM 9067869 AND UP
CANADA 7039238 AND UPBRACKET, COWL SUPPORT - TOP
UNITED STATES 4042112 AND UP
AUSTRALIA 8021840 AND UP
BELGIUM 9067869 AND UP
CANADA 7039238 AND UP -
262444 SEAL, RUBBER - TOP BRACKET AND COVER MOUNTING PLATESEAL, RUBBER - TOP BRACKET AND COVER MOUNTING PLATE
-
364852 CLIP, TOP COWL SUPPORT BRACKETCLIP, TOP COWL SUPPORT BRACKET
-
410-62568 SCREW, CLIP TO TOP COWL SUPPORT (3/8")
UNITED STATES 4042111 AND BELOW
AUSTRALIA 8021839 AND BELOW
BELGIUM 9067868 AND BELOW
CANADA 7039237 AND BELOWSCREW, CLIP TO TOP COWL SUPPORT (3/8")
UNITED STATES 4042111 AND BELOW
AUSTRALIA 8021839 AND BELOW
BELGIUM 9067868 AND BELOW
CANADA 7039237 AND BELOW -
410-48408 SCREW, CLIP TO TOP COWL SUPPORT (1/2")
UNITED STATES 4042112 AND UP
AUSTRALIA 8021840 AND UP
BELGIUM 9067869 AND UP
CANADA 7039238 AND UPSCREW, CLIP TO TOP COWL SUPPORT (1/2")
UNITED STATES 4042112 AND UP
AUSTRALIA 8021840 AND UP
BELGIUM 9067869 AND UP
CANADA 7039238 AND UP -
512-45075 WASHER, CLIP TO TOP COWL SUPPORT BRACKETWASHER, CLIP TO TOP COWL SUPPORT BRACKET
-
662501A1 SHIELD ASSEMBLY, FLYWHEEL
UNITED STATES 4042111 AND BELOW
AUSTRALIA 8021839 AND BELOW
BELGIUM 9067868 AND BELOW
CANADA 7039237 AND BELOWSHIELD ASSEMBLY, FLYWHEEL
UNITED STATES 4042111 AND BELOW
AUSTRALIA 8021839 AND BELOW
BELGIUM 9067868 AND BELOW
CANADA 7039237 AND BELOW -
679490 SHIELD ASSEMBLY, FLYWHEEL
UNITED STATES 4042112 AND UP
AUSTRALIA 8021840 AND UP
BELGIUM 9067869 AND UP
CANADA 7039238 AND UPSHIELD ASSEMBLY, FLYWHEEL
UNITED STATES 4042112 AND UP
AUSTRALIA 8021840 AND UP
BELGIUM 9067869 AND UP
CANADA 7039238 AND UP -
710-48409 SCREW, SHIELD TO TOP SUPPORT BRACKET (5/8")
UNITED STATES 4042111 AND BELOW
AUSTRALIA 8021839 AND BELOW
BELGIUM 9067868 AND BELOW
CANADA 7039237 AND BELOWSCREW, SHIELD TO TOP SUPPORT BRACKET (5/8")
UNITED STATES 4042111 AND BELOW
AUSTRALIA 8021839 AND BELOW
BELGIUM 9067868 AND BELOW
CANADA 7039237 AND BELOW -
810-48408 SCREW, SHIELD TO TOP SUPPORT BRACKET (1/2")
UNITED STATES 4042111 AND BELOW
AUSTRALIA 8021839 AND BELOW
BELGIUM 9067868 AND BELOW
CANADA 7039237 AND BELOWSCREW, SHIELD TO TOP SUPPORT BRACKET (1/2")
UNITED STATES 4042111 AND BELOW
AUSTRALIA 8021839 AND BELOW
BELGIUM 9067868 AND BELOW
CANADA 7039237 AND BELOW -
710-37656 SCREW, SHIELD TO TOP SUPPORT BRACKET (5/8")
UNITED STATES 4042112 AND UP
AUSTRALIA 8021840 AND UP
BELGIUM 9067869 AND UP
CANADA 7039238 AND UPSCREW, SHIELD TO TOP SUPPORT BRACKET (5/8")
UNITED STATES 4042112 AND UP
AUSTRALIA 8021840 AND UP
BELGIUM 9067869 AND UP
CANADA 7039238 AND UP -
810-48408 SCREW, SHIELD TO TOP SUPPORT BRACKET (1/2")
UNITED STATES 4042112 AND UP
AUSTRALIA 8021840 AND UP
BELGIUM 9067869 AND UP
CANADA 7039238 AND UPSCREW, SHIELD TO TOP SUPPORT BRACKET (1/2")
UNITED STATES 4042112 AND UP
AUSTRALIA 8021840 AND UP
BELGIUM 9067869 AND UP
CANADA 7039238 AND UP -
974510A2 BRACKET, COWL SUPPORT - REAR
UNITED STATES 4042111 AND BELOW
AUSTRALIA 8021839 AND BELOW
BELGIUM 9067868 AND BELOW
CANADA 7039237 AND BELOWBRACKET, COWL SUPPORT - REAR
UNITED STATES 4042111 AND BELOW
AUSTRALIA 8021839 AND BELOW
BELGIUM 9067868 AND BELOW
CANADA 7039237 AND BELOW -
974510A2 BRACKET, COWL SUPPORT - REAR
UNITED STATES 4042112 THRU 4136684
AUSTRALIA 8021840 THRU 8029189
BELGIUM 9067869 THRU 9082138
CANADA 7039238 THRU 7051132BRACKET, COWL SUPPORT - REAR
UNITED STATES 4042112 THRU 4136684
AUSTRALIA 8021840 THRU 8029189
BELGIUM 9067869 THRU 9082138
CANADA 7039238 THRU 7051132 -
974510A2 BRACKET, COWL SUPPORT - REAR
UNITED STATES 4136685 AND UP
AUSTRALIA 8029190 AND UP
BELGIUM 9082139 AND UP
CANADA 7051133 AND UPBRACKET, COWL SUPPORT - REAR
UNITED STATES 4136685 AND UP
AUSTRALIA 8029190 AND UP
BELGIUM 9082139 AND UP
CANADA 7051133 AND UP -
9A698761 SEAL, REAR BRACKET AND TOP BRACKET
UNITED STATES 4136685 AND UP
AUSTRALIA 8029190 AND UP
BELGIUM 9082139 AND UP
CANADA 7051133 AND UPSEAL, REAR BRACKET AND TOP BRACKET
UNITED STATES 4136685 AND UP
AUSTRALIA 8029190 AND UP
BELGIUM 9082139 AND UP
CANADA 7051133 AND UP -
1060299 RETAINER, SPARK PLUG LEADSRETAINER, SPARK PLUG LEADS
-
1110-69079 SCREW, RETAINER TO REAR SUPPORT BRACKET (3/8")SCREW, RETAINER TO REAR SUPPORT BRACKET (3/8")
-
1290435 MOUNT, RUBBER - BRACE TO REAR SUPPORT BRACKETMOUNT, RUBBER - BRACE TO REAR SUPPORT BRACKET
-
1312-22753 WASHER, RUBBER MOUNT TO REAR SUPPORT BRACKETWASHER, RUBBER MOUNT TO REAR SUPPORT BRACKET
-
14269011 STOP, RUBBER - REAR SUPPORT BRACKETSTOP, RUBBER - REAR SUPPORT BRACKET
-
1512-69057 WASHER, RUBBER MOUNT TO REAR SUPPORT BRACKETWASHER, RUBBER MOUNT TO REAR SUPPORT BRACKET
-
1611-826709109 NUT, RUBBER MOUNT TO REAR SUPPORT BRACKETNUT, RUBBER MOUNT TO REAR SUPPORT BRACKET
-
1760116 BRACE, REAR COWL SUPPORT BRACKET (TOP)BRACE, REAR COWL SUPPORT BRACKET (TOP)
-
1849651A1 GROUND STRAP ASS'Y, BRACE TO REAR SUPPORT BRACKETGROUND STRAP ASS'Y, BRACE TO REAR SUPPORT BRACKET
-
1910-24644 SCREW, SUPPORT BRACKET BRACE TO CYL. BLOCK COVER (1 3/8")SCREW, SUPPORT BRACKET BRACE TO CYL. BLOCK COVER (1 3/8")
-
2011-20184 NUT, SUPPORT BRACKET BRACE ATTACHING SCREWNUT, SUPPORT BRACKET BRACE ATTACHING SCREW
-
2164926 BRACKET, COWL SUPPORT (FRONT)
UNITED STATES 4042111 AND BELOW
AUSTRALIA 8021839 AND BELOW
BELGIUM 9067868 AND BELOW
CANADA 7039237 AND BELOWBRACKET, COWL SUPPORT (FRONT)
UNITED STATES 4042111 AND BELOW
AUSTRALIA 8021839 AND BELOW
BELGIUM 9067868 AND BELOW
CANADA 7039237 AND BELOW -
2175969 BRACKET, COWL SUPPORT (FRONT)
UNITED STATES 4042112 AND UP
AUSTRALIA 8021840 AND UP
BELGIUM 9067869 AND UP
CANADA 7039238 AND UPBRACKET, COWL SUPPORT (FRONT)
UNITED STATES 4042112 AND UP
AUSTRALIA 8021840 AND UP
BELGIUM 9067869 AND UP
CANADA 7039238 AND UP -
2261344 RETAINER, WIRING HARNESS AND BATTERY CABLERETAINER, WIRING HARNESS AND BATTERY CABLE
-
2310-48408 SCREW, RETAINER TO FRONT SUPPORT BRACKET (1/2")SCREW, RETAINER TO FRONT SUPPORT BRACKET (1/2")
-
2490435 MOUNT, RUBBER - FRONT SUPPORT BRACKET TO DIST. ADAPTORMOUNT, RUBBER - FRONT SUPPORT BRACKET TO DIST. ADAPTOR
-
2512-69057 WASHER, RUBBER MOUNT TO FRONT SUPPORT BRACKETWASHER, RUBBER MOUNT TO FRONT SUPPORT BRACKET
-
2611-826709109 NUT, RUBBER MOUNT TO FRONT SUPPORT BRACKETNUT, RUBBER MOUNT TO FRONT SUPPORT BRACKET
-
2790435 MOUNT, RUBBER - FRONT SUPPORT TO STARTER MOTOR COVERMOUNT, RUBBER - FRONT SUPPORT TO STARTER MOTOR COVER
-
2849651A1 GROUND STRAP ASSEMBLY, FRONT SUPPORT BRACKETGROUND STRAP ASSEMBLY, FRONT SUPPORT BRACKET
-
2912-69057 WASHER, RUBBER MOUNT ATTACHINGWASHER, RUBBER MOUNT ATTACHING
-
3011-826709109 NUT, RUBBER MOUNT ATTACHINGNUT, RUBBER MOUNT ATTACHING
-
3176410 SEAL, FUEL CONNECTOR - FRONT SUPPORT BRACKETSEAL, FUEL CONNECTOR - FRONT SUPPORT BRACKET
-
3262391 BLANKET, SOUND - FRONT SUPPORT BRACKET (PORT)BLANKET, SOUND - FRONT SUPPORT BRACKET (PORT)
-
3362869 BLANKET, SOUND - DRIP TRAY TO FRONT SUPPORT BRACKETBLANKET, SOUND - DRIP TRAY TO FRONT SUPPORT BRACKET
-
3465915A2 DRIP TRAY, FRONT SUPPORT BRACKET 1
SERIAL GROUP #DRIP TRAY, FRONT SUPPORT BRACKET 1
SERIAL GROUP # -
3510-62568 SCREW, DRIP TRAY TO FRONT SUPPORT BRACKET (3/8")
SERIAL GROUP #SCREW, DRIP TRAY TO FRONT SUPPORT BRACKET (3/8")
SERIAL GROUP # -
3465915A2 DRIP TRAY ASSEMBLY, FRONT SUPPORT BRACKET
UNITED STATES 3807833 AND UP
AUSTRALIA 8015540 AND UP
BELGIUM 9046299 AND UP
CANADA 9029948 AND UPDRIP TRAY ASSEMBLY, FRONT SUPPORT BRACKET
UNITED STATES 3807833 AND UP
AUSTRALIA 8015540 AND UP
BELGIUM 9046299 AND UP
CANADA 9029948 AND UP -
3510-69163 SCREW, DIP TRAY TO FRONT SUPPORT BRACKET
UNITED STATES 3807833 AND UP
AUSTRALIA 8015540 AND UP
BELGIUM 9046299 AND UP
CANADA 9029948 AND UPSCREW, DIP TRAY TO FRONT SUPPORT BRACKET
UNITED STATES 3807833 AND UP
AUSTRALIA 8015540 AND UP
BELGIUM 9046299 AND UP
CANADA 9029948 AND UP -
3632-9912688 HOSE, DRIP TRAY TO REAR SUPPORT BRACKETHOSE, DRIP TRAY TO REAR SUPPORT BRACKET
-
3754-22740 CLIP, HOSE TO REAR SUPPORT BRACKETCLIP, HOSE TO REAR SUPPORT BRACKET
-
3810-62568 SCREW, HOSE CLIP FASTENING (3/8")SCREW, HOSE CLIP FASTENING (3/8")
-
398M0084613 "D" WASHER, CLIP FASTENING SCREW"D" WASHER, CLIP FASTENING SCREW
-
3754-22875 CLIP, HOSE TO EXHAUST PLATECLIP, HOSE TO EXHAUST PLATE
-
3810-69079 SCREW, HOSE CLIP FASTENING (7/16")SCREW, HOSE CLIP FASTENING (7/16")
-
398M0084613 "D" WASHER, CLIP FASTENING SCREW"D" WASHER, CLIP FASTENING SCREW
-
4076251A1 PLATE, FRONT COVER MOUNTING
UNITED STATES 4042111 AND BELOW
AUSTRALIA 8021839 AND BELOW
BELGIUM 9067868 AND BELOW
CANADA 7039237 AND BELOWPLATE, FRONT COVER MOUNTING
UNITED STATES 4042111 AND BELOW
AUSTRALIA 8021839 AND BELOW
BELGIUM 9067868 AND BELOW
CANADA 7039237 AND BELOW -
4076251A1 PLATE ASSEMBLY, FRONT COVER MOUNTING
UNITED STATES 4042112 AND UP
AUSTRALIA 8021840 AND UP
BELGIUM 9067869 AND UP
CANADA 7039238 AND UPPLATE ASSEMBLY, FRONT COVER MOUNTING
UNITED STATES 4042112 AND UP
AUSTRALIA 8021840 AND UP
BELGIUM 9067869 AND UP
CANADA 7039238 AND UP -
4176264 LATCH, FRONT COVER ATTACHINGLATCH, FRONT COVER ATTACHING
-
4224-60295 SPRING, FRONT COVER LATCHSPRING, FRONT COVER LATCH
-
4310-38601 SCREW, COVER PLATE TO SUPPORT BRACKET (5/8")SCREW, COVER PLATE TO SUPPORT BRACKET (5/8")
-
4411-20184 NUT, ATTACHING SCREW COVER PLATENUT, ATTACHING SCREW COVER PLATE
