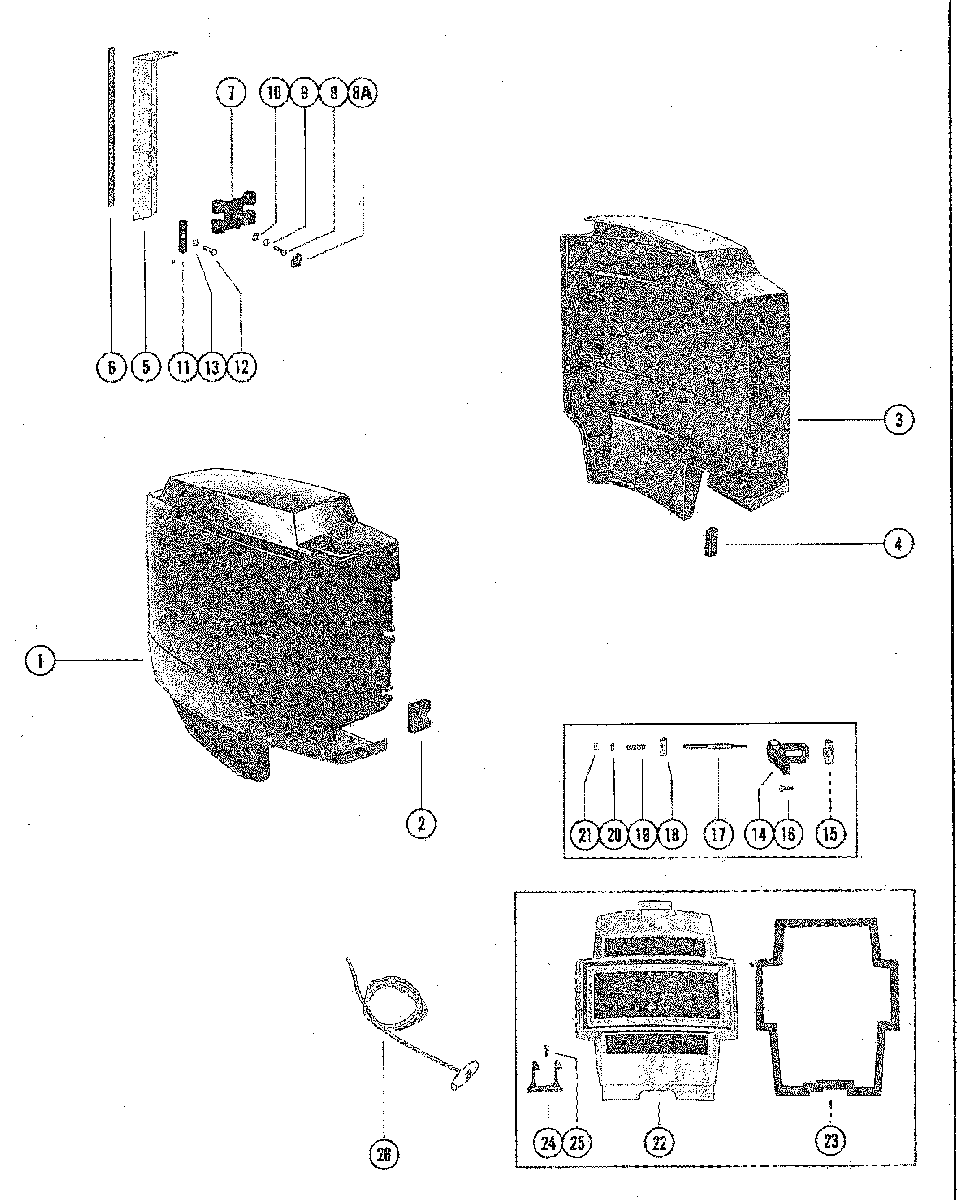

COWLING AND FRONT COVER для Mercury - 70 (3 CYL.) 9135825 THRU 9255130
-
№АртикулНазвание
-
12142-6228A1 COWL ASSEMBLY (STARBOARD) - WITHOUT DECALSCOWL ASSEMBLY (STARBOARD) - WITHOUT DECALS
-
226-60297 SEAL, FUEL CONNECTOR-COWLSEAL, FUEL CONNECTOR-COWL
-
32141-6227A1 COWL ASSEMBLY (PORT)-WITHOUT DECALSCOWL ASSEMBLY (PORT)-WITHOUT DECALS
-
426-60298 SEAL, CONTROL CABLES-COWLSEAL, CONTROL CABLES-COWL
-
589717T BRACKET, COWL SEALING-REARBRACKET, COWL SEALING-REAR
-
6698761 SEAL, REAR BRACKETSEAL, REAR BRACKET
-
790980 BRACKET, COWL HINGEBRACKET, COWL HINGE
-
810-455611 SCREW
HINGE BRACKET TO REAR BRACKET-LOWER (1 1/8")SCREW
HINGE BRACKET TO REAR BRACKET-LOWER (1 1/8") -
810-75794 SCREW
HINGE BRACKET TO REAR BRACKET-UPPER (1 1/8")SCREW
HINGE BRACKET TO REAR BRACKET-UPPER (1 1/8") -
8A75805 CAP,HINGE BRACKET SCREW (UPPER)CAP,HINGE BRACKET SCREW (UPPER)
-
913-26992 LOCKWASHER, HINGE BRACKET SCREWLOCKWASHER, HINGE BRACKET SCREW
-
1012-37998 WASHER, HINGE BRACKET SCREWWASHER, HINGE BRACKET SCREW
-
1012-75806 WASHER, HINGE BRACKET SCREW (UPPER)WASHER, HINGE BRACKET SCREW (UPPER)
-
1190979 PIN, COWL HINGEPIN, COWL HINGE
-
1210-28782 SCREW, PIN TO COWL (7/8")SCREW, PIN TO COWL (7/8")
-
1313-26993 LOCKWASHER,PIN ATTACHING SCREWLOCKWASHER,PIN ATTACHING SCREW
-
1446785A5 COWL LATCH ASSEMBLYCOWL LATCH ASSEMBLY
-
1562628 BARRELL, COWL LATCHBARRELL, COWL LATCH
-
1610-31312 SCREW,LATCH ASSEMBLY TO BARREL (7/8")SCREW,LATCH ASSEMBLY TO BARREL (7/8")
-
1715222 BAR, ADJUSTMENT-COWL LATCHBAR, ADJUSTMENT-COWL LATCH
-
1862629 BARREL, COWL LATCHBARREL, COWL LATCH
-
1924-62624 SPRING, TENSION - COWL LATCHSPRING, TENSION - COWL LATCH
-
2012-30164 WASHER, ADJUSTMENT BAR TO BARRELWASHER, ADJUSTMENT BAR TO BARREL
-
2111-859124 NUT, ADJUSTMENT BAR TO BARRELNUT, ADJUSTMENT BAR TO BARREL
-
222143-7254A3 FRONT COVER ASSEMBLY (WITHOUT DECALS )
UNITED STATES 4977156 AND BELOW
AUSTRALIA 8050199 AND BELOW
BELGIUM 9196960 AND BELOW
CANADA 7110997 AND BELOWFRONT COVER ASSEMBLY (WITHOUT DECALS )
UNITED STATES 4977156 AND BELOW
AUSTRALIA 8050199 AND BELOW
BELGIUM 9196960 AND BELOW
CANADA 7110997 AND BELOW -
222143-7254A3 FRONT COVER ASSEMBLY (WITHOUT DECALS)
UNITED STATES 4977157 AND UP
AUSTRALIA 8050200 AND UP
BELGIUM 9196961 AND UP
CANADA 7110998 AND UPFRONT COVER ASSEMBLY (WITHOUT DECALS)
UNITED STATES 4977157 AND UP
AUSTRALIA 8050200 AND UP
BELGIUM 9196961 AND UP
CANADA 7110998 AND UP -
23795511 BLANKET, SOUND ABSORBING
UNITED STATES 4977156 AND BELOW
AUSTRALIA 8050199 AND BELOW
BELGIUM 9196960 AND BELOW
CANADA 7110997 AND BELOWBLANKET, SOUND ABSORBING
UNITED STATES 4977156 AND BELOW
AUSTRALIA 8050199 AND BELOW
BELGIUM 9196960 AND BELOW
CANADA 7110997 AND BELOW -
23795511 BLANKET, SOUND ABSORBINS
UNITED STATES 4977157 AND UP
AUSTRALIA 8050200 AND UP
BELGIUM 9196961 AND UP
CANADA 7110998 AND UPBLANKET, SOUND ABSORBINS
UNITED STATES 4977157 AND UP
AUSTRALIA 8050200 AND UP
BELGIUM 9196961 AND UP
CANADA 7110998 AND UP -
2461158T HOOK, FRONT COVER FASTENINGHOOK, FRONT COVER FASTENING
-
2510-69570 SCREW, FASTENING HOOK TO FRONT COVER (3/4")SCREW, FASTENING HOOK TO FRONT COVER (3/4")
-
2647341A11 STARTER ROPE ASSEMBLY
(FOR MANUAL STARTING ONLY)STARTER ROPE ASSEMBLY
(FOR MANUAL STARTING ONLY)
