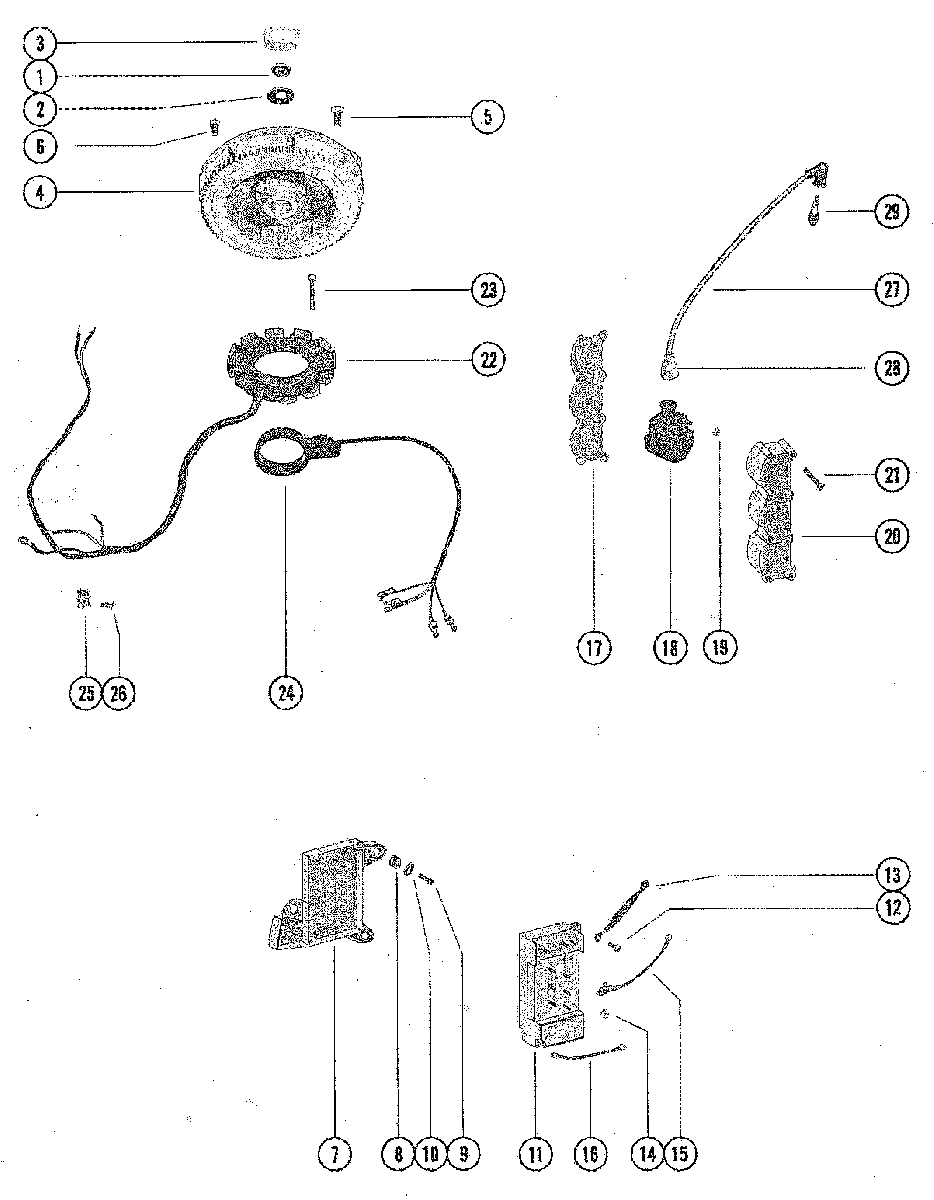

FLYWHEEL, SWITCH BOX, IGNITION COIL AND STATOR ASSEMBLY для Mercury - 70 (3 CYL.) 9135825 THRU 9255130
-
№АртикулНазвание
-
111-52901 NUT, FLYWHEELNUT, FLYWHEEL
-
212-33001 WASHER, FLYWHEEL NUTWASHER, FLYWHEEL NUT
-
319-45907 PLUG, FLYWHEEL PULLER THREADSPLUG, FLYWHEEL PULLER THREADS
-
4248-8722A5 FLYWHEEL ASSWMBLY
UNITED STATES 5128279 AND BELOW
AUSTRALIA 8056219 AND BELOW BELGIUM 9207525 AND BELOW
CANADA 7110997 AND BELOWFLYWHEEL ASSWMBLY
UNITED STATES 5128279 AND BELOW
AUSTRALIA 8056219 AND BELOW BELGIUM 9207525 AND BELOW
CANADA 7110997 AND BELOW -
4248-8722A5 FLYWHEEL ASSEMBLY
UNITED STATES 5128280 AND UP
AUSTRALIA 8056220 AND UP
BELGIUM 9207526 AND UP
CANADA 7129888 AND UPFLYWHEEL ASSEMBLY
UNITED STATES 5128280 AND UP
AUSTRALIA 8056220 AND UP
BELGIUM 9207526 AND UP
CANADA 7129888 AND UP -
510-68997 SCREW, PLATE/HUB TO FLEXIBLE PLATE (3/4")SCREW, PLATE/HUB TO FLEXIBLE PLATE (3/4")
-
610-32417 SCREW, FLEXIBLE PLATE TO FLYWHEEL (5/8")SCREW, FLEXIBLE PLATE TO FLYWHEEL (5/8")
-
7889351 PLATE, SWITCH BOXPLATE, SWITCH BOX
-
825-57009001 GROMMET, SWITCH BOX PLATEGROMMET, SWITCH BOX PLATE
-
910-824941 SCREW
SWITCH BOX PLATE TO CYLINDER BLOCK (3/4")SCREW
SWITCH BOX PLATE TO CYLINDER BLOCK (3/4") -
1012-56720 WASHER, SWITCH BOX PLATE SCREWWASHER, SWITCH BOX PLATE SCREW
-
11332-7778A12 SWITCH BOX ASSEMBLYSWITCH BOX ASSEMBLY
-
1210-26251 SCREW, SWITCH BOX TO PLATE (13/16")SCREW, SWITCH BOX TO PLATE (13/16")
-
1346933A6 WIRE ASSEMBLY, SWITCH BOX SCREWWIRE ASSEMBLY, SWITCH BOX SCREW
-
1411-45076 NUT, SWITCH BOX TERMINALNUT, SWITCH BOX TERMINAL
-
1584-60443A3 WIRE ASSEMBLY, SWITCH BOX TO COIL (GREEN)WIRE ASSEMBLY, SWITCH BOX TO COIL (GREEN)
-
1584-62822A1 WIRE ASSEMBLY
SWITCH BOX TO COIL (GREEN/WHITE)WIRE ASSEMBLY
SWITCH BOX TO COIL (GREEN/WHITE) -
1584-68896A1 WIRE ASSEMBLY
SWITCH BOX TO COIL (GREEN/RED)WIRE ASSEMBLY
SWITCH BOX TO COIL (GREEN/RED) -
1684-60466A17 WIRE ASSEMBLY, SWITCH BOX TO COIL (BLACK)WIRE ASSEMBLY, SWITCH BOX TO COIL (BLACK)
-
1773439 PLATE, MOUNTING-IGNITION COILPLATE, MOUNTING-IGNITION COIL
-
18339-5288T2 IGNITION COIL ASSEMBLY
UNITED STATES 5128279 AND BELOW
AUSTRALIA 8056219 AND BELOW
BELGIUM 9207525 AND BELOW
CANADA 7110997 AND BELOWIGNITION COIL ASSEMBLY
UNITED STATES 5128279 AND BELOW
AUSTRALIA 8056219 AND BELOW
BELGIUM 9207525 AND BELOW
CANADA 7110997 AND BELOW -
18339-832757A4 IGNITION COIL ASSEMBLY
UNITED STATES 5128280 AND UP
AUSTRALIA 8056220 AND UP
BELGIUM 9207526 AND UP
CANADA 7129888 AND UPIGNITION COIL ASSEMBLY
UNITED STATES 5128280 AND UP
AUSTRALIA 8056220 AND UP
BELGIUM 9207526 AND UP
CANADA 7129888 AND UP -
1911-45076 NUT, IGNITION COIL TERMINALNUT, IGNITION COIL TERMINAL
-
2043542 COVER, IGNITION COILCOVER, IGNITION COIL
-
2110-46368 SCREW, COVER TO MOUNTING PLATE (2")SCREW, COVER TO MOUNTING PLATE (2")
-
22398-5704A7 STATOR ASSEMBLY
UNITED STATES 5128279 AND BELOW
AUSTRALIA 8056219 AND BELOW BELGIUM 9207525 AND BELOW
CANADA 7110997 AND BELOWSTATOR ASSEMBLY
UNITED STATES 5128279 AND BELOW
AUSTRALIA 8056219 AND BELOW BELGIUM 9207525 AND BELOW
CANADA 7110997 AND BELOW -
22398-5704A7 STATOR ASSEMBLY
UNITED STATES 5128280 AND UP
AUSTRALIA 8056220 AND UP
BELGIUM 9207526 AND UP
CANADA 7129888 AND UPSTATOR ASSEMBLY
UNITED STATES 5128280 AND UP
AUSTRALIA 8056220 AND UP
BELGIUM 9207526 AND UP
CANADA 7129888 AND UP -
2310-63136 SCREW, STATOR TO UPPER END CAP (7/8")SCREW, STATOR TO UPPER END CAP (7/8")
-
2496455A8 TRIGGER PLATE ASSEMBLYTRIGGER PLATE ASSEMBLY
-
2554-28700 CLAMP, STATOR LEADS ATTACHINGCLAMP, STATOR LEADS ATTACHING
-
2610-98253 SCREW, CLAMP TO CRANKCASE (1/2")SCREW, CLAMP TO CRANKCASE (1/2")
-
2784-813715A1 WIRE ASSEMBLY, SPARK PLUGWIRE ASSEMBLY, SPARK PLUG
-
28332-2854T01 BOOT, IGNITION COIL ENDBOOT, IGNITION COIL END
-
2933-97180Q SPARK PLUG (AC#V40FFM)SPARK PLUG (AC#V40FFM)
-
2933-14103550 SPARK PLUG
(CHAMPION #QL-76V) - CANADA AND BELGIUMSPARK PLUG
(CHAMPION #QL-76V) - CANADA AND BELGIUM
