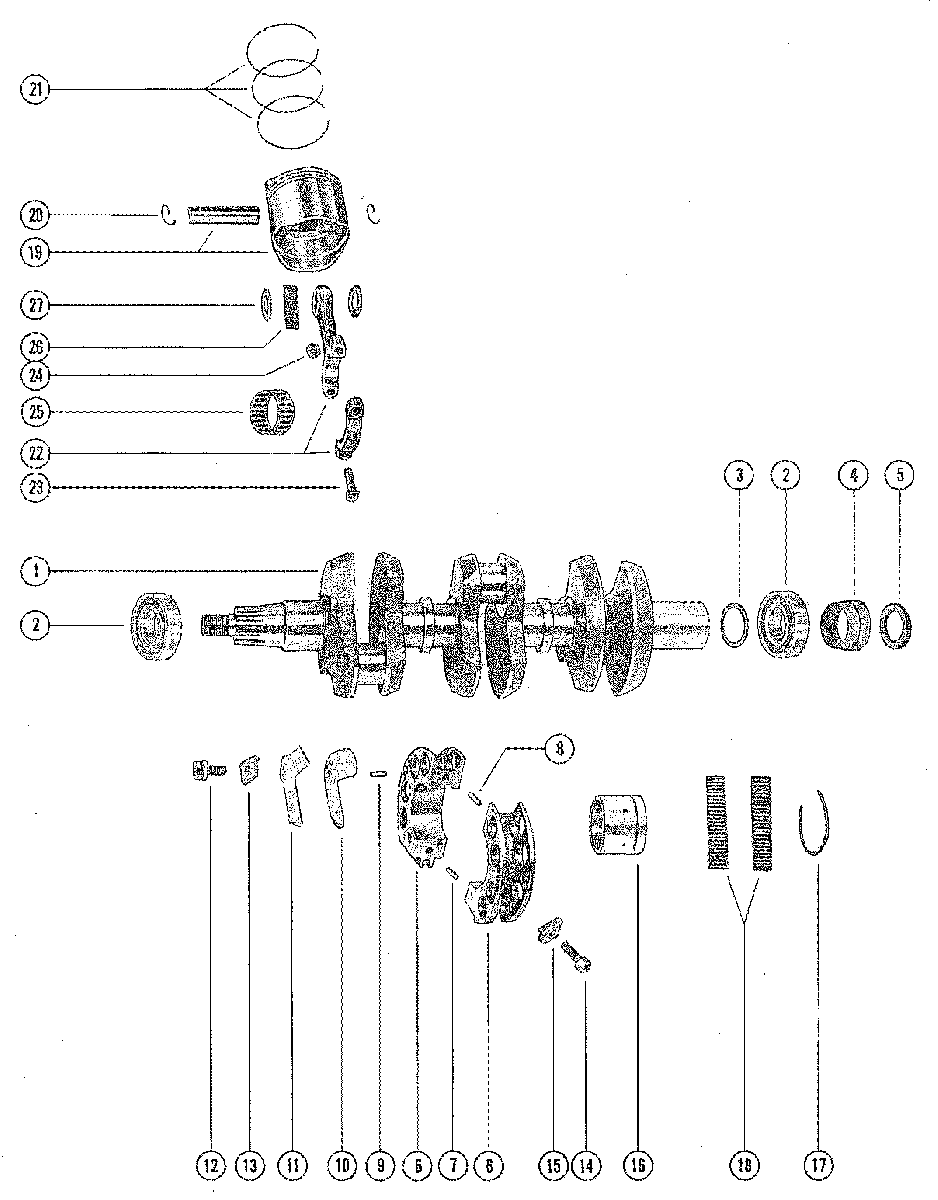

CRANKSHAFT, PISTONS AND CONNECTING RODS для Mercury - 70 (3 CYL.) 9135825 THRU 9255130
-
№АртикулНазвание
-
1462-8839A2 CRANKSHAFT ASSEMBLY
UNITED STATES 4977156 AND BELOW
AUSTRALIA 8050199 AND BELOW
BELGIUM 9196960 AND BELOW CANADA 7110997 AND BELOWCRANKSHAFT ASSEMBLY
UNITED STATES 4977156 AND BELOW
AUSTRALIA 8050199 AND BELOW
BELGIUM 9196960 AND BELOW CANADA 7110997 AND BELOW -
1462-8839A2 CRANKSHAFT ASSEMBLY
UNITED STATES 4977157 AND UP
AUSTRALIA 8050200 AND UP
BELGIUM 9196961 AND UP
CANADA 7110998 AND UPCRANKSHAFT ASSEMBLY
UNITED STATES 4977157 AND UP
AUSTRALIA 8050200 AND UP
BELGIUM 9196961 AND UP
CANADA 7110998 AND UP -
230-64424T BEARING, BALL-LOWER AND UPPERBEARING, BALL-LOWER AND UPPER
-
315-22369A1 SHIM, LOWER BEARING TO CRANKSHAFTSHIM, LOWER BEARING TO CRANKSHAFT
-
460834A3 CARRIER ASSEMBLY, "O"RING-METAL SEAL CARRIER PRESSED IN CRAN
METAL SEAL CARRIER PRESSED IN CRANKSHAFTCARRIER ASSEMBLY, "O"RING-METAL SEAL CARRIER PRESSED IN CRAN
METAL SEAL CARRIER PRESSED IN CRANKSHAFT -
564254001 "O"RING, CARRIER
METAL SEAL CARRIER PRESSED IN CRANKSHAFT"O"RING, CARRIER
METAL SEAL CARRIER PRESSED IN CRANKSHAFT -
6542-7509A3 MAIN BEARING ASSEMBLY ( VALVE TYPE)MAIN BEARING ASSEMBLY ( VALVE TYPE)
-
717-20032 DOWEL PIN, MAIN BEARINGDOWEL PIN, MAIN BEARING
-
817-60282 DOWEL PIN (STEPPED)DOWEL PIN (STEPPED)
-
917-65855 DOWEL PIN, REED STOPDOWEL PIN, REED STOP
-
1034-66051A1 REED SET, MATCHED-MAIN BEARINGREED SET, MATCHED-MAIN BEARING
-
1134-65946 REED STOPREED STOP
-
1210-77280 SCREW, REED STOP MOUNTING (9/16")SCREW, REED STOP MOUNTING (9/16")
-
1311-20110 NUT, REED STOP MOUNTING SCREWNUT, REED STOP MOUNTING SCREW
-
1410-45775 SCREW, MAIN BEARING CLAMPING (9/16")SCREW, MAIN BEARING CLAMPING (9/16")
-
1511-45774 NUT, MAIN BEARING SCREW CLAMPINGNUT, MAIN BEARING SCREW CLAMPING
-
1626113T RACE, OUTER(PAIR)RACE, OUTER(PAIR)
-
1753-26933 RING, SNAP-OUTER RACE CLAMPINGRING, SNAP-OUTER RACE CLAMPING
-
1829-714221 BEARING, NEEDLEBEARING, NEEDLE
-
19774-9137A12 PISTON AND PISTON PIN ASSEMBLY
UNITED STATES 4825248 AND BELOW
AUSTRALIA 8049849 AND BELOW
BELGIUM 9176875 AND BELOW
CANADA 7110247 AND BELOWPISTON AND PISTON PIN ASSEMBLY
UNITED STATES 4825248 AND BELOW
AUSTRALIA 8049849 AND BELOW
BELGIUM 9176875 AND BELOW
CANADA 7110247 AND BELOW -
19774-9137A12 PISTON AND PISTON PIN ASSEMBLY
UNITED STATES 4825249 AND UP
AUSTRALIA 8049850 AND UP
BELGIUM 9176876 AND UP
CANADA 7110248 AND UPPISTON AND PISTON PIN ASSEMBLY
UNITED STATES 4825249 AND UP
AUSTRALIA 8049850 AND UP
BELGIUM 9176876 AND UP
CANADA 7110248 AND UP -
2053-857196 LOCK RING, PISTON PINLOCK RING, PISTON PIN
-
2139-78816A12 RING PISTONRING PISTON
-
22624-8101A3 CONNECTING ROD AND CAP ASSEMBLYCONNECTING ROD AND CAP ASSEMBLY
-
2310-54803 SCREW, CAP TO CONNECTING ROD (1 1/2")SCREW, CAP TO CONNECTING ROD (1 1/2")
-
2411-49091 NUT, CONNECTING ROD SCREWNUT, CONNECTING ROD SCREW
-
2531-62596A1 BEARING ASSEMBLY, CRANKPINBEARING ASSEMBLY, CRANKPIN
-
2629-47270 BEARING, NEEDLE-PISTON PINBEARING, NEEDLE-PISTON PIN
-
2712-8M0032839 WASHER, NEEDLE LOCATINGWASHER, NEEDLE LOCATING
-
--774-9137A13 PISTON AND PISTON PIN ASSEMBLY- (.015)
UNITED STATES 4825248 AND BELOW
AUSTRALIA 8049849 AND BELOW
BELGIUM 9176875 AND BELOW
CANADA 7110247 AND BELOWPISTON AND PISTON PIN ASSEMBLY- (.015)
UNITED STATES 4825248 AND BELOW
AUSTRALIA 8049849 AND BELOW
BELGIUM 9176875 AND BELOW
CANADA 7110247 AND BELOW -
--774-9137A13 PISTON AND PISTON PIN ASSEMBLY- (.015)
UNITED STATES 4825249 AND UP
AUSTRALIA 8049850 AND UP
BELGIUM 9176876 AND UP
CANADA 7110248 AND UPPISTON AND PISTON PIN ASSEMBLY- (.015)
UNITED STATES 4825249 AND UP
AUSTRALIA 8049850 AND UP
BELGIUM 9176876 AND UP
CANADA 7110248 AND UP -
--39-78811A12 RING, PISTON(.015)RING, PISTON(.015)
-
-27-88449A32 GASKET SETGASKET SET
-
--27-88449A32 GASKET SETGASKET SET
