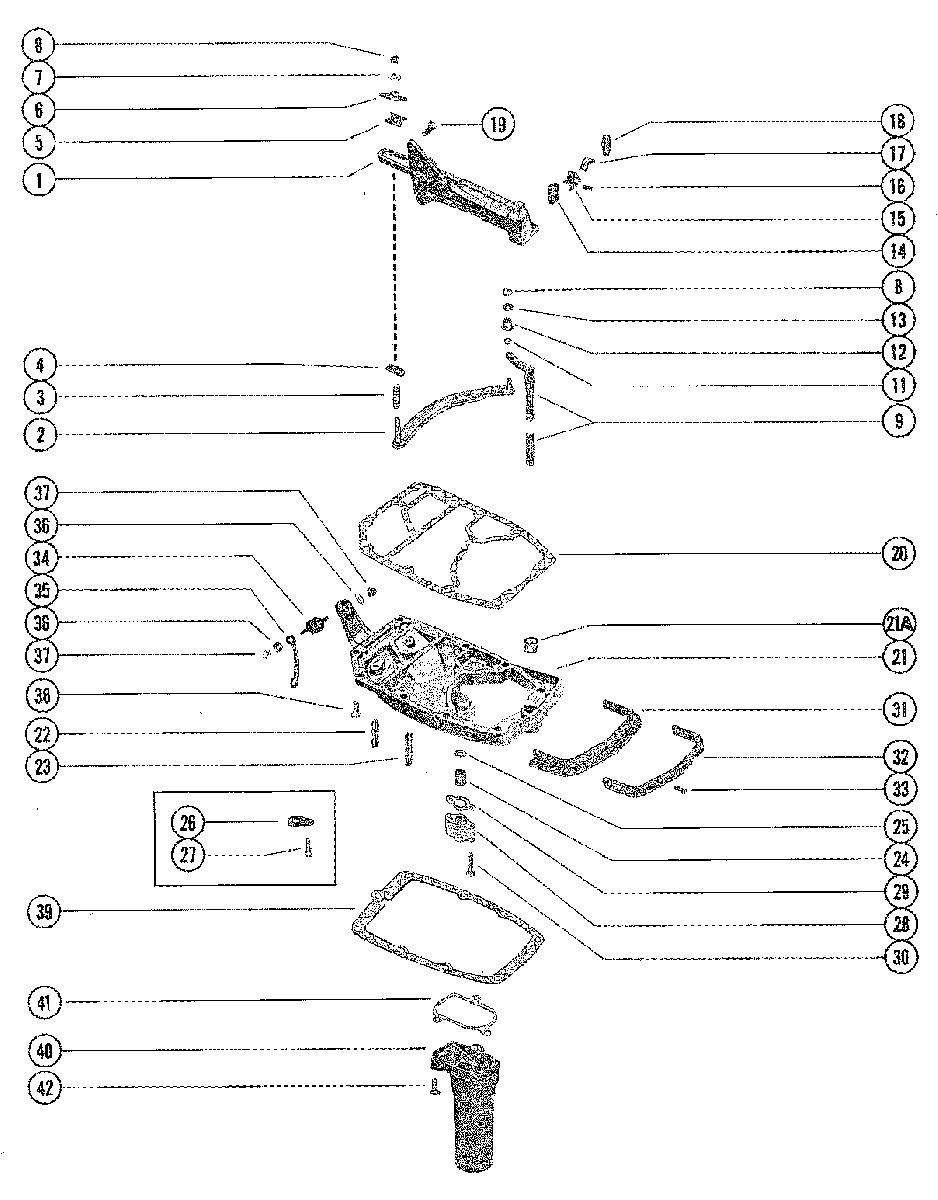

SHIFT LINKAGE AND EXHAUST PLATE для Mercury - 70 (3 CYL.) 9135825 THRU 9255130
-
№АртикулНазвание
-
1814283A2 BRACKET, ANDCHOR-CONTROL CABLESBRACKET, ANDCHOR-CONTROL CABLES
-
260283A1 LINK ASSEMBLY
SHIFT SHAFT AND ANCHOR BRACKETLINK ASSEMBLY
SHIFT SHAFT AND ANCHOR BRACKET -
324-20099 SPRING, LINK TO ANCHOR BRACKETSPRING, LINK TO ANCHOR BRACKET
-
437896 GUIDE BLOCK, LINKGUIDE BLOCK, LINK
-
552100 WEAR PLATE, NYLON-LINKWEAR PLATE, NYLON-LINK
-
68M0036768 LATCH, LINK TO ANCHOR BRACKETLATCH, LINK TO ANCHOR BRACKET
-
712-69056 WASHER, LINK LATCHWASHER, LINK LATCH
-
811-36069 NUT, LINK ATTACHINGNUT, LINK ATTACHING
-
975355A30 SHIFT SHAFT ASSEMBLY, UPPER (SHORT SHAFT)
UNITED STATES 4825248 AND BELOW
AUSTRALIA 8049849 AND BELOW
BELGIUM 9176875 AND BELOW
CANADA 7110247 AND BELOWSHIFT SHAFT ASSEMBLY, UPPER (SHORT SHAFT)
UNITED STATES 4825248 AND BELOW
AUSTRALIA 8049849 AND BELOW
BELGIUM 9176875 AND BELOW
CANADA 7110247 AND BELOW -
975355A32 SHIFT SHAFT ASSEMBLY, UPPER (LONG SHAFT)
UNITED STATES 4825248 AND BELOW
AUSTRALIA 8049849 AND BELOW
BELGIUM 9176875 AND BELOW
CANADA 7110247 AND BELOWSHIFT SHAFT ASSEMBLY, UPPER (LONG SHAFT)
UNITED STATES 4825248 AND BELOW
AUSTRALIA 8049849 AND BELOW
BELGIUM 9176875 AND BELOW
CANADA 7110247 AND BELOW -
975355A30 SHIFT SHAFT ASSEMBLY, UPPER (SHORT SHAFT)
UNITED STATES 4825249 AND UP
AUSTRALIA 8049850 AND UP
BELGIUM 9176876 AND UP
CANADA 7110248 AND UPSHIFT SHAFT ASSEMBLY, UPPER (SHORT SHAFT)
UNITED STATES 4825249 AND UP
AUSTRALIA 8049850 AND UP
BELGIUM 9176876 AND UP
CANADA 7110248 AND UP -
975355A32 SHIFT SHAFT ASSEMBLY, UPPER (LONG SHAFT)
UNITED STATES 4825249 AND UP
AUSTRALIA 8049850 AND UP
BELGIUM 9176876 AND UP
CANADA 7110248 AND UPSHIFT SHAFT ASSEMBLY, UPPER (LONG SHAFT)
UNITED STATES 4825249 AND UP
AUSTRALIA 8049850 AND UP
BELGIUM 9176876 AND UP
CANADA 7110248 AND UP -
1113-29720 WASHER, WAVE-SHIFT SHAFER TO LINKWASHER, WAVE-SHIFT SHAFER TO LINK
-
1223-26600 BUSHING, NYLON-SHIFT SHAFT TO LINKBUSHING, NYLON-SHIFT SHAFT TO LINK
-
1312-35462 WASHER, LINK (SHIFT SHAFT END)WASHER, LINK (SHIFT SHAFT END)
-
1439519 CUP, RETAINER-ANCHOR BRACKETCUP, RETAINER-ANCHOR BRACKET
-
1587609A1 LEVER, LYLON-SHIFT CABLE LOCKINGLEVER, LYLON-SHIFT CABLE LOCKING
-
1617-47175 PIN, LOCKING LEVER AND CPVER FASTENINGPIN, LOCKING LEVER AND CPVER FASTENING
-
1787609A1 LINK, LOCKING LEVER TO COVERLINK, LOCKING LEVER TO COVER
-
1839667 COVER, NYLON-SHIFT CALBECOVER, NYLON-SHIFT CALBE
-
1910-69101 SCREW
ANCHOR BRACKET TO CRANKCASE/CYL. BLOCK (7/8")SCREW
ANCHOR BRACKET TO CRANKCASE/CYL. BLOCK (7/8") -
2027-884511 GASKET, POWERHEAD TO EXHAUST PLATE
UNITED STATES 4825248 AND BELOW AUSTRALIA 8049849 AND BELOW
BELGIUM 9176875 AND BELOW
CANADA 7110247 AND BELOWGASKET, POWERHEAD TO EXHAUST PLATE
UNITED STATES 4825248 AND BELOW AUSTRALIA 8049849 AND BELOW
BELGIUM 9176875 AND BELOW
CANADA 7110247 AND BELOW -
2027-884511 GASKET, POWERHEAD TO EXHAUST PLATE
UNITED STATES 4825249 AND UP
AUSTRALIA 8049850 AND UP
BELGIUM 9176876 AND UP
CANADA 7110248 AND UPGASKET, POWERHEAD TO EXHAUST PLATE
UNITED STATES 4825249 AND UP
AUSTRALIA 8049850 AND UP
BELGIUM 9176876 AND UP
CANADA 7110248 AND UP -
2179618A3 EXHAUST PLATE ASSEMBLY
UNITED STATES 4825248 AND BELOW AUSTRALIA 8049849 AND BELOW
BELGIUM 9176875 AND BELOW
CANADA 7110247 AND BELOWEXHAUST PLATE ASSEMBLY
UNITED STATES 4825248 AND BELOW AUSTRALIA 8049849 AND BELOW
BELGIUM 9176875 AND BELOW
CANADA 7110247 AND BELOW -
2179618A3 EXHAUST PLATE ASSEMBLY-SERIEL GROUP #5EXHAUST PLATE ASSEMBLY-SERIEL GROUP #5
-
2179618A3 EXHAUST PLATE ASSEMBLY
UNITED STATES 4977157 THRU 5128279
AUSTRALIA 8050200 THRU 8056219
BELGIUM 9196961 THRU 9207525
CANADA 7110998 THRU 7129887EXHAUST PLATE ASSEMBLY
UNITED STATES 4977157 THRU 5128279
AUSTRALIA 8050200 THRU 8056219
BELGIUM 9196961 THRU 9207525
CANADA 7110998 THRU 7129887 -
2179618A3 ESHAUST PLATE ASSEMBLY
UNITED STATES 5128280 AND UP
AUSTRALIA 8056220 AND UP
BELGIUM 9207526 AND UP
CANADA 7129888 AND UPESHAUST PLATE ASSEMBLY
UNITED STATES 5128280 AND UP
AUSTRALIA 8056220 AND UP
BELGIUM 9207526 AND UP
CANADA 7129888 AND UP -
21A23-27132 BUSHIING, NYLON-EXHAUST PLATEBUSHIING, NYLON-EXHAUST PLATE
-
2216-8M0034449 STUD
EXHAUST PLATE TO DRIVE SHAFT HOSING (1 11/16")STUD
EXHAUST PLATE TO DRIVE SHAFT HOSING (1 11/16") -
2316-68166 STUD
EXHAUST PLATE TO DRIVE SHAFT HOUSING (2 1/8")STUD
EXHAUST PLATE TO DRIVE SHAFT HOUSING (2 1/8") -
2473156 SEAL, WATER INLET TUBE
UNITED STATES 4825248 AND BELOW
AUSTRALIA 8049849 AND BELOW
BELGIUM 9176875 AND BELOW
CANADA 7110247 AND BELOWSEAL, WATER INLET TUBE
UNITED STATES 4825248 AND BELOW
AUSTRALIA 8049849 AND BELOW
BELGIUM 9176875 AND BELOW
CANADA 7110247 AND BELOW -
2426-38452 SEAL, WATER INLET TUBE
UNITED STATES 4825249 AND UP
AUSTRALIA 8049850 AND UP
BELGIUM 9176876 AND UP
CANADA 7110248 AND UPSEAL, WATER INLET TUBE
UNITED STATES 4825249 AND UP
AUSTRALIA 8049850 AND UP
BELGIUM 9176876 AND UP
CANADA 7110248 AND UP -
2512-38453 WASHER, NYLON-WATER INLET TUBE SEALWASHER, NYLON-WATER INLET TUBE SEAL
-
2638500 RETAINER, WATER INLET TUBE SEAL
UNITED STATES 5128279 AND BELOW
AUSTRALIA 8056219 AND BELOW
BELGIUM 9207525 AND BELOW
CANADA 7110997 AND BELOWRETAINER, WATER INLET TUBE SEAL
UNITED STATES 5128279 AND BELOW
AUSTRALIA 8056219 AND BELOW
BELGIUM 9207525 AND BELOW
CANADA 7110997 AND BELOW -
2710-69069 SCREW, RETAINER TO EXHAUST PLATE (3/4")
UNITED STATES 5128279 AND BELOW
AUSTRALIA 8056219 AND BELOW
BELGIUM 9207525 AND BELOW CANADA 7110997 AND BELOWSCREW, RETAINER TO EXHAUST PLATE (3/4")
UNITED STATES 5128279 AND BELOW
AUSTRALIA 8056219 AND BELOW
BELGIUM 9207525 AND BELOW CANADA 7110997 AND BELOW -
2879799 HOUSING, WATER INLET TUBE SEAL
UNITED STATES 5128280 AND UP
AUSTRALIA 8056220 AND UP
BELGIUM 9207526 AND UP
CANADA 7129888 AND UPHOUSING, WATER INLET TUBE SEAL
UNITED STATES 5128280 AND UP
AUSTRALIA 8056220 AND UP
BELGIUM 9207526 AND UP
CANADA 7129888 AND UP -
2927-797971 GASKET, HOUSING GROUP #7GASKET, HOUSING GROUP #7
-
3010-79798 SCREW, HOUSING TO EXHAUST PLATE GROUP #7SCREW, HOUSING TO EXHAUST PLATE GROUP #7
-
3160307 SEAL EXHAUST PLATESEAL EXHAUST PLATE
-
3260306 STRIP, RETAINING-EXHAUST PLATE SEALSTRIP, RETAINING-EXHAUST PLATE SEAL
-
3310-62568 SCREW
RETAINING STRIP TO EXHAUST PLATE (3/8")SCREW
RETAINING STRIP TO EXHAUST PLATE (3/8") -
3490435 MOUNT
RUBBER-EXHAUST PLATE TO REAR COWL SUPPORTMOUNT
RUBBER-EXHAUST PLATE TO REAR COWL SUPPORT -
3549651A1 GROUND STRAP ASS"Y
EXHAUST PLATE TO REAT COWL SUPPORTGROUND STRAP ASS"Y
EXHAUST PLATE TO REAT COWL SUPPORT -
3612-69057 WASHER, RUBBER MOUNT ATTACHINGWASHER, RUBBER MOUNT ATTACHING
-
3711-8267089 NUT, RUBBER MOUNT TO EXHAUST PLATENUT, RUBBER MOUNT TO EXHAUST PLATE
-
3810-68918 SCREW
EXHAUST PLATE TO CYLINDER BLOCK (1")SCREW
EXHAUST PLATE TO CYLINDER BLOCK (1") -
3810-28668 SCREW
EXHAUST PLATE TO CYLINDER BLOCK (7/8")SCREW
EXHAUST PLATE TO CYLINDER BLOCK (7/8") -
3927-385011 GASKET, ADAPTOR PLATE TO DRIVE SHAFT HOUSINGGASKET, ADAPTOR PLATE TO DRIVE SHAFT HOUSING
-
4042718 EXHAUST TUBE, ADAPTOREXHAUST TUBE, ADAPTOR
-
4127-602801 GASKET, EXHAUST TUBE TO EXHAUST PLATEGASKET, EXHAUST TUBE TO EXHAUST PLATE
-
4210-28636 SCREW, EXHAUST TUBE TO EXHAUST PLATE (3/4")SCREW, EXHAUST TUBE TO EXHAUST PLATE (3/4")
