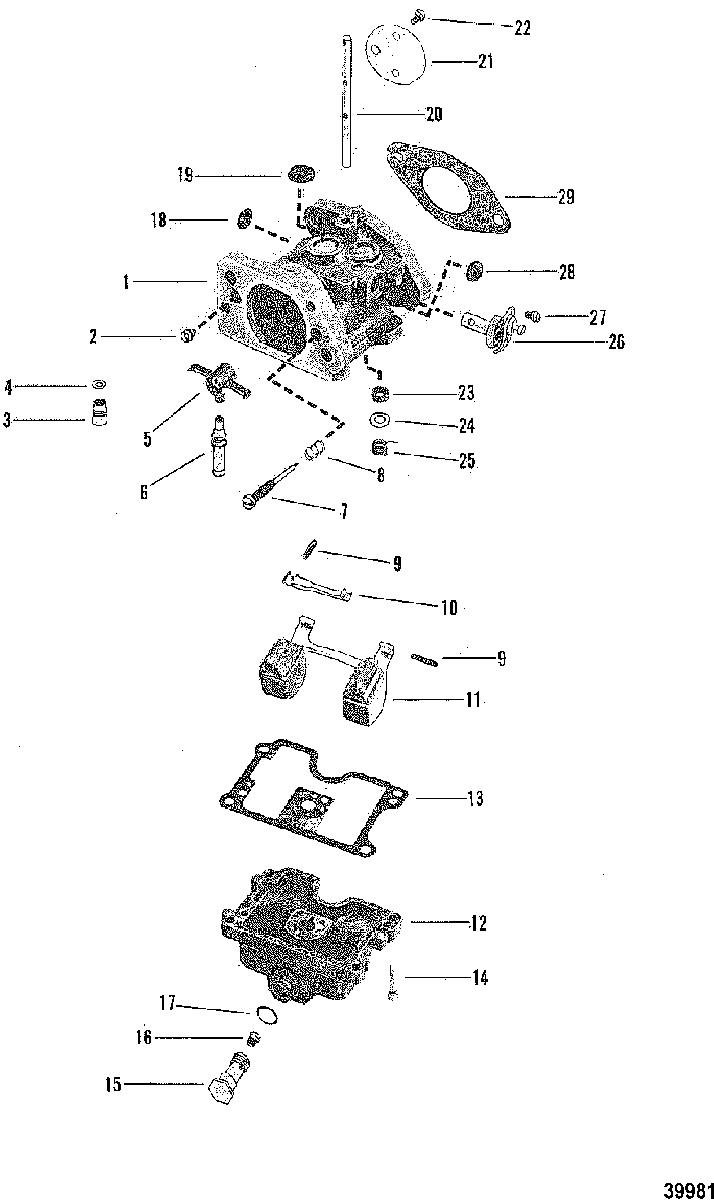

CARBURETOR ASSEMBLY для Mercury - 70 (3 CYL.) 9255131 THRU 9385910
-
№АртикулНазвание
-
11379-6071A29 CARBURETOR ASSEMBLY
(WM-11)CARBURETOR ASSEMBLY
(WM-11) -
11379-6071A39 CARBURETOR ASSEMBLY
(WM-13)CARBURETOR ASSEMBLY
(WM-13) -
21399-6249 JET, Main (.096), VENT BOWLJET, Main (.096), VENT BOWL
-
31395-83181 NEEDLE, Inlet
(WM-11)NEEDLE, Inlet
(WM-11) -
31395-83181 NEEDLE, Inlet
(WM-13)NEEDLE, Inlet
(WM-13) -
4NSS NOT SOLD SEPARATE, GASKET, INLET NEEDLE AND SEATNOT SOLD SEPARATE, GASKET, INLET NEEDLE AND SEAT
-
552106A1 VENTURI, PlasticVENTURI, Plastic
-
6NSS NOT SOLD SEPARATE, NOZZLENOT SOLD SEPARATE, NOZZLE
-
7NSS NOT SOLD SEPARATE, INLET NOZZLENOT SOLD SEPARATE, INLET NOZZLE
-
8NSS NOT SOLD SEPARATE, SPRING, IDLE MIXTURENOT SOLD SEPARATE, SPRING, IDLE MIXTURE
-
9NSS NOT SOLD SEPARATE, FLOAT PINNOT SOLD SEPARATE, FLOAT PIN
-
10NSS NOT SOLD SEPARATE, FLOAT LEVERNOT SOLD SEPARATE, FLOAT LEVER
-
1119273 FLOATFLOAT
-
121395-7835 BOWL, FuelBOWL, Fuel
-
13NSS NOT SOLD SEPARATE, GASKET, FUEL BOWLNOT SOLD SEPARATE, GASKET, FUEL BOWL
-
14NSS NOT SOLD SEPARATE, SCREW, FUEL BOWLNOT SOLD SEPARATE, SCREW, FUEL BOWL
-
15NSS NOT SOLD SEPARATE, PLUG, MAIN JETNOT SOLD SEPARATE, PLUG, MAIN JET
-
161395-6207 JET, (.072), MAINJET, (.072), MAIN
-
17NSS NOT SOLD SEPARATE, GASKET, MAIN JET PLUGNOT SOLD SEPARATE, GASKET, MAIN JET PLUG
-
18NSS NOT SOLD SEPARATE, SCREEN, FUEL INLETNOT SOLD SEPARATE, SCREEN, FUEL INLET
-
19NSS NOT SOLD SEPARATE, WELCH PLUG (9/16")NOT SOLD SEPARATE, WELCH PLUG (9/16")
-
201395-4807 SHAFT, ThrottleSHAFT, Throttle
-
211395-7833 VALVE, ThrottleVALVE, Throttle
-
22NSS NOT SOLD SEPARATE, SCREW, VALVE TO THROTTLE SHAFTNOT SOLD SEPARATE, SCREW, VALVE TO THROTTLE SHAFT
-
231395-6204 SEAL, THROTTLE SHAFTSEAL, THROTTLE SHAFT
-
241395-6203 WASHER, THROTTLE SHAFTWASHER, THROTTLE SHAFT
-
25NSS NOT SOLD SEPARATE, SPRING, THROTTLE RETURNNOT SOLD SEPARATE, SPRING, THROTTLE RETURN
-
261395-6198 VALVE ASSEMBLY, ENRICHMENTVALVE ASSEMBLY, ENRICHMENT
-
27NSS NOT SOLD SEPARATE, SCREW, ENRICHMENT BRAKETNOT SOLD SEPARATE, SCREW, ENRICHMENT BRAKET
-
28NSS NOT SOLD SEPARATE, WELCH PLUG (7/16")NOT SOLD SEPARATE, WELCH PLUG (7/16")
-
2927-733771 GASKET, CARABURETORGASKET, CARABURETOR
-
--1395-6200 GASKET KITGASKET KIT
-
--812953 REPAIR PARTS KIT
(WM-11)REPAIR PARTS KIT
(WM-11) -
--812953 REPAIR PARTS KIT
(WM-13)REPAIR PARTS KIT
(WM-13) -
-27-88449A32 GASKET SETGASKET SET
