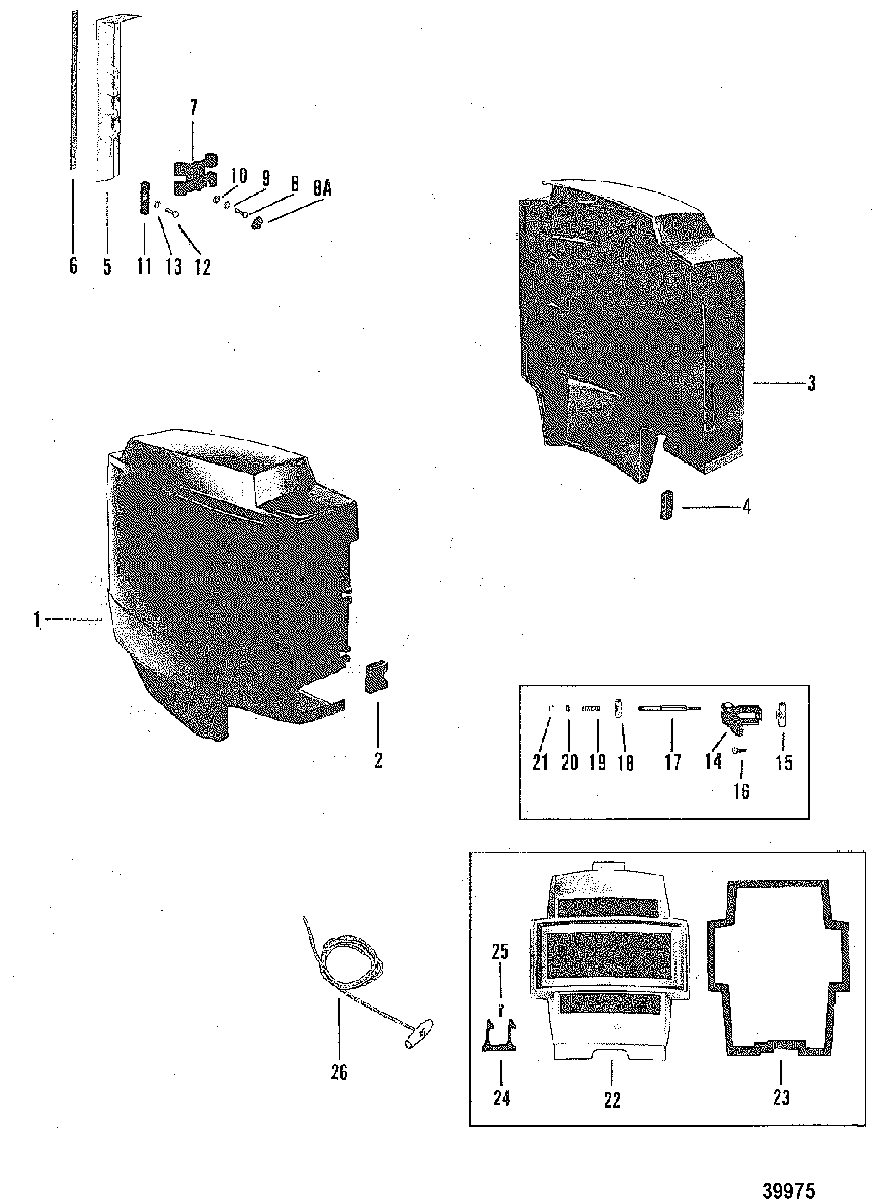

COWLING AND FRONT COVER для Mercury - 70 (3 CYL.) 9255131 THRU 9385910
-
№АртикулНазвание
-
12142-6228A1 TOP COWL ASSEMBLY, STARBOARD-WITHOUT DECALSTOP COWL ASSEMBLY, STARBOARD-WITHOUT DECALS
-
226-60297 SEAL, FUEL CONNECTOR-COWLSEAL, FUEL CONNECTOR-COWL
-
32141-6227A1 TOP COWL ASSEMBLY, PORT-WITHOUTH DECALSTOP COWL ASSEMBLY, PORT-WITHOUTH DECALS
-
426-60298 SEAL, CONTROL CABLES-COWLSEAL, CONTROL CABLES-COWL
-
589717T BRACKET, COWL SEALING-REARBRACKET, COWL SEALING-REAR
-
6698761 SEAL, REAR BRACKETSEAL, REAR BRACKET
-
790980 BRACKET, COWL HINGEBRACKET, COWL HINGE
-
810-455611 SCREW, (.250-20 x 1.12), HINGE BRACKER-LOWER (1-1/8")SCREW, (.250-20 x 1.12), HINGE BRACKER-LOWER (1-1/8")
-
810-75794 SCREW, HINGE BRACKET-UPPER (1-1/8")SCREW, HINGE BRACKET-UPPER (1-1/8")
-
8A75805 CAP, HINGE BRACKET SCREW (UPPER)CAP, HINGE BRACKET SCREW (UPPER)
-
913-26992 LOCKWASHER, (.250) Stainless Steel, HINGE BRACKET SCREWLOCKWASHER, (.250) Stainless Steel, HINGE BRACKET SCREW
-
1012-37998 WASHER, HINGE BRACKET SCREWWASHER, HINGE BRACKET SCREW
-
1012-75806 WASHER, HINGE BRACKET SCREW (UPPER)WASHER, HINGE BRACKET SCREW (UPPER)
-
1190979 PIN, COWL HINGEPIN, COWL HINGE
-
1210-28782 SCREW, (.312-18 x .880) Stainless Steel, PIN TO COWLSCREW, (.312-18 x .880) Stainless Steel, PIN TO COWL
-
1313-26993 LOCKWASHER, (.312), PIN ATTACHING SCREWLOCKWASHER, (.312), PIN ATTACHING SCREW
-
1446785A5 LATCH ASSEMBLY, CowlLATCH ASSEMBLY, Cowl
-
1562628 BARREL, COWL LATCHBARREL, COWL LATCH
-
1610-31312 SCREW, (#10-32 x 0.875), LATCH ASSEMBLY TO BARRELSCREW, (#10-32 x 0.875), LATCH ASSEMBLY TO BARREL
-
1715222 BAR, ADJUSTMENT-COWL LATCHBAR, ADJUSTMENT-COWL LATCH
-
1862629 BARREL, COWL LATCHBARREL, COWL LATCH
-
1924-62624 SPRING, TENSION-COWL LATCHSPRING, TENSION-COWL LATCH
-
2012-30164 WASHER, (.192 x .375 x .0312) Stainless Steel, AJUSTMENT BAR TO BARRELWASHER, (.192 x .375 x .0312) Stainless Steel, AJUSTMENT BAR TO BARREL
-
2111-859124 NUT, (#10-32) Stainless Steel, ADJUSTMENT BAR TO BARRELNUT, (#10-32) Stainless Steel, ADJUSTMENT BAR TO BARREL
-
222143-7254A3 FRONT COVER, WITHOUT DECALSFRONT COVER, WITHOUT DECALS
-
23795511 BLANKET, SOUND ABSORBINGBLANKET, SOUND ABSORBING
-
2461158T HOOK, FRONT COVERHOOK, FRONT COVER
-
2510-69570 SCREW, (#10-16 x .750), HOOK TO FRONT COVERSCREW, (#10-16 x .750), HOOK TO FRONT COVER
-
2647341A11 ROPE AND HANDLE KIT, Manual/Emergency Start (FOR MANUAL STARTING ONLY)ROPE AND HANDLE KIT, Manual/Emergency Start (FOR MANUAL STARTING ONLY)
