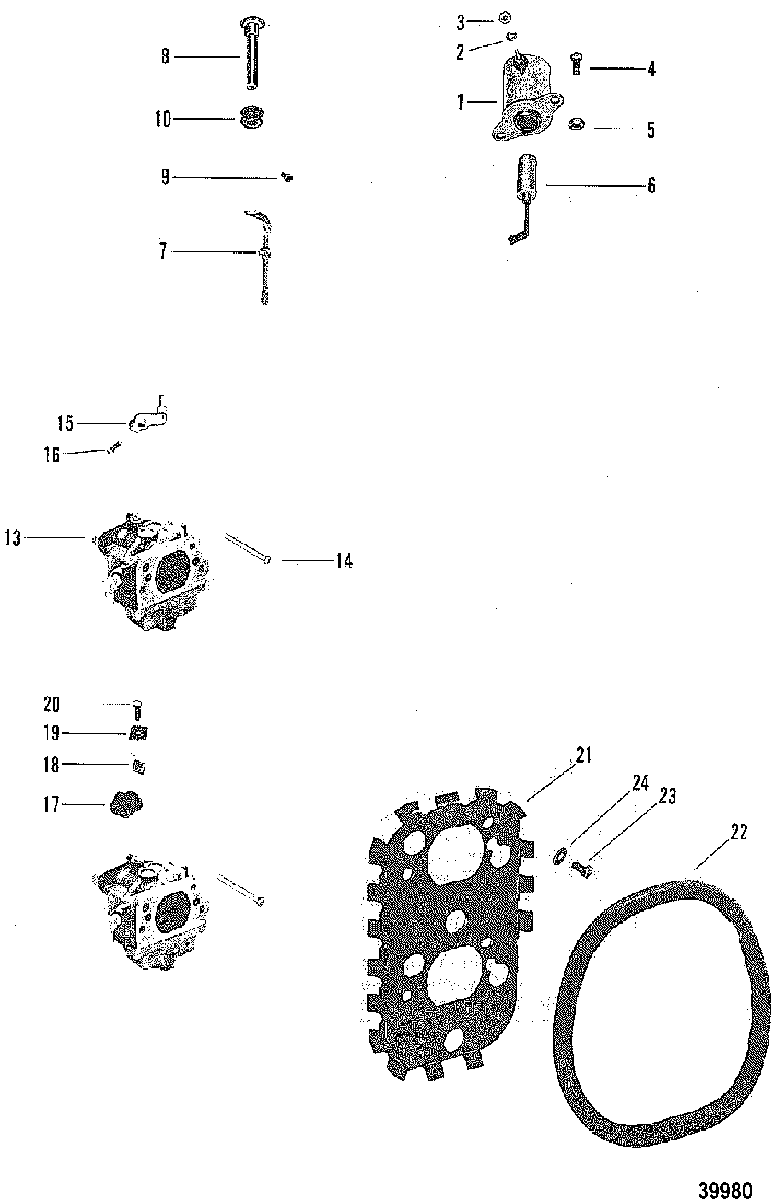

CARBURETOR LINKAGE AND CHOKE SOLENOID для Mercury - 70 (3 CYL.) 9255131 THRU 9385910
-
№АртикулНазвание
-
160549A7 SOLENOID ASSEMBLY, ChokeSOLENOID ASSEMBLY, Choke
-
213-26996 LOCKWASHER, (#10) Stainless Steel, CHOKE SOLENOID TERMINALLOCKWASHER, (#10) Stainless Steel, CHOKE SOLENOID TERMINAL
-
311-68219 NUT, (#10-32) Stainless Steel, CHOKE SOLENOID TERMINALNUT, (#10-32) Stainless Steel, CHOKE SOLENOID TERMINAL
-
410-33524 SCREW, (.312-24 x .620), CHOKE SOLENOIDSCREW, (.312-24 x .620), CHOKE SOLENOID
-
410-78841 SCREW, CHOKE SOLENOID (1-1/2")SCREW, CHOKE SOLENOID (1-1/2")
-
511-29250 NUT, (.312-24), CHOKE SOLENOID SCREWSNUT, (.312-24), CHOKE SOLENOID SCREWS
-
689008A2 PLUNGER ASSEMBLY, CHOKE SOLENOIDPLUNGER ASSEMBLY, CHOKE SOLENOID
-
776076A1 ROD ASSEMBLY, ChokeROD ASSEMBLY, Choke
-
890242A1 KNOB ASSEMBLYKNOB ASSEMBLY
-
910-77137 SCREW, (.190-16 x .620), WIRE TO CHOKE KNOBSCREW, (.190-16 x .620), WIRE TO CHOKE KNOB
-
1025-20116 GROMMET, CHOKE KNOBGROMMET, CHOKE KNOB
-
131379-6071A29 CARBURETOR ASSEMBLY
(WM-11)CARBURETOR ASSEMBLY
(WM-11) -
131379-6071A39 CARBURETOR ASSEMBLY
(WM-13)CARBURETOR ASSEMBLY
(WM-13) -
1410-52743 SCREW, (.312-18 x 3.750), CARBURETOR TO CRANKCASESCREW, (.312-18 x 3.750), CARBURETOR TO CRANKCASE
-
1577583 LEVER, THROTTLELEVER, THROTTLE
-
1610-60293 SCREW, (#5-40 x .500), LEVER TO CARBURETORSCREW, (#5-40 x .500), LEVER TO CARBURETOR
-
1760292A1 COUPLING ASSEMBLYCOUPLING ASSEMBLY
-
1828-89694 KEY, THROTTLE SHAFT COUPLINGKEY, THROTTLE SHAFT COUPLING
-
1911-92500 PUSH NUT, ROLLER-COUPLINGPUSH NUT, ROLLER-COUPLING
-
2010-60293 SCREW, (#5-40 x .500), ROLLED WASHER TO COUPLINGSCREW, (#5-40 x .500), ROLLED WASHER TO COUPLING
-
2191996A1 PLATE ASSEMBLY, CARBURETORPLATE ASSEMBLY, CARBURETOR
-
2271090 SEAL, CARBURETOR PLATESEAL, CARBURETOR PLATE
-
2310-20367 SCREW, PLATE TO CARBURETOR (7/16")SCREW, PLATE TO CARBURETOR (7/16")
-
2412-29245 WASHER, (.281 x .500 x .060) Stainless Steel, PLATE SCREWWASHER, (.281 x .500 x .060) Stainless Steel, PLATE SCREW
