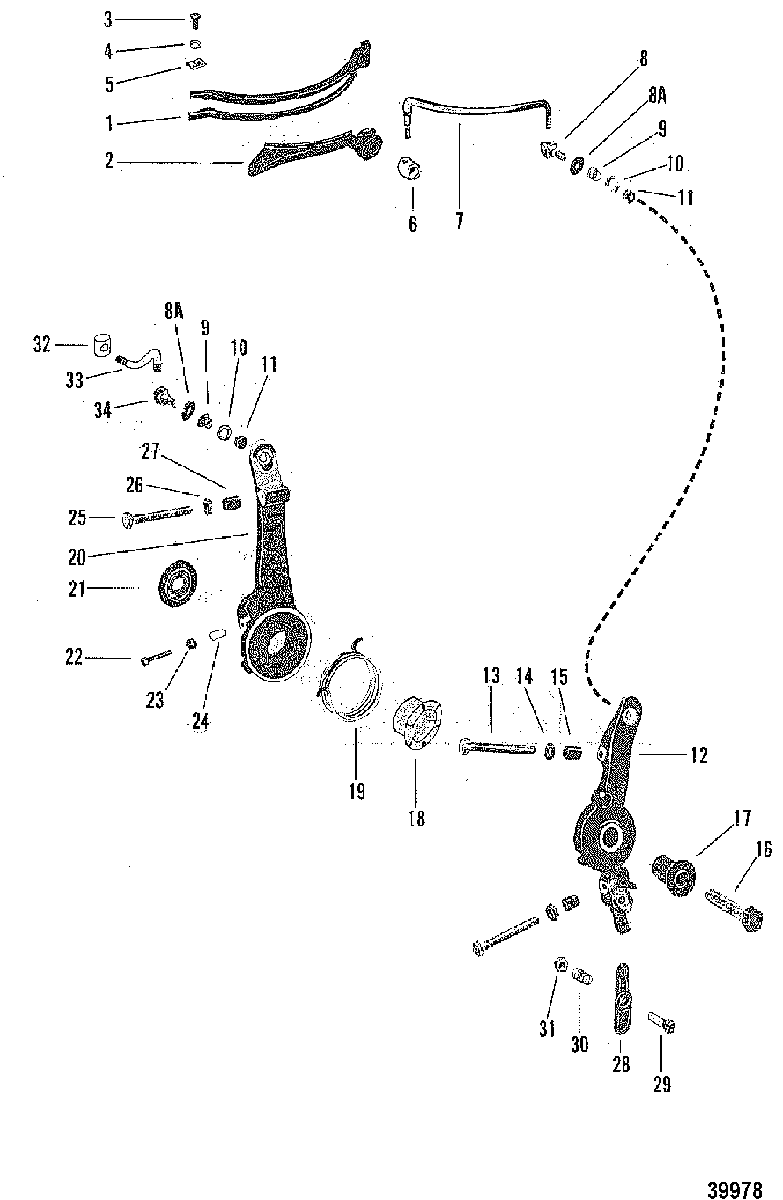

THROTTLE CONTROL LINKAGE AND SPARK ADVANCE для Mercury - 70 (3 CYL.) 9255131 THRU 9385910
-
№АртикулНазвание
-
176864 HOUSING, NYLON-THROTTLE ACTUATORHOUSING, NYLON-THROTTLE ACTUATOR
-
277025 CAM, NYLON-THROTTLE ACTUATORCAM, NYLON-THROTTLE ACTUATOR
-
310-37571 SCREW, (.190-32 x .500), HOUSINGSCREW, (.190-32 x .500), HOUSING
-
413-26996 LOCKWASHER, (#10) Stainless Steel, HOUSING SCREWLOCKWASHER, (#10) Stainless Steel, HOUSING SCREW
-
560570 PLATE, RETAINER-ACTUATOR HOUSINGPLATE, RETAINER-ACTUATOR HOUSING
-
623-74213 BARREL, NYLON-THROTTLE LINK RODBARREL, NYLON-THROTTLE LINK ROD
-
774164 ROD, LINK-THROTTLEROD, LINK-THROTTLE
-
877013A1 SWIVEL, LINK ROD TO THROTTLE CONTROL LEVERSWIVEL, LINK ROD TO THROTTLE CONTROL LEVER
-
8A13-29402 WAVE WASHER, LINK ROD SWIVELWAVE WASHER, LINK ROD SWIVEL
-
923-26856 BUSHING, LIINK ROD SWIVELBUSHING, LIINK ROD SWIVEL
-
1012-73288 WASHER, LINK ROD SWIVELWASHER, LINK ROD SWIVEL
-
1111-45774 NUT, LINK ROD SWIVELNUT, LINK ROD SWIVEL
-
1277032A2 LEVER ASSEMBLY, THROTTLE CONTROLLEVER ASSEMBLY, THROTTLE CONTROL
-
1310-67916 SCREW, THROTTLE LEVER ADJUSTINE (2")SCREW, THROTTLE LEVER ADJUSTINE (2")
-
1411-29598 NUT, (.250-28) Stainless Steel, JAM-ADJUSTING SCREWNUT, (.250-28) Stainless Steel, JAM-ADJUSTING SCREW
-
1552023 CAP, ADJUSTING SCREWCAP, ADJUSTING SCREW
-
1610-818165 SCREW, (.375-16 x 1.75), THROTTLE CONTROL LEVERSCREW, (.375-16 x 1.75), THROTTLE CONTROL LEVER
-
1723-55164 BUSHING, THROTTLE CONTROL LEVER SCREWBUSHING, THROTTLE CONTROL LEVER SCREW
-
1823-55171 BUSHING, THROTTLE CONTROL LEVER SCREWBUSHING, THROTTLE CONTROL LEVER SCREW
-
1924-55162 SPRING, RETURN-SPARK ADVANCE LEVERSPRING, RETURN-SPARK ADVANCE LEVER
-
2077031A2 LEVER ASSEMBLY, SPARK ADVANCELEVER ASSEMBLY, SPARK ADVANCE
-
2112-46765 WASHER, THROTTLE CONTROL LEVER SCREWWASHER, THROTTLE CONTROL LEVER SCREW
-
2210-73656 SCREW, SPARK ADVANCE ADJUSTING (1-1/2")SCREW, SPARK ADVANCE ADJUSTING (1-1/2")
-
2311-68219 NUT, (#10-32) Stainless Steel, ADJUSTING SCREWNUT, (#10-32) Stainless Steel, ADJUSTING SCREW
-
2448039 CAP, ADJUSTING SCREWCAP, ADJUSTING SCREW
-
2510-77650 SCREW, SPARK ADVANCE LEVER ADJUSTING (2-1/4")SCREW, SPARK ADVANCE LEVER ADJUSTING (2-1/4")
-
2611-29598 NUT, (.250-28) Stainless Steel, JAM-ADJUSTING SCREWNUT, (.250-28) Stainless Steel, JAM-ADJUSTING SCREW
-
2752023 CAP, ADJUSTING SCREWCAP, ADJUSTING SCREW
-
2839483 LATCH, THROTTLE CONTROL LEVER (THROTTLE CABLE)LATCH, THROTTLE CONTROL LEVER (THROTTLE CABLE)
-
2910-69026 SCREW, (.250-28 x .880), LATCH TO THROTTLE CONTROL LEVERSCREW, (.250-28 x .880), LATCH TO THROTTLE CONTROL LEVER
-
3024-20099 SPRING, COMPRESSION-LATCH SCREWSPRING, COMPRESSION-LATCH SCREW
-
3111-826709109 NUT, (.250-28), LATCH ATTACHING SCREWNUT, (.250-28), LATCH ATTACHING SCREW
-
3274897T PIVOT, LINK ROD TO STATORPIVOT, LINK ROD TO STATOR
-
3374212 ROD, LINK-SPARK ADVANCEROD, LINK-SPARK ADVANCE
-
3477013A1 SWIVEL, LINK ROD TO SPARK ADVANCE LEVERSWIVEL, LINK ROD TO SPARK ADVANCE LEVER
