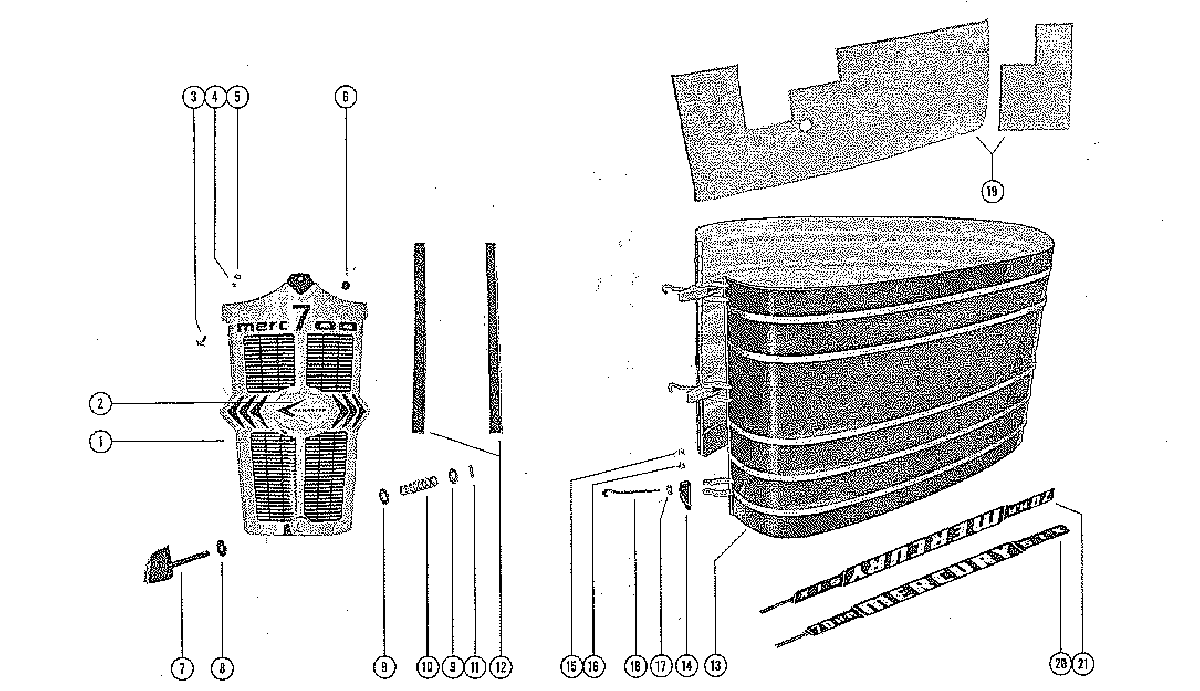

COWLING AND FRONT COVER для Mercury - 700 (6 CYL.) 1413611 THRU 1566239
-
№АртикулНазвание
-
1184-2043A3 COWL FRONT COVER ASSEMBLY (NOT AS SHOWN)COWL FRONT COVER ASSEMBLY (NOT AS SHOWN)
-
1184-2043A3 COWL FRONT COVER ASSEMBLYCOWL FRONT COVER ASSEMBLY
-
226183A5 EMBLEM, FRONT COVEREMBLEM, FRONT COVER
-
310-29226 SCREW, BRACKET TO FRONT COVERSCREW, BRACKET TO FRONT COVER
-
413-26995 LOCKWASHER, BRACKET FASTENING SCREWLOCKWASHER, BRACKET FASTENING SCREW
-
511-26419 NUT, BRACKET FASTENING SCREWNUT, BRACKET FASTENING SCREW
-
629345 BUMPER, RUBBER - FRONT COVER BRACKETBUMPER, RUBBER - FRONT COVER BRACKET
-
632273 BUMPER, RUBBER - FRONT COVER BRACKETBUMPER, RUBBER - FRONT COVER BRACKET
-
756848 KNOB, COWL FRONT COVER FASTENINGKNOB, COWL FRONT COVER FASTENING
-
732269 KNOB, COWL FRONT COVER FASTENINGKNOB, COWL FRONT COVER FASTENING
-
812-30771 WASHER, COVER FASTENING KNOB (RUBBER)WASHER, COVER FASTENING KNOB (RUBBER)
-
912-26825 WASHER, COVER FASTENING KNOB (STEEL)WASHER, COVER FASTENING KNOB (STEEL)
-
1024-30772 SPRING, TENSION - FASTENING KNOBSPRING, TENSION - FASTENING KNOB
-
1024-30772 SPRING, TENSION - FASTENING KNOBSPRING, TENSION - FASTENING KNOB
-
1117-29077 ROLL PIN, TENSION SPRING TO KNOBROLL PIN, TENSION SPRING TO KNOB
-
1231089 STRIP, SOUND ABSORBINGSTRIP, SOUND ABSORBING
-
132120-2509A4 WRAP AROUND COWL ASSEMBLYWRAP AROUND COWL ASSEMBLY
-
132120-2509A4 WRAP AROUND COWL ASSEMBLYWRAP AROUND COWL ASSEMBLY
-
1446785A1 HANDLE, COWL LATCHHANDLE, COWL LATCH
-
1553-21058 "E" RING, COWL LATCH HINGE PIN"E" RING, COWL LATCH HINGE PIN
-
1617-21057 PIN, HINGE - COWL LATCH HANDLEPIN, HINGE - COWL LATCH HANDLE
-
1746785A1 SWIVEL, COWL LATCHSWIVEL, COWL LATCH
-
1830413 HOOK, COWL LATCH FASTENINGHOOK, COWL LATCH FASTENING
-
1926391 BLANKET, SOUND ABSORBING - WRAP AROUND COWLBLANKET, SOUND ABSORBING - WRAP AROUND COWL
-
2037-32266 DECAL, WRAP AROUND COWL - PORTDECAL, WRAP AROUND COWL - PORT
-
2137-32265 DECAL, WRAP AROUND COWL - STARBOARDDECAL, WRAP AROUND COWL - STARBOARD
-
--92-86166Q1 GLUE, ADHESIVE - BLANKET FASTENINGGLUE, ADHESIVE - BLANKET FASTENING
-
--92-271091 ADHESIVE COMPOUND (3-1/2 OUNCE KIT) EMBLAM FASTENINGADHESIVE COMPOUND (3-1/2 OUNCE KIT) EMBLAM FASTENING
