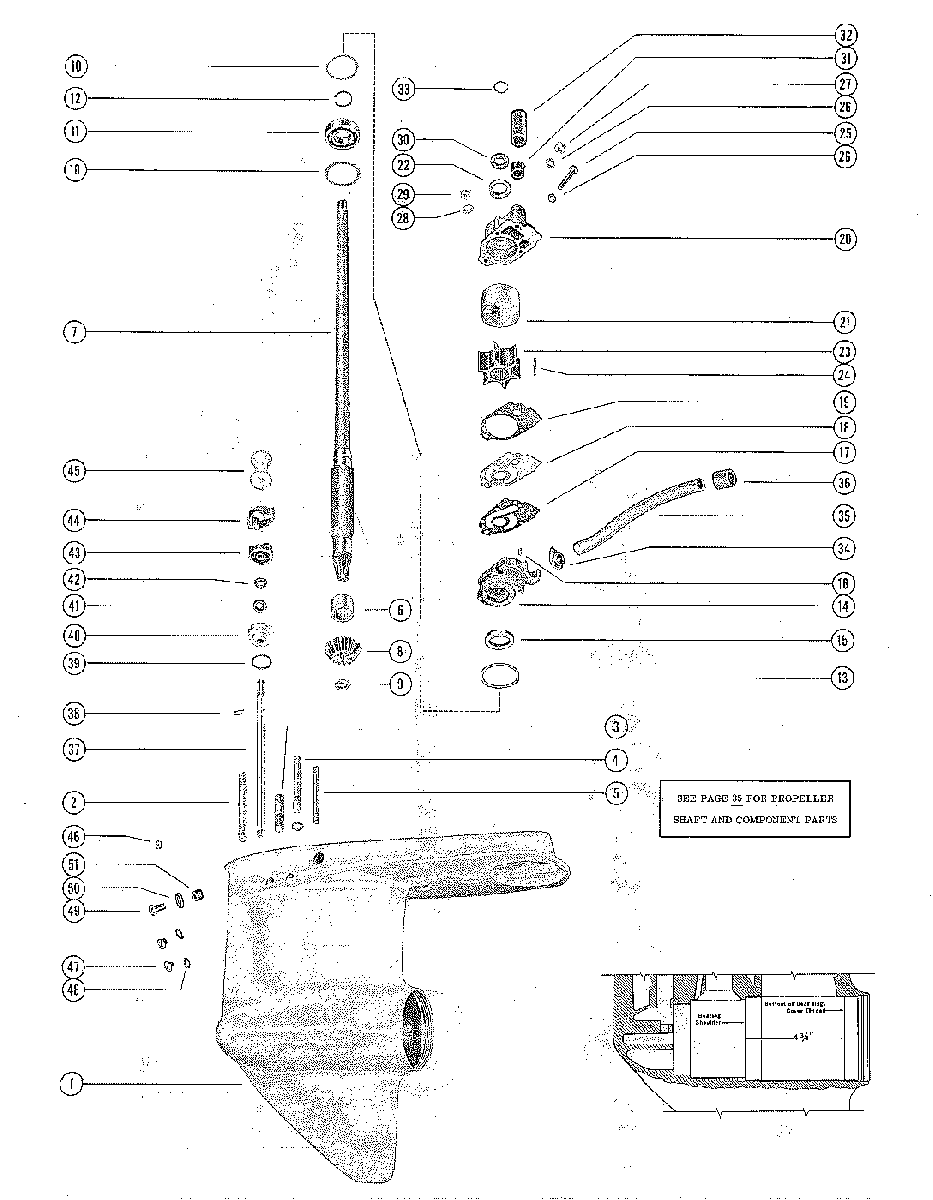

GEAR HOUS ASSY,COMP.(DRIVE SHAFT/COMP PARTS MERC 700E-1)P. 1 для Mercury - 700 (6 CYL.) 1413611 THRU 1566239
-
№АртикулНазвание
-
-1623-2022A7 GEAR HOUSING ASSEMBLY, COMPLETE (SHORT SHAFT) SEE NOTE BELOWGEAR HOUSING ASSEMBLY, COMPLETE (SHORT SHAFT) SEE NOTE BELOW
-
-1623-2022A6 GEAR HOUSING ASSEMBLY, COMPLETE (LONG SHAFT) SEE NOTE BELOWGEAR HOUSING ASSEMBLY, COMPLETE (LONG SHAFT) SEE NOTE BELOW
-
11623-2041A2 GEAR HOUSING ASSEMBLYGEAR HOUSING ASSEMBLY
-
216-57921 STUD, GEAR HOUSING TO DRIVE SHAFT HOUSING (3-15/16")STUD, GEAR HOUSING TO DRIVE SHAFT HOUSING (3-15/16")
-
316-8M0133358 STUD, GEAR HOUSING TO DRIVE SHAFT HOUSING (2")STUD, GEAR HOUSING TO DRIVE SHAFT HOUSING (2")
-
416-30669 STUD, WATER PUMP BASE AND BODY TO GEAR HOUSING (3-1/4")STUD, WATER PUMP BASE AND BODY TO GEAR HOUSING (3-1/4")
-
516-306671 STUD, WATER PUMP BASE AND BODY TO GEAR HOUSING (3-1/8")STUD, WATER PUMP BASE AND BODY TO GEAR HOUSING (3-1/8")
-
631-32898T BEARING, ROLLER - DRIVE SHAFTBEARING, ROLLER - DRIVE SHAFT
-
745-38459 DRIVE SHAFT (SHORT SHAFT)DRIVE SHAFT (SHORT SHAFT)
-
745-38460 DRIVE SHAFT (LONG SHAFT)DRIVE SHAFT (LONG SHAFT)
-
843-30566 GEAR, PINION - DRIVE SHAFTGEAR, PINION - DRIVE SHAFT
-
911-30932 NUT, PINION GEAR TO DRIVE SHAFTNUT, PINION GEAR TO DRIVE SHAFT
-
1015-30278A1 SHIM, DRIVE SHAFT BALL BEARING TO GEAR HOUSINGSHIM, DRIVE SHAFT BALL BEARING TO GEAR HOUSING
-
11938-2464 BEARING, BALL - DRIVE SHAFTBEARING, BALL - DRIVE SHAFT
-
1253-30726 RING, RETAINING - BALL BEARINGRING, RETAINING - BALL BEARING
-
1325-30224 "O" RING, WATER PUMP BASE"O" RING, WATER PUMP BASE
-
1446-31277A1 WATER PUMP BASE ASSEMBLYWATER PUMP BASE ASSEMBLY
-
1526-94038 OIL SEAL, WATER PUMP BASEOIL SEAL, WATER PUMP BASE
-
1617-29596T DOWEL PIN, WATER PUMP BASE TO WATER PUMP BODYDOWEL PIN, WATER PUMP BASE TO WATER PUMP BODY
-
1727-31285 GASKET, LOWER - WATER PUMP BASE TO FACE PLATEGASKET, LOWER - WATER PUMP BASE TO FACE PLATE
-
1831287 PLATE, FACE - WATER PUMP BASE TO WATER PUMP BODYPLATE, FACE - WATER PUMP BASE TO WATER PUMP BODY
-
1927-31286 GASKET, UPPER - FACE PLATE TO WATER PUMP BODYGASKET, UPPER - FACE PLATE TO WATER PUMP BODY
-
2046-31273A1 WATER PUMP BODY ASSEMBLYWATER PUMP BODY ASSEMBLY
-
2130915 INSERT, WATER PUMP BODYINSERT, WATER PUMP BODY
-
2226-16977 OIL SEAL, WATER PUMP BODYOIL SEAL, WATER PUMP BODY
-
2347-89984T4 IMPELLER, WATER PUMPIMPELLER, WATER PUMP
-
2417-8M0034466 PIN, IMPELLER DRIVEPIN, IMPELLER DRIVE
-
2510-30720 SCREW, WATER PUMP BODY TO GEAR HOUSING (1/4")SCREW, WATER PUMP BODY TO GEAR HOUSING (1/4")
-
2613-26992 LOCKWASHER, WATER PUMP BODY FASTNG SCREW&STUDS (1/4")LOCKWASHER, WATER PUMP BODY FASTNG SCREW&STUDS (1/4")
-
2711-29598 NUT, WATER PUMP BODY FASTENING STUDS (1/4")NUT, WATER PUMP BODY FASTENING STUDS (1/4")
-
2813-26993 LOCKWASHER, WATER PUMP BODY FASTENING STUD (5/16")LOCKWASHER, WATER PUMP BODY FASTENING STUD (5/16")
-
2911-28770 NUT, WATER PUMP BODY FASTENING STUD (5/16")NUT, WATER PUMP BODY FASTENING STUD (5/16")
-
3025-30271 RING, RUBBER - CENTRIFUGAL SLINGER (DRIVE SHAFT)RING, RUBBER - CENTRIFUGAL SLINGER (DRIVE SHAFT)
-
3126-38970 SEAL, RUBBER - WATER PUMP BODYSEAL, RUBBER - WATER PUMP BODY
-
3223-29804T SLEEVE, GUIDE - WATER INLET TUBESLEEVE, GUIDE - WATER INLET TUBE
-
3325-30613 "O" RING, UPPER - DRIVE SHAFT"O" RING, UPPER - DRIVE SHAFT
-
3426-31282 SEAL, WATER PUMP BODY TO WATER INTAKE TUBESEAL, WATER PUMP BODY TO WATER INTAKE TUBE
-
3532-31272 TUBE, WATER INTAKE - GEAR HOUSINGTUBE, WATER INTAKE - GEAR HOUSING
-
3626-29971 SEAL, GEAR HOUSING TO WATER INTAKE TUBESEAL, GEAR HOUSING TO WATER INTAKE TUBE
-
3725136 SHAFT, SHIFT - LOWERSHAFT, SHIFT - LOWER
-
3853-29641 CLIP, RETAINING - SHIFT SHAFTCLIP, RETAINING - SHIFT SHAFT
-
3925-25439 "O" RING, SHIFT SHAFT BUSHING"O" RING, SHIFT SHAFT BUSHING
-
4023-8M0112749 BUSHING ASSEMBLY, SHIFT SHAFTBUSHING ASSEMBLY, SHIFT SHAFT
-
4126-892361 OIL SEAL, SHIFT SHAFT BUSHINGOIL SEAL, SHIFT SHAFT BUSHING
-
4212-31266 WASHER, RUBBER - SHIFT SHAFT BUSHINGWASHER, RUBBER - SHIFT SHAFT BUSHING
-
4352918 CAM, LOWER - REVERSE LOCKINGCAM, LOWER - REVERSE LOCKING
-
4452919 CAM, UPPER - REVERSE LOCKINGCAM, UPPER - REVERSE LOCKING
-
4523-30607 SPACER, NYLON - REVERSE LOCKING CAMSPACER, NYLON - REVERSE LOCKING CAM
-
4622-390721 PLUG, PIPE - SHIFT SHAFT GREASE FILLER HOLEPLUG, PIPE - SHIFT SHAFT GREASE FILLER HOLE
-
4710-79953Q04 SCREW, GREASE FILLER AND VENT HOLESCREW, GREASE FILLER AND VENT HOLE
-
4812-191833 WASHER, GREASE FILLER AND VENT HOLE SCREWWASHER, GREASE FILLER AND VENT HOLE SCREW
-
4910-29608 SCREW, GEAR HOUSING FLUSHING HOLESCREW, GEAR HOUSING FLUSHING HOLE
-
5027-29586 GASKET, GEAR HOUSING FLUSHING HOLE SCREWGASKET, GEAR HOUSING FLUSHING HOLE SCREW
-
5126-29612 SEAL, GEAR HOUSING FLUSHING HOLESEAL, GEAR HOUSING FLUSHING HOLE
