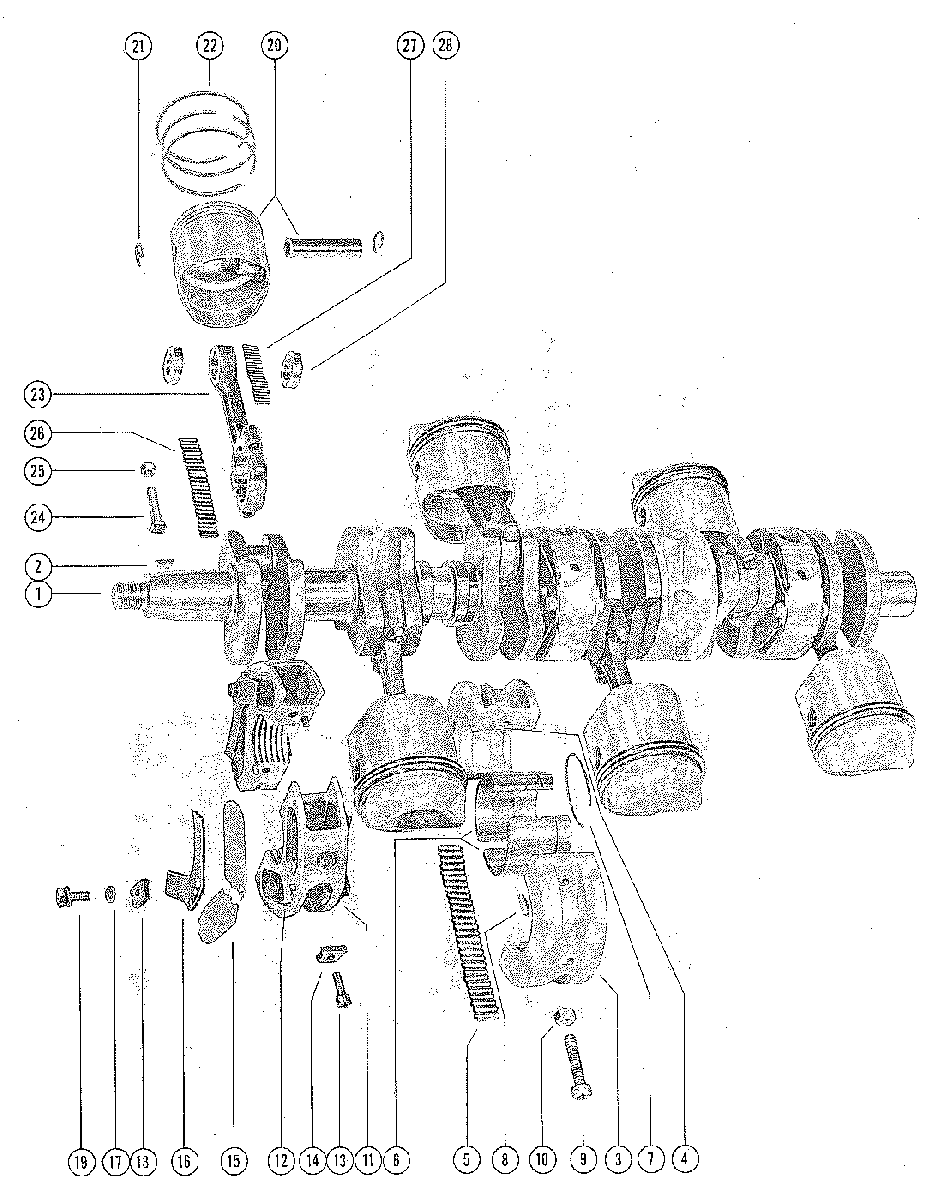

CRANKSHAFT, PISTONS AND CONNECTING RODS для Mercury - 700 (6 CYL.) 1413611 THRU 1566239
-
№АртикулНазвание
-
1414-1826 CRANKSHAFTCRANKSHAFT
-
228-20094 KEY, FLYWHEEL DRIVEKEY, FLYWHEEL DRIVE
-
3521-1490A1 CENTER MAIN BEARING ASSEMBLYCENTER MAIN BEARING ASSEMBLY
-
417-20032 DOWEL PIN, CENTER MAIN BEARINGDOWEL PIN, CENTER MAIN BEARING
-
529-714221 BEARING, NEEDLE - OUTER RACEBEARING, NEEDLE - OUTER RACE
-
626113T RACE, OUTER (PAIR)RACE, OUTER (PAIR)
-
753-26933 RING, SNAP - OUTER RACERING, SNAP - OUTER RACE
-
817-27732 DOWEL PIN, STEPPEDDOWEL PIN, STEPPED
-
910-22968 SCREW, CENTER MAIN BEARING CLAMPINGSCREW, CENTER MAIN BEARING CLAMPING
-
1011-20184 NUT, BEARING CLAMPING SCREWNUT, BEARING CLAMPING SCREW
-
11527-1999A2 MAIN BEARING ASSEMBLY, VALVE TYPEMAIN BEARING ASSEMBLY, VALVE TYPE
-
1217-20032 DOWEL PIN, MAIN BEARINGDOWEL PIN, MAIN BEARING
-
1310-30259 SCREW, MAIN BEARING CLAMPINGSCREW, MAIN BEARING CLAMPING
-
1310-25313 SCREW, MAIN BEARING CLAMPINGSCREW, MAIN BEARING CLAMPING
-
1411-29469 NUT, MAIN BEARING CLAMPING SCREWNUT, MAIN BEARING CLAMPING SCREW
-
1534-88498A1 REED SET, MATCHED - MAIN BEARINGREED SET, MATCHED - MAIN BEARING
-
1634-20053 REED STOP, MAIN BEARING REED VALVESREED STOP, MAIN BEARING REED VALVES
-
1712-26014 WASHER, REED STOP MOUNTING SCREWWASHER, REED STOP MOUNTING SCREW
-
1811-29469 NUT, REED STOP MOUNTING SCREWNUT, REED STOP MOUNTING SCREW
-
1910-20055 SCREW, REED STOP MOUNTINGSCREW, REED STOP MOUNTING
-
1910-77280 SCREW, REED STOP MOUNTINGSCREW, REED STOP MOUNTING
-
20724-2537A2 PISTON AND PISTON PIN ASSEMBLYPISTON AND PISTON PIN ASSEMBLY
-
2140-20057 LOCK RING, PISTON PINLOCK RING, PISTON PIN
-
2239-27841A12 RING, PISTONRING, PISTON
-
23600-2748A2 CONNECTING ROD AND CAP ASSEMBLY (SEE NOTE BELOW)CONNECTING ROD AND CAP ASSEMBLY (SEE NOTE BELOW)
-
2410-45379 SCREW, CONNECTING RODSCREW, CONNECTING ROD
-
2511-20061 NUT, CONNECTING ROD SCREWNUT, CONNECTING ROD SCREW
-
2629-20046T BEARING, NEEDLE - CRANKPINBEARING, NEEDLE - CRANKPIN
-
2729-20063 BEARING, NEEDLE - PISTON PINBEARING, NEEDLE - PISTON PIN
-
2812-28121 WASHER, NEEDLE LOCATINGWASHER, NEEDLE LOCATING
-
--724-2553A2 PISTON AND PISTON PIN ASSEMBLY (.015 OVERSIZE)PISTON AND PISTON PIN ASSEMBLY (.015 OVERSIZE)
-
--39-28616A12 RINGS, PISTON (.015 OVERSIZE)RINGS, PISTON (.015 OVERSIZE)
