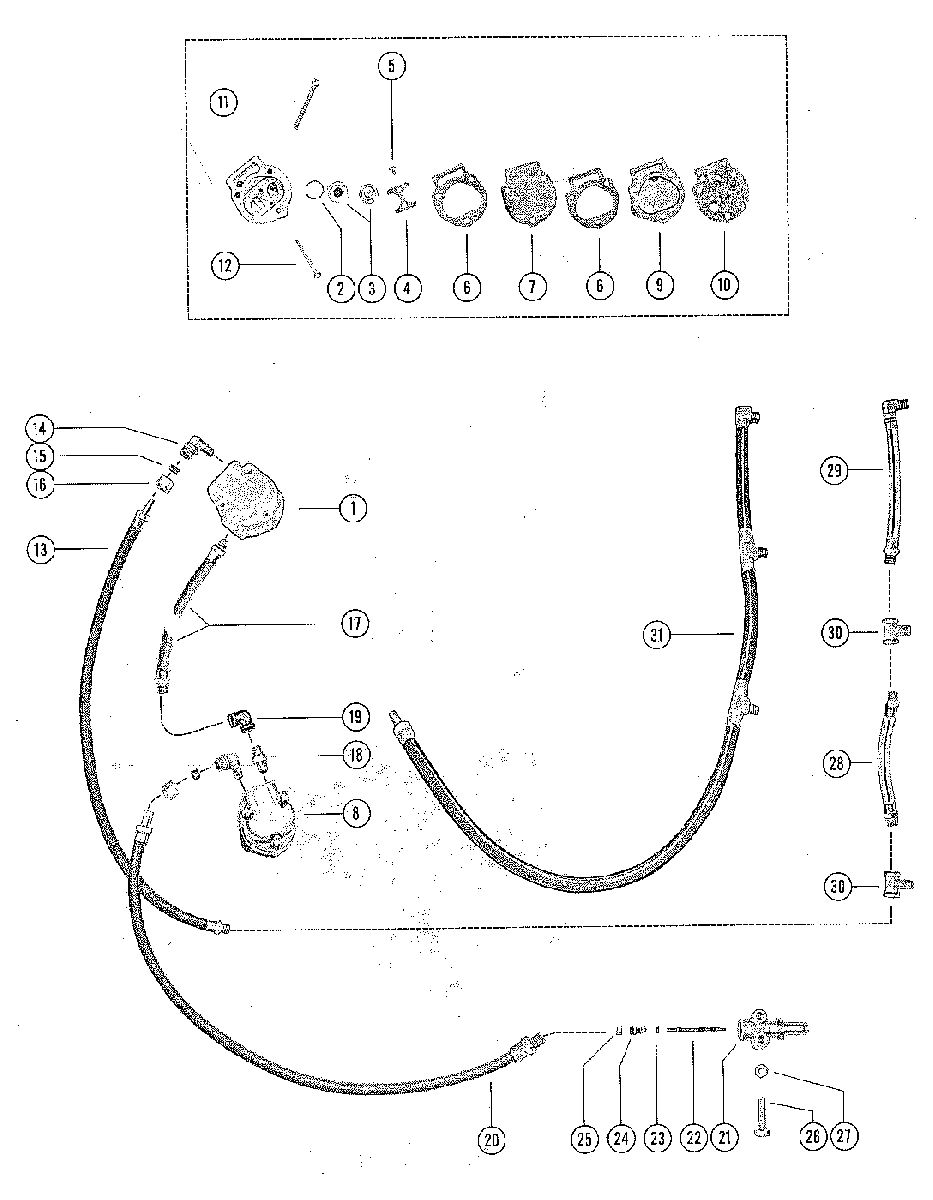

FUEL PUMP AND FUEL LINES для Mercury - 700 (6 CYL.) 1413611 THRU 1566239
-
№АртикулНазвание
-
130269A2 FUEL PUMP ASSEMBLY, UPPERFUEL PUMP ASSEMBLY, UPPER
-
227-23005 GASKET, CHECK VALVE TO HOUSINGGASKET, CHECK VALVE TO HOUSING
-
321-8M0082362 VALVE, CHECK - FUEL PUMPVALVE, CHECK - FUEL PUMP
-
423004 RETAINER, CHECK VALVERETAINER, CHECK VALVE
-
510-43725 SCREW, RETAINER TO HOUSINGSCREW, RETAINER TO HOUSING
-
627-24863 GASKET, FUEL PUMPGASKET, FUEL PUMP
-
723014 DIAPHRAGM, FUEL PUMPDIAPHRAGM, FUEL PUMP
-
829178A2 FUEL PUMP ASSEMBLY, LOWERFUEL PUMP ASSEMBLY, LOWER
-
227-23005 GASKET, CHECK VALVE TO HOUSINGGASKET, CHECK VALVE TO HOUSING
-
321-8M0082362 VALVE, CHECKVALVE, CHECK
-
423004 RETAINER, CHECK VALVERETAINER, CHECK VALVE
-
510-43725 SCREW, RETAINER TO HOUSINGSCREW, RETAINER TO HOUSING
-
627-24863 GASKET, FUEL PUMPGASKET, FUEL PUMP
-
723014 DIAPHRAGM, FUEL PUMPDIAPHRAGM, FUEL PUMP
-
929044 COVER, FUEL PUMPCOVER, FUEL PUMP
-
1027-30276 GASKET, FUEL PUMP COVERGASKET, FUEL PUMP COVER
-
1110-29126 SCREW, FUEL PUMP MOUNTING (1-3/4")SCREW, FUEL PUMP MOUNTING (1-3/4")
-
1210-29029 SCREW, FUEL PUMP MOUNTING (1-1/2")SCREW, FUEL PUMP MOUNTING (1-1/2")
-
1332-30035 FUEL LINE, UPPER PUMP TO LOWER CARBURETOR (18-1/2")FUEL LINE, UPPER PUMP TO LOWER CARBURETOR (18-1/2")
-
1422-22995 ELBOW, UPPER FUEL PUMP OUTLETELBOW, UPPER FUEL PUMP OUTLET
-
1522-22946 SLEEVE, RUBBERSLEEVE, RUBBER
-
1622-22948 NUT, ELBOWNUT, ELBOW
-
1732-29324 FUEL LINE, LOWER PUMP OUTLET TO UPPER PUMP INLET (8")FUEL LINE, LOWER PUMP OUTLET TO UPPER PUMP INLET (8")
-
1822-23595 CONNECTOR, LOWER FUEL PUMP OUTLETCONNECTOR, LOWER FUEL PUMP OUTLET
-
1922-24690 ELBOW, FUEL PUMP OUTLETELBOW, FUEL PUMP OUTLET
-
2032-30036 FUEL LINE, ADAPTOR TO LOWER FUEL PUMP (18")FUEL LINE, ADAPTOR TO LOWER FUEL PUMP (18")
-
1422-22995 ELBOW,M LOWER FUEL PUMP INLETELBOW,M LOWER FUEL PUMP INLET
-
1522-22946 SLEEVE, RUBBERSLEEVE, RUBBER
-
1622-22948 NUT, ELBOWNUT, ELBOW
-
2130186 ADAPTOR, CHECK UNIT (FUEL LINE)ADAPTOR, CHECK UNIT (FUEL LINE)
-
2230185Q3 STEM, CHECK UNIT ADAPTORSTEM, CHECK UNIT ADAPTOR
-
2325-16524 "O" RING, ADAPTOR STEM"O" RING, ADAPTOR STEM
-
2424-30189 SPRING, ADAPTOR STEMSPRING, ADAPTOR STEM
-
2530188 CUP WASHER, ADAPTORCUP WASHER, ADAPTOR
-
2610-20784 SCRREW, ADAPTOR TO BOTTOM COWLSCRREW, ADAPTOR TO BOTTOM COWL
-
2711-20184 NUT, ADAPTOR FASTENING SCREWNUT, ADAPTOR FASTENING SCREW
-
2832-30040 FUEL LINE, CENTER TO LWOER CARBURETORFUEL LINE, CENTER TO LWOER CARBURETOR
-
2932-38527 FUEL LINE, UPPER TO CENTER CARBURETORFUEL LINE, UPPER TO CENTER CARBURETOR
-
3022-25956 TEE, CENTER AND LOWER CARBURETORTEE, CENTER AND LOWER CARBURETOR
-
3132-32480 FUEL LINE, UPPER FUEL PUMP TO CARBURETORFUEL LINE, UPPER FUEL PUMP TO CARBURETOR
