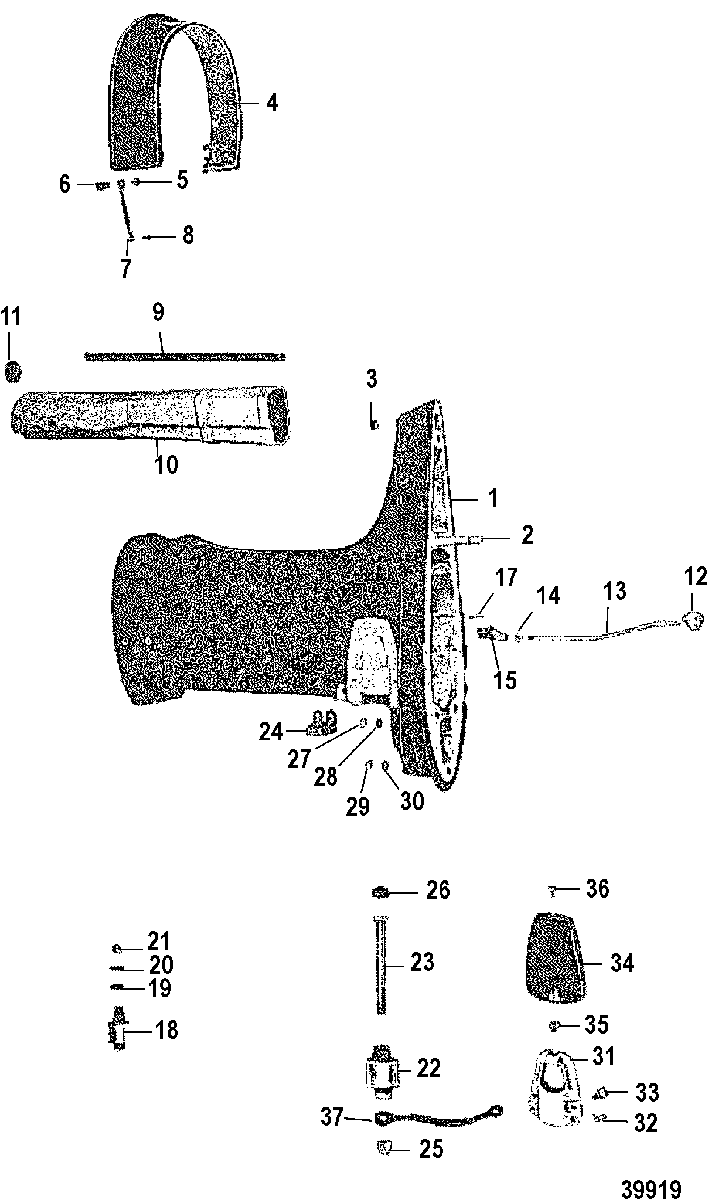

DRIVESHAFT HOUSING ASSEMBLY для Mercury - 800 (4 CYL. ), 80 (4 CYL.) 5582562 THRU 6432900
-
№АртикулНазвание
-
11575-5240A4 HOUSING ASSEMBLY, Driveshaft
(SHORT SHAFT)HOUSING ASSEMBLY, Driveshaft
(SHORT SHAFT) -
11573-5239A4 HOUSING ASSEMBLY, Driveshaft - Mercury
(LONG SHAFT)HOUSING ASSEMBLY, Driveshaft - Mercury
(LONG SHAFT) -
216-56295 STUD, (.437 x 2.69), DRIVESHAFT HOUSING TO GEAR HOUSINGSTUD, (.437 x 2.69), DRIVESHAFT HOUSING TO GEAR HOUSING
-
319-64649 PLUG, PLASTIC - TRIM TAB SCREW HOLEPLUG, PLASTIC - TRIM TAB SCREW HOLE
-
437417 COVER, TRIM - DRIVESHAFT HOUSINGCOVER, TRIM - DRIVESHAFT HOUSING
-
510-57807 SCREW, (#10-16 x .750) Stainless Steel, TRIM COVER TO BOTTOM COWLSCREW, (#10-16 x .750) Stainless Steel, TRIM COVER TO BOTTOM COWL
-
625-8M0079730 GROMMET, TRIM COVER SCREWGROMMET, TRIM COVER SCREW
-
784-88238T01 CABLE ASSEMBLY, TRIM COVER SCREWCABLE ASSEMBLY, TRIM COVER SCREW
-
810-62568 SCREW, (#10-16 x .375), GROUND STRAP ATTACHINGSCREW, (#10-16 x .375), GROUND STRAP ATTACHING
-
932-62864 TUBE, WATER INLET
(SHORT SHAFT)TUBE, WATER INLET
(SHORT SHAFT) -
932-60897 TUBE, WATER INLET
(LONG SHAFT)TUBE, WATER INLET
(LONG SHAFT) -
1065370 TUBE, EXHAUST
(SHORT SHAFT)TUBE, EXHAUST
(SHORT SHAFT) -
1078184T TUBE, EXHAUST
(LONG SHAFT)TUBE, EXHAUST
(LONG SHAFT) -
1165638 BOOT, EXHAUST TUBEBOOT, EXHAUST TUBE
-
1252887 GUIDE, PUSH ROD
NON POWER TRIM SN# USA-5824647/Australia-8070909/Belgium-9299905/Canada-7169657 & BelowGUIDE, PUSH ROD
NON POWER TRIM SN# USA-5824647/Australia-8070909/Belgium-9299905/Canada-7169657 & Below -
1292704 GUIDE, PUSH ROD
NON POWER TRIM SN# USA-5824648/Australia-8070910/Belgium-9299906/Canada-7169658 & UpGUIDE, PUSH ROD
NON POWER TRIM SN# USA-5824648/Australia-8070910/Belgium-9299906/Canada-7169658 & Up -
1347591 ROD, PUSH
(SHORT SHAFT) NON POWER TRIM SN# USA-5824647/Australia-8070909/Belgium-9299905/Canada-7169657 & BelowROD, PUSH
(SHORT SHAFT) NON POWER TRIM SN# USA-5824647/Australia-8070909/Belgium-9299905/Canada-7169657 & Below -
1347558 ROD, PUSH
(LONG SHAFT) NON POWER TRIM SN# USA-5824647/Australia-8070909/Belgium-9299905/Canada-7169657 & BelowROD, PUSH
(LONG SHAFT) NON POWER TRIM SN# USA-5824647/Australia-8070909/Belgium-9299905/Canada-7169657 & Below -
1392708 ROD, PUSH
(SHORT SHAFT) NON POWER TRIM SN# USA-5824648/Australia-8070910/Belgium-9299906/Canada-7169658 & UpROD, PUSH
(SHORT SHAFT) NON POWER TRIM SN# USA-5824648/Australia-8070910/Belgium-9299906/Canada-7169658 & Up -
1322707 RING, PUSH
(LONG SHAFT) NON POWER TRIM SN# USA-5824648/Australia-8070910/Belgium-9299906/Canada-7169658 & UpRING, PUSH
(LONG SHAFT) NON POWER TRIM SN# USA-5824648/Australia-8070910/Belgium-9299906/Canada-7169658 & Up -
1411-69254 NUT, JAM - PUSH ROD
NON POWER TRIM SN# USA-5824647/Australia-8070909/Belgium-9299905/Canada-7169657 & BelowNUT, JAM - PUSH ROD
NON POWER TRIM SN# USA-5824647/Australia-8070909/Belgium-9299905/Canada-7169657 & Below -
1411-28770 NUT, (.312-24) Stainless Steel, JAM - PUSH ROD
NON POWER TRIM SN# USA-5824648/Australia-8070910/Belgium-9299906/Canada-7169658 & UpNUT, (.312-24) Stainless Steel, JAM - PUSH ROD
NON POWER TRIM SN# USA-5824648/Australia-8070910/Belgium-9299906/Canada-7169658 & Up -
1547559 YOKE, PUSH ROD
NON POWER TRIM SN# USA-5824647/Australia-8070909/Belgium-9299905/Canada-7169657 & BelowYOKE, PUSH ROD
NON POWER TRIM SN# USA-5824647/Australia-8070909/Belgium-9299905/Canada-7169657 & Below -
1589813 ROD END, PUSH ROD
NON POWER TRIM SN# USA-5824648/Australia-8070910/Belgium-9299906/Canada-7169658 & UpROD END, PUSH ROD
NON POWER TRIM SN# USA-5824648/Australia-8070910/Belgium-9299906/Canada-7169658 & Up -
1718-25191 COTTER PIN, PUSH ROD PIN
NON POWER TRIMCOTTER PIN, PUSH ROD PIN
NON POWER TRIM -
1875297 MOUNT, RUBBER - UPPER
(SHORT SHAFT)MOUNT, RUBBER - UPPER
(SHORT SHAFT) -
1875296 MOUNT, RUBBER - UPPER
(LONG SHAFT)MOUNT, RUBBER - UPPER
(LONG SHAFT) -
1912-47840 WASHER, RUBBER - UPPER MOUNT BOLTWASHER, RUBBER - UPPER MOUNT BOLT
-
2012-31263 WASHER, UPPER MOUNT BOLTWASHER, UPPER MOUNT BOLT
-
2111-34933 NUT, (.437-20) Stainless Steel, UPPER MOUNT BOLTNUT, (.437-20) Stainless Steel, UPPER MOUNT BOLT
-
2275300 MOUNT, RUBBER - LOWER
(SHORT SHAFT)MOUNT, RUBBER - LOWER
(SHORT SHAFT) -
2275298 MOUNT, RUBBER - LOWER
(LONG SHAFT)MOUNT, RUBBER - LOWER
(LONG SHAFT) -
2310-75284 SCREW, UPPER MOUNT (5-1/2")SCREW, UPPER MOUNT (5-1/2")
-
2466336 BUMPER, RUBBER - LOWER
(SHORT SHAFT)BUMPER, RUBBER - LOWER
(SHORT SHAFT) -
2511-25096 NUT, MOUNT SCREWNUT, MOUNT SCREW
-
2625067 BUMPER, RUBBER - MOUNTING SCREWBUMPER, RUBBER - MOUNTING SCREW
-
2711-34933 NUT, (.437-20) Stainless Steel, GEAR HOUSINGNUT, (.437-20) Stainless Steel, GEAR HOUSING
-
2812-45176 WASHER, (.453 x .812 x .105) Stainless Steel, GEAR HOUSING STUDSWASHER, (.453 x .812 x .105) Stainless Steel, GEAR HOUSING STUDS
-
2911-29489 NUT, GEAR HOUSING STUDSNUT, GEAR HOUSING STUDS
-
3012-45176 WASHER, (.453 x .812 x .105) Stainless Steel, GEAR HOUSING STUDSWASHER, (.453 x .812 x .105) Stainless Steel, GEAR HOUSING STUDS
-
3135608 CLAMP, LOWER MOUNT TO DRIVESHAFT HOUSINGCLAMP, LOWER MOUNT TO DRIVESHAFT HOUSING
-
3224-35522 SPRING, TENSION - LOWER MOUNT CLAMPSPRING, TENSION - LOWER MOUNT CLAMP
-
3310-29256 SCREW, (.312-18 x .875), LOWER MOUNT CLAMP TO HOUSINGSCREW, (.312-18 x .875), LOWER MOUNT CLAMP TO HOUSING
-
3435474T COVER, LOWER MOUNT CLAMPCOVER, LOWER MOUNT CLAMP
-
3511-35521 NUT, LOWER MOUNT CLAMP COVERNUT, LOWER MOUNT CLAMP COVER
-
3610-87884 SCREW, (#12-14 x .920), COVER TO LOWER CLAMP MOUNTSCREW, (#12-14 x .920), COVER TO LOWER CLAMP MOUNT
-
3788238A10 CABLE ASSEMBLY, GroundCABLE ASSEMBLY, Ground
