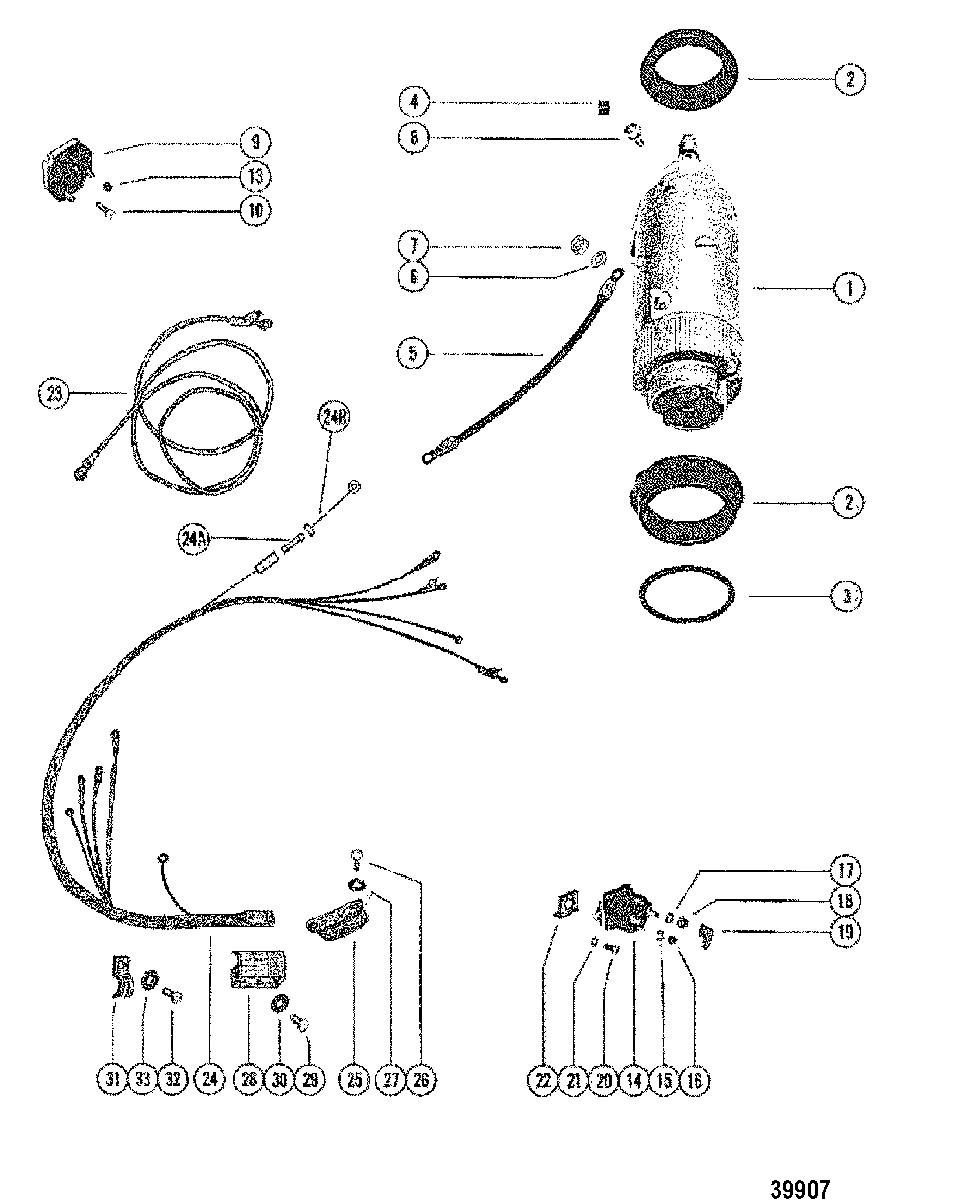

STARTER MOTOR AND WIRING HARNESS для Mercury - 800 (4 CYL. ), 80 (4 CYL.) 5582562 THRU 6432900
-
№АртикулНазвание
-
150-893891T STARTER MOTOR ASSEMBLYSTARTER MOTOR ASSEMBLY
-
223-8M0034918 COLLAR, RUBBER - STARTER MOTORCOLLAR, RUBBER - STARTER MOTOR
-
323-56774 SPACER, COLLAR TO BRACKETSPACER, COLLAR TO BRACKET
-
48M0043376 STOP, RUBBER - STARTER MOTORSTOP, RUBBER - STARTER MOTOR
-
584-93389A1 CABLE ASSEMBLY, MOTOR TO SOLENOID
SN# USA-6030903/Australia-8074612/Belgium-9345615/Canada-7189007 & BelowCABLE ASSEMBLY, MOTOR TO SOLENOID
SN# USA-6030903/Australia-8074612/Belgium-9345615/Canada-7189007 & Below -
584-93389A1 CABLE ASSEMBLY, MOTOR TO SOLENOID
SN# USA-6030904/Australia-8074613/Belgium-9345616/Canada-7189008 & UpCABLE ASSEMBLY, MOTOR TO SOLENOID
SN# USA-6030904/Australia-8074613/Belgium-9345616/Canada-7189008 & Up -
613-26992 LOCKWASHER, (.250) Stainless Steel, STARTER MOTOR TERMINALLOCKWASHER, (.250) Stainless Steel, STARTER MOTOR TERMINAL
-
711-64015 NUT, (.250-20), STARTER MOTOR TERMINALNUT, (.250-20), STARTER MOTOR TERMINAL
-
810-69035 SCREW AND LOCKWASHER, (.250-20 x .625) Stainless SteelSCREW AND LOCKWASHER, (.250-20 x .625) Stainless Steel
-
98M0058226 RECTIFIERRECTIFIER
-
1010-37656 SCREW, (#10-32 x .620), RECTIFIER TO PLATESCREW, (#10-32 x .620), RECTIFIER TO PLATE
-
1311-45076 NUT, (#10-32) Brass, RECTIFIER TERMINALNUT, (#10-32) Brass, RECTIFIER TERMINAL
-
1489-853654A1 SOLENOID, Starter
SN# USA-6030903/Australia-8074612/Belgium-9345615/Canada-7189007 & BelowSOLENOID, Starter
SN# USA-6030903/Australia-8074612/Belgium-9345615/Canada-7189007 & Below -
1489-96054T SOLENOID ASSEMBLY, Starter
SN# USA-6030904/Australia-8074613/Belgium-9345616/Canada-7189008 & UpSOLENOID ASSEMBLY, Starter
SN# USA-6030904/Australia-8074613/Belgium-9345616/Canada-7189008 & Up -
1513-26996 LOCKWASHER, (#10) Stainless Steel, SOLENOID TERMINAL
SN# USA-6030903/Australia-8074612/Belgium-9345615/Canada-7189007 & BelowLOCKWASHER, (#10) Stainless Steel, SOLENOID TERMINAL
SN# USA-6030903/Australia-8074612/Belgium-9345615/Canada-7189007 & Below -
1513-26995 LOCKWASHER, (#8) Stainless Steel, SOLENOID TERMINAL
SN# USA-6030904/Australia-8074613/Belgium-9345616/Canada-7189008 & UpLOCKWASHER, (#8) Stainless Steel, SOLENOID TERMINAL
SN# USA-6030904/Australia-8074613/Belgium-9345616/Canada-7189008 & Up -
1611-68219 NUT, (#10-32) Stainless Steel, SOLENOID TERMINAL
SN# USA-6030903/Australia-8074612/Belgium-9345615/Canada-7189007 & BelowNUT, (#10-32) Stainless Steel, SOLENOID TERMINAL
SN# USA-6030903/Australia-8074612/Belgium-9345615/Canada-7189007 & Below -
1611-26419 NUT, (#8-32) Brass, SOLENOID TERMINAL
SN# USA-6030904/Australia-8074613/Belgium-9345616/Canada-7189008 & UpNUT, (#8-32) Brass, SOLENOID TERMINAL
SN# USA-6030904/Australia-8074613/Belgium-9345616/Canada-7189008 & Up -
1713-26993 LOCKWASHER, (.312), SOLENOID TERMINAL
SN# USA-6030903/Australia-8074612/Belgium-9345615/Canada-7189007 & BelowLOCKWASHER, (.312), SOLENOID TERMINAL
SN# USA-6030903/Australia-8074612/Belgium-9345615/Canada-7189007 & Below -
1713-26992 LOCKWASHER, (.250) Stainless Steel, SOLENOID TERMINAL
SN# USA-6030904/Australia-8074613/Belgium-9345616/Canada-7189008 & UpLOCKWASHER, (.250) Stainless Steel, SOLENOID TERMINAL
SN# USA-6030904/Australia-8074613/Belgium-9345616/Canada-7189008 & Up -
1811-68292 NUT, (.312-18), SOLENOID TERMINAL
SN# USA-6030903/Australia-8074612/Belgium-9345615/Canada-7189007 & BelowNUT, (.312-18), SOLENOID TERMINAL
SN# USA-6030903/Australia-8074612/Belgium-9345615/Canada-7189007 & Below -
1811-94330 NUT, (.250-20) Brass, SOLENOID TERMINAL
SN# USA-6030904/Australia-8074613/Belgium-9345616/Canada-7189008 & UpNUT, (.250-20) Brass, SOLENOID TERMINAL
SN# USA-6030904/Australia-8074613/Belgium-9345616/Canada-7189008 & Up -
1946265 BOOT, TERMINAL - STARTER SOLENOIDBOOT, TERMINAL - STARTER SOLENOID
-
2010-38601 SCREW, (.250-28 x 1.250), SOLENOID BOTTOM COWLSCREW, (.250-28 x 1.250), SOLENOID BOTTOM COWL
-
2113-26992 LOCKWASHER, (.250) Stainless Steel, SOLENOID SCREWLOCKWASHER, (.250) Stainless Steel, SOLENOID SCREW
-
2290547 LOCATOR, STARTER SOLENOIDLOCATOR, STARTER SOLENOID
-
2384-88439A3 CABLE ASSEMBLY, Positive - BatteryCABLE ASSEMBLY, Positive - Battery
-
2384-88439A4 CABLE ASSEMBLY, Battery - NegativeCABLE ASSEMBLY, Battery - Negative
-
2484-96233A2 HARNESS ASSEMBLY
SN# USA-6030903/Australia-8074612/Belgium-9345615/Canada-7189007 & BelowHARNESS ASSEMBLY
SN# USA-6030903/Australia-8074612/Belgium-9345615/Canada-7189007 & Below -
2484-96233A2 HARNESS ASSEMBLY
SN# USA-6030904/Australia-8074613/Belgium-9345616/Canada-7189008 & UpHARNESS ASSEMBLY
SN# USA-6030904/Australia-8074613/Belgium-9345616/Canada-7189008 & Up -
24A88-79091 FUSE, 20 Ampere
SN# USA-6030904/Australia-8074613/Belgium-9345616/Canada-7189008 & UpFUSE, 20 Ampere
SN# USA-6030904/Australia-8074613/Belgium-9345616/Canada-7189008 & Up -
24B84-95084A2 CABLE ASSEMBLY, FUSE
SN# USA-6030904/Australia-8074613/Belgium-9345616/Canada-7189008 & UpCABLE ASSEMBLY, FUSE
SN# USA-6030904/Australia-8074613/Belgium-9345616/Canada-7189008 & Up -
2554-88608 CLAMP, WIRING HARNESSCLAMP, WIRING HARNESS
-
2610-28636 SCREW, (.250-20 x .750), WIRING HARNESS CLAMPSCREW, (.250-20 x .750), WIRING HARNESS CLAMP
-
2713-26996 LOCKWASHER, (#10) Stainless Steel, WIRING HARNESS CLAMP SCREWLOCKWASHER, (#10) Stainless Steel, WIRING HARNESS CLAMP SCREW
-
2889047 BRACKET, WIRING HARNESSBRACKET, WIRING HARNESS
-
2910-32228 SCREW, (#10-32 x .625), WIRING HARNESS BRACKETSCREW, (#10-32 x .625), WIRING HARNESS BRACKET
-
3012-38833 WASHER, BRACKET SCREWWASHER, BRACKET SCREW
-
3188751 CLAMP, WIRING HARNESSCLAMP, WIRING HARNESS
-
3210-28636 SCREW, (.250-20 x .750), WIRING HARNESS CLAMPSCREW, (.250-20 x .750), WIRING HARNESS CLAMP
-
3312-20533 WASHER, CLAMP SCREWWASHER, CLAMP SCREW
