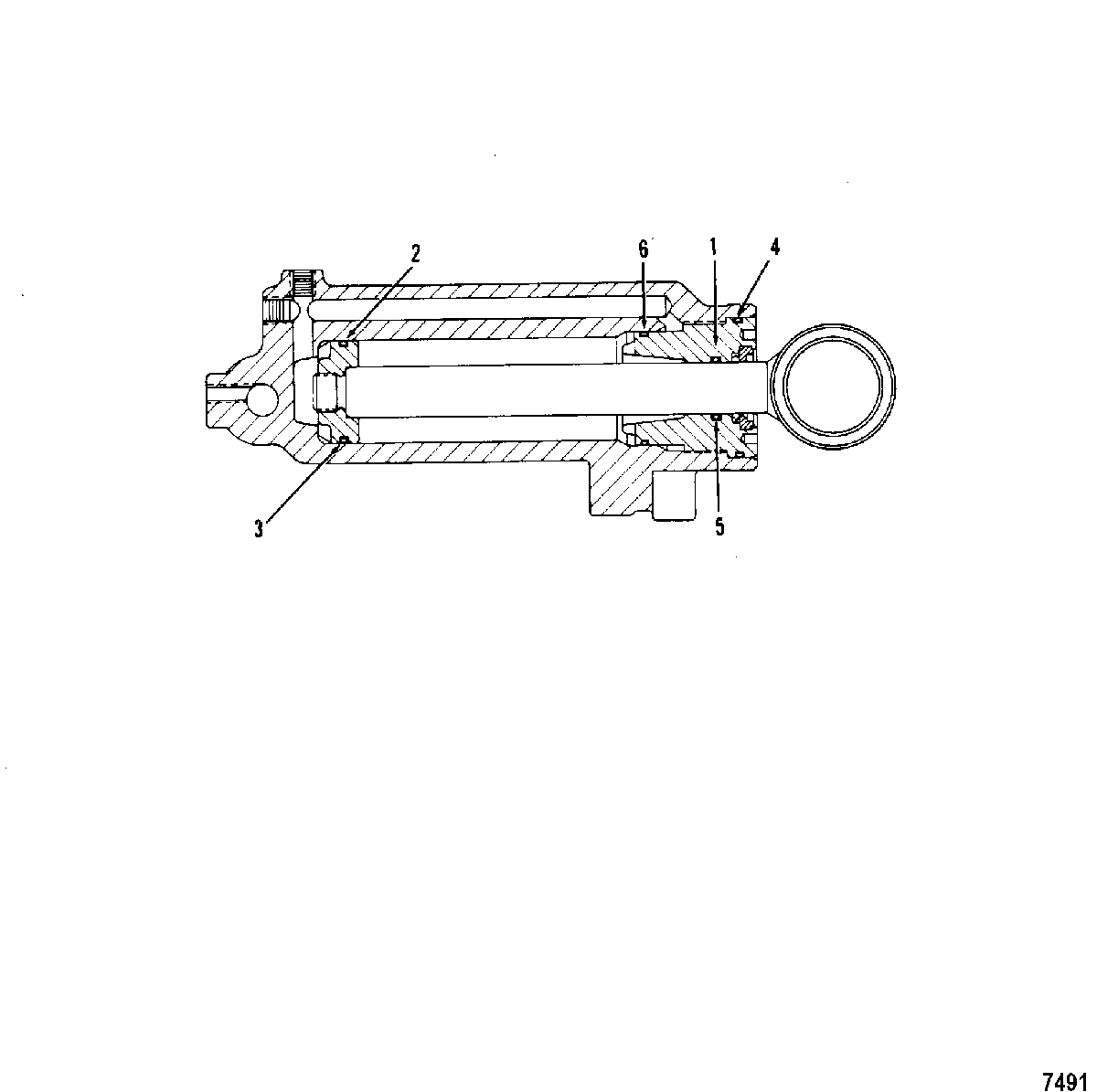

POWER TRIM CYLINDER REPAIR KITS, Use with 92194A14 для Mercury - 800 (4 CYL. ), 80 (4 CYL.) 5582562 THRU 6432900
-
№АртикулНазвание
-
-92188A2 REPAIR KIT (SEE NOTE)REPAIR KIT (SEE NOTE)
-
1N.S.S. Not Sold Separate, Cylinder CapNot Sold Separate, Cylinder Cap
-
2N.S.S. Not Sold Separate, O-Ring (1-1/4" x 1-1/2" x 1/8")Not Sold Separate, O-Ring (1-1/4" x 1-1/2" x 1/8")
-
3N.S.S. Not Sold Separate, SpacerNot Sold Separate, Spacer
-
4N.S.S. Not Sold Separate, O-Ring (1-7/8" x 2-1/16" x 3/32")Not Sold Separate, O-Ring (1-7/8" x 2-1/16" x 3/32")
-
5N.S.S. Not Sold Separate, O-Ring (3/4" x 15/16" x 3/32")Not Sold Separate, O-Ring (3/4" x 15/16" x 3/32")
-
6N.S.S. Not Sold Separate, O-Ring (1-1/2" x 1-3/4" x 3/32")Not Sold Separate, O-Ring (1-1/2" x 1-3/4" x 3/32")
Все узлы модели:
- BOTTOM COWL AND SHIFT LINKAGE
- CARBURETOR ASSEMBLY
- CARBURETOR LINKAGE
- CLAMP BRACKET AND REVERSE LOCK(SHORT SHAFT)
- COWLING AND FRONT COVER
- CRANKSHAFT, PISTON AND CONNECTING ROD
- CYLINDER BLOCK AND CRANKCASE ASSEMBLY
- DRIVESHAFT HOUSING ASSEMBLY
- END CAPS, MANIFOLD AND EXHAUST COVER
- EXHAUST EXTENSION PLATE
- FLYWHEEL, STATOR AND IGNITION COIL
- FUEL PUMP AND FUEL LINES
- GEAR HOUSING(DRIVESHAFT)
- GEAR HOUSING(PROPELLER SHAFT)
- HYDRAULIC PUMP ASSEMBLY(METAL RESERVOIR)
- HYDRAULIC PUMP ASSEMBLY(PLASTIC RESERVOIR)
- MISCELLANEOUS PARTS/ACCESSORIES
- POWER TRIM COMPONENTS(WITH CIRCUIT BREAKER AND FUSE)
- POWER TRIM COMPONENTS(WITHOUT CIRCUIT BREAKER AND FUSE)
- POWER TRIM CYLINDER REPAIR KITS(USE WITH 76509A3)
- • POWER TRIM CYLINDER REPAIR KITS, Use with 92194A14
- PROPELLERS(RIGHT HAND ROTATION)
- STARTER MOTOR AND WIRING HARNESS
- STARTER MOTOR ASSEMBLY(BOSCH)
- STARTER MOTOR ASSEMBLY(PRESTOLITE)
- SWIVEL BRACKET ASSEMBLY
- THROTTLE LEVER AND SPARK ADVANCE LEVER
- TOP COWL AND SUPPORT BRACKETS
- TRANSOM BRACKET(LONG SHAFT)
- TRIM CYLINDERS AND HYDRAULIC HOSES
