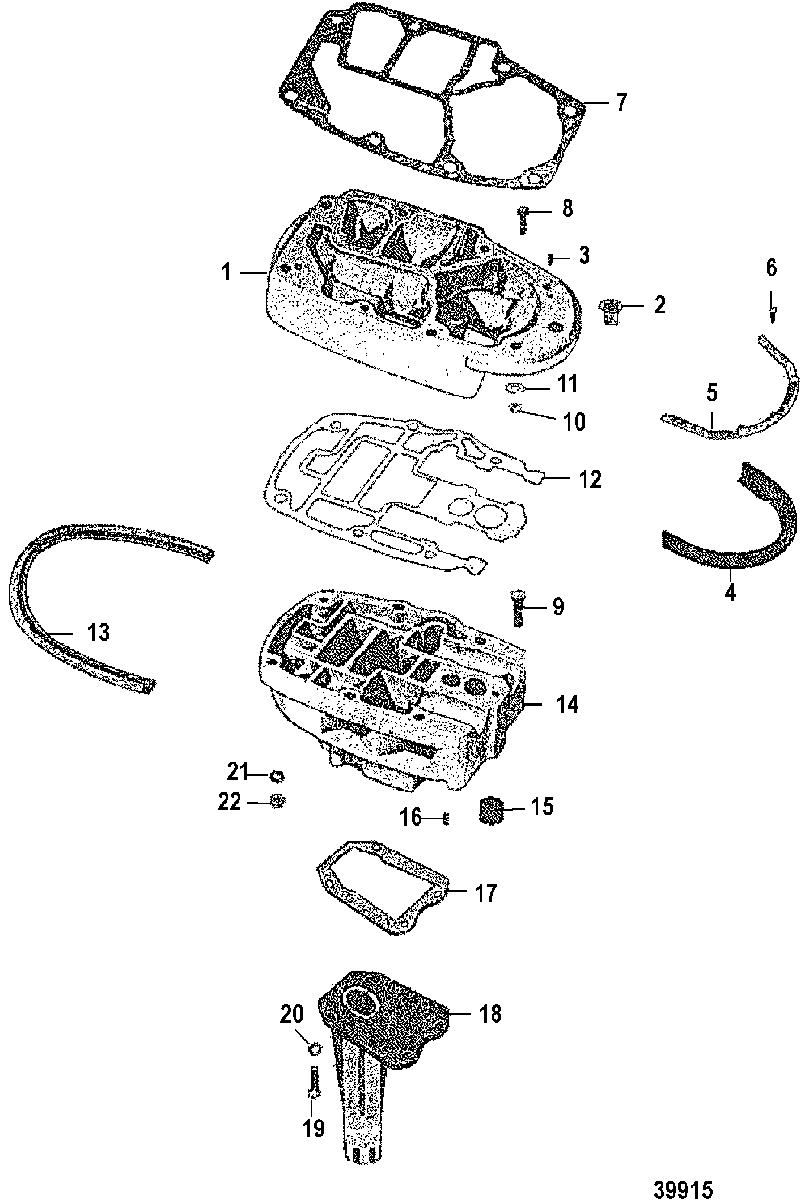

EXHAUST EXTENSION PLATE для Mercury - 800 (4 CYL. ), 80 (4 CYL.) 5582562 THRU 6432900
-
№АртикулНазвание
-
143289A2 PLATE ASSEMBLY, EXHAUST EXTENSIONPLATE ASSEMBLY, EXHAUST EXTENSION
-
223-27132 BUSHING, NYLON - EXHAUST EXTENSION PLATEBUSHING, NYLON - EXHAUST EXTENSION PLATE
-
317-23784 PIN, Dowel, EXHAUST EXTENSION PLATEPIN, Dowel, EXHAUST EXTENSION PLATE
-
437918 SEAL, EXHAUST EXTENSION PLATESEAL, EXHAUST EXTENSION PLATE
-
599358 STRIP, RETAINING - EXHAUST EXTENSION PLATESTRIP, RETAINING - EXHAUST EXTENSION PLATE
-
610-37571 SCREW, (.190-32 x .500), SEAL AND RETAINING STRIP TO EXHAUST PLATESCREW, (.190-32 x .500), SEAL AND RETAINING STRIP TO EXHAUST PLATE
-
727-692381 GASKET, POWERHEADGASKET, POWERHEAD
-
810-66023 SCREW, (.312-18 x 2.00) Flange Head, ADAPTOR PLATE TO HOUSING PLATESCREW, (.312-18 x 2.00) Flange Head, ADAPTOR PLATE TO HOUSING PLATE
-
910-66023 SCREW, (.312-18 x 2.00) Flange Head, HOUSING PLATE TO DRIVESHAFT HOUSINGSCREW, (.312-18 x 2.00) Flange Head, HOUSING PLATE TO DRIVESHAFT HOUSING
-
1011-69254 NUT, CRANKCASE STUDSNUT, CRANKCASE STUDS
-
1112-20553 WASHER, CRANKCASE STUDSWASHER, CRANKCASE STUDS
-
1227-661021 GASKET, DRIVESHAFT HOUSING PLATEGASKET, DRIVESHAFT HOUSING PLATE
-
1326-60898 SEAL, DRIVESHAFT HOUSING PLATESEAL, DRIVESHAFT HOUSING PLATE
-
1443290A4 PLATE ASSEMBLY, DRIVESHAFT HOUSINGPLATE ASSEMBLY, DRIVESHAFT HOUSING
-
1526-38970 SEAL, RUBBER - WATER INLET TUBESEAL, RUBBER - WATER INLET TUBE
-
1617-23784 PIN, Dowel, DRIVESHAFT HOUSING PLATEPIN, Dowel, DRIVESHAFT HOUSING PLATE
-
1727-69860 GASKET, EXHAUST TUBEGASKET, EXHAUST TUBE
-
1899698 TUBE, ExhaustTUBE, Exhaust
-
1910-65414 SCREW, EXHAUST TUBE TO DRIVESHAFT HOUSING PLATE (3/4")SCREW, EXHAUST TUBE TO DRIVESHAFT HOUSING PLATE (3/4")
-
2013-26992 LOCKWASHER, (.250) Stainless Steel, EXHAUST TUBE SCREWLOCKWASHER, (.250) Stainless Steel, EXHAUST TUBE SCREW
-
2112-20553 WASHER, POWERHEAD STUDSWASHER, POWERHEAD STUDS
-
2211-82671013 NUT, (.375-24), POWERHEAD STUDSNUT, (.375-24), POWERHEAD STUDS
-
-27-73645A87 GASKET SETGASKET SET
Все узлы модели:
- BOTTOM COWL AND SHIFT LINKAGE
- CARBURETOR ASSEMBLY
- CARBURETOR LINKAGE
- CLAMP BRACKET AND REVERSE LOCK(SHORT SHAFT)
- COWLING AND FRONT COVER
- CRANKSHAFT, PISTON AND CONNECTING ROD
- CYLINDER BLOCK AND CRANKCASE ASSEMBLY
- DRIVESHAFT HOUSING ASSEMBLY
- END CAPS, MANIFOLD AND EXHAUST COVER
- • EXHAUST EXTENSION PLATE
- FLYWHEEL, STATOR AND IGNITION COIL
- FUEL PUMP AND FUEL LINES
- GEAR HOUSING(DRIVESHAFT)
- GEAR HOUSING(PROPELLER SHAFT)
- HYDRAULIC PUMP ASSEMBLY(METAL RESERVOIR)
- HYDRAULIC PUMP ASSEMBLY(PLASTIC RESERVOIR)
- MISCELLANEOUS PARTS/ACCESSORIES
- POWER TRIM COMPONENTS(WITH CIRCUIT BREAKER AND FUSE)
- POWER TRIM COMPONENTS(WITHOUT CIRCUIT BREAKER AND FUSE)
- POWER TRIM CYLINDER REPAIR KITS(USE WITH 76509A3)
- POWER TRIM CYLINDER REPAIR KITS, Use with 92194A14
- PROPELLERS(RIGHT HAND ROTATION)
- STARTER MOTOR AND WIRING HARNESS
- STARTER MOTOR ASSEMBLY(BOSCH)
- STARTER MOTOR ASSEMBLY(PRESTOLITE)
- SWIVEL BRACKET ASSEMBLY
- THROTTLE LEVER AND SPARK ADVANCE LEVER
- TOP COWL AND SUPPORT BRACKETS
- TRANSOM BRACKET(LONG SHAFT)
- TRIM CYLINDERS AND HYDRAULIC HOSES
