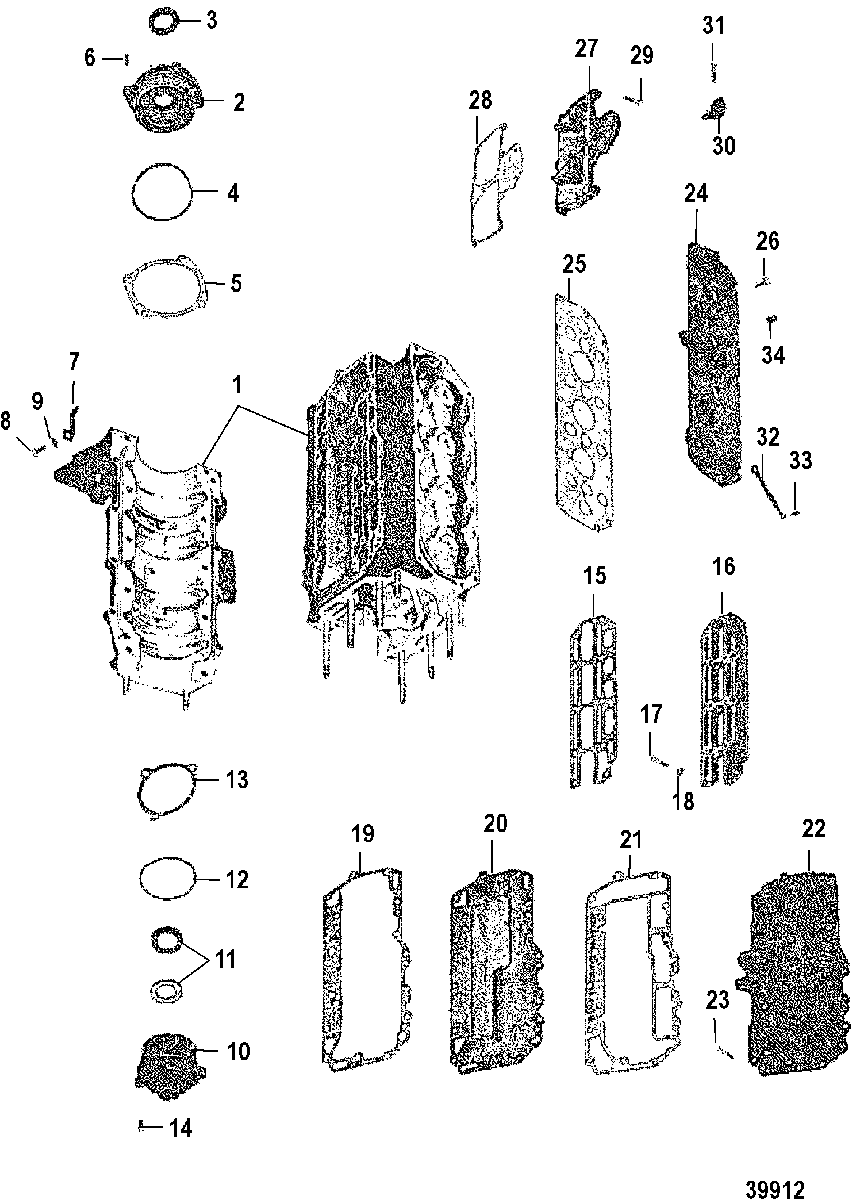

END CAPS, MANIFOLD AND EXHAUST COVER для Mercury - 800 (4 CYL. ), 80 (4 CYL.) 9256131 THRU 9393855
-
№АртикулНазвание
-
1871-8338A3 CYLINDER BLOCK ASSEMBLY
SN# USA-6030903/Australia-8074612/Belgium-9345615/Canada-7189007 & BelowCYLINDER BLOCK ASSEMBLY
SN# USA-6030903/Australia-8074612/Belgium-9345615/Canada-7189007 & Below -
1871-8338A3 CYLINDER BLOCK ASSEMBLY
SN# USA-6030904/Australia-8074613/Belgium-9345616/Canada-7189008 & UpCYLINDER BLOCK ASSEMBLY
SN# USA-6030904/Australia-8074613/Belgium-9345616/Canada-7189008 & Up -
21161-5940A2 END CAP ASSEMBLY, UPPEREND CAP ASSEMBLY, UPPER
-
326-41953 SEAL, OilSEAL, Oil
-
425-47254 O-RINGO-RING
-
515-73644A1 SHIM, END CAP TO CRANKCASE (.006-10)SHIM, END CAP TO CRANKCASE (.006-10)
-
610-812618 SCREW, UPPER END CAP (1")SCREW, UPPER END CAP (1")
-
743352 POINTER, TIMINGPOINTER, TIMING
-
810-65746 SCREW, (.75 In.), TIMING POINTER (3/4")SCREW, (.75 In.), TIMING POINTER (3/4")
-
912-20533 WASHER, TIMING POINTER SCREWWASHER, TIMING POINTER SCREW
-
101148-5410T1 END CAP ASSEMBLY, LOWEREND CAP ASSEMBLY, LOWER
-
1126-41953 SEAL, OilSEAL, Oil
-
1225-32546 O-RINGO-RING
-
1315-20085A1 SHIM SET, END CAP TO CRANKCASE (.005-10)SHIM SET, END CAP TO CRANKCASE (.005-10)
-
1410-30225 SCREW AND LOCKWASHER, (.312-18 x 1.00), LOWER END CAPSCREW AND LOCKWASHER, (.312-18 x 1.00), LOWER END CAP
-
1527-73665 GASKET, WATER JACKET COVERGASKET, WATER JACKET COVER
-
1676198 COVER, WATER JACKET - CYLINDER BLOCKCOVER, WATER JACKET - CYLINDER BLOCK
-
1710-53167T SCREW, (.312-18 x .880), WATER JACKET COVERSCREW, (.312-18 x .880), WATER JACKET COVER
-
1812-8M0042642 WASHER, (.323 x .563 x .063) Stainless Steel, WATER JACKET COVER SCREWWASHER, (.323 x .563 x .063) Stainless Steel, WATER JACKET COVER SCREW
-
1927-854981 GASKET, CYLINDER BLOCK TO BAFFLE PLATEGASKET, CYLINDER BLOCK TO BAFFLE PLATE
-
2073436 PLATE, BAFFLEPLATE, BAFFLE
-
2127-854961 GASKET, BAFFLE PLATE TO EXHAUST COVERGASKET, BAFFLE PLATE TO EXHAUST COVER
-
2278277A1 COVER, EXHAUST MANIFOLDCOVER, EXHAUST MANIFOLD
-
2310-53576 SCREW, (.312-18 x 1.125), MANIFOLD COVERSCREW, (.312-18 x 1.125), MANIFOLD COVER
-
241021-7699 COVER, CYLINDER BLOCK
SN# USA-6030903/Australia-8074612/Belgium-9345615/Canada-7189007 & BelowCOVER, CYLINDER BLOCK
SN# USA-6030903/Australia-8074612/Belgium-9345615/Canada-7189007 & Below -
241021-8340 COVER, CYLINDER BLOCK
SN# USA-6030904/Australia-8074613/Belgium-9345616/Canada-7189008 & UpCOVER, CYLINDER BLOCK
SN# USA-6030904/Australia-8074613/Belgium-9345616/Canada-7189008 & Up -
2527-85493 GASKET, CYLINDER BLOCK COVER
SN# USA-6030903/Australia-8074612/Belgium-9345615/Canada-7189007 & BelowGASKET, CYLINDER BLOCK COVER
SN# USA-6030903/Australia-8074612/Belgium-9345615/Canada-7189007 & Below -
2527-961711 GASKET, CYLINDER BLOCK COVER
SN# USA-6030904/Australia-8074613/Belgium-9345616/Canada-7189008 & UpGASKET, CYLINDER BLOCK COVER
SN# USA-6030904/Australia-8074613/Belgium-9345616/Canada-7189008 & Up -
2610-76630 SCREW, CYLINDER BLOCK COVER (1")SCREW, CYLINDER BLOCK COVER (1")
-
27733201 COVER, TRANSFER PORT - TOPCOVER, TRANSFER PORT - TOP
-
2787872 COVER, TRANSFER PORT - BOTTOMCOVER, TRANSFER PORT - BOTTOM
-
2827-73645 GASKET, TRANSFER PORT COVERGASKET, TRANSFER PORT COVER
-
2910-49668 SCREW, (.250-20 x .750), TRANSFER PORT COVERSCREW, (.250-20 x .750), TRANSFER PORT COVER
-
3037440 BRACKET, MOUNT SUPPORT - CYLINDER BLOCKBRACKET, MOUNT SUPPORT - CYLINDER BLOCK
-
3110-35386 SCREW, (.312-18 x 1.00), BRACKET TO CYLINDER BLOCKSCREW, (.312-18 x 1.00), BRACKET TO CYLINDER BLOCK
-
3246933A3 STRAP ASEMBLY, Ground, EXHAUST COVER SCREWSTRAP ASEMBLY, Ground, EXHAUST COVER SCREW
-
3310-62568 SCREW, (#10-16 x .375), GROUND STRAPSCREW, (#10-16 x .375), GROUND STRAP
-
3422-68307 PLUG, PIPE - CYLINDER BLOCK COVERPLUG, PIPE - CYLINDER BLOCK COVER
-
-27-73645A87 GASKET SETGASKET SET
