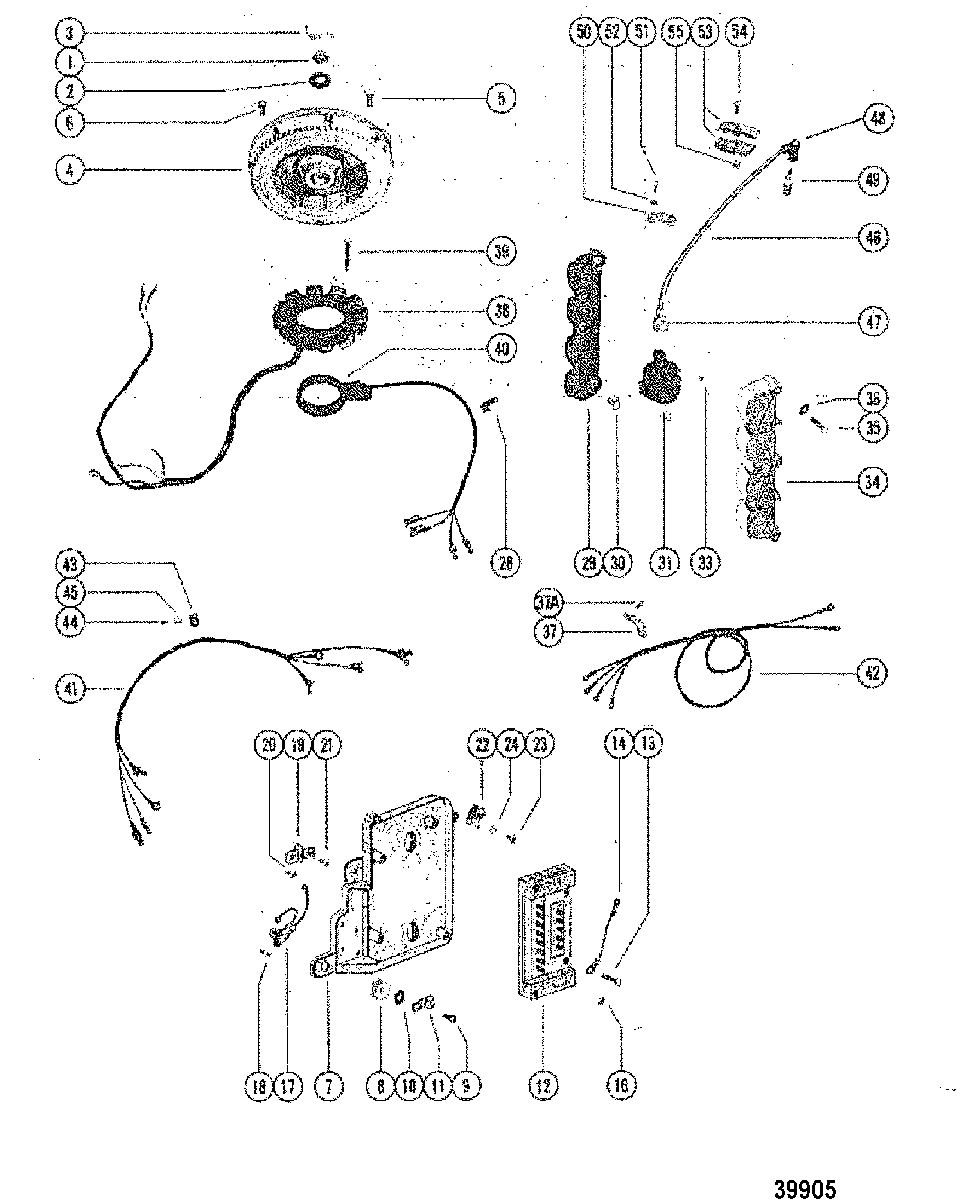

FLYWHEEL, STATOR AND IGNITION COIL для Mercury - 800 (4 CYL. ), 80 (4 CYL.) 9256131 THRU 9393855
-
№АртикулНазвание
-
111-52901 NUT, (.625-18), FLYWHEELNUT, (.625-18), FLYWHEEL
-
212-33001 WASHER, (.641 x 1.250 x .190), FLYWHEEL NUTWASHER, (.641 x 1.250 x .190), FLYWHEEL NUT
-
319-45907 PLUG, Yellow, FLYWHEEL PULLER THREADSPLUG, Yellow, FLYWHEEL PULLER THREADS
-
4248-8722A6 FLYWHEEL ASSEMBLYFLYWHEEL ASSEMBLY
-
510-68997 SCREW, (.312-24 x .750), PLATE/HUB TO FLEXIBLE PLATESCREW, (.312-24 x .750), PLATE/HUB TO FLEXIBLE PLATE
-
610-32417 SCREW, (.250-28 x .625), FLEXIBLE PLATE TO FLYWHEELSCREW, (.250-28 x .625), FLEXIBLE PLATE TO FLYWHEEL
-
790332 PLATE, SWITCH BOXPLATE, SWITCH BOX
-
825-57009001 GROMMET, SWITCH BOXGROMMET, SWITCH BOX
-
910-824941 SCREW, (.312-18 x .750)SCREW, (.312-18 x .750)
-
1012-56720 WASHER, (.330 x .750 x .060) Stainless Steel, SWITCH BOX PLATE SCREWWASHER, (.330 x .750 x .060) Stainless Steel, SWITCH BOX PLATE SCREW
-
1154-47483 J CLIP, SWITCH BOX WIRES AND FUEL LINEJ CLIP, SWITCH BOX WIRES AND FUEL LINE
-
12332-5772A7 SWITCHBOX ASSEMBLYSWITCHBOX ASSEMBLY
-
1310-20619 SCREW, (#12-24 x 1.25), SWITCH BOX TO PLATESCREW, (#12-24 x 1.25), SWITCH BOX TO PLATE
-
1484-65999A5 WIRE ASSEMBLYWIRE ASSEMBLY
-
1611-45076 NUT, (#10-32) Brass, SWITCH BOX TERMINALNUT, (#10-32) Brass, SWITCH BOX TERMINAL
-
1758124A19 MERCURY SWITCH ASSEMBLYMERCURY SWITCH ASSEMBLY
-
1810-37571 SCREW, (.190-32 x .500), MERCURY SWITCH TO PLATESCREW, (.190-32 x .500), MERCURY SWITCH TO PLATE
-
1986-66986 TERMINAL BLOCKTERMINAL BLOCK
-
2010-38055 SCREW, (.190-32 x .62), TERMINAL BLOCK TO PLATESCREW, (.190-32 x .62), TERMINAL BLOCK TO PLATE
-
2110-37655 SCREW, (#10-32 x .500), WIRE TO TERMINAL BLOCKSCREW, (#10-32 x .500), WIRE TO TERMINAL BLOCK
-
2254-23567 CLIP, WIRES AND HARNESSCLIP, WIRES AND HARNESS
-
2310-48408 SCREW, (#10-16 x .500), CLIP TO PLATESCREW, (#10-16 x .500), CLIP TO PLATE
-
248M0084613 C WASHER, CLIP SCREWC WASHER, CLIP SCREW
-
2854-47483 J CLIP, TRIGGER PLATE HARNESSJ CLIP, TRIGGER PLATE HARNESS
-
2973395 PLATE, MOUNTING - IGNITION COILPLATE, MOUNTING - IGNITION COIL
-
3010-28668 SCREW, (.250-20 x .875) Stainless Steel, MOUNTING PLATE TO CRANKCASESCREW, (.250-20 x .875) Stainless Steel, MOUNTING PLATE TO CRANKCASE
-
31339-832757A4 COIL ASSEMBLY, IgnitionCOIL ASSEMBLY, Ignition
-
3311-45076 NUT, (#10-32) Brass, IGNITION COIL TERMINALNUT, (#10-32) Brass, IGNITION COIL TERMINAL
-
3487554 COVER, IGNITION COILCOVER, IGNITION COIL
-
3510-88856 SCREW, (.190-32 x 2.00), COVER TO MOUNTING PLATESCREW, (.190-32 x 2.00), COVER TO MOUNTING PLATE
-
3612-30164 WASHER, (.192 x .375 x .0312) Stainless Steel, COVER SCREWWASHER, (.192 x .375 x .0312) Stainless Steel, COVER SCREW
-
3777672 STRAP, PRIMARY HARNESSSTRAP, PRIMARY HARNESS
-
37A10-48408 SCREW, (#10-16 x .500), STRAP ATTACHINGSCREW, (#10-16 x .500), STRAP ATTACHING
-
38398-5454A26 STATOR ASSEMBLYSTATOR ASSEMBLY
-
3910-75840 SCREW, (#10-24 x .880), STATOR TO UPPER END CAPSCREW, (#10-24 x .880), STATOR TO UPPER END CAP
-
4096453A2 TRIGGER PLATE ASSEMBLYTRIGGER PLATE ASSEMBLY
-
4184-77617 HARNESS ASSEMBLY, PRIMARY (CYLINDERS 1 AND 2)HARNESS ASSEMBLY, PRIMARY (CYLINDERS 1 AND 2)
-
4284-77618 HARNESS ASSEMBLY, PRIMARY (CYLINDERS 3 AND 4)HARNESS ASSEMBLY, PRIMARY (CYLINDERS 3 AND 4)
-
4354-45806 CLAMP, HARNESS ATTACHINGCLAMP, HARNESS ATTACHING
-
4410-48408 SCREW, (#10-16 x .500), CLAMP TO CRANKCASESCREW, (#10-16 x .500), CLAMP TO CRANKCASE
-
458M0084613 C WASHER, HARNESS CLAMP SCREWC WASHER, HARNESS CLAMP SCREW
-
4684-813715A1 WIRE ASSEMBLY, SPARK PLUGWIRE ASSEMBLY, SPARK PLUG
-
47332-2854T01 BOOT, IGNITION COILBOOT, IGNITION COIL
-
4885-63709A1 BOOT/TERMINAL KIT, SPARK PLUGBOOT/TERMINAL KIT, SPARK PLUG
-
4933-97182Q SPARK PLUG (AC#V40FFK)SPARK PLUG (AC#V40FFK)
-
4933-14103550 SPARK PLUG
Canada/BelgiumSPARK PLUG
Canada/Belgium -
5078278 RETAINER, WIRERETAINER, WIRE
-
5110-48408 SCREW, (#10-16 x .500), WIRE RETAINERSCREW, (#10-16 x .500), WIRE RETAINER
-
5212-21273 WASHER, WIRE RETAINER SCREWWASHER, WIRE RETAINER SCREW
-
5363319 RETAINER, SPARK PLUG WIRERETAINER, SPARK PLUG WIRE
-
5410-46378 SCREW, (.250-28 x 1.00), RETAINER TO CYLINDER BLOCK COVERSCREW, (.250-28 x 1.00), RETAINER TO CYLINDER BLOCK COVER
-
5511-20013 NUT, (.250-28), RETAINER SCREWNUT, (.250-28), RETAINER SCREW
