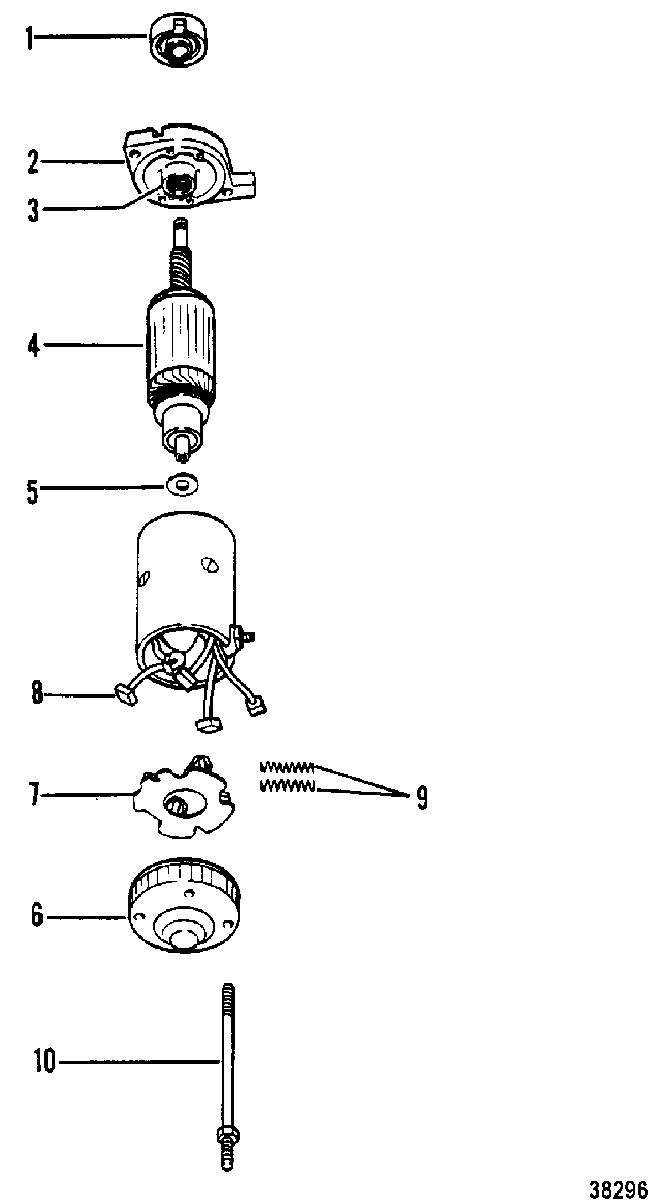

STARTER MOTOR ASSEMBLY(PRESTOLITE) для Mercury - 800 (4 CYL. ), 80 (4 CYL.) 9256131 THRU 9393855
-
№АртикулНазвание
-
1392-8848 MOTOR DRIVEMOTOR DRIVE
-
2392-8852 PLATE ASSEMBLY, DRIVE ENDPLATE ASSEMBLY, DRIVE END
-
3392-8853 BUSHING, DRIVE END PLATEBUSHING, DRIVE END PLATE
-
4392-8857 ARMATUREARMATURE
-
5392-8856 PACKAGE, ARMATURE THRUST WASHERPACKAGE, ARMATURE THRUST WASHER
-
6392-8849 END CAP ASSEMBLY, COMMUTATOREND CAP ASSEMBLY, COMMUTATOR
-
7392-8850 PLATE/HOLDER ASSEMBLY, BrushPLATE/HOLDER ASSEMBLY, Brush
-
8392-8851 BRUSH AND TERMINAL SETBRUSH AND TERMINAL SET
-
9392-8854 SPRING SET, BRUSH (2 SPRINGS PER SET)SPRING SET, BRUSH (2 SPRINGS PER SET)
-
10392-8855 BOLT, THRU - END CAP TO END PLATE (1/4-28)BOLT, THRU - END CAP TO END PLATE (1/4-28)
Все узлы модели:
- BOTTOM COWL AND SHIFT LINKAGE
- CARBURETOR ASSEMBLY
- CARBURETOR LINKAGE
- CLAMP BRACKET AND REVERSE LOCK(SHORT SHAFT)
- COWLING AND FRONT COVER
- CRANKSHAFT, PISTON AND CONNECTING ROD
- CYLINDER BLOCK AND CRANKCASE ASSEMBLY
- DRIVESHAFT HOUSING ASSEMBLY
- END CAPS, MANIFOLD AND EXHAUST COVER
- EXHAUST EXTENSION PLATE
- FLYWHEEL, STATOR AND IGNITION COIL
- FUEL PUMP AND FUEL LINES
- GEAR HOUSING(DRIVESHAFT)
- GEAR HOUSING(PROPELLER SHAFT)
- HYDRAULIC PUMP ASSEMBLY(METAL RESERVOIR)
- HYDRAULIC PUMP ASSEMBLY(PLASTIC RESERVOIR)
- MISCELLANEOUS PARTS/ACCESSORIES
- POWER TRIM COMPONENTS(WITH CIRCUIT BREAKER AND FUSE)
- POWER TRIM COMPONENTS(WITHOUT CIRCUIT BREAKER AND FUSE)
- POWER TRIM CYLINDER REPAIR KITS(USE WITH 76509A3)
- POWER TRIM CYLINDER REPAIR KITS, Use with 92194A14
- PROPELLERS(RIGHT HAND ROTATION)
- STARTER MOTOR AND WIRING HARNESS
- STARTER MOTOR ASSEMBLY(BOSCH)
- • STARTER MOTOR ASSEMBLY(PRESTOLITE)
- SWIVEL BRACKET ASSEMBLY
- THROTTLE LEVER AND SPARK ADVANCE LEVER
- TOP COWL AND SUPPORT BRACKETS
- TRANSOM BRACKET(LONG SHAFT)
- TRIM CYLINDERS AND HYDRAULIC HOSES
