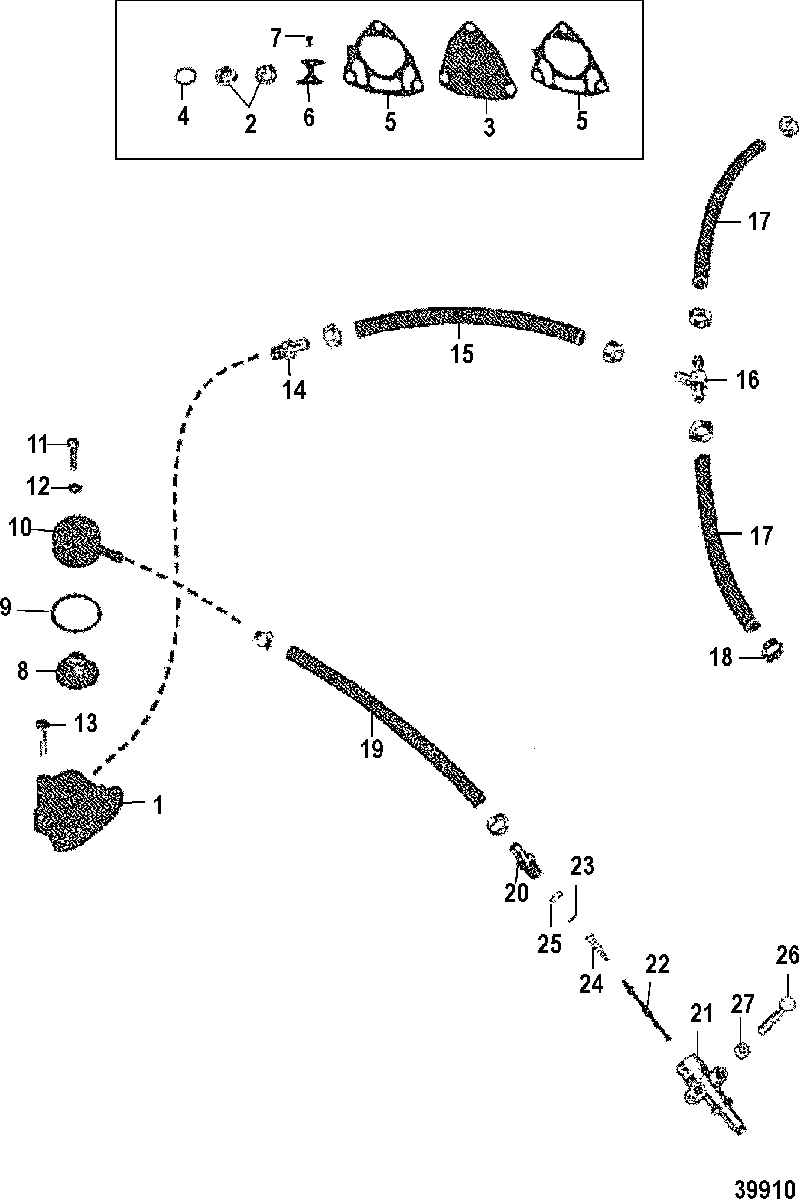

FUEL PUMP AND FUEL LINES для Mercury - 800 (4 CYL. ), 80 (4 CYL.) 9256131 THRU 9393855
-
№АртикулНазвание
-
173434A5 PUMP ASSEMBLY, FuelPUMP ASSEMBLY, Fuel
-
221-8M0084276 CHECK VALVE ASSEMBLYCHECK VALVE ASSEMBLY
-
355278A5 DIAPHRAGM KITDIAPHRAGM KIT
-
4NSS NOT SOLD SEPARATE, GASKET, CHECK VALVENOT SOLD SEPARATE, GASKET, CHECK VALVE
-
5NSS NOT SOLD SEPARATE, GASKET, FUEL PUMPNOT SOLD SEPARATE, GASKET, FUEL PUMP
-
623004 RETAINER, CHECK VALVERETAINER, CHECK VALVE
-
710-43725 SCREW, CHECK VALVE TO FUEL PUMP (1/4")SCREW, CHECK VALVE TO FUEL PUMP (1/4")
-
835-73532 FILTER, FuelFILTER, Fuel
-
925-35480 O-RING, (1.237 x .103), COVER TO FUEL PUMPO-RING, (1.237 x .103), COVER TO FUEL PUMP
-
1035-14805A2 COVER, FUEL PUMPCOVER, FUEL PUMP
-
1110-37370 SCREW, (#10-32 x .580), COVER TO FUEL PUMPSCREW, (#10-32 x .580), COVER TO FUEL PUMP
-
1227-25848 GASKET, COVER SCREWGASKET, COVER SCREW
-
1310-70939 SCREW, FUEL PUMP TO UPPER TRANSFER COVER (1-7/8")SCREW, FUEL PUMP TO UPPER TRANSFER COVER (1-7/8")
-
1310-69067 SCREW, (.250-20 x 1.375), FUEL PUMP TO UPPER TRANSFER COVERSCREW, (.250-20 x 1.375), FUEL PUMP TO UPPER TRANSFER COVER
-
1422-64705 FITTING, FUEL PUMP (OUTLET)FITTING, FUEL PUMP (OUTLET)
-
1532-8M0108355 LINE, Fuel, TEE TO FUEL PUMP (11")LINE, Fuel, TEE TO FUEL PUMP (11")
-
1622-73318 TEE, Plastic, FUEL LINETEE, Plastic, FUEL LINE
-
1732-8M0108355 LINE, Fuel, CARBURETOR TO TEE TO CARBURETOR (3")LINE, Fuel, CARBURETOR TO TEE TO CARBURETOR (3")
-
1854-68424 CLAMP, FUEL LINE ATTACHINGCLAMP, FUEL LINE ATTACHING
-
1932-8M0108355 LINE, Fuel, ADAPTOR TO FUEL PUMP (15")LINE, Fuel, ADAPTOR TO FUEL PUMP (15")
-
2022-63187 FITTING, Barb (.250-18), FUEL LINE TO ADAPTORFITTING, Barb (.250-18), FUEL LINE TO ADAPTOR
-
2122833 ADAPTOR, CHECK UNIT (FUEL LINE)
IDENTIFIED BY 73419 CASTING ON REF. #21ADAPTOR, CHECK UNIT (FUEL LINE)
IDENTIFIED BY 73419 CASTING ON REF. #21 -
2130186 ADAPTOR, CHECK UNIT (FUEL LINE)
IDENTIFIED BY 30186 CASTING ON REF. #21ADAPTOR, CHECK UNIT (FUEL LINE)
IDENTIFIED BY 30186 CASTING ON REF. #21 -
2223069 STEM, CHECK UNIT ADAPTOR
IDENTIFIED BY 73419 CASTING ON REF. #21STEM, CHECK UNIT ADAPTOR
IDENTIFIED BY 73419 CASTING ON REF. #21 -
2230185Q3 STEM, CHECK UNIT ADAPTOR
IDENTIFIED BY 30186 CASTINGSTEM, CHECK UNIT ADAPTOR
IDENTIFIED BY 30186 CASTING -
2325-16524 O-RING, ADAPTOR STEM
IDENTIFIED BY 73419 CASTING ON REF. #21O-RING, ADAPTOR STEM
IDENTIFIED BY 73419 CASTING ON REF. #21 -
2325-16524 O-RING, ADAPTOR STEM
IDENTIFIED BY 30186 CASTINGO-RING, ADAPTOR STEM
IDENTIFIED BY 30186 CASTING -
2424-23067T SPRING, ADAPTOR STEM
IDENTIFIED BY 73419 CASTING ON REF. #21SPRING, ADAPTOR STEM
IDENTIFIED BY 73419 CASTING ON REF. #21 -
2431089 STRIP, ADAPTOR STEM
IDENTIFIED BY 30186 CASTINGSTRIP, ADAPTOR STEM
IDENTIFIED BY 30186 CASTING -
2530188 WASHER, ADAPTORWASHER, ADAPTOR
-
2610-36154 SCREW, (.250-28 x 1.380), ADAPTOR TO BOTTOM COWLSCREW, (.250-28 x 1.380), ADAPTOR TO BOTTOM COWL
-
2711-36069 NUT, ADAPTOR SCREWNUT, ADAPTOR SCREW
-
-27-73645A87 GASKET SETGASKET SET
