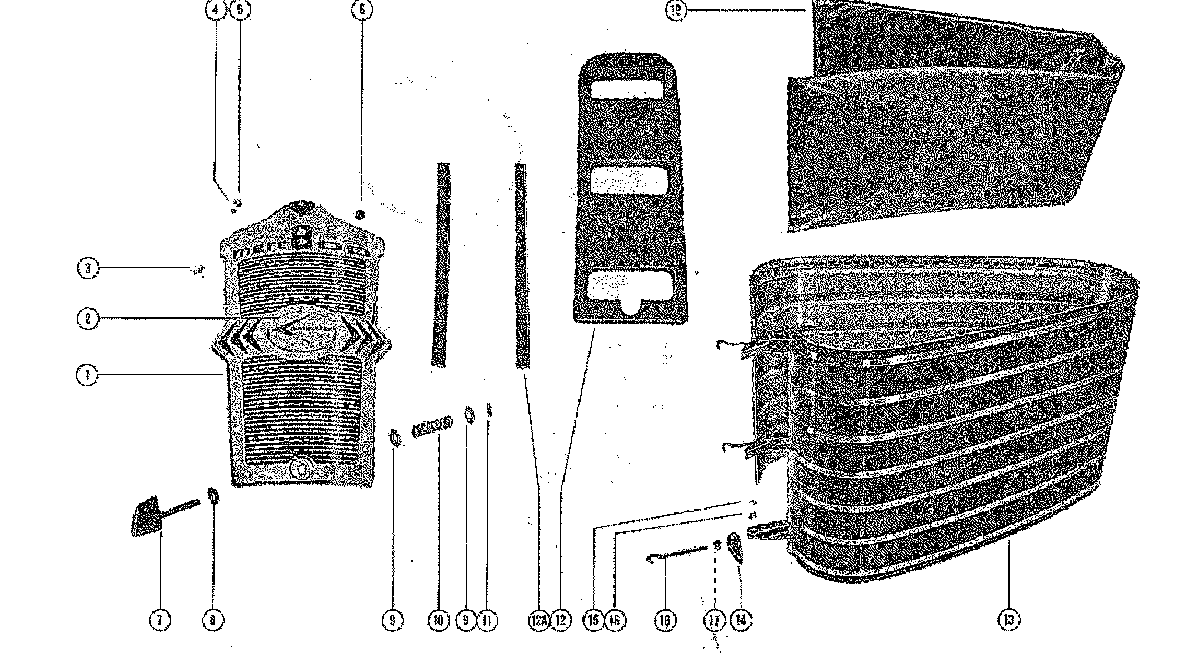

COWLING AND FRONT COVER для Mercury - 800 (6 CYL.) 1398630 THRU 1566239
-
№АртикулНазвание
-
1184-2043A3 COWL FRONT COVER ASSEMBLYCOWL FRONT COVER ASSEMBLY
-
226183A5 EMBLEM, FRONT COVEREMBLEM, FRONT COVER
-
310-29226 SCREW, BRACKET TO FRONT COVERSCREW, BRACKET TO FRONT COVER
-
413-26995 LOCKWASHER, BRACKET FASTENING SCREWLOCKWASHER, BRACKET FASTENING SCREW
-
511-26419 NUT, BRACKET FASTENING SCREWNUT, BRACKET FASTENING SCREW
-
629345 BUMPER, RUBBER - FRONT COVER BRACKETBUMPER, RUBBER - FRONT COVER BRACKET
-
756849 KNOB, COWL FRONT COVER FASTENINGKNOB, COWL FRONT COVER FASTENING
-
812-30771 WASHER, COVER FASTENING KNOB (RUBBER)WASHER, COVER FASTENING KNOB (RUBBER)
-
912-26825 WASHER, COVER FASTENING KNOB (STEEL)WASHER, COVER FASTENING KNOB (STEEL)
-
1024-30772 SPRING, TENSION - FASTENING KNOBSPRING, TENSION - FASTENING KNOB
-
1117-29077 ROLL PIN, TENSION SPRING TO KNOBROLL PIN, TENSION SPRING TO KNOB
-
1230287 BLANKET, SOUND ABSORBINGBLANKET, SOUND ABSORBING
-
12A31089 STRIP, RUBBER - COWL FRONT COVERSTRIP, RUBBER - COWL FRONT COVER
-
132120-2509A5 WRAP AROUDN COWL ASSEMBLYWRAP AROUDN COWL ASSEMBLY
-
1446785A1 HANDLE, COWL LATCHHANDLE, COWL LATCH
-
1553-21058 "E" RING, COWL LATCH HINGE PIN"E" RING, COWL LATCH HINGE PIN
-
1617-21057 PIN, HINGE - COWL LATCH HANDLEPIN, HINGE - COWL LATCH HANDLE
-
1746785A1 SWIVEL, COWL LATCHSWIVEL, COWL LATCH
-
1830413 HOOK, COWL LATCH FASTENINGHOOK, COWL LATCH FASTENING
-
1930021 BLANKET, SOUND ABSORBING - WRAP AROUND COWLBLANKET, SOUND ABSORBING - WRAP AROUND COWL
-
--92-86166Q1 GLUE, ADHESIVE - BLANKET FASTENINIGGLUE, ADHESIVE - BLANKET FASTENINIG
-
--92-271091 ADHESIVE COMPOUND (3 1/2 OUNCE KIT) EMBLEM FASTENINGADHESIVE COMPOUND (3 1/2 OUNCE KIT) EMBLEM FASTENING
