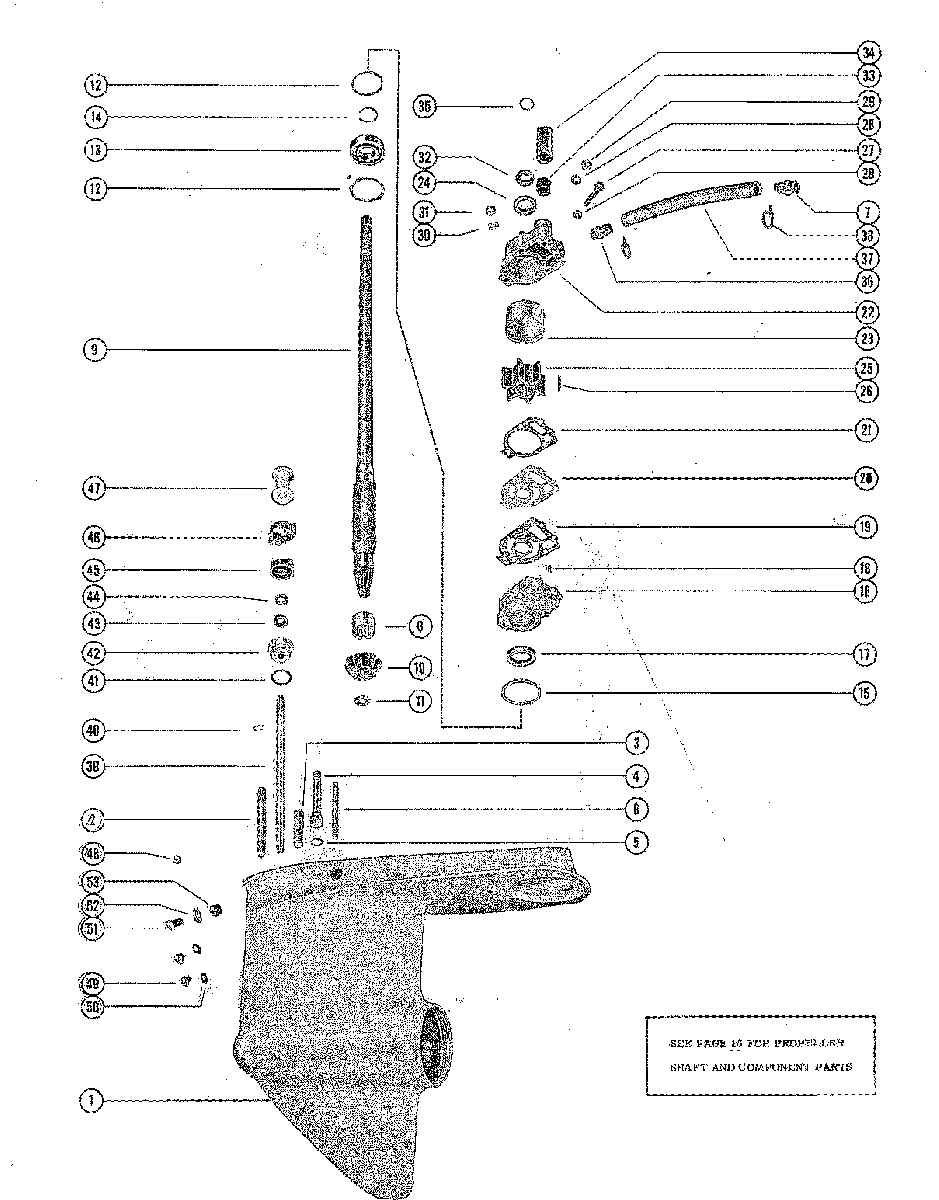

GEAR HOUSING ASSEMBLY, COMPLETE (CONT) для Mercury - 800 (6 CYL.) 1398630 THRU 1566239
-
№АртикулНазвание
-
-1623-2022A7 GEAR HOUSING ASSEMBLY, COMPLETE (SHORT SHAFT)
USE ON ENGINES FROM SERIAL #1406322 AND BELOWGEAR HOUSING ASSEMBLY, COMPLETE (SHORT SHAFT)
USE ON ENGINES FROM SERIAL #1406322 AND BELOW -
-1623-2022A6 GEAR HOUSING ASSEMBLY, COMPLETE (LONG SHAFT)
USE ON ENGINES FROM SERIAL #1406322 AND BELOWGEAR HOUSING ASSEMBLY, COMPLETE (LONG SHAFT)
USE ON ENGINES FROM SERIAL #1406322 AND BELOW -
-1623-2022A7 GEAR HOUSING ASSEMBLY, COMPLETE (SHORT SHAFT)
USE ON ENGINES FROM SERIAL #1406323 AND UPGEAR HOUSING ASSEMBLY, COMPLETE (SHORT SHAFT)
USE ON ENGINES FROM SERIAL #1406323 AND UP -
-1623-2022A6 GEAR HOUSING ASSEMBLY, COMPLETE (LONG SHAFT)
USE ON ENGINES FROM SERIAL #1406323 AND UPGEAR HOUSING ASSEMBLY, COMPLETE (LONG SHAFT)
USE ON ENGINES FROM SERIAL #1406323 AND UP -
11623-2041A2 GEAR HOUSING ASSEMBLYGEAR HOUSING ASSEMBLY
-
216-57921 STUD, GEAR HOUSING TO DRIVE SHAFT HOUSING (3 15/16")STUD, GEAR HOUSING TO DRIVE SHAFT HOUSING (3 15/16")
-
316-8M0133358 STUD, GEAR HOUSING TO DRIVE SHAFT HOUSING (2")STUD, GEAR HOUSING TO DRIVE SHAFT HOUSING (2")
-
416-30901 STUD, WATER PUMP BASE AND BODY TO GEAR HOUSING (3 1/4")STUD, WATER PUMP BASE AND BODY TO GEAR HOUSING (3 1/4")
-
525-62704 "O" RING, GEAR HOUSING STUD (16-30901)"O" RING, GEAR HOUSING STUD (16-30901)
-
416-30669 STUD, WATER PUMP BASE AN DBODY TO GEAR HOIUSING (3 1/4")STUD, WATER PUMP BASE AN DBODY TO GEAR HOIUSING (3 1/4")
-
616-306671 STUD, WATER PUMP BASE AND BODY TO GEAR HOUSING (3 1/8")STUD, WATER PUMP BASE AND BODY TO GEAR HOUSING (3 1/8")
-
722-30570 FITTING, GEAR HOUSING TO WATER INTAKE HOSEFITTING, GEAR HOUSING TO WATER INTAKE HOSE
-
831-32898T BEARING, ROLLER - DRIVE SHAFTBEARING, ROLLER - DRIVE SHAFT
-
945-38459 DRIVE SHAFT (SHORT SHAFT)DRIVE SHAFT (SHORT SHAFT)
-
945-38460 DRIVE SHAFT (LONG SHAFT)DRIVE SHAFT (LONG SHAFT)
-
1043-30566 GEAR, PINION - DRIVE SHAFT
USE ON ENGINES FROM SERIAL #1406322 AND BELOWGEAR, PINION - DRIVE SHAFT
USE ON ENGINES FROM SERIAL #1406322 AND BELOW -
1043-31419 GEAR, PINION - DRIVE SHAFT
USE ON ENGINES FROM SERIAL #1406323 AND UPGEAR, PINION - DRIVE SHAFT
USE ON ENGINES FROM SERIAL #1406323 AND UP -
1111-30932 NUT, PINION GEAR TO DRIVE SHAFTNUT, PINION GEAR TO DRIVE SHAFT
-
1215-30278A1 SHIM, DRIVE SHAFT BALL BEARING TO GEAR HOUSINGSHIM, DRIVE SHAFT BALL BEARING TO GEAR HOUSING
-
1330-63326T BEARING, BALL - DRIVE SHAFTBEARING, BALL - DRIVE SHAFT
-
1453-30726 RING, RETAINING - BALL BEARINGRING, RETAINING - BALL BEARING
-
1525-30224 "O" RING, ATER PUMP BASE"O" RING, ATER PUMP BASE
-
1646-31277A2 WATER PUMP BASE ASSEMBLYWATER PUMP BASE ASSEMBLY
-
1726-94038 OIL SEAL, WATER PUMP BASEOIL SEAL, WATER PUMP BASE
-
1817-29596T DOWEL PIN, WATER PUMP BASE TO BODYDOWEL PIN, WATER PUMP BASE TO BODY
-
1927-8M0090319 GASKET, LOWER - WATER PUMP BASE TO FACE PLATEGASKET, LOWER - WATER PUMP BASE TO FACE PLATE
-
2127-858524 GASKET, FACE PLATE TO WATER PUMP BODYGASKET, FACE PLATE TO WATER PUMP BODY
-
2246-31277A2 WATER PUMP BODY ASSEMBLYWATER PUMP BODY ASSEMBLY
-
2330915 INSERT, WATER PUMP BODYINSERT, WATER PUMP BODY
-
2426-16977 OIL SEAL, WATER PUMP BODYOIL SEAL, WATER PUMP BODY
-
2547-89984T4 IMPELLER, WATER PUMPIMPELLER, WATER PUMP
-
2617-8M0034466 PIN, IMPELLER DRIVEPIN, IMPELLER DRIVE
-
2710-30720 SCREW, WATER PUMP BODY TO GEAR HOUSING (1/4")SCREW, WATER PUMP BODY TO GEAR HOUSING (1/4")
-
2813-26992 LOCKWASHER, WATER PUMP BODY FASTENING SCREW AND STUDS (1/4")LOCKWASHER, WATER PUMP BODY FASTENING SCREW AND STUDS (1/4")
-
2911-29598 NUT, WATER PUMP BODY FASTENING STUDS (1/4")NUT, WATER PUMP BODY FASTENING STUDS (1/4")
-
3013-26993 LOCKWASHER, WATER PUMP BODY FASTENING STUDS (5/16")LOCKWASHER, WATER PUMP BODY FASTENING STUDS (5/16")
-
3111-28770 NUT, WATER JPUMP BODY FASTENING STUD (5/16")NUT, WATER JPUMP BODY FASTENING STUD (5/16")
-
3225-30271 RING, RUBBER - CENTRIFUGAL SLINGER (DRIVE SHAFT)RING, RUBBER - CENTRIFUGAL SLINGER (DRIVE SHAFT)
-
3326-38970 SEAL, RUBBER - WATER PUMP BODYSEAL, RUBBER - WATER PUMP BODY
-
3423-29804T SLEEVE, GUIDE - WATER INLET TUBESLEEVE, GUIDE - WATER INLET TUBE
-
3525-30613 "O" RING, UPPER - DRIVE SHAFT"O" RING, UPPER - DRIVE SHAFT
-
3622-30570 FITTING, WATER PUMP BODY TO WATER INTAKE HOSEFITTING, WATER PUMP BODY TO WATER INTAKE HOSE
-
3732-30556 HOSE, WATER INTAKE-GEAR HOUSINGHOSE, WATER INTAKE-GEAR HOUSING
-
3854-30558 CLAMP, WATER INTAKE HOSE TO FITTINGSCLAMP, WATER INTAKE HOSE TO FITTINGS
-
3925136 SHAFT, SHIFT - LOWERSHAFT, SHIFT - LOWER
-
4053-29641 CLIP, RETAINING - SHIFT SHAFTCLIP, RETAINING - SHIFT SHAFT
-
4125-25439 "O"RING, SHIFT SHAFT BUSHING"O"RING, SHIFT SHAFT BUSHING
-
4223-8M0112749 BUSHING ASSEMBLY, SHIFT SHAFTBUSHING ASSEMBLY, SHIFT SHAFT
-
4326-892361 OIL SEAL, SHIFT SHAFT BUSHINGOIL SEAL, SHIFT SHAFT BUSHING
-
4412-31266 WASHER, RUBBER - SHIFT SHAFT BUSHINGWASHER, RUBBER - SHIFT SHAFT BUSHING
-
4552918 CAM, LOWER - REVERSE LOCKINGCAM, LOWER - REVERSE LOCKING
-
4652919 CAM, UPPER - REVERSE LOCKINGCAM, UPPER - REVERSE LOCKING
-
4723-30607 SPACER, NYLON - REVERSE LOCKING CAMSPACER, NYLON - REVERSE LOCKING CAM
-
4822-390721 PLUG, PIPE - SHIFT SHAFT GREASE FILLER HOLEPLUG, PIPE - SHIFT SHAFT GREASE FILLER HOLE
-
4910-79953Q04 SCREW, GREASE FILLER AND VENT HOLESCREW, GREASE FILLER AND VENT HOLE
-
5012-191833 WASHER GREASE FILLER AND VENT HOLE SCREWWASHER GREASE FILLER AND VENT HOLE SCREW
-
5110-29608 SCREW, GEAR HOUSING FLUSHING HOLESCREW, GEAR HOUSING FLUSHING HOLE
-
5227-29586 GASKET, GEAR HOUSING FLUSHING HOLE SCREWGASKET, GEAR HOUSING FLUSHING HOLE SCREW
-
5326-29612 SEAL, GEAR HOUSING FLUSHING HOLESEAL, GEAR HOUSING FLUSHING HOLE
