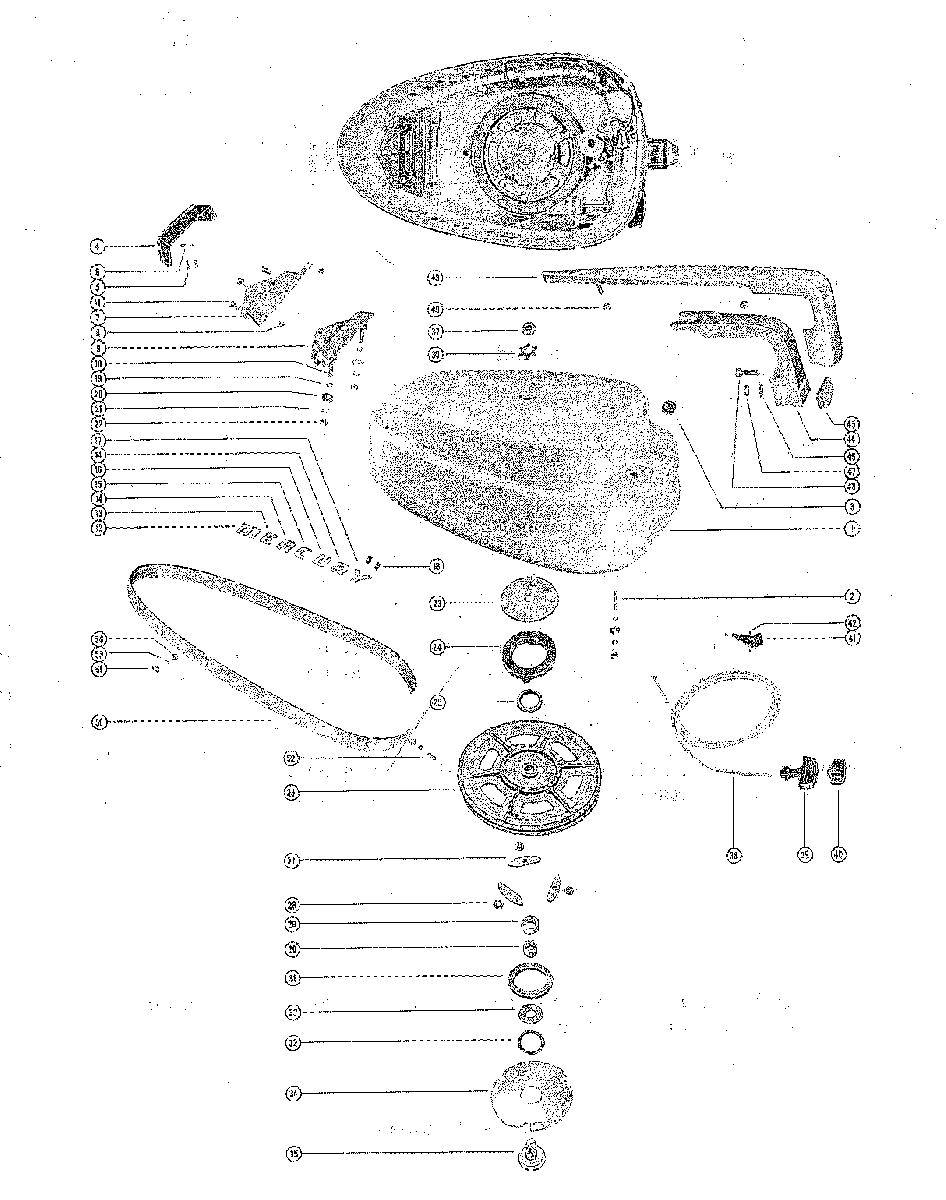

TOP COWL AND STARTER ASSEMBLY для Mercury - 800 (6 CYL.) 1398630 THRU 1566239
-
№АртикулНазвание
-
1182-1809A2 TOP COWL ASSEMBLY
USE THRU SERIAL #1402843 ON MERC 800E AND THRU SERIAL #1404353 ON MERC 800EL.TOP COWL ASSEMBLY
USE THRU SERIAL #1402843 ON MERC 800E AND THRU SERIAL #1404353 ON MERC 800EL. -
216-20353 STUD, FRONT - TOP COWL TO CRANKCASE
USE THRU SERIAL #1402843 ON MERC 800E AND THRU SERIAL #1404353 ON MERC 800EL.STUD, FRONT - TOP COWL TO CRANKCASE
USE THRU SERIAL #1402843 ON MERC 800E AND THRU SERIAL #1404353 ON MERC 800EL. -
325-20116 GROMMET, CHOKE KNOB
USE THRU SERIAL #1402843 ON MERC 800E AND THRU SERIAL #1404353 ON MERC 800EL.GROMMET, CHOKE KNOB
USE THRU SERIAL #1402843 ON MERC 800E AND THRU SERIAL #1404353 ON MERC 800EL. -
1182-1895A2 TOP COWL ASSEMBLY
STARTED WITH SERIAL 1402844 ON MERC 800E AND WITH SERIAL 1404354 ON MERC 800EL.TOP COWL ASSEMBLY
STARTED WITH SERIAL 1402844 ON MERC 800E AND WITH SERIAL 1404354 ON MERC 800EL. -
216-20353 STUD, FRONT - TOP COWL TO CRANKCASE
STARTED WITH SERIAL 1402844 ON MERC 800E AND WITH SERIAL 1404354 ON MERC 800EL.STUD, FRONT - TOP COWL TO CRANKCASE
STARTED WITH SERIAL 1402844 ON MERC 800E AND WITH SERIAL 1404354 ON MERC 800EL. -
325-20116 GROMMET, CHOKE KNOB
STARTED WITH SERIAL 1402844 ON MERC 800E AND WITH SERIAL 1404354 ON MERC 800EL.GROMMET, CHOKE KNOB
STARTED WITH SERIAL 1402844 ON MERC 800E AND WITH SERIAL 1404354 ON MERC 800EL. -
-37-46023A1 DECAL, TOP COWL - STARBOARD SIDE
STARTED WITH SERIAL 1402844 ON MERC 800E AND WITH SERIAL 1404354 ON MERC 800EL.DECAL, TOP COWL - STARBOARD SIDE
STARTED WITH SERIAL 1402844 ON MERC 800E AND WITH SERIAL 1404354 ON MERC 800EL. -
-37-46023A1 DECAL, TOP COWL-PORT SIDE
STARTED WITH SERIAL 1402844 ON MERC 800E AND WITH SERIAL 1404354 ON MERC 800EL.DECAL, TOP COWL-PORT SIDE
STARTED WITH SERIAL 1402844 ON MERC 800E AND WITH SERIAL 1404354 ON MERC 800EL. -
431476 REVEAL, AIR INTAKEREVEAL, AIR INTAKE
-
510-37370 SCREW, REVEAL TO TOP COWLSCREW, REVEAL TO TOP COWL
-
613-26996 LOCKWASHER, REVEAL TO TOP COWL FASTENIING SCREWLOCKWASHER, REVEAL TO TOP COWL FASTENIING SCREW
-
731475 SCREEN, VENT - TOP COWLSCREEN, VENT - TOP COWL
-
810-26668 SCREW, VENT SCREEN TO TOP COWLSCREW, VENT SCREEN TO TOP COWL
-
929981A1 PLATE ASSEMBLY - COWL MOUNTINGPLATE ASSEMBLY - COWL MOUNTING
-
1016-20353 STUD, REAR - TOP COWL TO COVERSTUD, REAR - TOP COWL TO COVER
-
1110-29282 SCREW, PLATE ASSEMBLY TO TOP COWLSCREW, PLATE ASSEMBLY TO TOP COWL
-
1110-28668 SCREW, PLATE ASSEMBLY TO TOP COWLSCREW, PLATE ASSEMBLY TO TOP COWL
-
--37-46023A1 LETTERS, SET - STARBOARD
USE THRU SERIAL #1402843 ON MERC 800E AND THRU SERIAL #1404353 ON MERC 800EL.LETTERS, SET - STARBOARD
USE THRU SERIAL #1402843 ON MERC 800E AND THRU SERIAL #1404353 ON MERC 800EL. -
1229939M LETTER "M" - STARBOARD
USE THRU SERIAL #1402843 ON MERC 800E AND THRU SERIAL #1404353 ON MERC 800EL.LETTER "M" - STARBOARD
USE THRU SERIAL #1402843 ON MERC 800E AND THRU SERIAL #1404353 ON MERC 800EL. -
1329939E LETTER "E" - STARBOARD
USE THRU SERIAL #1402843 ON MERC 800E AND THRU SERIAL #1404353 ON MERC 800EL.LETTER "E" - STARBOARD
USE THRU SERIAL #1402843 ON MERC 800E AND THRU SERIAL #1404353 ON MERC 800EL. -
1429939R LETTER "R" - STARBOARD
USE THRU SERIAL #1402843 ON MERC 800E AND THRU SERIAL #1404353 ON MERC 800EL.LETTER "R" - STARBOARD
USE THRU SERIAL #1402843 ON MERC 800E AND THRU SERIAL #1404353 ON MERC 800EL. -
1529939C LETTER "C" - STARBOARD
USE THRU SERIAL #1402843 ON MERC 800E AND THRU SERIAL #1404353 ON MERC 800EL.LETTER "C" - STARBOARD
USE THRU SERIAL #1402843 ON MERC 800E AND THRU SERIAL #1404353 ON MERC 800EL. -
1629939U LETTER "U" - STARBOARD
USE THRU SERIAL #1402843 ON MERC 800E AND THRU SERIAL #1404353 ON MERC 800EL.LETTER "U" - STARBOARD
USE THRU SERIAL #1402843 ON MERC 800E AND THRU SERIAL #1404353 ON MERC 800EL. -
1729939Y LETTER "Y" - STARBOARD
USE THRU SERIAL #1402843 ON MERC 800E AND THRU SERIAL #1404353 ON MERC 800EL.LETTER "Y" - STARBOARD
USE THRU SERIAL #1402843 ON MERC 800E AND THRU SERIAL #1404353 ON MERC 800EL. -
--37-46023A1 LETTERS, SET - PORT
USE THRU SERIAL #1402843 ON MERC 800E AND THRU SERIAL #1404353 ON MERC 800EL.LETTERS, SET - PORT
USE THRU SERIAL #1402843 ON MERC 800E AND THRU SERIAL #1404353 ON MERC 800EL. -
1229940M LETTER "M" - PORT
USE THRU SERIAL #1402843 ON MERC 800E AND THRU SERIAL #1404353 ON MERC 800EL.LETTER "M" - PORT
USE THRU SERIAL #1402843 ON MERC 800E AND THRU SERIAL #1404353 ON MERC 800EL. -
1329940E LETTER "E" - PORT
USE THRU SERIAL #1402843 ON MERC 800E AND THRU SERIAL #1404353 ON MERC 800EL.LETTER "E" - PORT
USE THRU SERIAL #1402843 ON MERC 800E AND THRU SERIAL #1404353 ON MERC 800EL. -
1429940R LETTER "R" - PORT
USE THRU SERIAL #1402843 ON MERC 800E AND THRU SERIAL #1404353 ON MERC 800EL.LETTER "R" - PORT
USE THRU SERIAL #1402843 ON MERC 800E AND THRU SERIAL #1404353 ON MERC 800EL. -
1529940C LETTER "C" - PORT
USE THRU SERIAL #1402843 ON MERC 800E AND THRU SERIAL #1404353 ON MERC 800EL.LETTER "C" - PORT
USE THRU SERIAL #1402843 ON MERC 800E AND THRU SERIAL #1404353 ON MERC 800EL. -
1629940U LETTER "U" - PORT
USE THRU SERIAL #1402843 ON MERC 800E AND THRU SERIAL #1404353 ON MERC 800EL.LETTER "U" - PORT
USE THRU SERIAL #1402843 ON MERC 800E AND THRU SERIAL #1404353 ON MERC 800EL. -
1729940Y LETTER "Y" - PORT
USE THRU SERIAL #1402843 ON MERC 800E AND THRU SERIAL #1404353 ON MERC 800EL.LETTER "Y" - PORT
USE THRU SERIAL #1402843 ON MERC 800E AND THRU SERIAL #1404353 ON MERC 800EL. -
1853-30022 FASTENER, LETTER TO TOP COWL
USE THRU SERIAL #1402843 ON MERC 800E AND THRU SERIAL #1404353 ON MERC 800EL.FASTENER, LETTER TO TOP COWL
USE THRU SERIAL #1402843 ON MERC 800E AND THRU SERIAL #1404353 ON MERC 800EL. -
1912-20028 WASHER, TOP COWL STUD (1/16")WASHER, TOP COWL STUD (1/16")
-
2012-69057 WASHER, TOP COWL STUD (3/4" OD)WASHER, TOP COWL STUD (3/4" OD)
-
2112-20583 WASHER, TOP COWL STUD (1/32")WASHER, TOP COWL STUD (1/32")
-
2211-8267089 NUT, TOP COWL FASTENINGNUT, TOP COWL FASTENING
-
2330755 RETAINER, STARTER SPRINGRETAINER, STARTER SPRING
-
2424-30753 SPRING, STARTER REWINGSPRING, STARTER REWING
-
2523-30754 BUSHING, SPRING GUIDEBUSHING, SPRING GUIDE
-
2650-30749 SHEAVE ASSEMBLYSHEAVE ASSEMBLY
-
2720162 PAWL, STARTERPAWL, STARTER
-
2813-29402 WASHER, WAVE - STARTER PAWLWASHER, WAVE - STARTER PAWL
-
2923-30752 BUSHING, NYLON - SHEAVE SHAFT SPACERBUSHING, NYLON - SHEAVE SHAFT SPACER
-
3023-30759 SPACER, SHEAVE SHAFTSPACER, SHEAVE SHAFT
-
3112-26180 WASHER, SHEAVE SHAFT TO STARTER SHEAVEWASHER, SHEAVE SHAFT TO STARTER SHEAVE
-
3213-20160 WASHER, WAVE - WASHER TENSIONWASHER, WAVE - WASHER TENSION
-
3312-30758 WASHER, EQUALIZING RING - STARTER SHEAVEWASHER, EQUALIZING RING - STARTER SHEAVE
-
3430757 PLATE, RETAINER - STARTER PAWLPLATE, RETAINER - STARTER PAWL
-
3530756 SHAFT, SHEAVESHAFT, SHEAVE
-
3614-20165 TAB WASHER, SHEAVE SHAFT NUTTAB WASHER, SHEAVE SHAFT NUT
-
3711-20166 NUT, SHEAVE SHAFT (LEFT HAND THREAD)NUT, SHEAVE SHAFT (LEFT HAND THREAD)
-
3850-12066Q10 STARTER CABLE ASSEMBLYSTARTER CABLE ASSEMBLY
-
3928747 HANDLE, STARTER CABLEHANDLE, STARTER CABLE
-
4079470A1 RETAIINER, STARTER CABLE AND HANDLERETAIINER, STARTER CABLE AND HANDLE
-
4130045 PLATE, ROPE GUIDEPLATE, ROPE GUIDE
-
4210-28642 SCREW, DRIVE, ROPE GUIDE PLATE TO TOP COWLSCREW, DRIVE, ROPE GUIDE PLATE TO TOP COWL
-
4331463 HANDLE, CHROME - TOP COWLHANDLE, CHROME - TOP COWL
-
4431487 HANDLE ASSEMBLY, INSIDE - TOP COWLHANDLE ASSEMBLY, INSIDE - TOP COWL
-
4530896 PAD, BUMPER - TOP COWL HANDLEPAD, BUMPER - TOP COWL HANDLE
-
4612-29245 WASHER, CHROME HANDLE TO INSIDE HANDLE STUDWASHER, CHROME HANDLE TO INSIDE HANDLE STUD
-
4711-826709109 NUT, CHROME HANDLE TO INSIDE HANDLE FASTENINGNUT, CHROME HANDLE TO INSIDE HANDLE FASTENING
-
4810-29199 SCREW, FRONT - HANDLE TO TOP COWL (1")SCREW, FRONT - HANDLE TO TOP COWL (1")
-
4911-826709109 NUT, HANDLE TO TOP COWL STUDNUT, HANDLE TO TOP COWL STUD
-
5029980A1 TRIM MOULDING ASSEMBLY - TOP COWLTRIM MOULDING ASSEMBLY - TOP COWL
-
5110-29226 SCREW, DECORATIVE - MOULDING TO TOP COWLSCREW, DECORATIVE - MOULDING TO TOP COWL
-
5210-29227 SCREW, BRASS - MOULDING TO TOP COWLSCREW, BRASS - MOULDING TO TOP COWL
-
5313-26995 LOCKWASHER, MOULDING FASTENING SCREWLOCKWASHER, MOULDING FASTENING SCREW
-
5411-26419 NUT, MOULDING FASTENING SCREWNUT, MOULDING FASTENING SCREW
