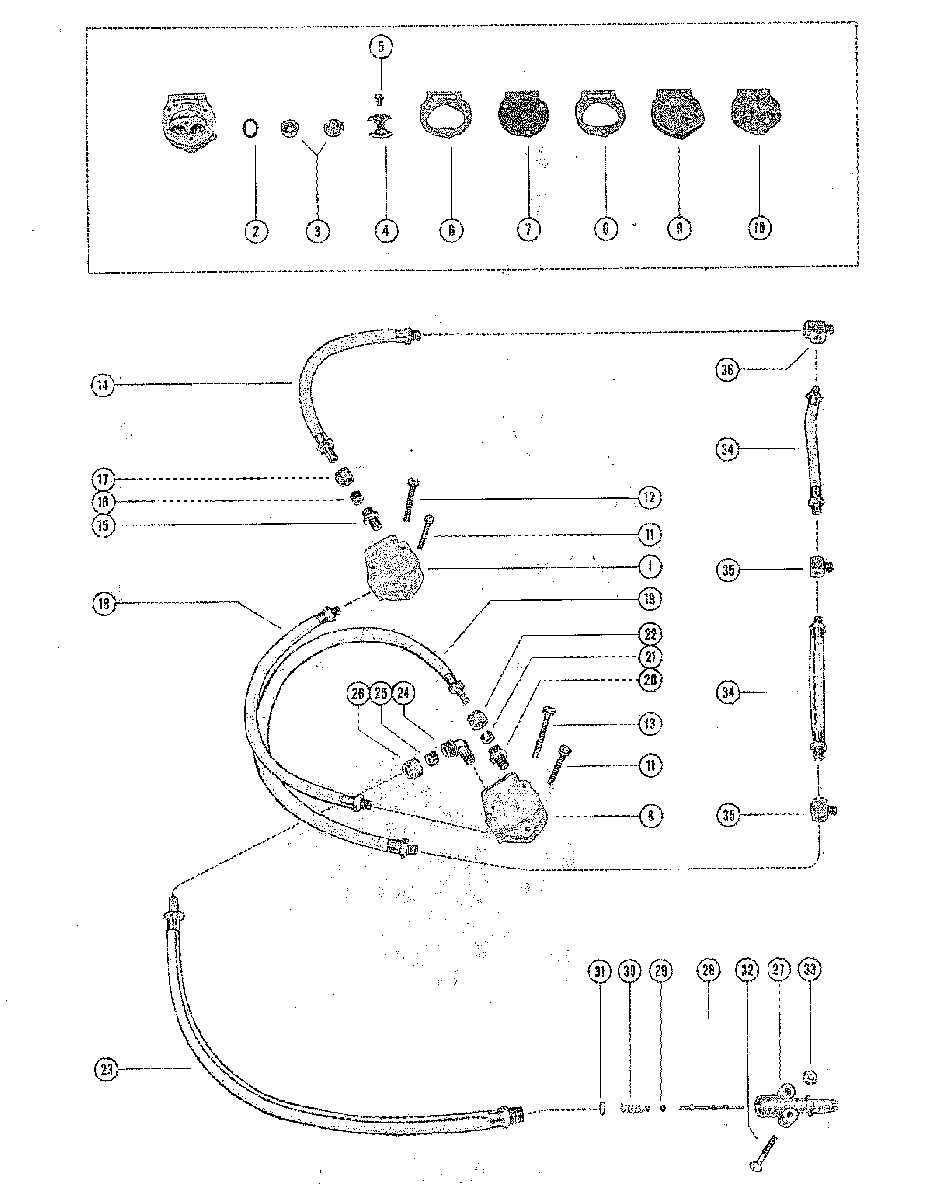

FUEL PUMP AND FUEL LINES для Mercury - 800 (6 CYL.) 1398630 THRU 1566239
-
№АртикулНазвание
-
130269A2 FUEL PUMP ASSEMBLY-UPPERFUEL PUMP ASSEMBLY-UPPER
-
227-23005 GASKET, CHECK VALVE TO HOUSINGGASKET, CHECK VALVE TO HOUSING
-
321-8M0082362 VALVE, CHECK-FUEL PUMPVALVE, CHECK-FUEL PUMP
-
423004 RETAINER, CHECK VALVERETAINER, CHECK VALVE
-
510-43725 SCREW, RETAINER TO HOUSINGSCREW, RETAINER TO HOUSING
-
627-24863 GASKET, FUEL PUMPGASKET, FUEL PUMP
-
723014 DIAPHRAGM,FUEL PUMPDIAPHRAGM,FUEL PUMP
-
830461A2 FUEL PUMP ASSEMBLY-LOWERFUEL PUMP ASSEMBLY-LOWER
-
227-23005 GASKET, CHECK VALVE TO HOUSINGGASKET, CHECK VALVE TO HOUSING
-
321-8M0082362 VALVE, CHECK-FUEL PUMPVALVE, CHECK-FUEL PUMP
-
423004 RETAINER,CHECK VALVERETAINER,CHECK VALVE
-
510-43725 SCREW,RETAINER TO HOUSINGSCREW,RETAINER TO HOUSING
-
627-24863 GASKET, FUEL PUMPGASKET, FUEL PUMP
-
723014 DIAPHRAGM, FUEL PUMPDIAPHRAGM, FUEL PUMP
-
930275 COVER, FUEL PUMPCOVER, FUEL PUMP
-
1027-30276 GASKET, FUEL PUMP COVERGASKET, FUEL PUMP COVER
-
1110-29878 SCREW, FUEL PUMP MOUNTING (1 1/2")SCREW, FUEL PUMP MOUNTING (1 1/2")
-
1210-30274 SCREW, FUEL PUMP MOUNTING (1 3/4")-UPPER MOUNTINGSCREW, FUEL PUMP MOUNTING (1 3/4")-UPPER MOUNTING
-
1310-30273 SCREW, FUEL PUMP MOUNTING (1 7/8")-LOWER PUMPSCREW, FUEL PUMP MOUNTING (1 7/8")-LOWER PUMP
-
1432-30467 FUEL LINE,UPPER FUEL PUMP OUTLET TO UPPER CARBURETORFUEL LINE,UPPER FUEL PUMP OUTLET TO UPPER CARBURETOR
-
1522-30468 CONNECTOR, UPPER FUEL PUMP OUTLETCONNECTOR, UPPER FUEL PUMP OUTLET
-
1622-30175 SLEEVE, FUEL PUMP OUTLET CONNECTORSLEEVE, FUEL PUMP OUTLET CONNECTOR
-
1722-30177 NUT, FUEL PUMP OUTLET CONNECTORNUT, FUEL PUMP OUTLET CONNECTOR
-
1832-17008 FUEL LINE, LOWER PUMP OUTLET TO UPPER PUMP INLETFUEL LINE, LOWER PUMP OUTLET TO UPPER PUMP INLET
-
1932-30233 FUEL LINE, LOWER FUEL PUMP OUTLET TO LOWER CARBURETORFUEL LINE, LOWER FUEL PUMP OUTLET TO LOWER CARBURETOR
-
2022-30468 CONNECTOR, LOWER FUEL PUMP OUTLETCONNECTOR, LOWER FUEL PUMP OUTLET
-
2122-30175 SLEEVE, FUEL PUMP OUTLET CONNECTORSLEEVE, FUEL PUMP OUTLET CONNECTOR
-
2222-30177 NUT, FUEL PUMP OUTLET CONNECTORNUT, FUEL PUMP OUTLET CONNECTOR
-
2332-30176 FUEL LINE, ADAPTOR TO LOWER FUEL PUMP INLETFUEL LINE, ADAPTOR TO LOWER FUEL PUMP INLET
-
2422-30174 ELBOW, LOWER FUEL PUMP INLETELBOW, LOWER FUEL PUMP INLET
-
2522-30175 SLEEVE, FUEL PUMP INLET ELBOWSLEEVE, FUEL PUMP INLET ELBOW
-
2622-30177 NUT, FUEL PUMP INLET ELBOWNUT, FUEL PUMP INLET ELBOW
-
2730186 ADAPTOR, CHECK UNIT (FUEL LINE)ADAPTOR, CHECK UNIT (FUEL LINE)
-
2830185Q3 STEM, CHECK UNIT ADAPTORSTEM, CHECK UNIT ADAPTOR
-
2925-16524 "O" RING, ADAPTOR STEM"O" RING, ADAPTOR STEM
-
3024-30189 SPRING, ADAPTOR STEMSPRING, ADAPTOR STEM
-
3130188 CUP WASHER, ADAPTORCUP WASHER, ADAPTOR
-
3210-56500 SCREW, ADAPTOR TO BOTTOM COWLSCREW, ADAPTOR TO BOTTOM COWL
-
3311-20184 NUT, ADAPTOR FASTENING SCREWNUT, ADAPTOR FASTENING SCREW
-
3432-30230 FUEL LINE, UPPER TO CENTER TO LOWER CARBURETORFUEL LINE, UPPER TO CENTER TO LOWER CARBURETOR
-
3522-25956 TEE, CENTER AND LOWER CARBURETORTEE, CENTER AND LOWER CARBURETOR
-
3622-286241 TEE, UPPER CARBURETORTEE, UPPER CARBURETOR
