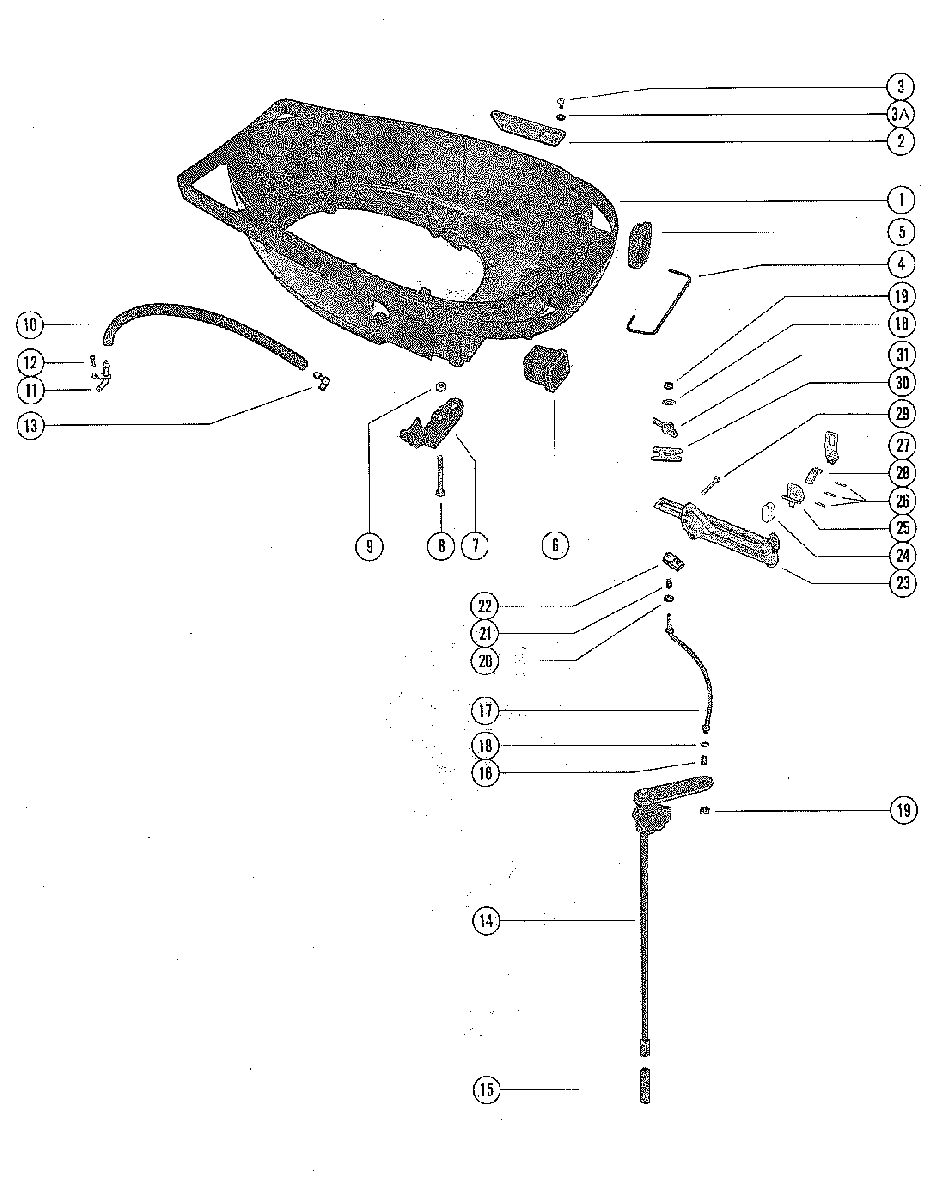

BOTTOM COWL AND SHIFT LINKAGE для Mercury - 850 (4 CYL.) 8043775 THRU 8050199
-
№АртикулНазвание
-
12158-7718 COWL, BOTTOMCOWL, BOTTOM
-
274303 COVER, AIR INLETCOVER, AIR INLET
-
310-62568 SCREW, COVER TO BOTTOM COWL (3/8")SCREW, COVER TO BOTTOM COWL (3/8")
-
3A12-30164 WASHER, COVER SCREWWASHER, COVER SCREW
-
427-73646 GASKET, BOTTOM COWLGASKET, BOTTOM COWL
-
539616 BOOT, CONTROL CABLES - BOTTOM COWLBOOT, CONTROL CABLES - BOTTOM COWL
-
637637 BOOT, FUEL CONNECTOR - BOTTOM COWLBOOT, FUEL CONNECTOR - BOTTOM COWL
-
737445 SUPPORT, WIRING HARNESS - BOTTOM COWLSUPPORT, WIRING HARNESS - BOTTOM COWL
-
810-69029 SCREW, SUPPORT TO COWL ( 1 3/4")SCREW, SUPPORT TO COWL ( 1 3/4")
-
911-36069 NUT, WIRING HARNESS SUPPORT SCREWNUT, WIRING HARNESS SUPPORT SCREW
-
1032-8M0108355 HOSE, TELL TALE - EXH. COVER TO BOTTOM COWL (9")HOSE, TELL TALE - EXH. COVER TO BOTTOM COWL (9")
-
1152889 NOZZLE, TELL TALE HOSE TO BOTTOM COWLNOZZLE, TELL TALE HOSE TO BOTTOM COWL
-
1210-48408 SCREW, TELL TALE NOZZLE TO BOTTOM COWL (1/2")SCREW, TELL TALE NOZZLE TO BOTTOM COWL (1/2")
-
1322-996642 ELBOW, TELL TALE HOSE TO EXHAUST COVERELBOW, TELL TALE HOSE TO EXHAUST COVER
-
1460304A55 SHIFT SHAFT ASSEMBLY, UPPER (MERC 850XS)
UNITED STATES 4366802 THRU 4590511
BELGIUM 9110014 THRU 9139349
CANADA 7071373 THRU 7091097SHIFT SHAFT ASSEMBLY, UPPER (MERC 850XS)
UNITED STATES 4366802 THRU 4590511
BELGIUM 9110014 THRU 9139349
CANADA 7071373 THRU 7091097 -
1460304A54 SHIFT SHAFT ASSEMBLY, UPPER (MERC 850 LONG) S GROUP #1SHIFT SHAFT ASSEMBLY, UPPER (MERC 850 LONG) S GROUP #1
-
1593960A1 COUPLING, SHIFT SHAFT )
UNITED STATES 4366802 THRU 4590511
BELGIUM 9110014 THRU 9139349
CANADA 7071373 THRU 7091097COUPLING, SHIFT SHAFT )
UNITED STATES 4366802 THRU 4590511
BELGIUM 9110014 THRU 9139349
CANADA 7071373 THRU 7091097 -
1623-26856 BUSHING, SHIFT SHAFT )
UNITED STATES 4366802 THRU 4590511
BELGIUM 9110014 THRU 9139349
CANADA 7071373 THRU 7091097BUSHING, SHIFT SHAFT )
UNITED STATES 4366802 THRU 4590511
BELGIUM 9110014 THRU 9139349
CANADA 7071373 THRU 7091097 -
1460304A55 SHIFT SHAFT ASSEMBLY, UPPER (MERC 850XS)
UNITED STATES 4590512 AND UP
AUSTRALIA 8043775 AND UP
BELGIUM 9139350 AND UP
CANADA 7091098 AND UPSHIFT SHAFT ASSEMBLY, UPPER (MERC 850XS)
UNITED STATES 4590512 AND UP
AUSTRALIA 8043775 AND UP
BELGIUM 9139350 AND UP
CANADA 7091098 AND UP -
1460304A54 SHIFT SHAFT ASSEMBLY, UPPER (MERC 850 LONG) S GROUP #2SHIFT SHAFT ASSEMBLY, UPPER (MERC 850 LONG) S GROUP #2
-
1623-26856 BUSHING, SHIFT SHAFT
UNITED STATES 4590512 AND UP
AUSTRALIA 8043775 AND UP
BELGIUM 9139350 AND UP
CANADA 7091098 AND UPBUSHING, SHIFT SHAFT
UNITED STATES 4590512 AND UP
AUSTRALIA 8043775 AND UP
BELGIUM 9139350 AND UP
CANADA 7091098 AND UP -
1773402 SHIFT LINKSHIFT LINK
-
1812-35462 WASHER, LINK ROD (SHIFT LEVER END)WASHER, LINK ROD (SHIFT LEVER END)
-
1911-36069 NUT, LINK RODNUT, LINK ROD
-
2013-29720 WASHER, WAVE - LINK RODWASHER, WAVE - LINK ROD
-
2124-20099 SPRING, LINK ROD TO GUIDE BLOCKSPRING, LINK ROD TO GUIDE BLOCK
-
2237896 GUIDE BLOCK, LINK RODGUIDE BLOCK, LINK ROD
-
2352732A6 BRACKET, ANCHOR - CONTROL CABLESBRACKET, ANCHOR - CONTROL CABLES
-
2439519 CAP, BARREL RETAINER - ANCHORCAP, BARREL RETAINER - ANCHOR
-
2587609A1 LEVER, NYLON - SHIFT CABLE LOCKINGLEVER, NYLON - SHIFT CABLE LOCKING
-
2617-47175 PIN, LOCKING LEVER AND COVER FASTENINGPIN, LOCKING LEVER AND COVER FASTENING
-
2739667 COVER, NYLON - SHIFT CABLECOVER, NYLON - SHIFT CABLE
-
2887609A1 LINK, LOCKING LEVER TO COVERLINK, LOCKING LEVER TO COVER
-
2910-35386 SCREW, ANCHOR BRACKET TO CYLINDER BLOCK (1")SCREW, ANCHOR BRACKET TO CYLINDER BLOCK (1")
-
3052100 WEAR PLATE, LINK RODWEAR PLATE, LINK ROD
-
318M0036768 LATCH, CONTROL CABLE FASTENING - ANCHOR BRACKETLATCH, CONTROL CABLE FASTENING - ANCHOR BRACKET
