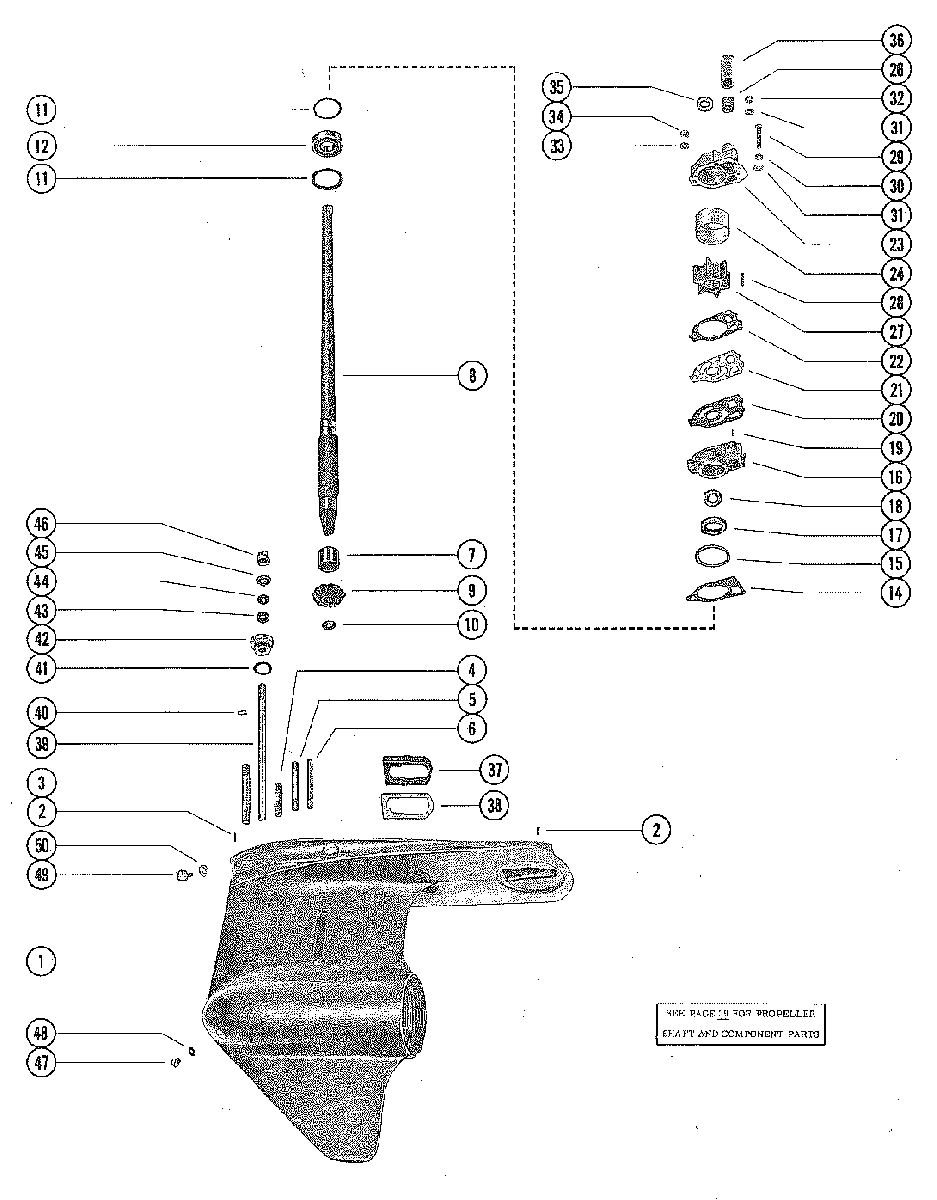

GEAR HOUSING ASSEMBLY, COMPLETE (SERIAL GROUP #2) (PAGE 1) для Mercury - 850 (4 CYL.) 8043775 THRU 8050199
-
№АртикулНазвание
-
-1623-7339A2 GEAR HOUSING ASSEMBLY, COMPLETE (MERC 850XS) SEE NOTE BELOWGEAR HOUSING ASSEMBLY, COMPLETE (MERC 850XS) SEE NOTE BELOW
-
-1655-7333A25 GEAR HOUSING ASSEMBLY, COMPLETE (MERC 850 LONG) SEE NOTE BELGEAR HOUSING ASSEMBLY, COMPLETE (MERC 850 LONG) SEE NOTE BEL
-
11623-7339A1 GEAR HOUSING ASSEMBLY (MERC 850XS)GEAR HOUSING ASSEMBLY (MERC 850XS)
-
11655-7333T23 GEAR HOUSING ASSEMBLY ( MERC 850 LONG)GEAR HOUSING ASSEMBLY ( MERC 850 LONG)
-
217-8M0084726 DOWEL PIN, GEAR HOUSING LOCATINGDOWEL PIN, GEAR HOUSING LOCATING
-
316-57921 STUD, GEAR HOUSING TO DRIVE SHAFT HOUSING (4")STUD, GEAR HOUSING TO DRIVE SHAFT HOUSING (4")
-
416-8M0133358 STUD, GEAR HOUSING TO DRIVE SHAFT HOUSING (2 1/16")STUD, GEAR HOUSING TO DRIVE SHAFT HOUSING (2 1/16")
-
516-8M0034463 STUD, WATER PUMP BASE AND BODY TO GEAR HOUSING (3 3/8")STUD, WATER PUMP BASE AND BODY TO GEAR HOUSING (3 3/8")
-
616-306671 STUD, WATER PUMP BASE AND BODY TO GEAR HOUSING (3 1/8")STUD, WATER PUMP BASE AND BODY TO GEAR HOUSING (3 1/8")
-
731-32898T BEARING, ROLLER - DRIVE SHAFTBEARING, ROLLER - DRIVE SHAFT
-
845-69250 DRIVE SHAFT ( MERC 850XS)DRIVE SHAFT ( MERC 850XS)
-
845-42646 DRIVE SHAFT (MERC 850 LONG)DRIVE SHAFT (MERC 850 LONG)
-
943-75316T GEAR, PINION - DRIVE SHAFTGEAR, PINION - DRIVE SHAFT
-
1011-35921 NUT, PINION GEAR TO DRIVE SHAFTNUT, PINION GEAR TO DRIVE SHAFT
-
1123-70412 SPACER, ROLLER BEARING TO WATER PUMP BASESPACER, ROLLER BEARING TO WATER PUMP BASE
-
1115-57007A1 SHIM, ROLLER BEARING TO WATER PUMP BASESHIM, ROLLER BEARING TO WATER PUMP BASE
-
1231-69220T ROLLER BEARING, DRIVE SHAFTROLLER BEARING, DRIVE SHAFT
-
1427-856704 GASKET, WATER PUMP BASE TO GEAR HOUSINGGASKET, WATER PUMP BASE TO GEAR HOUSING
-
1525-33145 "O" RING, WATER PUMP BASE"O" RING, WATER PUMP BASE
-
1646-69222A1 WATER PUMP BASE ASSEMBLY (MERC 850XS)WATER PUMP BASE ASSEMBLY (MERC 850XS)
-
1646-96146A5 WATER PUMP BASE ASSEMBLY (MERC 850 LONG)WATER PUMP BASE ASSEMBLY (MERC 850 LONG)
-
1726-94038 OIL SEAL, WATER PUMP BASEOIL SEAL, WATER PUMP BASE
-
1826-16977 OIL SEAL, WATER PUMP BASEOIL SEAL, WATER PUMP BASE
-
1917-8M0084627 DOWEL PIN, WATER PUMP BASE TO WATER PUMP BODYDOWEL PIN, WATER PUMP BASE TO WATER PUMP BODY
-
2027-8M0090319 GASKET, LOWER - WATER PUMP BASE TO FACE PLATEGASKET, LOWER - WATER PUMP BASE TO FACE PLATE
-
21324351 PLATE,FACE - WATER PUMP BASE TO WATER PUMP BODYPLATE,FACE - WATER PUMP BASE TO WATER PUMP BODY
-
2227-858524 GASKET, UPPER - FACE PLATE TO WATER PUMP BODYGASKET, UPPER - FACE PLATE TO WATER PUMP BODY
-
2346-96148T1 WATER PUMP BODY ASSEMBLYWATER PUMP BODY ASSEMBLY
-
2448752T INSERT, WATER PUMP BODYINSERT, WATER PUMP BODY
-
2626-38970 SEAL, RUBBER - WATER INLET TUBESEAL, RUBBER - WATER INLET TUBE
-
2747-89984T4 IMPELLER, WATER PUMPIMPELLER, WATER PUMP
-
2828-8M0032834 KEY, IMPELLER DRIVEKEY, IMPELLER DRIVE
-
2910-30720 SCREW, WATER PUMP BODY TO GEAR HOUSING (2 1/4")SCREW, WATER PUMP BODY TO GEAR HOUSING (2 1/4")
-
3013-26992 LOCKWASHER, WATER PUMP BODY SCREWLOCKWASHER, WATER PUMP BODY SCREW
-
3112-29245 WASHER, WATER PUMP BODY FASTENING SCREW AND STUDWASHER, WATER PUMP BODY FASTENING SCREW AND STUD
-
3211-36069 NUT, WATER PUMP FASTENING SCREWNUT, WATER PUMP FASTENING SCREW
-
3312-36001 WASHER, WATER PUMP BODY FASTENING STUDWASHER, WATER PUMP BODY FASTENING STUD
-
3411-826709111 NUT, WATER PUMP BODY FASTENING STUDNUT, WATER PUMP BODY FASTENING STUD
-
3525-30271 RING, RUBBER - CENTRIFUGAL SLINGER (DRIVE SHAFT)RING, RUBBER - CENTRIFUGAL SLINGER (DRIVE SHAFT)
-
3623-29804T SLEEVE, GUIDE - WATER INLET TUBESLEEVE, GUIDE - WATER INLET TUBE
-
3737641001 SEAL, EXHAUST TUBESEAL, EXHAUST TUBE
-
3838051 PLATE, SUPPORT - EXHAUST TUBE SEALPLATE, SUPPORT - EXHAUST TUBE SEAL
-
3976062A1 SHAFT ASSEMBLY, SHIFT - LOWERSHAFT ASSEMBLY, SHIFT - LOWER
-
4053-29641 "E" RING, RETAINING -SHIFT SHAFT"E" RING, RETAINING -SHIFT SHAFT
-
4125-25439 "O" RING, SHIFT SHAFT BUSHING"O" RING, SHIFT SHAFT BUSHING
-
4223-77631A2 BUSHING ASSEMBLY, SHIFT SHAFTBUSHING ASSEMBLY, SHIFT SHAFT
-
4326-24590 OIL SEAL, SHIFT SHAFT HOUSING (LOWER)OIL SEAL, SHIFT SHAFT HOUSING (LOWER)
-
4326-892361 OIL SEAL, SHIFT SHAFT HOUSING (UPPER)OIL SEAL, SHIFT SHAFT HOUSING (UPPER)
-
4412-31266 WASHER, RUBBER - SHIFT SHAFT BUSHINGWASHER, RUBBER - SHIFT SHAFT BUSHING
-
4578036 SPACER, LOWER - REVERSE LOCKINGSPACER, LOWER - REVERSE LOCKING
-
4643308T1 CAM, REVERSE LOCKINGCAM, REVERSE LOCKING
-
4710-79953Q04 SCREW, GREASE FILLER AND VENT HOLESCREW, GREASE FILLER AND VENT HOLE
-
4722-8M0058389 SCREW, DRAIN (MAGNETIC)SCREW, DRAIN (MAGNETIC)
-
4812-191833 WASHER, GREASE FILLER AND VENT HOLE SCREWWASHER, GREASE FILLER AND VENT HOLE SCREW
-
4919-48750 PLUG, GEAR HOUSING FLUSHING HOLE MERC 850XSPLUG, GEAR HOUSING FLUSHING HOLE MERC 850XS
-
5012-49221 WASHER, GEAR HOUSING FLUSHING HOLE PLUG MERC 850XSWASHER, GEAR HOUSING FLUSHING HOLE PLUG MERC 850XS
