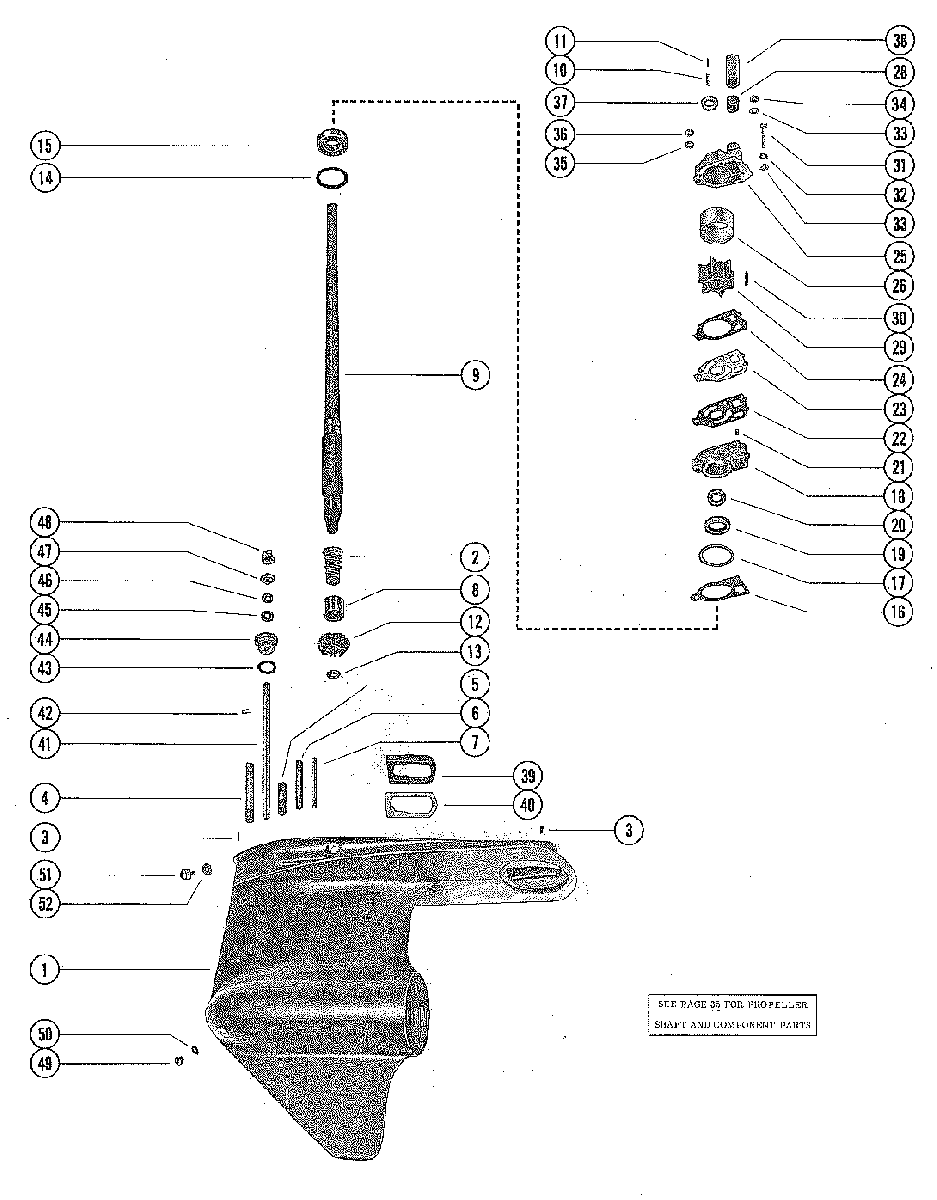

GEAR HOUSING ASSEMBLY, COMPLETE (SERIAL GROUP #1) (PAGE 1) для Mercury - 850 (4 CYL.) 8043775 THRU 8050199
-
№АртикулНазвание
-
-1623-7339A2 GEAR HOUSING ASSEMBLY, COMPLETE (MERC 850XS) SEE NOTE BELOWGEAR HOUSING ASSEMBLY, COMPLETE (MERC 850XS) SEE NOTE BELOW
-
-1655-7333A25 GEAR HOUSING ASSEMBLY, COMPLETE (MERC 850 LONG)SEE NOTE BELGEAR HOUSING ASSEMBLY, COMPLETE (MERC 850 LONG)SEE NOTE BEL
-
11623-7339A5 GEAR HOUSING ASSEMBLY (MERC 850XS)GEAR HOUSING ASSEMBLY (MERC 850XS)
-
11623-6052A4 GEAR HOUSING ASSEMBLY ( MERC 850 LONG)GEAR HOUSING ASSEMBLY ( MERC 850 LONG)
-
223-56513 SLEEVE, LUBRICATIONSLEEVE, LUBRICATION
-
317-8M0084726 PIN, GEAR HOUSINGPIN, GEAR HOUSING
-
416-57921 STUD, GEAR HOUSING TO DRIVE SHAFT HOUSING (4")STUD, GEAR HOUSING TO DRIVE SHAFT HOUSING (4")
-
516-8M0133358 STUD, GEAR HOUSING TO DRIVE SHAFT HOUSING (2 1/16")STUD, GEAR HOUSING TO DRIVE SHAFT HOUSING (2 1/16")
-
616-8M0034463 STUD, WATER PUMP BASE AND BODY TO GEAR HOUSING(3 3/8")STUD, WATER PUMP BASE AND BODY TO GEAR HOUSING(3 3/8")
-
716-306671 STUD, WATER PUMP BASE AND BODY TO GEAR HOUSING (3 1/8")STUD, WATER PUMP BASE AND BODY TO GEAR HOUSING (3 1/8")
-
831-32898T BEARING, ROLLER - DRIVE SHAFTBEARING, ROLLER - DRIVE SHAFT
-
945-59117A1 DRIVE SHAFT ASSEMBLY (MERC 850XS)DRIVE SHAFT ASSEMBLY (MERC 850XS)
-
945-59116A1 DRIVE SHAFT ASSEMBLY (MERC 850 LONG)DRIVE SHAFT ASSEMBLY (MERC 850 LONG)
-
1024-34576 SPRING, COMPRESSION - DRIVE SHAFTSPRING, COMPRESSION - DRIVE SHAFT
-
1117-30545 PIN, COMPRESSION SPRING RETAININGPIN, COMPRESSION SPRING RETAINING
-
1243-56518 GEAR, PINION - DRIVE SHAFTGEAR, PINION - DRIVE SHAFT
-
1311-35921 NUT, PINION GEAR TO DRIVE SHAFTNUT, PINION GEAR TO DRIVE SHAFT
-
1415-57007A1 SHIM, TAPERED ROLLER BEARING TO GEAR HOUSING (.002-3-5-10)SHIM, TAPERED ROLLER BEARING TO GEAR HOUSING (.002-3-5-10)
-
1531-33138A1 TAPERED ROLLER BEARING ASSEMBLY, DRIVE SHAFTTAPERED ROLLER BEARING ASSEMBLY, DRIVE SHAFT
-
1627-856704 GASKET, WATER PUMP BASE TO GEAR HOUSINGGASKET, WATER PUMP BASE TO GEAR HOUSING
-
1725-33145 "O" RING, WATER PUMP BASE"O" RING, WATER PUMP BASE
-
1846-58618A1 WATER PUMP BASE ASSEMBLY (MERC 850XS)WATER PUMP BASE ASSEMBLY (MERC 850XS)
-
1846-73802A1 WATER PUMP BASE ASSEMBLY (MERC 850 LONG)WATER PUMP BASE ASSEMBLY (MERC 850 LONG)
-
1926-94038 OIL SEAL, WATER PUMP BASEOIL SEAL, WATER PUMP BASE
-
2026-55682 OIL SEAL, WATER PUMP BASEOIL SEAL, WATER PUMP BASE
-
2117-8M0084627 DOWEL PIN, WATER PUMP BASE TO WATER PUMPDOWEL PIN, WATER PUMP BASE TO WATER PUMP
-
2227-8M0090319 GASKET, LOWER - WATER PUMP BASE TO FACE PLATEGASKET, LOWER - WATER PUMP BASE TO FACE PLATE
-
23324351 PLATE, FACE - WATER PUMP BASE TO WATER PUMP BODYPLATE, FACE - WATER PUMP BASE TO WATER PUMP BODY
-
2427-858524 GASKET, UPPER - FACE PLATE TO WATER PUMP BODYGASKET, UPPER - FACE PLATE TO WATER PUMP BODY
-
2546-96148T1 WATER PUMP BODY ASSEMBLYWATER PUMP BODY ASSEMBLY
-
2648752T INSERT, WATER PUMP BODYINSERT, WATER PUMP BODY
-
2826-38970 SEAL, RUBBER - WATER INLET TUBESEAL, RUBBER - WATER INLET TUBE
-
2947-89984T4 IMPELLER, WATER PUMPIMPELLER, WATER PUMP
-
3028-8M0032834 KEY, IMPELLER DRIVEKEY, IMPELLER DRIVE
-
3110-30720 SCREW, WATER PUMP BODY TO GEAR HOUSING (2 1/4")SCREW, WATER PUMP BODY TO GEAR HOUSING (2 1/4")
-
3213-26992 LOCKWASHER, WATER PUMP BODY SCREWLOCKWASHER, WATER PUMP BODY SCREW
-
3312-29245 WASHER, WATER PUMP BODY FASTENING SCREW AND STUDWASHER, WATER PUMP BODY FASTENING SCREW AND STUD
-
3410-69069 NUT, WATER PUMP BODY FASTENING STUDNUT, WATER PUMP BODY FASTENING STUD
-
3512-36001 WASHER, WATER PUMP BODY FASTENING STUDWASHER, WATER PUMP BODY FASTENING STUD
-
3611-826709111 NUT, WATER PUMP BODY FASTENING STUDNUT, WATER PUMP BODY FASTENING STUD
-
3725-30271 RING, RUBBER - CENTRIFUGAL SLINGER (DRIVE SHAFT)RING, RUBBER - CENTRIFUGAL SLINGER (DRIVE SHAFT)
-
3823-29804T SLEEVE, GUIDE - WATER INLET TUBESLEEVE, GUIDE - WATER INLET TUBE
-
3937641001 SEAL, EXHAUST TUBESEAL, EXHAUST TUBE
-
4038051 PLATE, SUPPORT - EXHAUST TUBE SEALPLATE, SUPPORT - EXHAUST TUBE SEAL
-
4176062A1 SHAFT ASSEMBLY, SHIFT - LOWERSHAFT ASSEMBLY, SHIFT - LOWER
-
4253-29641 "E" RING, RETAINING - LOWER SHIFT SHAFT"E" RING, RETAINING - LOWER SHIFT SHAFT
-
4325-25439 "O" RING, SHIFT SHAFT BUSHING"O" RING, SHIFT SHAFT BUSHING
-
4423-77631A2 BUSHING ASSEMBLY, SHIFT SHAFTBUSHING ASSEMBLY, SHIFT SHAFT
-
4523-25490 OIL SEAL, SHIFT SHAFT BUSHING (LOWER)OIL SEAL, SHIFT SHAFT BUSHING (LOWER)
-
4526-892361 OIL SEAL, SHIFT SHAFT BUSING (UPPER)OIL SEAL, SHIFT SHAFT BUSING (UPPER)
-
4612-31266 WASHER, RUBBER - SHIFT SHAFT BUSHINGWASHER, RUBBER - SHIFT SHAFT BUSHING
-
4778036 SPACER, LOWER - REVERSE LOCKINGSPACER, LOWER - REVERSE LOCKING
-
4843308T1 CAM, REVERSE LOCKINGCAM, REVERSE LOCKING
-
4910-79953Q04 SCREW, GREASE FILLERSCREW, GREASE FILLER
-
4922-8M0058389 PLUG, DRAIN (MAGNETIC)PLUG, DRAIN (MAGNETIC)
-
5012-191833 WASHER, GREASE FILLER AND VENT HOLE SCREWWASHER, GREASE FILLER AND VENT HOLE SCREW
-
5119-48750 PLUG, GEAR HOUSING FLUSHING HOLE MERC 850XSPLUG, GEAR HOUSING FLUSHING HOLE MERC 850XS
-
5212-49221 WASHER, GEAR HOUSING FLUSHING HOLE PLUG MERC 850XSWASHER, GEAR HOUSING FLUSHING HOLE PLUG MERC 850XS
