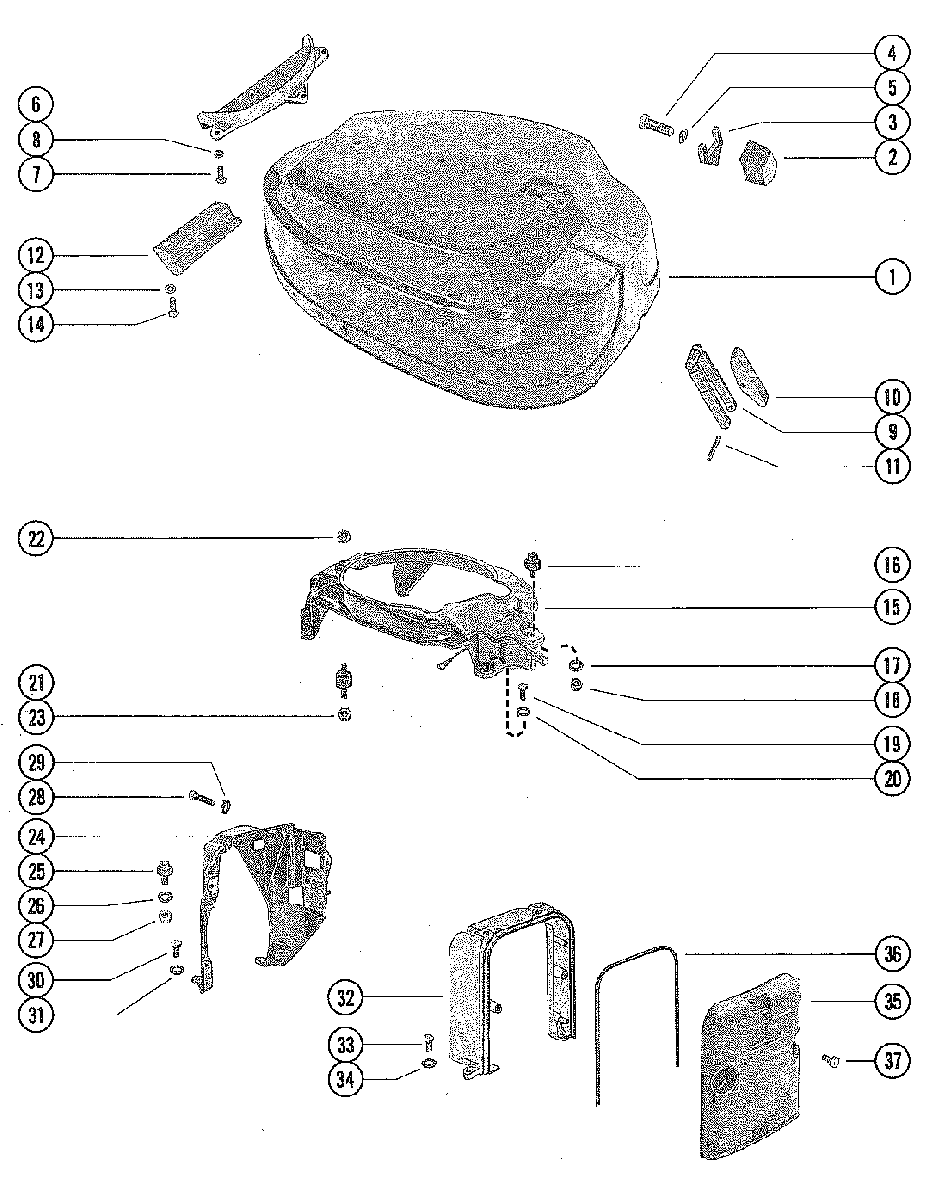

TOP COWL AND SUPPORT BRACKETS для Mercury - 850 (4 CYL.) 8043775 THRU 8050199
-
№АртикулНазвание
-
12114-7934T COWL, TOPCOWL, TOP
-
252733A9 RETAINER ASSEMBLY, TOP COWLRETAINER ASSEMBLY, TOP COWL
-
335496 PAD, BUMPER - TOP COWL RETAINERPAD, BUMPER - TOP COWL RETAINER
-
410-74824 SCREW, RETAINER TO TOP COWL (1 1/4")SCREW, RETAINER TO TOP COWL (1 1/4")
-
513-39107 LOCKWASHER< RETAINER FASTENING SCREWLOCKWASHER< RETAINER FASTENING SCREW
-
676370 SHIELD< TOP COWL - REARSHIELD< TOP COWL - REAR
-
710-37370 SCREW, SHIELD TO TOP COWL (5/8")SCREW, SHIELD TO TOP COWL (5/8")
-
813-37371 LOCKWASHER, SHIELD SCREWLOCKWASHER, SHIELD SCREW
-
952739 HINGE, COWL LATCH - TOP COWLHINGE, COWL LATCH - TOP COWL
-
1094918F1 LEVER, COWL LATCH HINGELEVER, COWL LATCH HINGE
-
1117-58998 PIN, COWL LATCH LEVER TO HINGEPIN, COWL LATCH LEVER TO HINGE
-
1255455 HOOK, TOP COWL LATCH - REARHOOK, TOP COWL LATCH - REAR
-
1313-26992 LOCKWASHER, REAR HOOK MOUNTING SCREWLOCKWASHER, REAR HOOK MOUNTING SCREW
-
1410-22956 SCREW, REAR HOOK TO TOP COWL (7/8")SCREW, REAR HOOK TO TOP COWL (7/8")
-
1573401T FRAME, SUPPORT - TOP COWLFRAME, SUPPORT - TOP COWL
-
1637640 MOUNT, RUBBER - SUPPORT FRAMEMOUNT, RUBBER - SUPPORT FRAME
-
1713-26993 LOCKWASHER, RUBBER MOUNTLOCKWASHER, RUBBER MOUNT
-
1811-28770 NUT, RUBBER MOUNTNUT, RUBBER MOUNT
-
1910-37562 SCREW, SUPPORT FRAME TO FRONT FRAME (1")SCREW, SUPPORT FRAME TO FRONT FRAME (1")
-
2013-26993 LOCKWASHER, SUPPORT FRAME SCREWLOCKWASHER, SUPPORT FRAME SCREW
-
2190435 MOUNT, RUBBER - TOP COWL FRAMEMOUNT, RUBBER - TOP COWL FRAME
-
2211-35888 NUT, RUBBER MOUNT (UPPER)NUT, RUBBER MOUNT (UPPER)
-
2311-20184 NUT, RUBBER MOUNT (LOWER)NUT, RUBBER MOUNT (LOWER)
-
2452468 BRACKET, TOP COWL SUPPORT - REARBRACKET, TOP COWL SUPPORT - REAR
-
2531014 MOUNT, RUBBER - REAR SUPPORT BRACKETMOUNT, RUBBER - REAR SUPPORT BRACKET
-
2613-26992 LOCKWASHER, RUBBER MOUNT TO REAR SUPPORT BRACKETLOCKWASHER, RUBBER MOUNT TO REAR SUPPORT BRACKET
-
2711-29598 NUT, RUBBER MOUNT TO REAR SUPPORT BRACKETNUT, RUBBER MOUNT TO REAR SUPPORT BRACKET
-
2810-37562 SCREW, REAR BRACKET TO FRAME (1")SCREW, REAR BRACKET TO FRAME (1")
-
2913-26993 LOCKWASHER, REAR BRACKET SCREWLOCKWASHER, REAR BRACKET SCREW
-
3010-37562 SCREW, REAR SUPPORT BRACKET TO BOTTOM COWL (1")SCREW, REAR SUPPORT BRACKET TO BOTTOM COWL (1")
-
3113-26993 LOCKWASHER, REAR SUPPORT BRACKET SCREWLOCKWASHER, REAR SUPPORT BRACKET SCREW
-
3273396 FRAME, FRONT SUPPORTFRAME, FRONT SUPPORT
-
3310-37562 SCREW, SILENCER COVERSCREW, SILENCER COVER
-
3413-26993 LOCKWASHER, FRAME SCREWLOCKWASHER, FRAME SCREW
-
3576226A1 COVER ASSEMBLY, SILENCER SERIAL
UNITED STATES 4366802 THRU 4590511
BELGIUM 9110014 THRU 9139349
CANADA 7071373 THRU 7091097COVER ASSEMBLY, SILENCER SERIAL
UNITED STATES 4366802 THRU 4590511
BELGIUM 9110014 THRU 9139349
CANADA 7071373 THRU 7091097 -
3627-76168A2 GASKET, SILENCER COVER
UNITED STATES 4366802 THRU 4590511
BELGIUM 9110014 THRU 9139349
CANADA 7071373 THRU 7091097GASKET, SILENCER COVER
UNITED STATES 4366802 THRU 4590511
BELGIUM 9110014 THRU 9139349
CANADA 7071373 THRU 7091097 -
3576226A1 COVER ASSEMBLY, SILENCER SERIAL
UNITED STATES 4590512 AND UP
AUSTRALIA 8043775 AND UP
BELGIUM 9139350 AND UP
CANADA 7091098 AND UPCOVER ASSEMBLY, SILENCER SERIAL
UNITED STATES 4590512 AND UP
AUSTRALIA 8043775 AND UP
BELGIUM 9139350 AND UP
CANADA 7091098 AND UP -
3627-76168A2 GASKET, SILENCER COVER
UNITED STATES 4590512 AND UP
AUSTRALIA 8043775 AND UP
BELGIUM 9139350 AND UP
CANADA 7091098 AND UPGASKET, SILENCER COVER
UNITED STATES 4590512 AND UP
AUSTRALIA 8043775 AND UP
BELGIUM 9139350 AND UP
CANADA 7091098 AND UP -
3710-28638 SCREW, COVER TO FRONT SUPPORT FRAME (3/4")SCREW, COVER TO FRONT SUPPORT FRAME (3/4")
