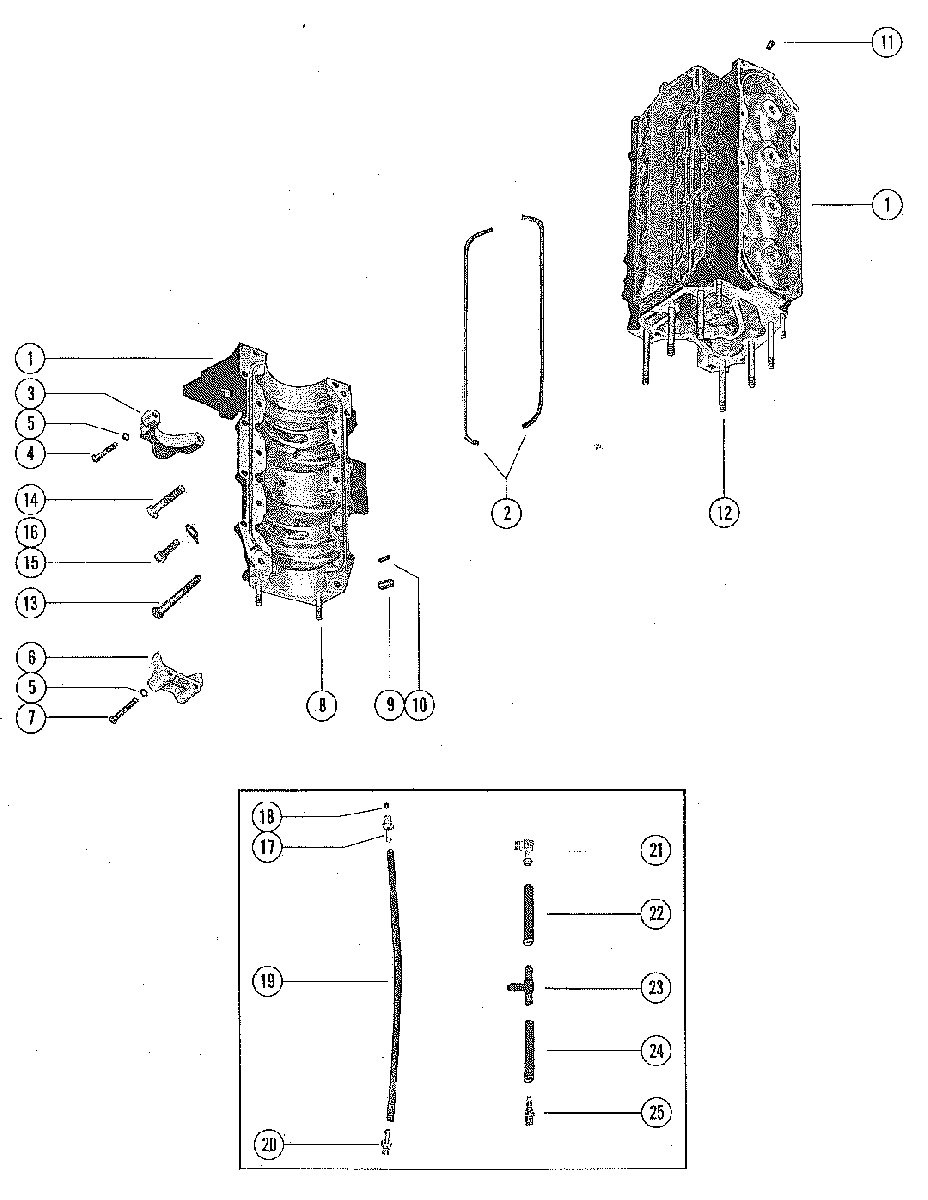

CYLINDER BLOCK AND CRANKCASE ASSEMBLY для Mercury - 850 (4 CYL.) 9110014 THRU 9177625
-
№АртикулНазвание
-
1871-8338A3 CYLINDER BLOCK AND CRANKCASE ASSEMBLYCYLINDER BLOCK AND CRANKCASE ASSEMBLY
-
227-53650 GASKET, CRANKCASE TO CYLINDER BLOCKGASKET, CRANKCASE TO CYLINDER BLOCK
-
356029T COVER, STARTER MOTOR (UPPER)COVER, STARTER MOTOR (UPPER)
-
410-31984 SCREW, COVER TO CRANKCASE (1 3/8")SCREW, COVER TO CRANKCASE (1 3/8")
-
410-35385 SCREW, COVER TO CRANKCASE (1 3/4")SCREW, COVER TO CRANKCASE (1 3/4")
-
513-26993 LOCKWASHER, COVER SCREWLOCKWASHER, COVER SCREW
-
676867 COVER, STARTER MOTOR (LOWER)COVER, STARTER MOTOR (LOWER)
-
710-73279 SCREW, COVER TO CRANKCASE (1 7/8")SCREW, COVER TO CRANKCASE (1 7/8")
-
710-73658 SCREW, COVER TO CRANKCASE (5 1/2")SCREW, COVER TO CRANKCASE (5 1/2")
-
816-64281 STUD, CRANKCASE TO DRIVE SHAFT HOUSING (1 7/8")STUD, CRANKCASE TO DRIVE SHAFT HOUSING (1 7/8")
-
917-43044 PIN, DOWEL - CRANKCASE TO CYLINDER BLOCKPIN, DOWEL - CRANKCASE TO CYLINDER BLOCK
-
1017-63779 PIN, DOWEL - CYLINDER BLOCK TO MAIN BEARINGPIN, DOWEL - CYLINDER BLOCK TO MAIN BEARING
-
1166517 RESTRICTOR, CRANKCASE BLEEDRESTRICTOR, CRANKCASE BLEED
-
1216-64282 STUD, CYLINDER BLOCK TO EXHAUST EXTENSION PLATE (4")STUD, CYLINDER BLOCK TO EXHAUST EXTENSION PLATE (4")
-
1310-57841 SCREW, CRANKCASE TO CYLINDER BLOCK (2 3/4")SCREW, CRANKCASE TO CYLINDER BLOCK (2 3/4")
-
1310-74824 SCREW, CRANKCASE TO CYLINDER BLOCK (1 1/4")SCREW, CRANKCASE TO CYLINDER BLOCK (1 1/4")
-
1410-73657 SCREW, CRANKCASE TO CYLINDER BLOCK (1 1/2")SCREW, CRANKCASE TO CYLINDER BLOCK (1 1/2")
-
1510-20359 SCREW, CENTER MAIN BEARING LOCKING (1")SCREW, CENTER MAIN BEARING LOCKING (1")
-
1614-20091 TAB WASHER, BEARING LOCKING SCREWTAB WASHER, BEARING LOCKING SCREW
-
1721-42866 CHECK VALVE ASSEMBLY, BLEED HOSE - TOPCHECK VALVE ASSEMBLY, BLEED HOSE - TOP
-
1821-42657A3 CHECK VALVE ASSEMBLYCHECK VALVE ASSEMBLY
-
1932-9938779 HOSE, CYLINDER BLEED (15 1/2")HOSE, CYLINDER BLEED (15 1/2")
-
2021-428671 CHECK VALVE ASSEMBLY, BLEED HOSE - BOTTOMCHECK VALVE ASSEMBLY, BLEED HOSE - BOTTOM
-
2122-20781 ELBOW, BALANCE HOSE TO CYLINDER BLOCK - UPPERELBOW, BALANCE HOSE TO CYLINDER BLOCK - UPPER
-
2232-8M0108355 HOSE ASSEMBLY, BALANCE (6 1/4")HOSE ASSEMBLY, BALANCE (6 1/4")
-
2322-130342 TEE, BALANCE HOSE TO CYLINDER BLOCK - LOWERTEE, BALANCE HOSE TO CYLINDER BLOCK - LOWER
-
2432-9938779 HOSE, BALANCE (5")HOSE, BALANCE (5")
-
2522-56759 FITTING, AIR INLET COVERFITTING, AIR INLET COVER
