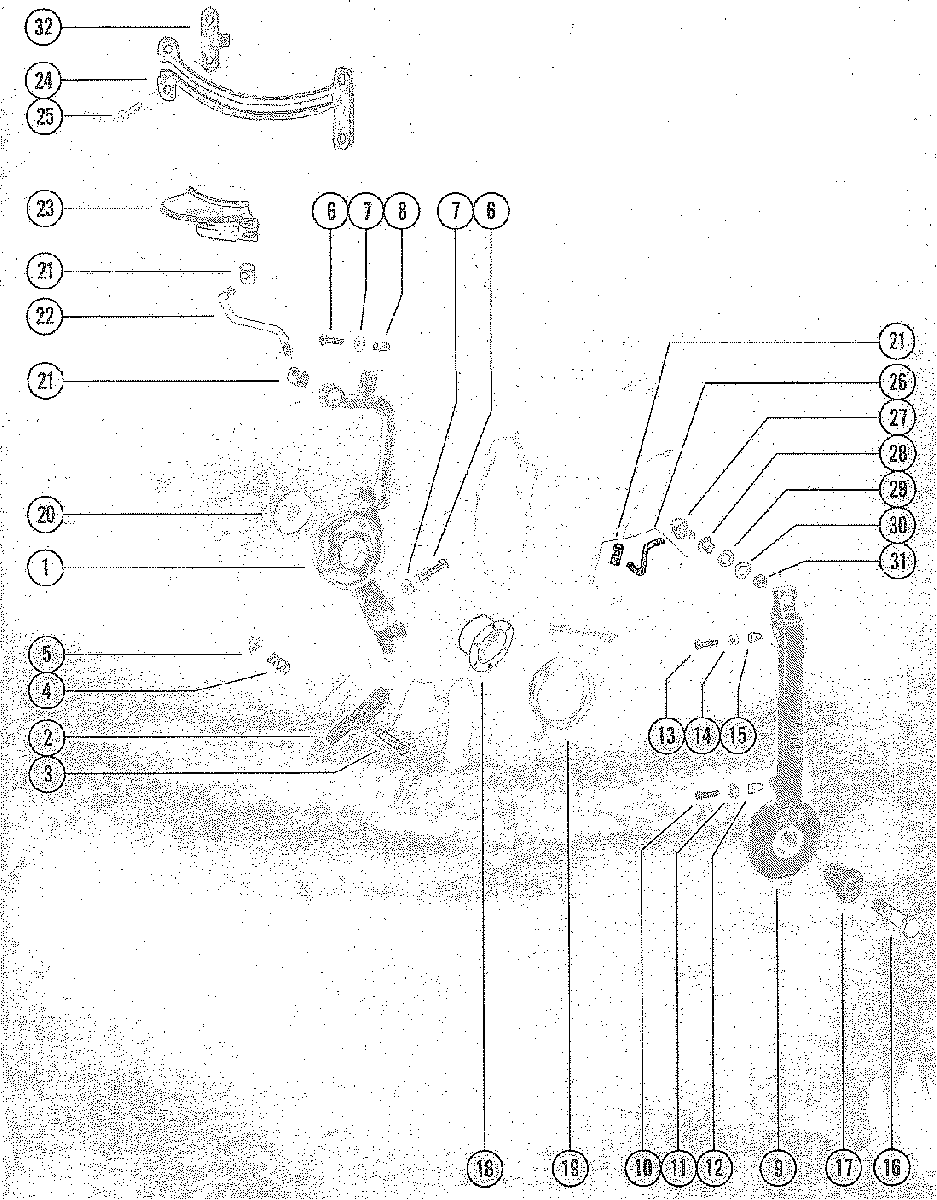

THROTTLE LEVER AND SPARK ADVANCE LEVER для Mercury - 850 (4 CYL.) 9110014 THRU 9177625
-
№АртикулНазвание
-
173416 LEVER, THROTTLELEVER, THROTTLE
-
273404 LATCH, THROTTLE LEVER (THROTTLE CABLE)LATCH, THROTTLE LEVER (THROTTLE CABLE)
-
310-59702 SCREW, LATCH TO THROTTLE LEVER (7/8")SCREW, LATCH TO THROTTLE LEVER (7/8")
-
424-20099 SPRING, LATCH SCREWSPRING, LATCH SCREW
-
511-36069 NUT, LATCH SCREWNUT, LATCH SCREW
-
610-69029 SCREW, ADJUSTING - THROTTLE LEVER (1 3/4")SCREW, ADJUSTING - THROTTLE LEVER (1 3/4")
-
711-29598 NUT, JAM - ADJUSTING SCREWNUT, JAM - ADJUSTING SCREW
-
852023 CAP, NYLON - ADJUSTING SCREWCAP, NYLON - ADJUSTING SCREW
-
973414 ARM, SPARK ADVANCEARM, SPARK ADVANCE
-
1010-73656 SCREW, ADJUSTING - SPARK ADVANCE ARM (1 3/8")SCREW, ADJUSTING - SPARK ADVANCE ARM (1 3/8")
-
1111-68219 NUT, JAM - ADJUSTING SCREWNUT, JAM - ADJUSTING SCREW
-
1248039 CAP, NYLON - ADJUSTING SCREWCAP, NYLON - ADJUSTING SCREW
-
1310-67916 SCREW, ADJUSTING - SPARK ADVANCE ARM (2")SCREW, ADJUSTING - SPARK ADVANCE ARM (2")
-
1411-29598 NUT, JAM - ADJUSTING SCREWNUT, JAM - ADJUSTING SCREW
-
1552023 CAP, NYLON - ADJUSTING SCREWCAP, NYLON - ADJUSTING SCREW
-
1610-818165 SCREW, LEVER AND ARM TO CYLINDER BLOCK (1 3/4")SCREW, LEVER AND ARM TO CYLINDER BLOCK (1 3/4")
-
1723-55164 BUSHING, LEVER AND ARM SCREWBUSHING, LEVER AND ARM SCREW
-
1823-55171 BUSHING, FLANGE - LEVER AND ARM SCREWBUSHING, FLANGE - LEVER AND ARM SCREW
-
1924-73375 SPRING, RETURN - LEVER AND ARM SCREWSPRING, RETURN - LEVER AND ARM SCREW
-
2012-46765 WASHER, LEVER AND ARM SCREWWASHER, LEVER AND ARM SCREW
-
2160572 BARREL, NYLON - LEVER AND ARMBARREL, NYLON - LEVER AND ARM
-
2273374 LINK ROD, THROTTLELINK ROD, THROTTLE
-
2373432 CAM, THROTTLECAM, THROTTLE
-
2477001 HOUSING, CAM
UNITED STATES 4366802 THRU 4590511
BELGIUM 9110014 THRU 9139349
CANADA 7071373 THRU 7091097HOUSING, CAM
UNITED STATES 4366802 THRU 4590511
BELGIUM 9110014 THRU 9139349
CANADA 7071373 THRU 7091097 -
2477001 HOUSING, THROTTLE CAM
UNITED STATES 4590512 AND UP
AUSTRALIA 8043775 AND UP
BELGIUM 9139350 AND UP
CANADA 7091098 AND UPHOUSING, THROTTLE CAM
UNITED STATES 4590512 AND UP
AUSTRALIA 8043775 AND UP
BELGIUM 9139350 AND UP
CANADA 7091098 AND UP -
2510-60605 SCREW, HOUSING TO CRANKCASE (3/4")SCREW, HOUSING TO CRANKCASE (3/4")
-
2673373 LINK ROD, SPARK ADVANCE - SEE NOTE BELOWLINK ROD, SPARK ADVANCE - SEE NOTE BELOW
-
2776158A1 SWIVEL ASSEMBLY, LINK ROD TO ARM
UNITED STATES 4366802 THRU 4590511
BELGIUM 9110014 THRU 9139349
CANADA 7071373 THRU 7091097SWIVEL ASSEMBLY, LINK ROD TO ARM
UNITED STATES 4366802 THRU 4590511
BELGIUM 9110014 THRU 9139349
CANADA 7071373 THRU 7091097 -
2776700A1 SWIVEL ASSEMBLY, LINK ROD TO ARM
UNITED STATES 4590512 AND UP
AUSTRALIA 8043775 AND UP
BELGIUM 9139350 AND UP
CANADA 7091098 AND UPSWIVEL ASSEMBLY, LINK ROD TO ARM
UNITED STATES 4590512 AND UP
AUSTRALIA 8043775 AND UP
BELGIUM 9139350 AND UP
CANADA 7091098 AND UP -
2823-26856 BUSHING, NYLON - LINK ROD SWIVELBUSHING, NYLON - LINK ROD SWIVEL
-
2913-29402 WAVE WASHER, LINK ROD SWIVELWAVE WASHER, LINK ROD SWIVEL
-
3012-73288 WASHER, LINK ROD SWIVELWASHER, LINK ROD SWIVEL
-
3111-20110 NUT, LINK ROD SWIVELNUT, LINK ROD SWIVEL
-
3277158 SPACER, THROTTLE CAM HOUSING
UNITED STATES 4590512 AND UP
AUSTRALIA 8043775 AND UP
BELGIUM 9139350 AND UP
CANADA 7091098 AND UPSPACER, THROTTLE CAM HOUSING
UNITED STATES 4590512 AND UP
AUSTRALIA 8043775 AND UP
BELGIUM 9139350 AND UP
CANADA 7091098 AND UP -
2677010 LINK ROD, SPARK ADVANCELINK ROD, SPARK ADVANCE
-
4096453A2 TRIGGER PLATE ASSEMBLYTRIGGER PLATE ASSEMBLY
-
4184-77617 HARNESS, PRIMARY (CYLINDERS 1 AND 2)HARNESS, PRIMARY (CYLINDERS 1 AND 2)
-
4284-77618 HARNESS, PRIMARY (CYLINDERS 3 AND 4)HARNESS, PRIMARY (CYLINDERS 3 AND 4)
