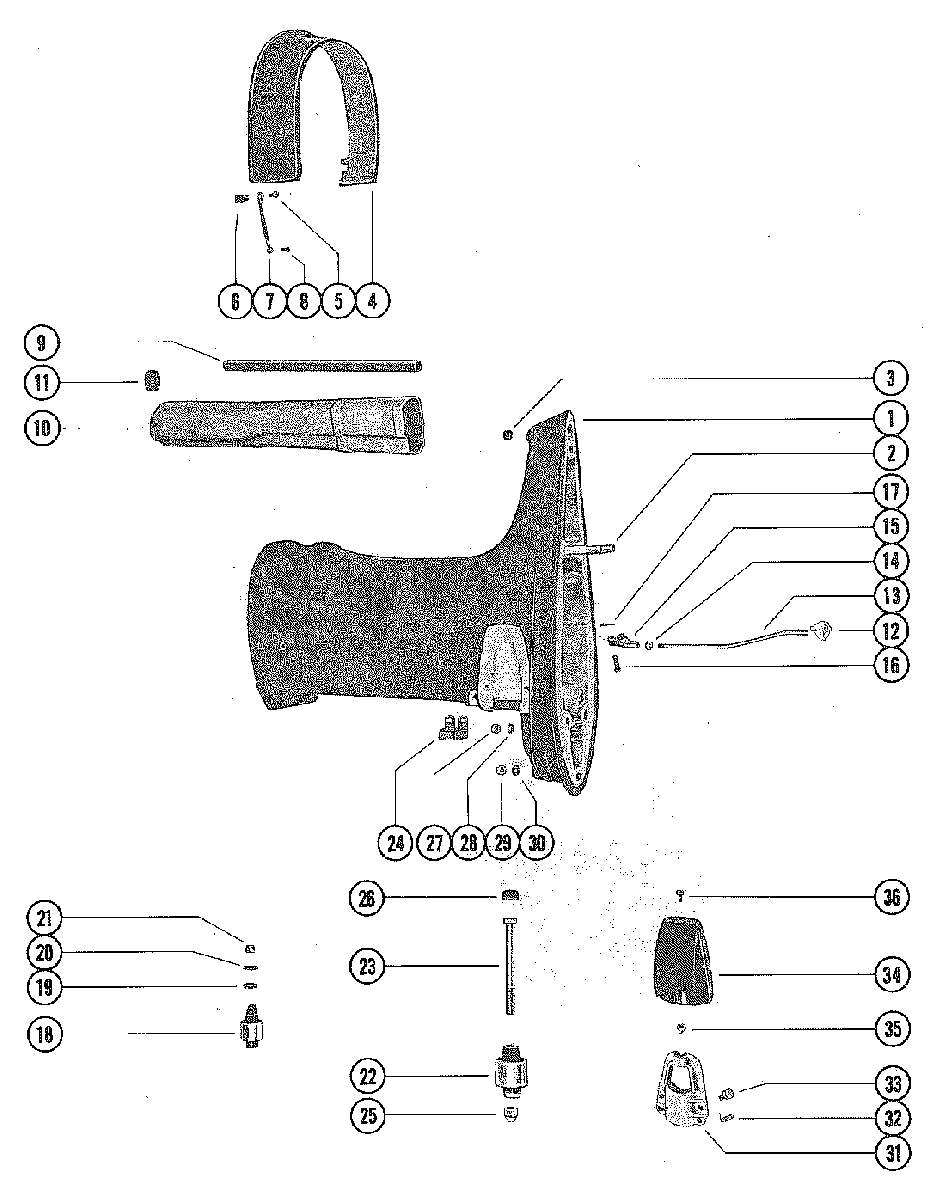

DRIVE SHAFT HOUSING ASSEMBLY для Mercury - 850 (4 CYL.) 9110014 THRU 9177625
-
№АртикулНазвание
-
11575-5240A4 DRIVE SHAFT HOUSING ASSEMBLY (MERC 850XS)DRIVE SHAFT HOUSING ASSEMBLY (MERC 850XS)
-
11573-5239A4 DRIVE SHAFT HOUSING ASSEMBLY (MERC 850 LONG)DRIVE SHAFT HOUSING ASSEMBLY (MERC 850 LONG)
-
216-56295 STUD, DRIVE SHAFT HOUSING TO GEAR HOUSING (2 11/16")STUD, DRIVE SHAFT HOUSING TO GEAR HOUSING (2 11/16")
-
319-64649 PLUG, PLASTIC - TRIM TAB SCREW HOLEPLUG, PLASTIC - TRIM TAB SCREW HOLE
-
437417 COVER, TRIM - DRIVE SHAFT HOUSINGCOVER, TRIM - DRIVE SHAFT HOUSING
-
510-57807 SCREW, TRIM COVER TO BOTTOM COWL (3/4")SCREW, TRIM COVER TO BOTTOM COWL (3/4")
-
625-8M0079730 GROMMET, TRIM COVER SCREWGROMMET, TRIM COVER SCREW
-
746933A2 GROUND STRAP ASSEMBLY, TRIM COVER SCREWGROUND STRAP ASSEMBLY, TRIM COVER SCREW
-
810-62568 SCREW, GROUND STRAP ATTACHINGSSCREW, GROUND STRAP ATTACHINGS
-
932-62864 TUBE, WATER INLET (MERC 850XS)TUBE, WATER INLET (MERC 850XS)
-
932-60897 TUBE, WATER INLET (MERC 850 LONG)TUBE, WATER INLET (MERC 850 LONG)
-
1065370 TUBE, EXHAUST (MERC 850XS)TUBE, EXHAUST (MERC 850XS)
-
1078184T TUBE, EXHAUST (MERC 850 LONG)TUBE, EXHAUST (MERC 850 LONG)
-
1165638 BOOT, EXHAUST TUBEBOOT, EXHAUST TUBE
-
1252887 GUIDE, PUSH ROD- REVERSE LOCKINGGUIDE, PUSH ROD- REVERSE LOCKING
-
1347591 ROD, PUSH - REVERSE LOCK (MERC 850XS)ROD, PUSH - REVERSE LOCK (MERC 850XS)
-
1347558 ROD, PUSH - REVERSE LOCK (MERC 850 LONG)ROD, PUSH - REVERSE LOCK (MERC 850 LONG)
-
1411-69254 NUT, JAM - PUSH RODNUT, JAM - PUSH ROD
-
1547559 YOKE, PUSH RODYOKE, PUSH ROD
-
1624-78203A2 PIN, PUSH ROD TO REVERSE LOCKPIN, PUSH ROD TO REVERSE LOCK
-
1718-25191 COTTER PIN, PUSH ROD PINCOTTER PIN, PUSH ROD PIN
-
1875297 MOUNT, RUBBER - UPPER (MERC 850XS)MOUNT, RUBBER - UPPER (MERC 850XS)
-
1875296 MOUNT, RUBBER - UPPER (MERC 850 LONG)MOUNT, RUBBER - UPPER (MERC 850 LONG)
-
1912-47840 WASHER, RUBBER - UPPER MOUNT BOLTWASHER, RUBBER - UPPER MOUNT BOLT
-
2012-31263 WASHER, UPPER MOUNT BOLTWASHER, UPPER MOUNT BOLT
-
2111-34933 NUT, UPPER MOUNT BOLTNUT, UPPER MOUNT BOLT
-
2275300 MOUNT, RUBBER - LOWER (MERC 850XS)MOUNT, RUBBER - LOWER (MERC 850XS)
-
2275298 MOUNT, RUBBER - LOWER (MERC 850 LONG)MOUNT, RUBBER - LOWER (MERC 850 LONG)
-
2310-75284 SCREW, UPPER MOUNT ( 5 1/2")SCREW, UPPER MOUNT ( 5 1/2")
-
2466336 MOUNT, RUBBER - LOWER (MERC 850XS)MOUNT, RUBBER - LOWER (MERC 850XS)
-
2511-25096 NUT, MOUNT SCREWNUT, MOUNT SCREW
-
2625067 BUMPER, RUBBER - MOUNTING SCREWBUMPER, RUBBER - MOUNTING SCREW
-
2711-34933 NUT, GEAR HOUSING AND DRIVE SHAFT HOUSING STUDSNUT, GEAR HOUSING AND DRIVE SHAFT HOUSING STUDS
-
2812-45176 WASHER, GEAR HOUSING TO DRIVE SHAFT HOUSING STUDSWASHER, GEAR HOUSING TO DRIVE SHAFT HOUSING STUDS
-
2911-29489 NUT, GEAR HOUSING AND DRIVE SHAFT HOUSING STUDSNUT, GEAR HOUSING AND DRIVE SHAFT HOUSING STUDS
-
3012-45176 WASHER, GEAR HOUSING TO DRIVE SHAFT HOUSING STUDSWASHER, GEAR HOUSING TO DRIVE SHAFT HOUSING STUDS
-
3135608 CLAMP, LOWER MOUNT TO DRIVE SHAFT HOUSINGCLAMP, LOWER MOUNT TO DRIVE SHAFT HOUSING
-
3224-35522 SPRING, TENSION - LOWER MOUNT CLAMPSPRING, TENSION - LOWER MOUNT CLAMP
-
3310-29256 SCREW, LOWER MOUNT CLAMP TO DRIVE SHAFT HOUSING (7/8")SCREW, LOWER MOUNT CLAMP TO DRIVE SHAFT HOUSING (7/8")
-
3435474T COVER, LOWER MOUNT CLAMPCOVER, LOWER MOUNT CLAMP
-
3511-35521 NUT, LOWER MOUNT CLAMP COVERNUT, LOWER MOUNT CLAMP COVER
-
3610-29722 SCREW, COVER TO LOWER CLAMP MOUNT (5/8")SCREW, COVER TO LOWER CLAMP MOUNT (5/8")
