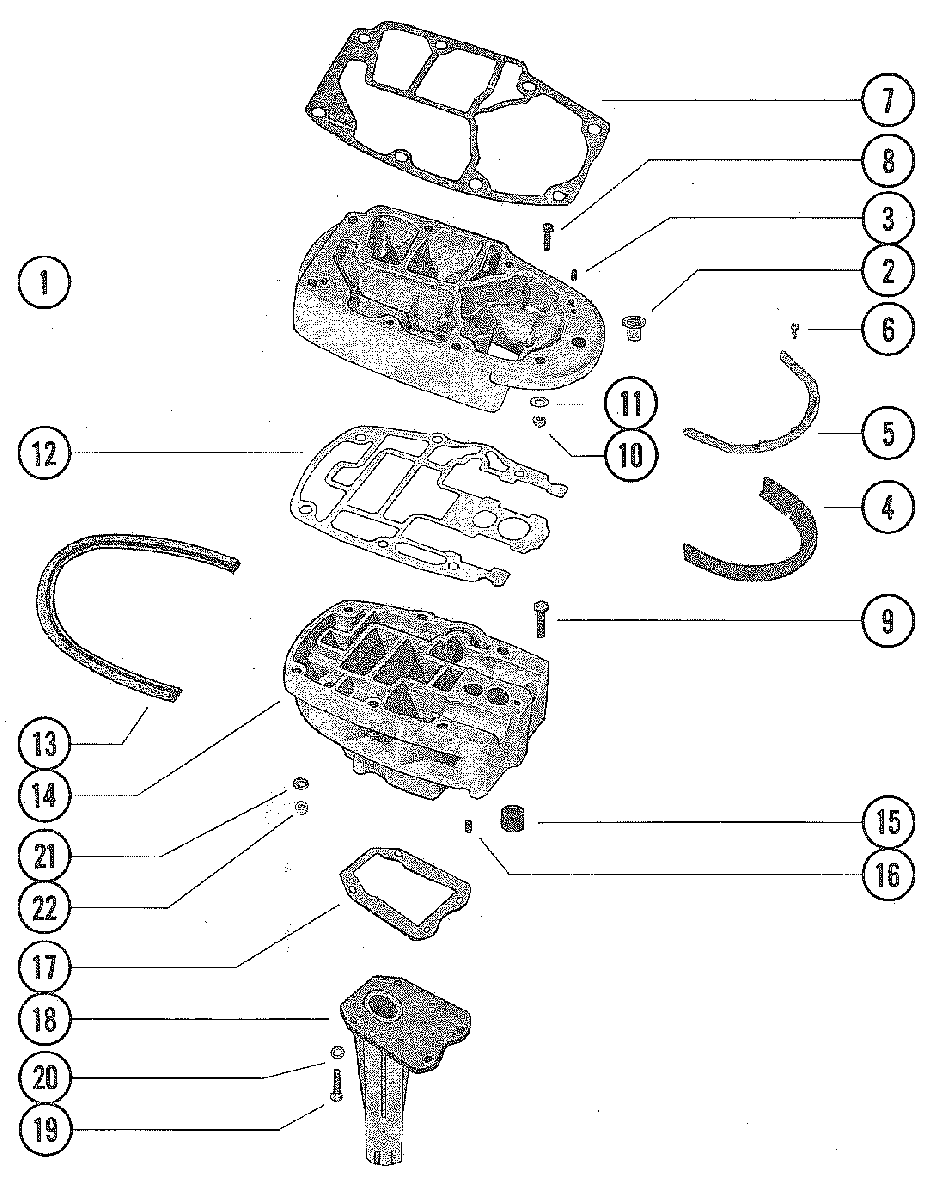

EXHAUST EXTENSION PLATE для Mercury - 850 (4 CYL.) 9110014 THRU 9177625
-
№АртикулНазвание
-
143289A2 PLATE ASSEMBLY, EXHAUST EXTENSIONPLATE ASSEMBLY, EXHAUST EXTENSION
-
223-27132 BUSHING, NYLON - EXHASUT EXTENSION PLATEBUSHING, NYLON - EXHASUT EXTENSION PLATE
-
317-23784 DOWEL PIN, EXHAUST EXTENSION PLATEDOWEL PIN, EXHAUST EXTENSION PLATE
-
437918 SEAL, EXHAUST EXTENSION PLATESEAL, EXHAUST EXTENSION PLATE
-
599358 STRIP, RETAINING - EXHAUST EXTENSION PLATESTRIP, RETAINING - EXHAUST EXTENSION PLATE
-
610-37571 SCREW, SEAL AND RETAINING STRIP TO EXH. PLATE (1/2")SCREW, SEAL AND RETAINING STRIP TO EXH. PLATE (1/2")
-
727-692381 GASKET, POWERHEAD TO EXHAUST EXTENSION PLATEGASKET, POWERHEAD TO EXHAUST EXTENSION PLATE
-
810-66023 SCREW, ADAPTOR PLATE TO HOUSING PLATE (2")SCREW, ADAPTOR PLATE TO HOUSING PLATE (2")
-
910-66023 SCREW, HOUSING PLATE TO DRIVE SHAFT HOUSING (2")SCREW, HOUSING PLATE TO DRIVE SHAFT HOUSING (2")
-
1011-69254 NUT, CRANKCASE STUDS TO EXHAUST EXTENSION PLATENUT, CRANKCASE STUDS TO EXHAUST EXTENSION PLATE
-
1112-20553 WASHER, CRANKCASE STUDS TO EXHAUST EXTENSION PLATEWASHER, CRANKCASE STUDS TO EXHAUST EXTENSION PLATE
-
1227-661021 GASKET, PLATE TO DRIVE SHAFT HSG. PLATEGASKET, PLATE TO DRIVE SHAFT HSG. PLATE
-
1326-60898 SEAL, DRIVE SHAFT HOUSING PLATESEAL, DRIVE SHAFT HOUSING PLATE
-
1443290A4 PLATE ASSEMBLY, DRIVE SHAFT HOUSINGPLATE ASSEMBLY, DRIVE SHAFT HOUSING
-
1526-38970 SEAL, RUBBER - WATER INLET TUBE ( DRIVE SHAFT HSG. PLATE)SEAL, RUBBER - WATER INLET TUBE ( DRIVE SHAFT HSG. PLATE)
-
1617-23784 DOWEL PIN, DRIVE SHAFT HOUSING PLATEDOWEL PIN, DRIVE SHAFT HOUSING PLATE
-
1727-69860 GASKET, DRIVE SHAFT HOUSING PLATE TO EXHAUST TUBEGASKET, DRIVE SHAFT HOUSING PLATE TO EXHAUST TUBE
-
1899698 EXHAUST TUBEEXHAUST TUBE
-
1910-65414 SCREW, EXHAUST TUBE TO DRIVE SHAFT HOUSING PLATE (3/4")SCREW, EXHAUST TUBE TO DRIVE SHAFT HOUSING PLATE (3/4")
-
2013-26992 LOCKWASHER, EXHAUST TUBE SCREWLOCKWASHER, EXHAUST TUBE SCREW
-
2112-20553 WASHER, POWERHEAD STUDSWASHER, POWERHEAD STUDS
-
2211-82671013 NUT, POWERHEAD STUDSNUT, POWERHEAD STUDS
