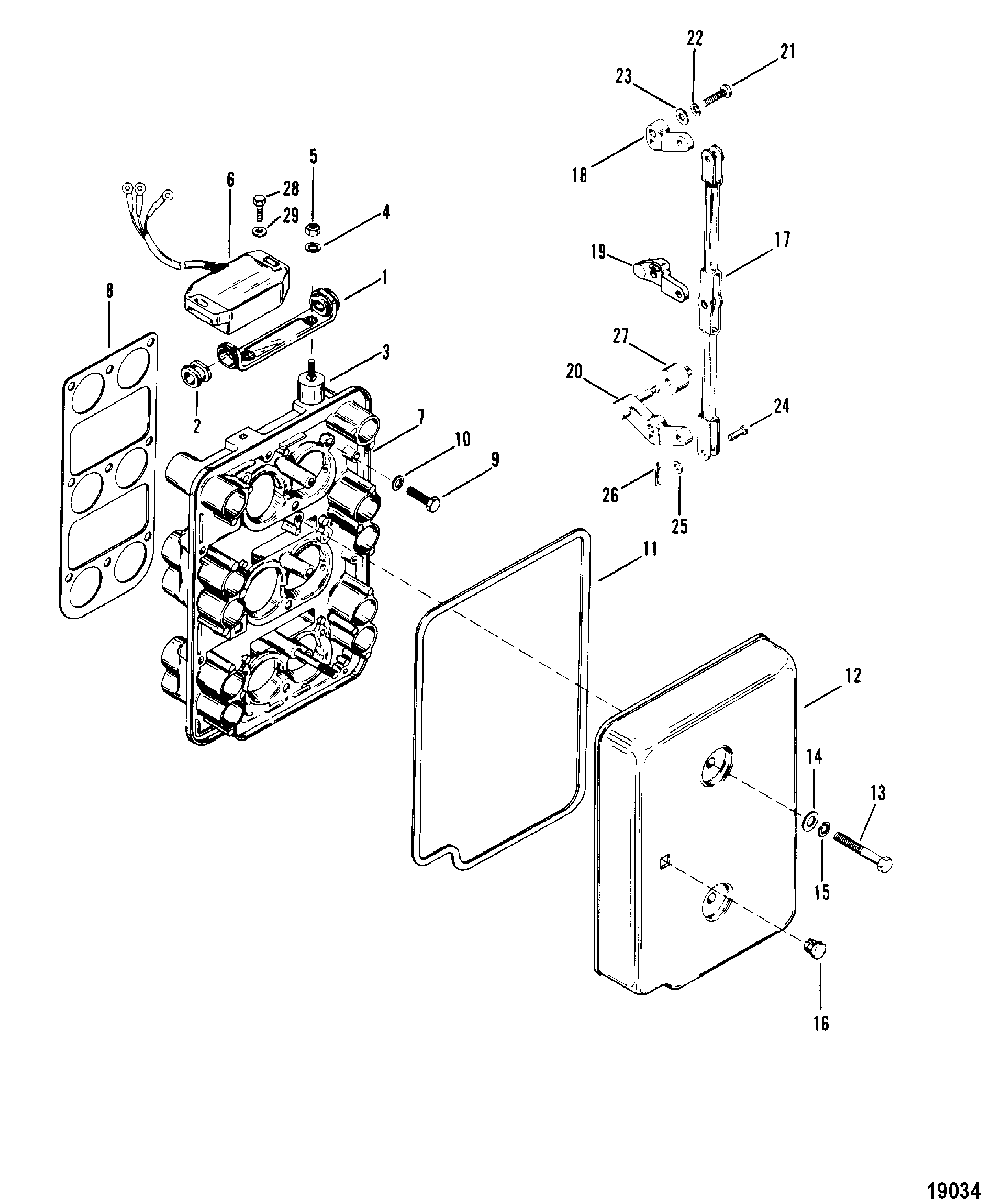

Choke Plate and Throttle Levers для Mercury - V-150 0A904646 THRU 0C100860
-
№АртикулНазвание
-
167245T BRACKET, COWL MOUNTING - UPPER
(BLACK/GRAY)BRACKET, COWL MOUNTING - UPPER
(BLACK/GRAY) -
225-67272 GROMMET, COWL MOUNTING BRACKET
(BLACK/GRAY)GROMMET, COWL MOUNTING BRACKET
(BLACK/GRAY) -
390435 MOUNT, COWL MOUNTING BRACKET BLACK/GRAYMOUNT, COWL MOUNTING BRACKET BLACK/GRAY
-
412-29245 WASHER, (.281 x .500 x .060) Stainless Steel, MOUNT ATTACHING
(BLACK/GRAY)WASHER, (.281 x .500 x .060) Stainless Steel, MOUNT ATTACHING
(BLACK/GRAY) -
511-35888 NUT, (.250-28) Stainless Steel, MOUNT ATTACHING
(BLACK/GRAY)NUT, (.250-28) Stainless Steel, MOUNT ATTACHING
(BLACK/GRAY) -
687076A4 IDLE SPEED CONTROL ASSEMBLYIDLE SPEED CONTROL ASSEMBLY
-
7799831 PLATE, CHOKEPLATE, CHOKE
-
827-672741 GASKET, CHOKE PLATE TO CARBURETORGASKET, CHOKE PLATE TO CARBURETOR
-
910-68000 SCREW, (.250-28 x 1.00), CHOKE PLATE TO CARBURETORSCREW, (.250-28 x 1.00), CHOKE PLATE TO CARBURETOR
-
1012-20583 WASHER, CHOKE PLATE SCREWWASHER, CHOKE PLATE SCREW
-
1127-672751 GASKET, COVERGASKET, COVER
-
1267246T COVER, INDUCTION SILENCERCOVER, INDUCTION SILENCER
-
1310-30720 SCREW, (.250-20 x 2.25), COVER TO CHOKE PLATESCREW, (.250-20 x 2.25), COVER TO CHOKE PLATE
-
1412-29245 WASHER, (.281 x .500 x .060) Stainless Steel, COVER SCREWWASHER, (.281 x .500 x .060) Stainless Steel, COVER SCREW
-
1513-26992 LOCKWASHER, (.250) Stainless Steel, COVER SCREWLOCKWASHER, (.250) Stainless Steel, COVER SCREW
-
1619-90585 PLUG, INDUCTION SILENCER COVERPLUG, INDUCTION SILENCER COVER
-
1767760 LINK, ThrottleLINK, Throttle
-
1867759 LEVER, Throttle, UPPERLEVER, Throttle, UPPER
-
1941049 LEVER, Throttle, CENTERLEVER, Throttle, CENTER
-
2067749 LEVER, Throttle, LOWERLEVER, Throttle, LOWER
-
2110-15124 SCREW, (#10-32 x .750), THROTTLE LEVERS TO THROTTLE LINKSCREW, (#10-32 x .750), THROTTLE LEVERS TO THROTTLE LINK
-
2213-26996 LOCKWASHER, (#10) Stainless Steel, THROTTLE LEVERS SCREWLOCKWASHER, (#10) Stainless Steel, THROTTLE LEVERS SCREW
-
2312-56681 WASHER, (.203 x .500 x .032), THROTTLE LEVERS SCREWWASHER, (.203 x .500 x .032), THROTTLE LEVERS SCREW
-
2417-67297 PIN, Clevis, THROTTLE LEVERS TO THROTTLE LINKPIN, Clevis, THROTTLE LEVERS TO THROTTLE LINK
-
2512-89302 WASHER, (.203 x .406 x .040), CLEVIS PINWASHER, (.203 x .406 x .040), CLEVIS PIN
-
2618-26953 COTTER PIN, CLEVIS PINCOTTER PIN, CLEVIS PIN
-
2767748 ROLLER, LOWER THROTTLE LEVERROLLER, LOWER THROTTLE LEVER
-
2810-690201 SCREW, (#10-32 x .875), IDLE SPEED CONTROLSCREW, (#10-32 x .875), IDLE SPEED CONTROL
-
2912-38833 WASHER, IDLE SPEED CONTROL SCREWWASHER, IDLE SPEED CONTROL SCREW
-
-27-90484A88 GASKET SETGASKET SET
