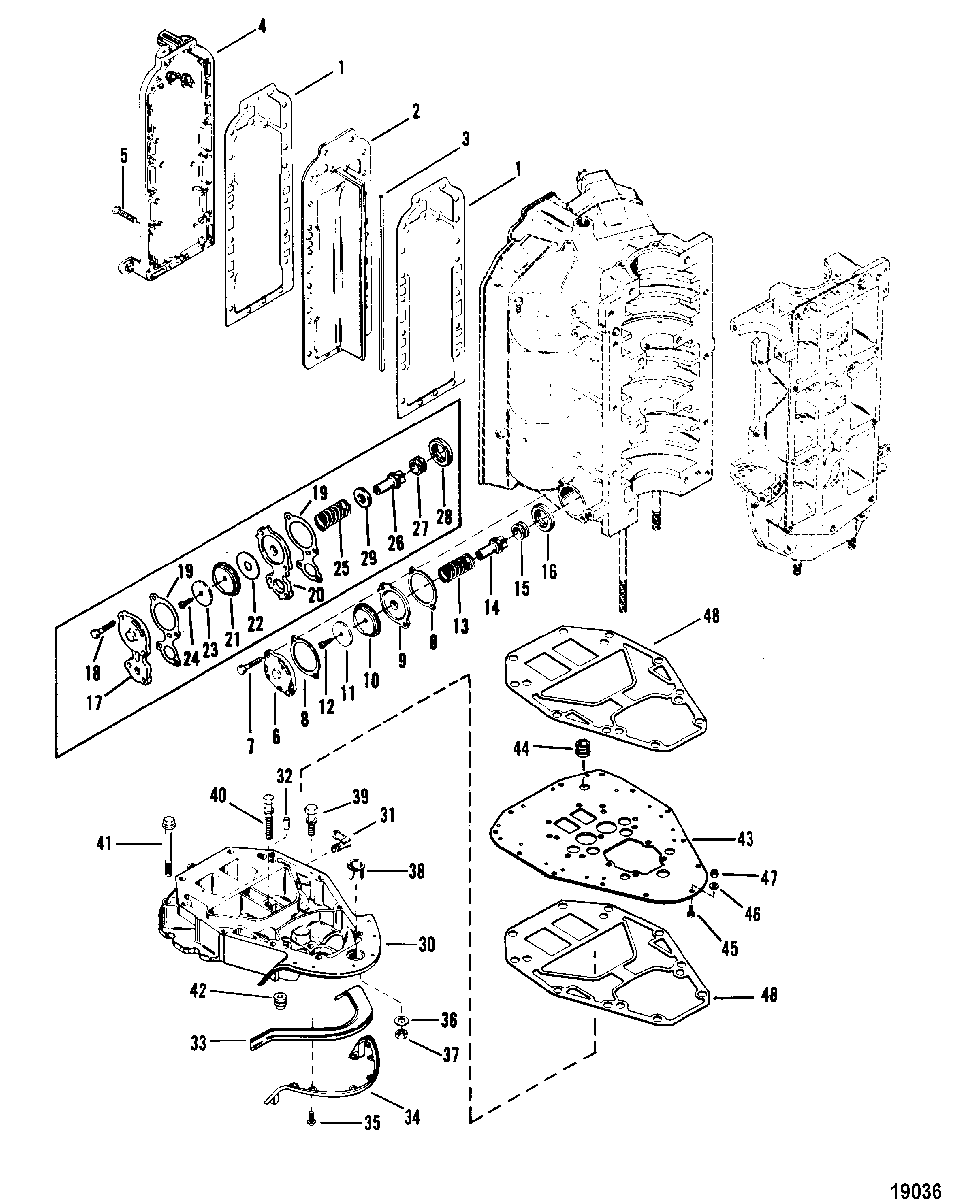

Exhaust Manifold and Exhaust Plate для Mercury - V-150 0A904646 THRU 0C100860
-
№АртикулНазвание
-
127-904841 GASKET, DIVIDER PLATEGASKET, DIVIDER PLATE
-
287321T PLATE, DIVIDERPLATE, DIVIDER
-
326-814754 SEAL, DIVIDER PLATESEAL, DIVIDER PLATE
-
495067 COVER, EXHAUST MANIFOLDCOVER, EXHAUST MANIFOLD
-
510-74824 SCREW, (.312-18 x 1.250)SCREW, (.312-18 x 1.250)
-
665663A2 COVER, RELIEF VALVE - (OLD DESIGN)COVER, RELIEF VALVE - (OLD DESIGN)
-
710-38837 SCREW, (.312-18 x 1.12), COVER TO CYLINDER BLOCK (OLD DESIGN)SCREW, (.312-18 x 1.12), COVER TO CYLINDER BLOCK (OLD DESIGN)
-
827-88907003 GASKET, RELIEF VALVE PLATE - (OLD DESIGN)GASKET, RELIEF VALVE PLATE - (OLD DESIGN)
-
965664A1 PLATE ASSEMBLY, RELIEF VALVE - (OLD DESIGN)PLATE ASSEMBLY, RELIEF VALVE - (OLD DESIGN)
-
10648771 DIAPHRAGM (OLD DESIGN)DIAPHRAGM (OLD DESIGN)
-
1112-76451 WASHER, DIAPHRAGM SCREW - (OLD DESIGN)WASHER, DIAPHRAGM SCREW - (OLD DESIGN)
-
1210-69570 SCREW, (#10-16 x .750), DIAPHRAGM TO PLATE (- (OLD DESIGN)SCREW, (#10-16 x .750), DIAPHRAGM TO PLATE (- (OLD DESIGN)
-
1324-64878 SPRING, (Black), COMPRESSION POPPET VALVE - (OLD DESIGN)SPRING, (Black), COMPRESSION POPPET VALVE - (OLD DESIGN)
-
1486596 POPPET VALVE, VALVE - (OLD DESIGN)POPPET VALVE, VALVE - (OLD DESIGN)
-
1525-64872 GROMMET, POPPET VALVE - (OLD DESIGN)GROMMET, POPPET VALVE - (OLD DESIGN)
-
1665848 CARRIER, POPPET VALVE - (OLD DESIGN)CARRIER, POPPET VALVE - (OLD DESIGN)
-
1714462A1 COVER, RELIEF VALVE - (NEW DESIGN)COVER, RELIEF VALVE - (NEW DESIGN)
-
1810-74824 SCREW, (.312-18 x 1.250), COVER TO CYLINDER BLOCK (NEW DESIGN)SCREW, (.312-18 x 1.250), COVER TO CYLINDER BLOCK (NEW DESIGN)
-
1927-78690002 GASKET, RELIEF VALVE PLATE - (NEW DESIGN)GASKET, RELIEF VALVE PLATE - (NEW DESIGN)
-
2016497A1 PLATE, RELIEF VALVE - (NEW DESIGN)PLATE, RELIEF VALVE - (NEW DESIGN)
-
21144791 DIAPHRAGM (NEW DESIGN)DIAPHRAGM (NEW DESIGN)
-
2216496 DEFLECTOR, Water (NEW DESIGN)DEFLECTOR, Water (NEW DESIGN)
-
2312-76451 WASHER, DIAPHRAGM SCREW - (NEW DESIGN)WASHER, DIAPHRAGM SCREW - (NEW DESIGN)
-
2410-69570 SCREW, (#10-16 x .750), DIAPHRAGM TO PLATE (NEW DESIGN)SCREW, (#10-16 x .750), DIAPHRAGM TO PLATE (NEW DESIGN)
-
2524-64878 SPRING, (Black), COMPRESSION POPPET VALVE - (NEW DESIGN)SPRING, (Black), COMPRESSION POPPET VALVE - (NEW DESIGN)
-
2614480 POPPET, VALVE - (NEW DESIGN)POPPET, VALVE - (NEW DESIGN)
-
2725-64872 GROMMET, POPPET VALVE - (NEW DESIGN)GROMMET, POPPET VALVE - (NEW DESIGN)
-
2865848 CARRIER, POPPET VALVE - (NEW DESIGN)CARRIER, POPPET VALVE - (NEW DESIGN)
-
2912-85303 WASHER, POPPET SPRING - (NEW DESIGN)WASHER, POPPET SPRING - (NEW DESIGN)
-
3043029A5 PLATE ASSEMBLY, EXHAUST (BLACK & GRAY)PLATE ASSEMBLY, EXHAUST (BLACK & GRAY)
-
3043029A5 PLATE ASSEMBLY, EXHAUST (OYSTER)PLATE ASSEMBLY, EXHAUST (OYSTER)
-
3122-996642 ELBOW, EXHAUST PLATEELBOW, EXHAUST PLATE
-
3217-43044 PIN, Dowel, LOCATING - EXHAUST PLATEPIN, Dowel, LOCATING - EXHAUST PLATE
-
33707482 SEAL, EXHAUST PLATE (BLACK & GRAY)SEAL, EXHAUST PLATE (BLACK & GRAY)
-
34680101 BRACKET, SEAL RETAINING (BLACK & GRAY)BRACKET, SEAL RETAINING (BLACK & GRAY)
-
3510-48408 SCREW, (#10-16 x .500), BRACKET TO EXHAUST PLATE (BLACK & GRAY)SCREW, (#10-16 x .500), BRACKET TO EXHAUST PLATE (BLACK & GRAY)
-
3612-20553 WASHER, POWERHEAD STUDWASHER, POWERHEAD STUD
-
3711-69254 NUT, POWERHEAD STUDNUT, POWERHEAD STUD
-
3823-27132 BUSHING, EXHAUST PLATEBUSHING, EXHAUST PLATE
-
3910-66727 SCREW, (.312-18 x 1.250), EXHAUST PLATE ATTACHINGSCREW, (.312-18 x 1.250), EXHAUST PLATE ATTACHING
-
4010-68783 SCREW, (.312-18 x 2.50), EXHAUST PLATE ATTACHINGSCREW, (.312-18 x 2.50), EXHAUST PLATE ATTACHING
-
4110-898833 SCREW, (.375-16 x 3.50), EXHAUST PLATE ATTACHINGSCREW, (.375-16 x 3.50), EXHAUST PLATE ATTACHING
-
4225-12602002 GROMMET, EXHAUST PLATEGROMMET, EXHAUST PLATE
-
43181032 PLATE, COWL MOUNTING (OYSTER)PLATE, COWL MOUNTING (OYSTER)
-
4425-93221002 GROMMET (OYSTER)GROMMET (OYSTER)
-
4510-28636 SCREW, (.250-20 x .750) (OYSTER)SCREW, (.250-20 x .750) (OYSTER)
-
4612-29245 WASHER, (.281 x .500 x .060) Stainless Steel (OYSTER)WASHER, (.281 x .500 x .060) Stainless Steel (OYSTER)
-
4711-8267098 NUT, (.250-20) (OYSTER)NUT, (.250-20) (OYSTER)
-
4827-997761 GASKET, EXHAUST PLATE (QTY. OF 2 W/OYSTER)GASKET, EXHAUST PLATE (QTY. OF 2 W/OYSTER)
-
-27-90484A88 GASKET SETGASKET SET
