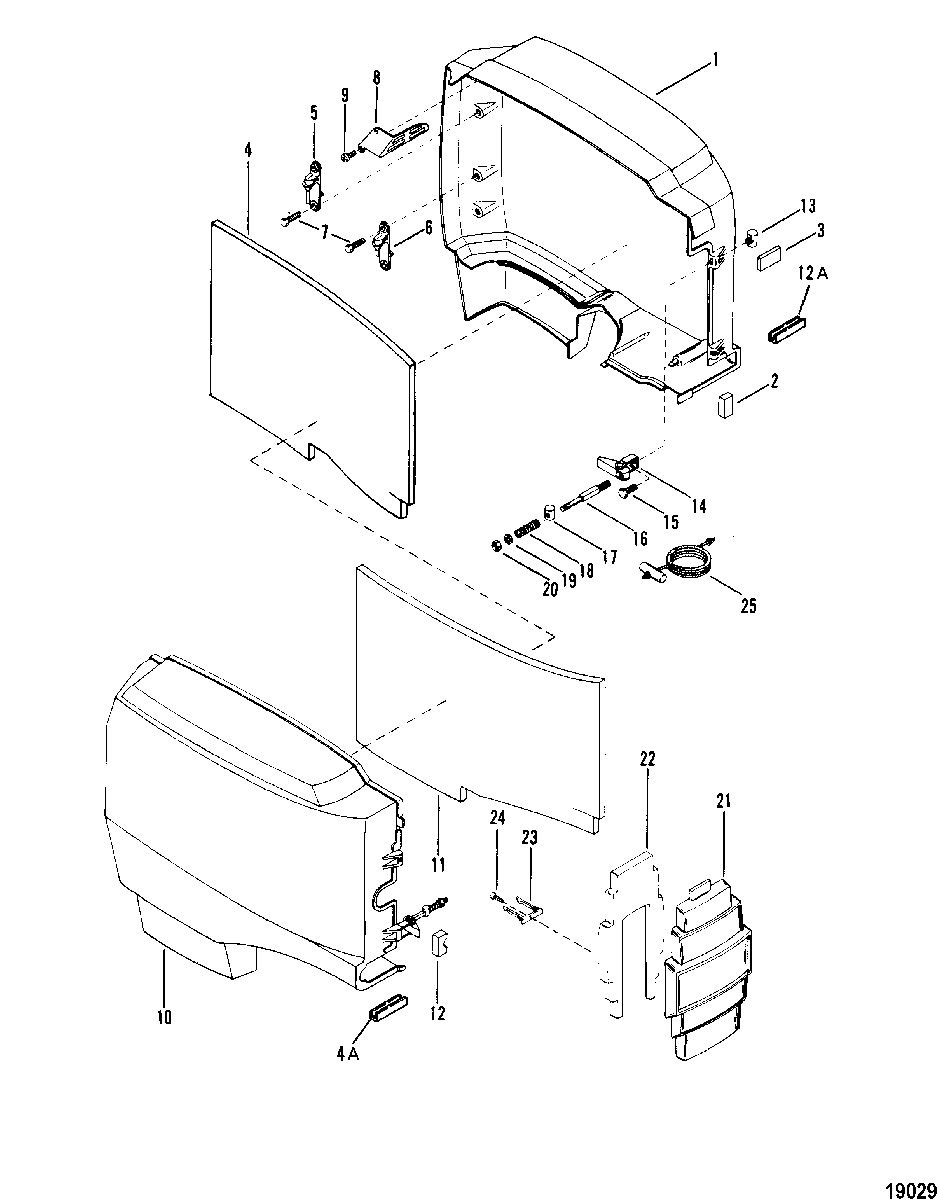

Cowls and Front Cover для Mercury - V-150 0A904646 THRU 0C100860
-
№АртикулНазвание
-
12151-7620A4 TOP COWL ASSEMBLY, PORT (BLACK)TOP COWL ASSEMBLY, PORT (BLACK)
-
12151-7620A22 TOP COWL ASSEMBLY, PORT (GRAY)TOP COWL ASSEMBLY, PORT (GRAY)
-
12151-9447A18 TOP COWL ASSEMBLY, PORT (OYSTER)TOP COWL ASSEMBLY, PORT (OYSTER)
-
267260 SEAL, CONTROL CABLESEAL, CONTROL CABLE
-
367258 PAD, COWL ASSEMBLY TO FRONT COVERPAD, COWL ASSEMBLY TO FRONT COVER
-
488227 BLANKET, SOUND - COWLBLANKET, SOUND - COWL
-
4A193681 SEAL, (3.20 Inch), PORT COWL (OYSTER)SEAL, (3.20 Inch), PORT COWL (OYSTER)
-
5879871 BRACKET, COWL ATTACHING - (UPPER)BRACKET, COWL ATTACHING - (UPPER)
-
687985 BRACKET, COWL ATTACHING - (LOWER)BRACKET, COWL ATTACHING - (LOWER)
-
710-37562 SCREW, (.312-18 x 1.00) Stainless Steel, UPPER AND LOWER BRACKETSSCREW, (.312-18 x 1.00) Stainless Steel, UPPER AND LOWER BRACKETS
-
868049 SHIELD, INLET -COWL (STARBOARD)
(BLACK/GRAY)SHIELD, INLET -COWL (STARBOARD)
(BLACK/GRAY) -
868048 SHIELD, INLET - COWL (PORT) (BLACK/GRAY)SHIELD, INLET - COWL (PORT) (BLACK/GRAY)
-
8680491 SHIELD, INLET - COWL (STARBOARD) - (OYSTER)SHIELD, INLET - COWL (STARBOARD) - (OYSTER)
-
8680481 SHIELD, INLET - COWL (PORT) (OYSTER)SHIELD, INLET - COWL (PORT) (OYSTER)
-
910-48409 SCREW, (#10-16 x .625) Stainless Steel, SHIELD TO COWLSCREW, (#10-16 x .625) Stainless Steel, SHIELD TO COWL
-
102150-7619A1 TOP COWL ASSEMBLY, STARBOARD (BLACK)TOP COWL ASSEMBLY, STARBOARD (BLACK)
-
102150-7619A5 TOP COWL ASSEMBLY, STARBOARD (GRAY)TOP COWL ASSEMBLY, STARBOARD (GRAY)
-
102150-9452A3 TOP COWL ASSEMBLY, STARBOARD (OYSTER)TOP COWL ASSEMBLY, STARBOARD (OYSTER)
-
1188227 BLANKET, SOUND - COWLBLANKET, SOUND - COWL
-
1267260 SEAL, HARNESSSEAL, HARNESS
-
12A193681 SEAL, (3.20 Inch), STARBOARD COWL (OYSTER)SEAL, (3.20 Inch), STARBOARD COWL (OYSTER)
-
1362628 BARREL, RETAINING - COWL LATCHBARREL, RETAINING - COWL LATCH
-
1446785A5 LATCH ASSEMBLY, CowlLATCH ASSEMBLY, Cowl
-
1510-31312 SCREW, (#10-32 x 0.875), BARREL TO COWL LATCHSCREW, (#10-32 x 0.875), BARREL TO COWL LATCH
-
1615222 BAR, ADJUSTING - COWL LATCHBAR, ADJUSTING - COWL LATCH
-
1762629 BARREL, RETAINING COWL LATCHBARREL, RETAINING COWL LATCH
-
1824-62624 SPRING, COWL LATCHSPRING, COWL LATCH
-
1912-30164 WASHER, (.192 x .375 x .0312) Stainless Steel, SPRING TO ADJUSTING BARWASHER, (.192 x .375 x .0312) Stainless Steel, SPRING TO ADJUSTING BAR
-
2011-859124 NUT, (#10-32) Stainless Steel, SPRING TO ADUSTING BARNUT, (#10-32) Stainless Steel, SPRING TO ADUSTING BAR
-
212149-7532A2 COVER ASSEMBLY, Cowl - Front (BLACK)COVER ASSEMBLY, Cowl - Front (BLACK)
-
212149-7532A23 COVER ASSEMBLY, Cowl - Front (GRAY)COVER ASSEMBLY, Cowl - Front (GRAY)
-
212149-7532A23 COVER ASSEMBLY, Cowl - Front (OYSTER)COVER ASSEMBLY, Cowl - Front (OYSTER)
-
2267615 BLANKET, SOUND - COWL FRONT COVERBLANKET, SOUND - COWL FRONT COVER
-
2387907 HOOK, COWL FRONT COVERHOOK, COWL FRONT COVER
-
2410-95700 SCREW, (#10-16 x .500), HOOK TO COWL FRONT COVERSCREW, (#10-16 x .500), HOOK TO COWL FRONT COVER
-
2547341A11 ROPE AND HANDLE KIT, Manual/Emergency Start
(FOR MANUAL STARTING)ROPE AND HANDLE KIT, Manual/Emergency Start
(FOR MANUAL STARTING)
