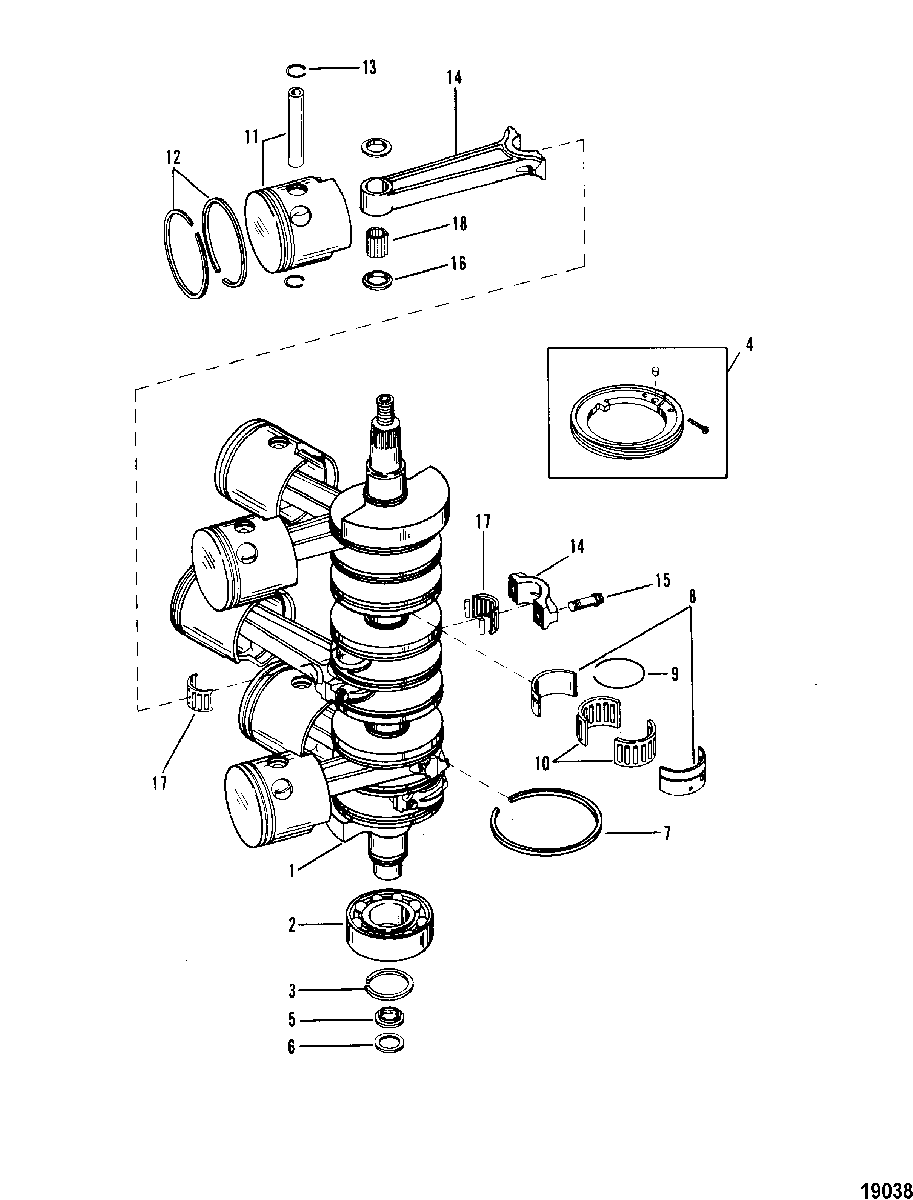

Crankshaft, Pistons and Connecting Rods для Mercury - V-150 0A904646 THRU 0C100860
-
№АртикулНазвание
-
1455-8745T5 CRANKSHAFT ASSEMBLY (INCLUDES 8 OF 39-67377)CRANKSHAFT ASSEMBLY (INCLUDES 8 OF 39-67377)
-
230-67923T BEARING, Ball, CRANKSHAFT (LOWER)BEARING, Ball, CRANKSHAFT (LOWER)
-
353-67446 RING, BALL BEARINGRING, BALL BEARING
-
443-99727A1 GEAR, DriveGEAR, Drive
-
554196A6 CARRIER ASSEMBLY, SEALCARRIER ASSEMBLY, SEAL
-
665800 PACKING, CARRIERPACKING, CARRIER
-
739-67377T RING, Sealing, SEALING - CRANKSHAFT (.124 THICK)RING, Sealing, SEALING - CRANKSHAFT (.124 THICK)
-
739-78633 RING, SEALING - CRANKSHAFT (.139 THICK)RING, SEALING - CRANKSHAFT (.139 THICK)
-
831-88903T BEARING, Roller, RETAINED BEARING
(PLASTIC CAGE)BEARING, Roller, RETAINED BEARING
(PLASTIC CAGE) -
953-67444 RING, Retaining, RETAINED BEARING
(PLASTIC CAGE)RING, Retaining, RETAINED BEARING
(PLASTIC CAGE) -
1031-67445 BEARING, Roller, RETAINED BEARING
(PLASTIC CAGE)BEARING, Roller, RETAINED BEARING
(PLASTIC CAGE) -
831-93495T BEARING, Roller, LOOSE BEARING
(METAL CAGE)BEARING, Roller, LOOSE BEARING
(METAL CAGE) -
953-67444 RING, Retaining, LOOSE BEARING
(METAL CAGE)RING, Retaining, LOOSE BEARING
(METAL CAGE) -
11765-7441T36 PISTON ASSEMBLY (STARBOARD-STANDARD)PISTON ASSEMBLY (STARBOARD-STANDARD)
-
11765-7443A12 PISTON ASSEMBLY (STARBOARD - .015 O.S.)PISTON ASSEMBLY (STARBOARD - .015 O.S.)
-
11765-7445A12 PISTON ASSEMBLY (STARBOARD-.030 O.S.)PISTON ASSEMBLY (STARBOARD-.030 O.S.)
-
11765-7442T36 PISTON ASSEMBLY (PORT-STANDARD)PISTON ASSEMBLY (PORT-STANDARD)
-
11765-7444A12 PISTON ASSEMBLY (PORT-.015 O.S.)PISTON ASSEMBLY (PORT-.015 O.S.)
-
11765-7446T12 PISTON ASSEMBLY (PORT-.030 O.S.)PISTON ASSEMBLY (PORT-.030 O.S.)
-
1239-93481A12 RING SET, Piston - Standard (STANDARD)RING SET, Piston - Standard (STANDARD)
-
1239-78918A4 RING SET, Piston - .015 Oversize (.015 O.S.)RING SET, Piston - .015 Oversize (.015 O.S.)
-
1239-85636A4 RING SET, Piston - .030 Oversize (.030 O.S.)RING SET, Piston - .030 Oversize (.030 O.S.)
-
1353-857196 RING, LockRING, Lock
-
14636-8119A6 CONNECTING ROD ASSEMBLYCONNECTING ROD ASSEMBLY
-
1510-93886 SCREW, (.312-28 x .875), CONNECTING RODSCREW, (.312-28 x .875), CONNECTING ROD
-
1612-8M0032839 WASHER, NEEDLE LOCATINGWASHER, NEEDLE LOCATING
-
1731-8M0045428 BEARING KITBEARING KIT
-
1829-67483 BEARING, Needle, PISTON ENDBEARING, Needle, PISTON END
