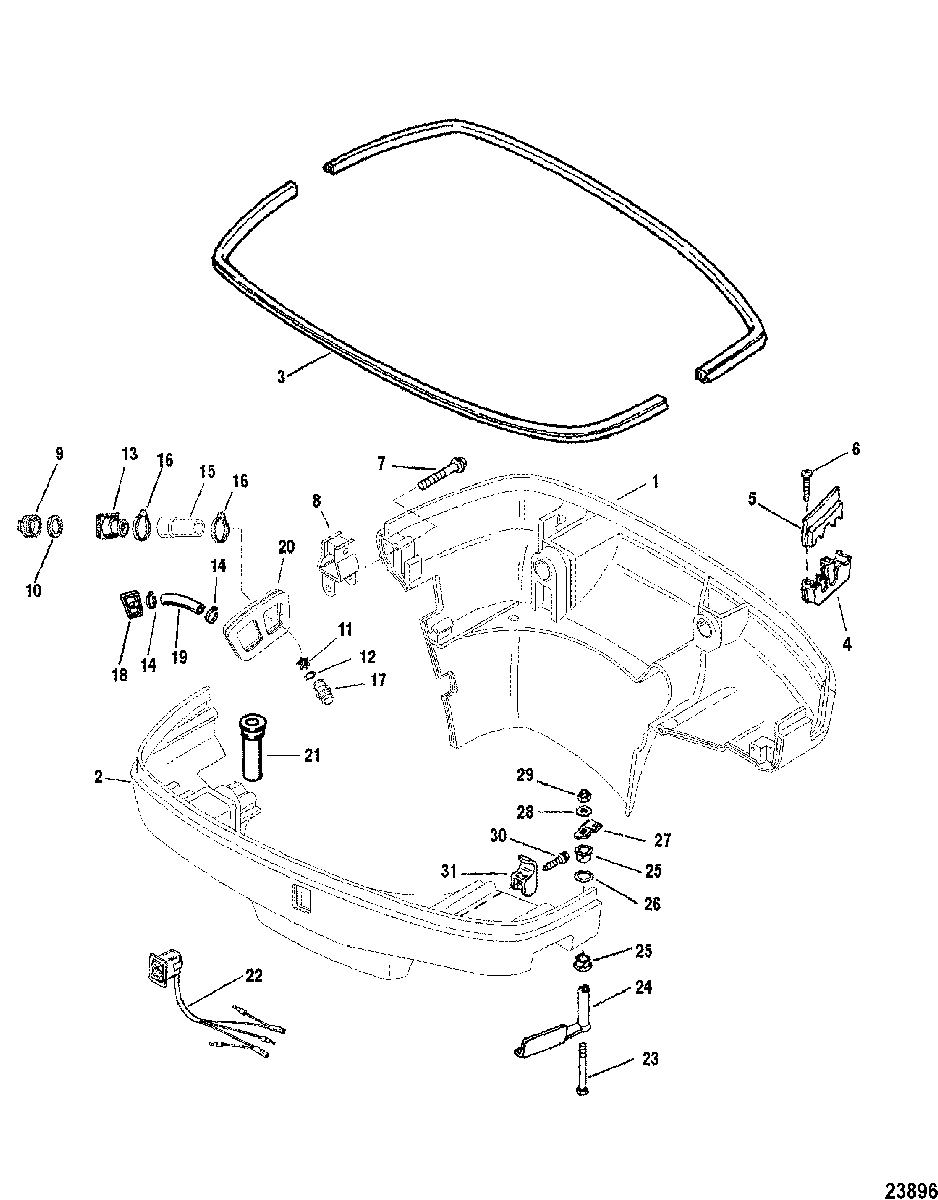

BOTTOM COWL для Mercury - V-175 0G760300 THRU 0G960499
-
№АртикулНазвание
-
14022-828044A1 BOTTOM COWL, Black
(BLACK-PORT)BOTTOM COWL, Black
(BLACK-PORT) -
2100-8M0107326 BOTTOM COWL, Black
(BLACK-STARBOARD)BOTTOM COWL, Black
(BLACK-STARBOARD) -
38M0109217 SEAL, Cowl (41.00 Inches)SEAL, Cowl (41.00 Inches)
-
454-822024 CLAMPCLAMP
-
554-822023 CLAMPCLAMP
-
610-92799 SCREW, (#10-16 x 1.12)SCREW, (#10-16 x 1.12)
-
710-82130040 SCREW, (M6 x 40)SCREW, (M6 x 40)
-
8831209 RETAINERRETAINER
-
919-821908 PLUGPLUG
-
1012-821915 WASHERWASHER
-
118219631 CHECK VALVECHECK VALVE
-
1225-30641 O-RING, (.299 x .103)O-RING, (.299 x .103)
-
1322-821952 FITTINGFITTING
-
1454-816311T TIE STRAP, (8.00 Inches)TIE STRAP, (8.00 Inches)
-
1532-8M0039077 HOSEHOSE
-
1654-815504212 CLAMP, Worm GearCLAMP, Worm Gear
-
1722-8320761 ELBOW, Cylinder BlockELBOW, Cylinder Block
-
1822-8M0077650 FITTING, Tell-TaleFITTING, Tell-Tale
-
1932-8M0108355 HOSE, (57.00 Inches Bulk) (Cut to 8 Inches)HOSE, (57.00 Inches Bulk) (Cut to 8 Inches)
-
20889847 IDLE EXHAUST BOOT, ExhaustIDLE EXHAUST BOOT, Exhaust
-
2121-817519A1 CHECK VALVE ASSEMBLY, DrainCHECK VALVE ASSEMBLY, Drain
-
2287-8M0042301 SWITCH ASSEMBLYSWITCH ASSEMBLY
-
2310-824868 SCREW, (M6 x 75)SCREW, (M6 x 75)
-
24889740A02 FRONT HANDLE, Black
(BLACK)FRONT HANDLE, Black
(BLACK) -
2523-335891 BUSHINGBUSHING
-
2625-48462 O-RING, (.614 x .070)O-RING, (.614 x .070)
-
278219423 PAWLPAWL
-
2812-69057 WASHER, (.281 x .734 x .063)WASHER, (.281 x .734 x .063)
-
2911-401366 NUT, (M6)NUT, (M6)
-
3010-8214281 SCREW, (#10-16 x .625)SCREW, (#10-16 x .625)
-
3154-822873 CLIPCLIP
