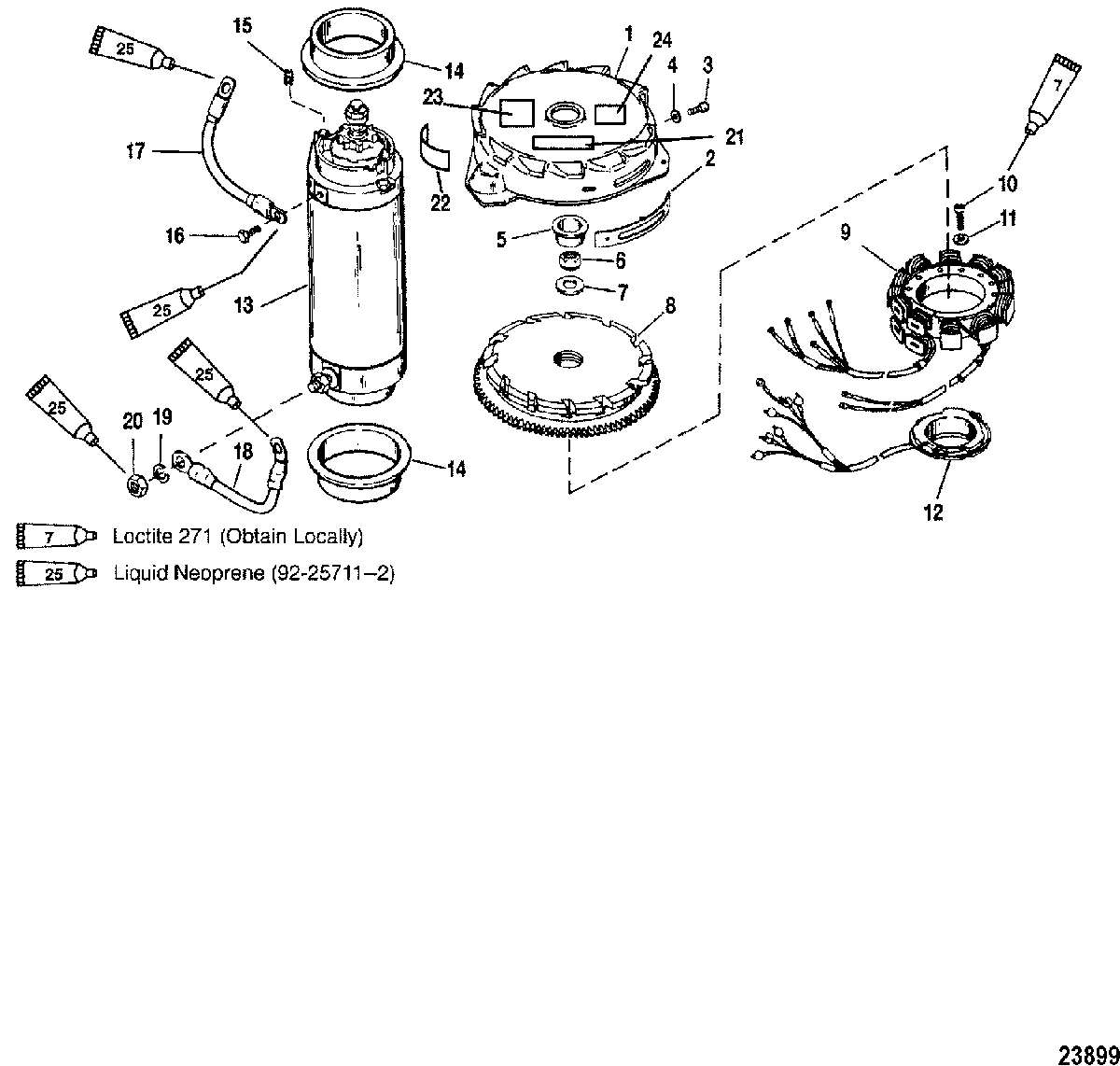

FLYWHEEL/STARTER MOTOR для Mercury - V-175 0G760300 THRU 0G960499
-
№АртикулНазвание
-
118896A1 COVER KITCOVER KIT
-
279022 MARKERMARKER
-
310-37572 SCREW, (.190-32 x .380)SCREW, (.190-32 x .380)
-
412-72761 WASHER, (.203 x .562 x .060) Stainless SteelWASHER, (.203 x .562 x .060) Stainless Steel
-
519-45907 PLUG, YellowPLUG, Yellow
-
611-52901 NUT, (.625-18)NUT, (.625-18)
-
712-33001 WASHER, (.641 x 1.250 x .190)WASHER, (.641 x 1.250 x .190)
-
8271-859238T16 FLYWHEELFLYWHEEL
-
9398-9610A19 STATORSTATOR
-
1010-90045 SCREW, (#10-32 x 1.375)SCREW, (#10-32 x 1.375)
-
1113-26996 LOCKWASHER, (#10) Stainless SteelLOCKWASHER, (#10) Stainless Steel
-
1296455A9 PLATE ASSEMBLY, TriggerPLATE ASSEMBLY, Trigger
-
1350-893893 STARTER MOTOR ASSEMBLYSTARTER MOTOR ASSEMBLY
-
1423-8M0034918 COLLARCOLLAR
-
158M0043376 STOP, RubberSTOP, Rubber
-
1610-69035 SCREW AND LOCKWASHER, (.250-20 x .625) Stainless SteelSCREW AND LOCKWASHER, (.250-20 x .625) Stainless Steel
-
1784-93388A1 CABLE ASSEMBLY, (6.00 Inches) BlackCABLE ASSEMBLY, (6.00 Inches) Black
-
1884-93388A14 CABLE ASSEMBLY (BLACK)CABLE ASSEMBLY (BLACK)
-
1913-26992 LOCKWASHER, (.250) Stainless SteelLOCKWASHER, (.250) Stainless Steel
-
2011-94330 NUT, (.250-20) BrassNUT, (.250-20) Brass
-
21NSS NOT SOLD SEPARATE, Decal-TimingNOT SOLD SEPARATE, Decal-Timing
-
22NSS NOT SOLD SEPARATE, Decal-In Gear IdleNOT SOLD SEPARATE, Decal-In Gear Idle
-
2337-8272822 DECAL, Warning, High VoltageDECAL, Warning, High Voltage
-
2437-881865 DECAL, Caution, Start In GearDECAL, Caution, Start In Gear
