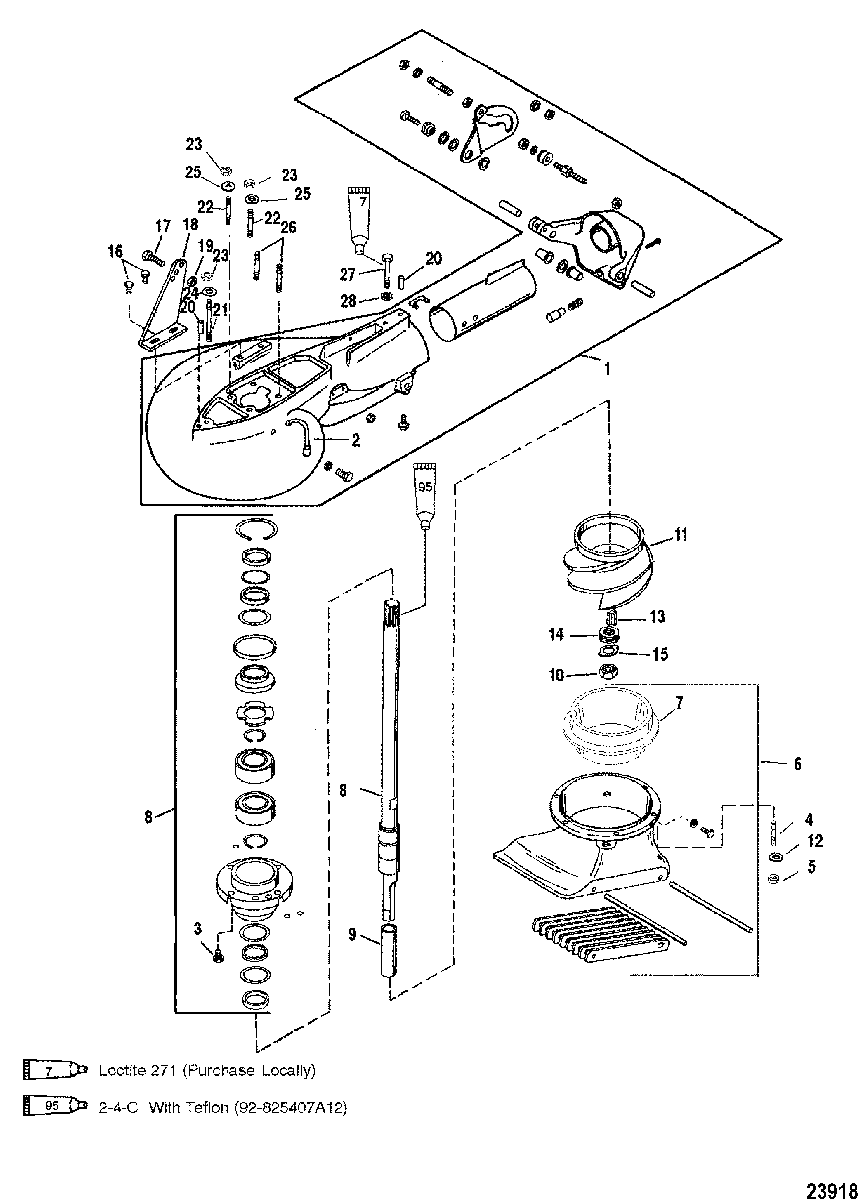

JET PUMP ASSEMBLY для Mercury - V-175 0G760300 THRU 0G960499
-
№АртикулНазвание
-
-856143A3 JET PUMP ASSEMBLYJET PUMP ASSEMBLY
-
1803145T HOUSING, PumpHOUSING, Pump
-
232-827490 HOSE, LubeHOSE, Lube
-
310-848497 SCREW, (.312-18 x 1.00)SCREW, (.312-18 x 1.00)
-
416-855840 STUD, (.312-18 x 1.81)STUD, (.312-18 x 1.81)
-
511-82670910 NUT, (.312-18)NUT, (.312-18)
-
685576890 HOUSING, IntakeHOUSING, Intake
-
7855771 LINERLINER
-
845-8M0084524 SHAFT, DriveSHAFT, Drive
-
923-8271891 SLEEVESLEEVE
-
1011-8271901 NUTNUT
-
1147-803985T IMPELLERIMPELLER
-
1212-36001 WASHERWASHER
-
1328-801405875 KEYKEY
-
1415-801404875 SHIM, ImpellerSHIM, Impeller
-
1514-801403875 TAB WASHERTAB WASHER
-
1610-19923062 SCREW, (.250-20 x .625)SCREW, (.250-20 x .625)
-
1710-60411 SCREW, (.312-18 x 1.250)SCREW, (.312-18 x 1.250)
-
18801410 BRACKET, Cable SupportBRACKET, Cable Support
-
1911-82670910 NUT, (.312-18)NUT, (.312-18)
-
2017-801407 PIN, DowelPIN, Dowel
-
2116-786382 STUD, (.437-14/.437-20 x 3.120)STUD, (.437-14/.437-20 x 3.120)
-
2216-8M0133358 STUD, (.437-14/.437-20 x 2.060)STUD, (.437-14/.437-20 x 2.060)
-
2311-34933 NUT, (.437-20) Stainless SteelNUT, (.437-20) Stainless Steel
-
2412-48926 WASHERWASHER
-
2512-45176 WASHER, (.453 x .812 x .105) Stainless SteelWASHER, (.453 x .812 x .105) Stainless Steel
-
2616-306671 STUD, (.250-20/.250-28 x 3.125)STUD, (.250-20/.250-28 x 3.125)
-
2710-68299 SCREW, (.375-16 x 3.00) Stainless SteelSCREW, (.375-16 x 3.00) Stainless Steel
-
2812-856774 WASHER, (.406 x .750 x .105) Stainless SteelWASHER, (.406 x .750 x .105) Stainless Steel
