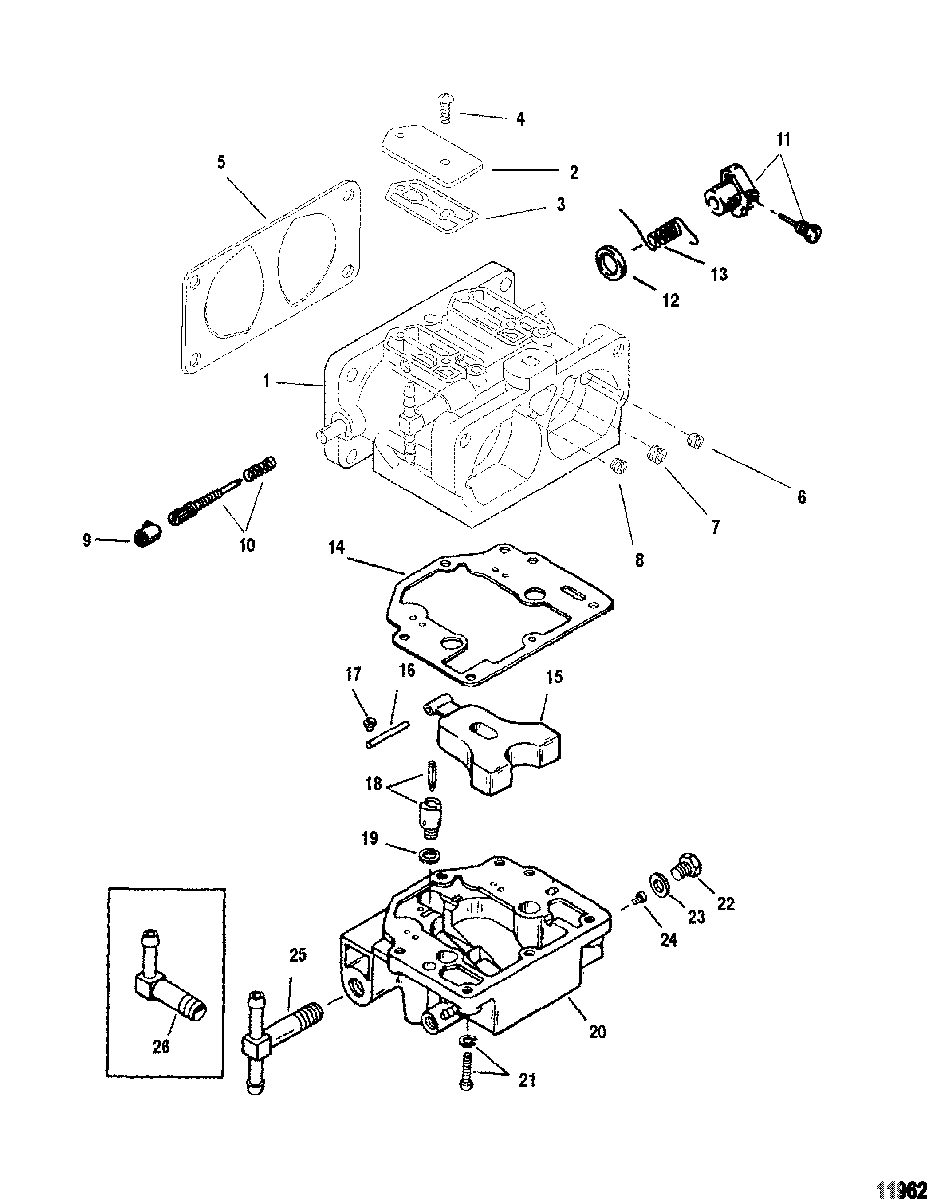

CARBURETOR для Mercury - V-175 0G760300 THRU 0G960499
-
№АртикулНазвание
-
13326-828272T37 CARBURETOR, Top
135 - WMV-1ACARBURETOR, Top
135 - WMV-1A -
13326-828272T38 CARBURETOR, Center
135 - WMV-1ACARBURETOR, Center
135 - WMV-1A -
13326-828272T39 CARBURETOR, Bottom
135 - WMV-1ACARBURETOR, Bottom
135 - WMV-1A -
13326-828272T43 CARBURETOR, Top
150/XR6/MAGNUM III - WMV-3ACARBURETOR, Top
150/XR6/MAGNUM III - WMV-3A -
13326-828272T44 CARBURETOR, Center
150/XR6/MAGNUM III - WMV-3ACARBURETOR, Center
150/XR6/MAGNUM III - WMV-3A -
13326-828272A45 CARBURETOR, Bottom
150/XR6/MAGNUM III - WMV-3ACARBURETOR, Bottom
150/XR6/MAGNUM III - WMV-3A -
13326-828272T46 CARBURETOR, Top
175 - WMV-4ACARBURETOR, Top
175 - WMV-4A -
13326-828272T47 CARBURETOR, Center
175 - WMV-4ACARBURETOR, Center
175 - WMV-4A -
13326-828272T48 CARBURETOR, Bottom
175 - WMV-4ACARBURETOR, Bottom
175 - WMV-4A -
13326-828272T49 CARBURETOR, Top
200 - WMV-5ACARBURETOR, Top
200 - WMV-5A -
13326-828272T50 CARBURETOR, Center
200 - WMV-5ACARBURETOR, Center
200 - WMV-5A -
13326-828272T51 CARBURETOR, Bottom
200 - WMV-5ACARBURETOR, Bottom
200 - WMV-5A -
21395-809743 COVERCOVER
-
31395-809758 GASKETGASKET
-
41395-8087391 SCREWSCREW
-
527-828292 GASKETGASKET
-
61399-3026 JET, (.036)
(TOP/CENTER)(135) PORTJET, (.036)
(TOP/CENTER)(135) PORT -
61399-7570 JET, .040
(BOTTOM)(135) PORTJET, .040
(BOTTOM)(135) PORT -
6815633042 JET, Idle Air Vent
(.042-TOP/CENTER)(150/XR6/MAGNUM III) PORTJET, Idle Air Vent
(.042-TOP/CENTER)(150/XR6/MAGNUM III) PORT -
6815633048 JET, (.048)
(BOTTOM)(150/XR6/MAGNUM III) PORTJET, (.048)
(BOTTOM)(150/XR6/MAGNUM III) PORT -
6810741 JET, (.030)
(TOP/CENTER)(175) PORTJET, (.030)
(TOP/CENTER)(175) PORT -
6815633038 JET, (.038)
(BOTTOM)(175) PORTJET, (.038)
(BOTTOM)(175) PORT -
6815633052 JET, (.052)
(TOP)(200) PORTJET, (.052)
(TOP)(200) PORT -
6815633028 JET, (.028)
(CENTER)(200) PORTJET, (.028)
(CENTER)(200) PORT -
61399-3252 JET, (.032)
(BOTTOM)(200) PORTJET, (.032)
(BOTTOM)(200) PORT -
71395-5815 JET, (.086)
(135/175)JET, (.086)
(135/175) -
71399-3518 JET, (.082)
(150/XR6/MAGNUM III)JET, (.082)
(150/XR6/MAGNUM III) -
71399-6249 JET, Main (.096)
(200)JET, Main (.096)
(200) -
81399-3026 JET, (.036)
(135) STARBOARDJET, (.036)
(135) STARBOARD -
8810742 JET, (.044)
(150/XR6/MAGNUM III) STARBOARDJET, (.044)
(150/XR6/MAGNUM III) STARBOARD -
8810741 JET, (.030)
(175) STARBOARDJET, (.030)
(175) STARBOARD -
8815633052 JET, (.052)
(TOP)(200) STARBOARDJET, (.052)
(TOP)(200) STARBOARD -
8815633028 JET, (.028)
(CENTER/BOTTOM)(200) STARBOARDJET, (.028)
(CENTER/BOTTOM)(200) STARBOARD -
9810779 CAPCAP
-
10NSS NOT SOLD SEPARATE, Idle Mixture Screw/SpringNOT SOLD SEPARATE, Idle Mixture Screw/Spring
-
111395-8113523 LEVER KITLEVER KIT
-
121395-6031 SPACERSPACER
-
13NSS NOT SOLD SEPARATE, SpringNOT SOLD SEPARATE, Spring
-
14NSS NOT SOLD SEPARATE, Gasket-Fuel BowlNOT SOLD SEPARATE, Gasket-Fuel Bowl
-
15810738 FLOAT ASSEMBLYFLOAT ASSEMBLY
-
16F10064 SHAFTSHAFT
-
171395-5902 SCREW, (#6-32 x .187)SCREW, (#6-32 x .187)
-
181395-8116901 VALVE SEAT KITVALVE SEAT KIT
-
19NSS NOT SOLD SEPARATE, Gasket-Valve SeatNOT SOLD SEPARATE, Gasket-Valve Seat
-
201395-8236231 BOWL, Fuel (TOP)BOWL, Fuel (TOP)
-
201395-8236241 BOWL, Fuel (CENTER/BOTTOM)BOWL, Fuel (CENTER/BOTTOM)
-
211395-808612 SCREW AND WASHER, (#8-32 x .750)SCREW AND WASHER, (#8-32 x .750)
-
221395-811694 PLUG KITPLUG KIT
-
231395-802731 SEAL (CONSISTS OF 4 GASKETS)SEAL (CONSISTS OF 4 GASKETS)
-
241395-6207 JET, (.072)
(135)JET, (.072)
(135) -
241399-3794 JET, (.074)
(150/XR6/MAGNUM III)JET, (.074)
(150/XR6/MAGNUM III) -
241395-6680 JET, (.078)
(175)JET, (.078)
(175) -
241395-6201 JET, (.080)
(200)JET, (.080)
(200) -
241399-3518 JET, (.082)
(200-TOP)JET, (.082)
(200-TOP) -
251395-7900 TEE FITTING (TOP/CENTER)TEE FITTING (TOP/CENTER)
-
261395-7901 ELBOW (BOTTOM)ELBOW (BOTTOM)
-
-8107493 GASKET SET, CarburetorGASKET SET, Carburetor
-
-1395-8116913 REPAIR KIT, CarburetorREPAIR KIT, Carburetor
