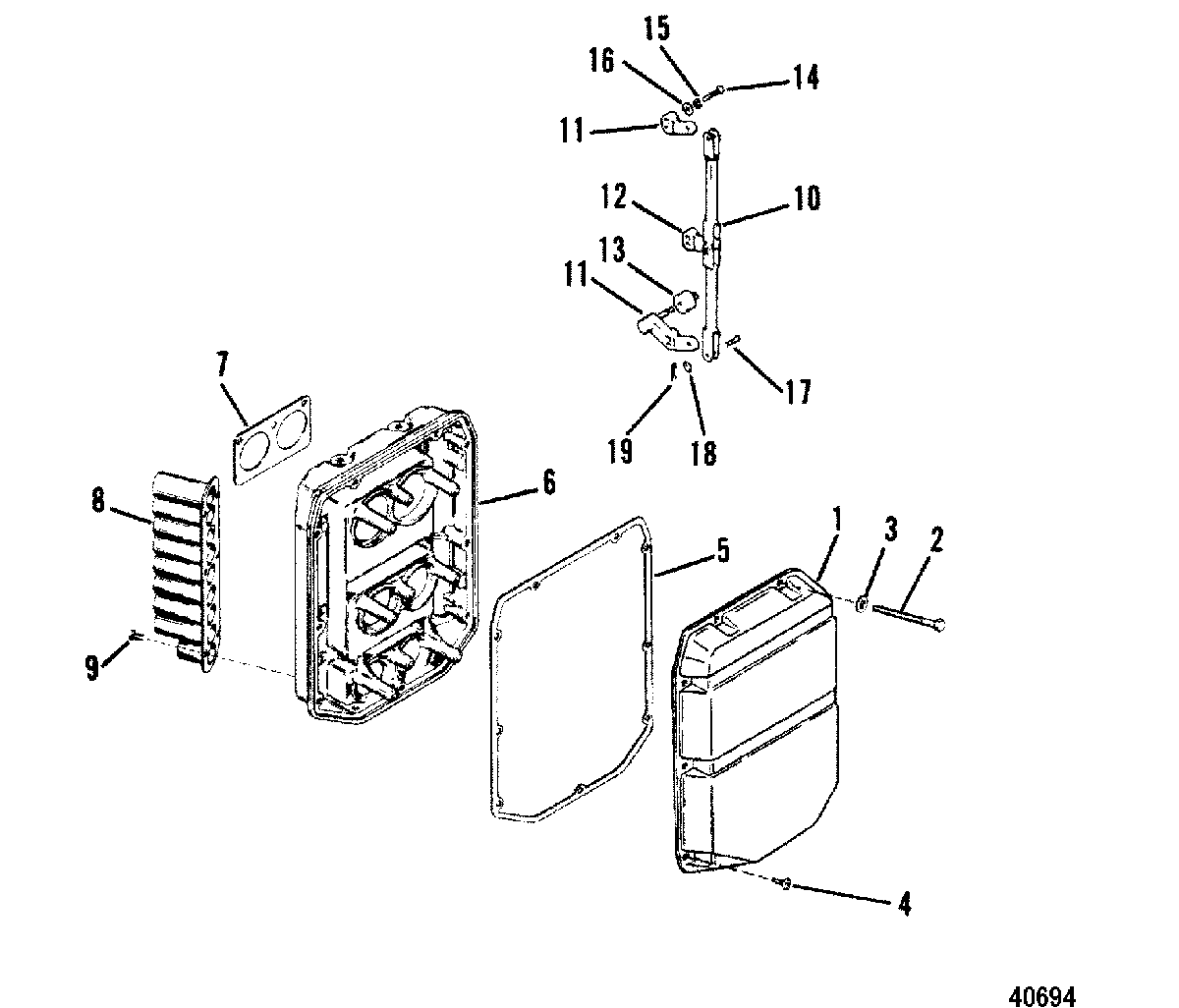

CHOKE PLATE AND THROTTLE LEVERS(S/N-C239552 AND BELOW) для Mercury - V-200 0C100861 THRU 0C291519
-
№АртикулНазвание
-
118734 COVER, SOUND ATTENUATORCOVER, SOUND ATTENUATOR
-
210-68000 SCREW, (.250-28 x 1.00), SOUND ATTENUATORSCREW, (.250-28 x 1.00), SOUND ATTENUATOR
-
312-20583 WASHER, SOUND ATTENUATOR SCREWWASHER, SOUND ATTENUATOR SCREW
-
410-48408 SCREW, (#10-16 x .500), COVER TO SOUND ATTENUATORSCREW, (#10-16 x .500), COVER TO SOUND ATTENUATOR
-
527-877361 GASKET, COVERGASKET, COVER
-
6194261 PLATE, SOUND ATTENUATORPLATE, SOUND ATTENUATOR
-
727-892211 GASKET, SOUND ATTENUATOR TO CARBURETORGASKET, SOUND ATTENUATOR TO CARBURETOR
-
843440T INLET, SOUND ATTENUATORINLET, SOUND ATTENUATOR
-
910-48408 SCREW, (#10-16 x .500), INLET TO SOUND ATTENUATORSCREW, (#10-16 x .500), INLET TO SOUND ATTENUATOR
-
1087604 LINK, ThrottleLINK, Throttle
-
11828277A1 LEVER ASSEMBLY, ThrottleLEVER ASSEMBLY, Throttle
-
12828277A1 LEVER, ThrottleLEVER, Throttle
-
1367748 ROLLER, LOWER THROTTLE LEVERROLLER, LOWER THROTTLE LEVER
-
1410-15124 SCREW, (#10-32 x .750)SCREW, (#10-32 x .750)
-
1513-26996 LOCKWASHER, (#10) Stainless Steel, THROTTLE LEVERS SCREWLOCKWASHER, (#10) Stainless Steel, THROTTLE LEVERS SCREW
-
1612-56681 WASHER, (.203 x .500 x .032), THROTTLE LEVERS SCREWWASHER, (.203 x .500 x .032), THROTTLE LEVERS SCREW
-
1717-67297 PIN, Clevis, THROTTLE LEVERS TO THROTTLE LINKPIN, Clevis, THROTTLE LEVERS TO THROTTLE LINK
-
1812-89302 WASHER, (.203 x .406 x .040), CLEVIS PINWASHER, (.203 x .406 x .040), CLEVIS PIN
-
1918-26953 COTTER PIN, CLEVIS PINCOTTER PIN, CLEVIS PIN
-
-27-89221A88 GASKET SETGASKET SET
