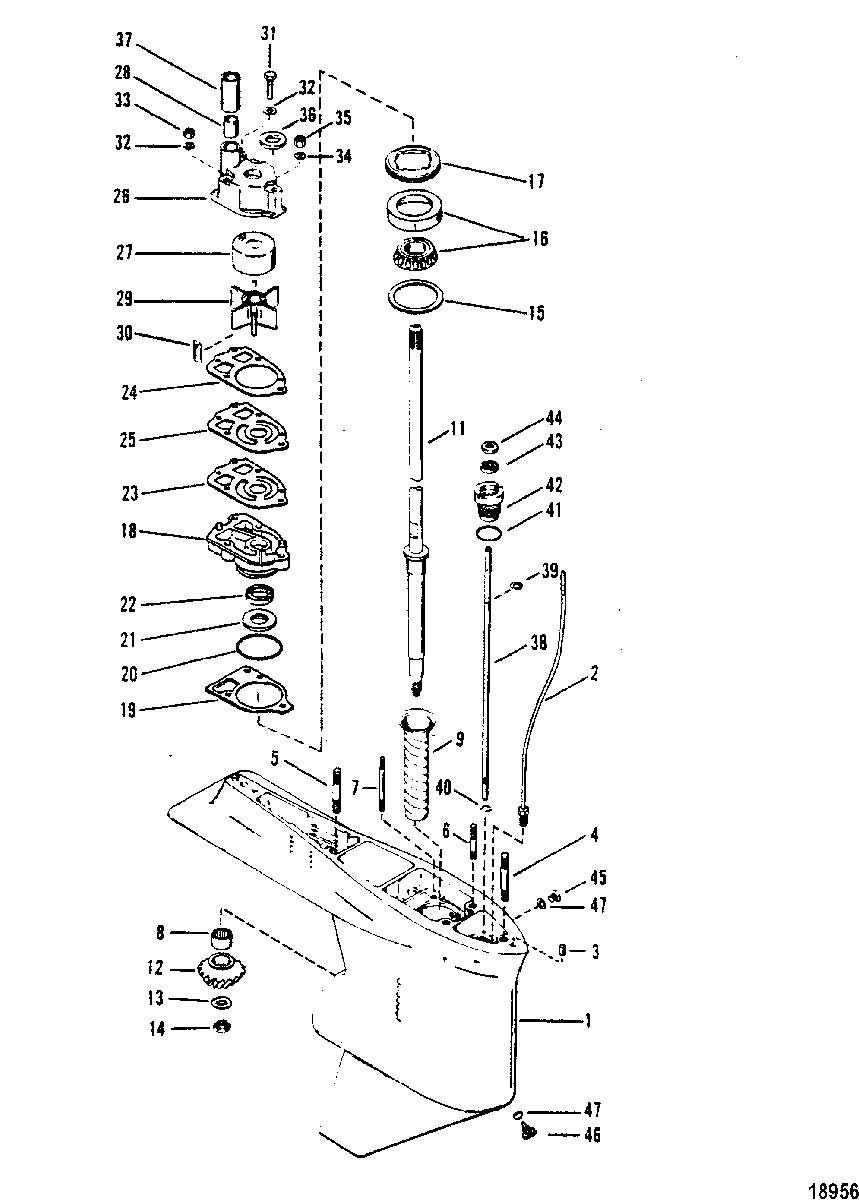

GEAR HOUSING(DRIVE-STANDARD/COUNTER ROTATION) для Mercury - V-200 0C100861 THRU 0C291519
-
№АртикулНазвание
-
-1647-9148T84 GEAR HOUSING ASSEMBLY, Standard Rotation 1.87:1 Gear Ratio
(LONG)(BLACK)GEAR HOUSING ASSEMBLY, Standard Rotation 1.87:1 Gear Ratio
(LONG)(BLACK) -
-1647-9148T85 GEAR HOUSING ASSEMBLY, Standard Rotation 1.87:1 Gear Ratio
(X-LONG)(BLACK)GEAR HOUSING ASSEMBLY, Standard Rotation 1.87:1 Gear Ratio
(X-LONG)(BLACK) -
-1647-9148T84 GEAR HOUSING ASSEMBLY, Standard Rotation 1.87:1 Gear Ratio
(LONG)(GRAY)GEAR HOUSING ASSEMBLY, Standard Rotation 1.87:1 Gear Ratio
(LONG)(GRAY) -
-1647-9148T85 GEAR HOUSING ASSEMBLY, Standard Rotation 1.87:1 Gear Ratio
(X-LONG)(GRAY)GEAR HOUSING ASSEMBLY, Standard Rotation 1.87:1 Gear Ratio
(X-LONG)(GRAY) -
-1647-9148T86 GEAR HOUSING ASSEMBLY, Counter Rotation
(X-LONG)(BLACK)GEAR HOUSING ASSEMBLY, Counter Rotation
(X-LONG)(BLACK) -
-1647-9148T86 GEAR HOUSING ASSEMBLY, Counter Rotation
(X-LONG)(GRAY)GEAR HOUSING ASSEMBLY, Counter Rotation
(X-LONG)(GRAY) -
11647-9148T47 GEAR HOUSING ASSEMBLY (BLACK)GEAR HOUSING ASSEMBLY (BLACK)
-
11647-9148T47 GEAR HOUSING ASSEMBLY (GRAY)GEAR HOUSING ASSEMBLY (GRAY)
-
222-85822A10 CONNECTOR ASSEMBLY, SPEEDOMETERCONNECTOR ASSEMBLY, SPEEDOMETER
-
317-43044 PIN, Dowel, GEAR HOUSING LOCATINGPIN, Dowel, GEAR HOUSING LOCATING
-
416-786382 STUD, (.438 x 3.12), GEAR HOUSING
(LONG)STUD, (.438 x 3.12), GEAR HOUSING
(LONG) -
416-8M0034464 STUD, (.438 x 3.69), GEAR HOUSING
(X-LONG)STUD, (.438 x 3.69), GEAR HOUSING
(X-LONG) -
516-8M0133358 STUD, (.44 x 2.06)STUD, (.44 x 2.06)
-
616-8M0034463 STUD, (.312 x 3.38), WATER PUMPSTUD, (.312 x 3.38), WATER PUMP
-
716-306671 STUD, (.250-20/.250-28 x 3.125), WATER PUMPSTUD, (.250-20/.250-28 x 3.125), WATER PUMP
-
831-42647A1 BEARING ASSEMBLY, Roller, DRIVESHAFTBEARING ASSEMBLY, Roller, DRIVESHAFT
-
923-43998 SLEEVE, LUBRICATIONSLEEVE, LUBRICATION
-
1145-897624T DRIVESHAFT
(LONG)DRIVESHAFT
(LONG) -
1145-897625T DRIVESHAFT
(X-LONG)DRIVESHAFT
(X-LONG) -
12NSS NOT SOLD SEPARATE, Pinion Gear (Part of 43-44104A2 or 43-18475A1)NOT SOLD SEPARATE, Pinion Gear (Part of 43-44104A2 or 43-18475A1)
-
1312-92721 WASHER, PINION GEARWASHER, PINION GEAR
-
1411-35921 NUT, (.625-18), PINION GEAR TO DRIVESHAFTNUT, (.625-18), PINION GEAR TO DRIVESHAFT
-
1515-8M0063267 SHIM SET, ROLLER BEARING TO GEAR HOUSINGSHIM SET, ROLLER BEARING TO GEAR HOUSING
-
1631-36387A1 BEARING ASSEMBLY, Roller/Cup, DRIVESHAFTBEARING ASSEMBLY, Roller/Cup, DRIVESHAFT
-
178245191 NUT, DRIVESHAFT BEARINGNUT, DRIVESHAFT BEARING
-
1846-8M0077147 BASE ASSEMBLY, Water PumpBASE ASSEMBLY, Water Pump
-
1927-426311 GASKET, WATER PUMP TO GEAR HSGGASKET, WATER PUMP TO GEAR HSG
-
2025-896523 O-RING, (2.175 x .175), WATER PUMPO-RING, (2.175 x .175), WATER PUMP
-
2025-38099 O-RING, WATER PUMP (2.109 I.D.)O-RING, WATER PUMP (2.109 I.D.)
-
2126-89238 SEAL, Oil, WATER PUMPSEAL, Oil, WATER PUMP
-
2226-16977 SEAL, Oil, WATER PUMPSEAL, Oil, WATER PUMP
-
2327-8M0090319 GASKET, LOWER - WATER PUMPGASKET, LOWER - WATER PUMP
-
2427-858524 GASKET, UPPER - WATER PUMPGASKET, UPPER - WATER PUMP
-
25324351 FACE PLATE, WATER PUMPFACE PLATE, WATER PUMP
-
2646-96148T1 BODY ASSEMBLY, Water PumpBODY ASSEMBLY, Water Pump
-
2748752T INSERT, WATER PUMP BODYINSERT, WATER PUMP BODY
-
2826-38970 SEAL, RUBBER - WATER INLET TUBESEAL, RUBBER - WATER INLET TUBE
-
2947-89984T4 IMPELLER, WATER PUMPIMPELLER, WATER PUMP
-
3028-8M0032834 KEYKEY
-
3110-96411 SCREW, (#14-8 x 2.25), WATER PUMPSCREW, (#14-8 x 2.25), WATER PUMP
-
3212-29245 WASHER, (.281 x .500 x .060) Stainless Steel, WATER PUMP SCREW AND STUDWASHER, (.281 x .500 x .060) Stainless Steel, WATER PUMP SCREW AND STUD
-
3311-8267119 NUT, (.250-28), WATER PUMP STUDNUT, (.250-28), WATER PUMP STUD
-
3412-36001 WASHER, WATER PUMP STUDWASHER, WATER PUMP STUD
-
3511-13436 NUT, WATER PUMP STUDNUT, WATER PUMP STUD
-
3625-30271 RING, Rubber (DRIVESHAFT)RING, Rubber (DRIVESHAFT)
-
3723-29804T SLEEVE, GUIDE - WATER INLET TUBESLEEVE, GUIDE - WATER INLET TUBE
-
38789022 SHAFT, SHIFT - LOWERSHAFT, SHIFT - LOWER
-
3953-29641 E RING, RETAINING - SHIFT SHAFTE RING, RETAINING - SHIFT SHAFT
-
4053-78907 RING, RetainingRING, Retaining
-
4125-25439 O-RING, (.862 x .103), SHIFT SHAFT BUSHINGO-RING, (.862 x .103), SHIFT SHAFT BUSHING
-
4223-77631A2 BUSHING ASSEMBLY, SHIFT SHAFTBUSHING ASSEMBLY, SHIFT SHAFT
-
4326-8164641 SEAL, Oil, SHIFT SHAFT BUSHINGSEAL, Oil, SHIFT SHAFT BUSHING
-
4412-77674 WASHER, RUBBER - SHIFT SHAFT BUSHINGWASHER, RUBBER - SHIFT SHAFT BUSHING
-
4510-79953Q04 SCREW, (.375-16 x .250), GREASE FILLERSCREW, (.375-16 x .250), GREASE FILLER
-
4622-8M0058389 SCREW, Magnetic, DRAINSCREW, Magnetic, DRAIN
-
4712-191833 WASHER, Fiber, GREASE FILLER AND DRAIN SCREWWASHER, Fiber, GREASE FILLER AND DRAIN SCREW
-
-46-96148A8 REBUILD KIT, Water PumpREBUILD KIT, Water Pump
-
-26-89238A2 SEAL KITSEAL KIT
-
-27-89221A88 GASKET SETGASKET SET
