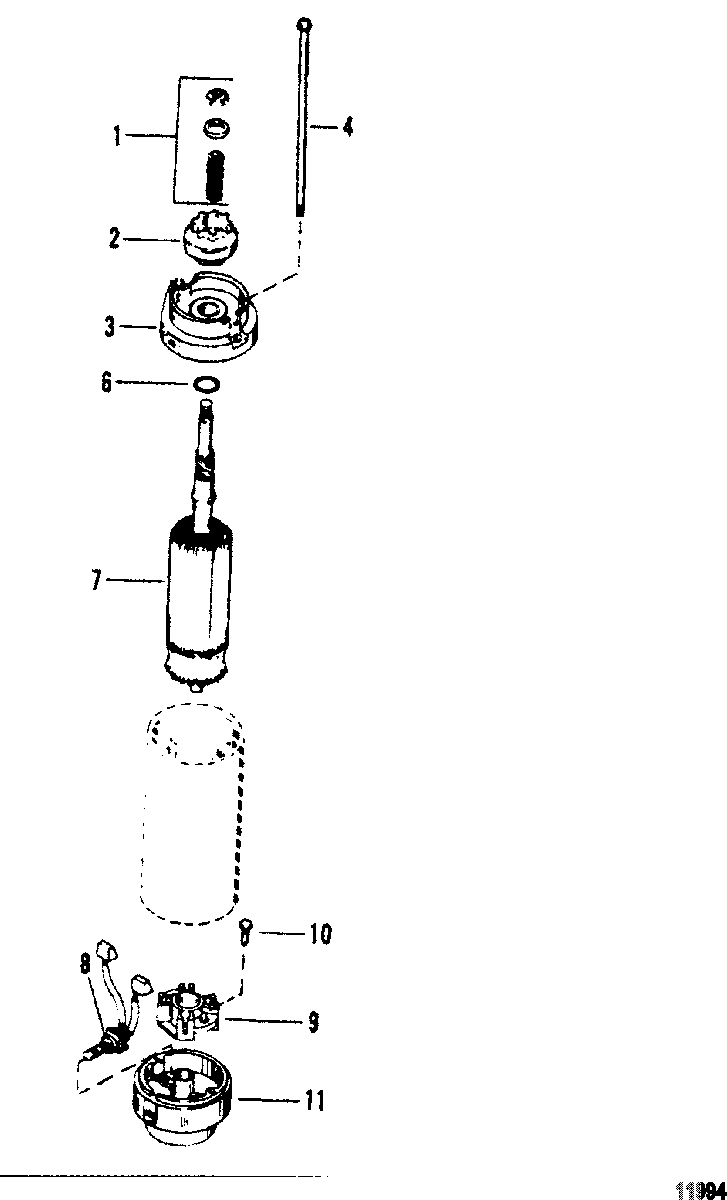

Starter Motor для Mercury - V-200 0C100861 THRU 0C291519
-
№АртикулНазвание
-
-50-893893 STARTER MOTOR ASSEMBLYSTARTER MOTOR ASSEMBLY
-
190645 DRIVE KITDRIVE KIT
-
213310T1 PINION ASSEMBLY, DrivePINION ASSEMBLY, Drive
-
375660 PLATE, DRIVE ENDPLATE, DRIVE END
-
410-74968 BOLT, THRUBOLT, THRU
-
6N.S.S. Not Sold Separate, Washer (AMERICAN BOSCH #WA3122)Not Sold Separate, Washer (AMERICAN BOSCH #WA3122)
-
779216 ARMATUREARMATURE
-
8898265016 BRUSH/SPRING KITBRUSH/SPRING KIT
-
9898265014 HOLDER, BRUSHHOLDER, BRUSH
-
1010-68586 SCREW, BRUSH AND HOLDERSCREW, BRUSH AND HOLDER
-
1115386001 END CAP, COMMUTATOREND CAP, COMMUTATOR
Все узлы модели:
- BOTTOM COWL
- CARBURETOR ASSEMBLY
- CHOKE PLATE AND THROTTLE LEVERS(S/N-C239552 AND BELOW)
- CHOKE PLATE AND THROTTLE LEVERS(S/N-C239553 AND UP)
- CRANKSHAFT, PISTONS AND CONNECTING RODS
- CYLINDER BLOCK AND END CAPS
- DRIVESHAFT HOUSING AND EXHAUST TUBE
- Dual Engine Extension Kit
- EXHAUST MANIFOLD AND EXHAUST PLATE
- FLYWHEEL/STARTER MOTOR
- FUEL PUMP AND CARBURETOR
- GEAR HOUSING(DRIVE-STANDARD/COUNTER ROTATION)
- GEAR HOUSING(PROPELLER SHAFT) (COUNTER ROTATION)
- GEAR HOUSING(PROPELLER SHAFT) (STANDARD ROTATION)
- IGNITION COIL/VOLTAGE REGULATOR
- Instrumentation(Mercury and Mariner)
- Key Switch(Counter Rotation Engines)
- MISCELLANEOUS PARTS AND ACCESSORIES
- OIL INJECTION COMPONENTS
- POWER TRIM COMPONENTS
- Power Trim Pump
- REED BLOCK AND CYLINDER HEAD
- • Starter Motor
- SWIVEL BRACKET AND STEERING ARM
- THROTTLE LEVER AND SHIFT SHAFT
- TOP COWL AND FRONT SHIELD
- TRANSOM BRACKETS
- WIRING HARNESS/STARTER SOLENOID
