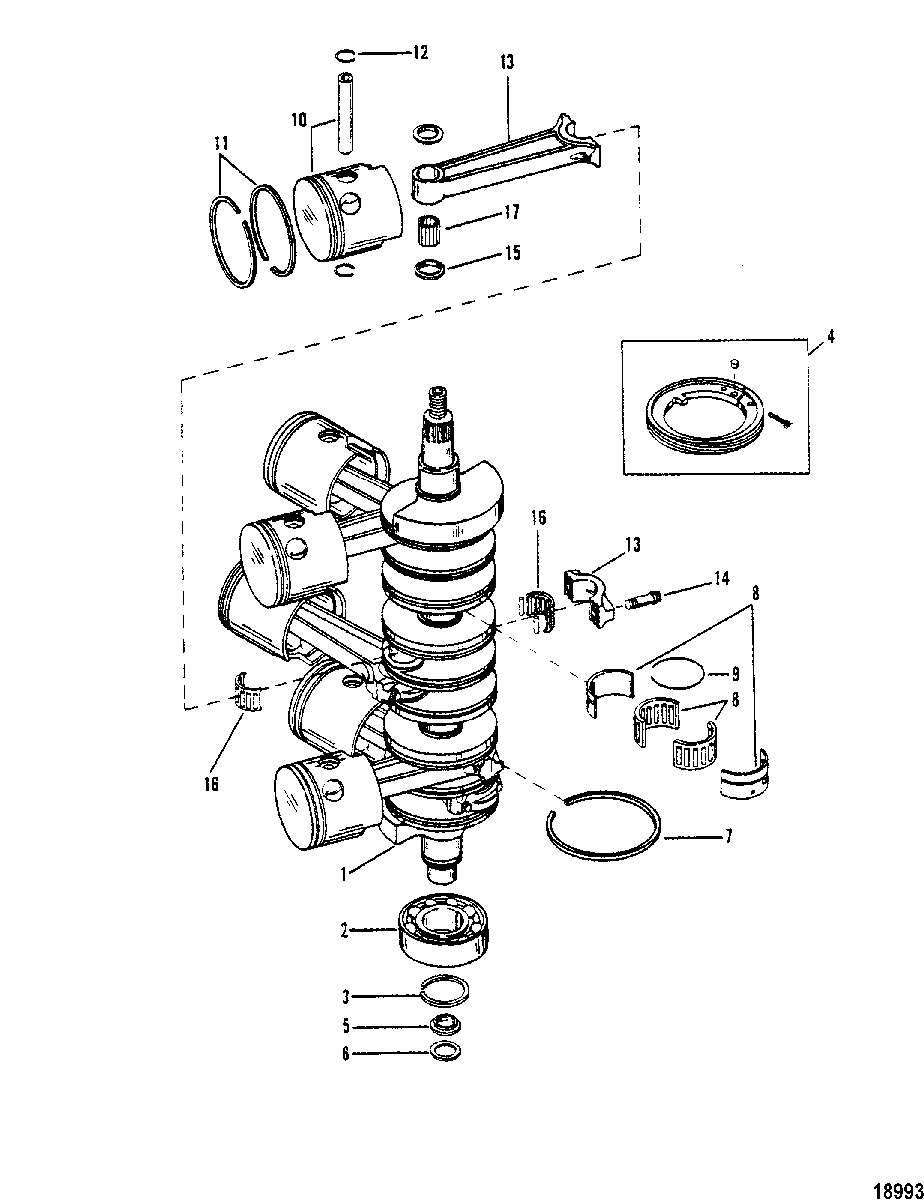

CRANKSHAFT, PISTONS AND CONNECTING RODS для Mercury - V-200 0C100861 THRU 0C291519
-
№АртикулНазвание
-
1455-8745T5 CRANKSHAFT ASSEMBLYCRANKSHAFT ASSEMBLY
-
230-67923T BEARING, Ball, CRANKSHAFT (LOWER)BEARING, Ball, CRANKSHAFT (LOWER)
-
353-67446 RING, BALL BEARINGRING, BALL BEARING
-
443-99727A1 GEAR, DriveGEAR, Drive
-
554196A6 CARRIER ASSEMBLY, SEALCARRIER ASSEMBLY, SEAL
-
665800 PACKING, CARRIERPACKING, CARRIER
-
739-67377T RING, Sealing, CRANKSHAFT
(.124 THICK)RING, Sealing, CRANKSHAFT
(.124 THICK) -
739-78633 RING, SEALING - CRANKSHAFT
(.139 THICK)RING, SEALING - CRANKSHAFT
(.139 THICK) -
831-93495T BEARING, Roller, CRANKSHAFTBEARING, Roller, CRANKSHAFT
-
953-67444 RING, Retaining, ROLLER BEARINGRING, Retaining, ROLLER BEARING
-
10766-8666T41 PISTON ASSEMBLY
(STARBOARD)PISTON ASSEMBLY
(STARBOARD) -
10766-8667T41 PISTON ASSEMBLY
(PORT)PISTON ASSEMBLY
(PORT) -
1139-813011A12 RING ASSEMBLY, PistonRING ASSEMBLY, Piston
-
1253-857196 RING, Lock, PISTONRING, Lock, PISTON
-
13636-8119A6 CONNECTING ROD ASSEMBLYCONNECTING ROD ASSEMBLY
-
1410-93886 SCREW, (.312-28 x .875), CONNECTING RODSCREW, (.312-28 x .875), CONNECTING ROD
-
1512-8M0032839 WASHER, NEEDLE LOCATINGWASHER, NEEDLE LOCATING
-
1631-8M0045428 BEARING KIT, CRANKSHAFT ENDBEARING KIT, CRANKSHAFT END
-
1729-67483 BEARING, Needle, PISTON ENDBEARING, Needle, PISTON END
-
-27-89221A88 GASKET SETGASKET SET
