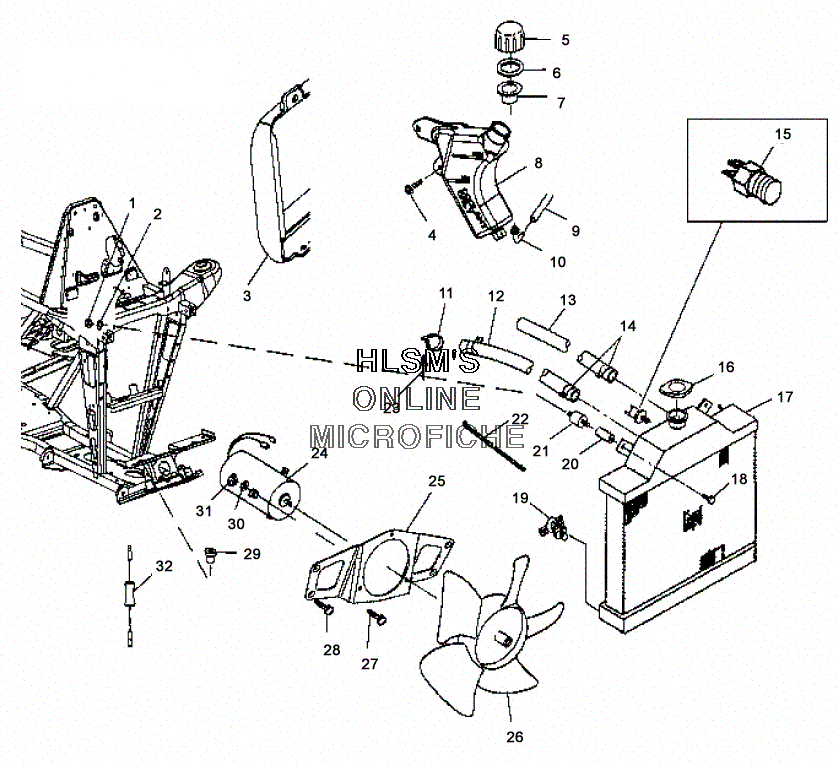

COOLING SYSTEM для Polaris SCRABMLER 500 (A00BG50AA) - 2000 года выпуска
-
№АртикулНазвание
-
17542122 NUT, LOCKNUT, LOCK
-
27558301 WASHERWASHER
-
35432593 SHROUD, FAN (ATV)SHROUD, FAN (ATV)
-
47512084 SCREWSCREW
-
55430743 CAP, OVERFLOWCAP, OVERFLOW
-
65810279 GASKETGASKET
-
75431895 CAP, PLUG 9X, FLEX TEMP (GREEN)CAP, PLUG 9X, FLEX TEMP (GREEN)
-
82520165 RESEVOIR, COOLANTRESEVOIR, COOLANT
-
85433410 TANK, SURGETANK, SURGE
-
98450003-1525 FUEL LINEFUEL LINE
-
107052065 FITTING, 90 DEGREEFITTING, 90 DEGREE
-
117080869 CLAMP P, CUSHIONEDCLAMP P, CUSHIONED
-
128450050-63 HOSE, WATERHOSE, WATER
-
135411108 HOSE, CHAFE PROTECTEDHOSE, CHAFE PROTECTED
-
147080614 CLAMP, HOSECLAMP, HOSE
-
154010202 SWITCH, THERMAL 4 STROKESWITCH, THERMAL 4 STROKE
-
162511189 CAP, RADIATORCAP, RADIATOR
-
171240015 RADIATOR, ''U''FLOWRADIATOR, ''U''FLOW
-
187515133 SCREWSCREW
-
197052181 VALVE, DRAIN COCKVALVE, DRAIN COCK
-
205020937 SPACER, RADIATOR MOUNTSPACER, RADIATOR MOUNT
-
213110032 MOUNT, RUBBERMOUNT, RUBBER
-
227080492 STRAP (BLACK/WEATHER-RESISTANT)STRAP (BLACK/WEATHER-RESISTANT)
-
237670090 CLIP, PLASTIC DART NYLONCLIP, PLASTIC DART NYLON
-
244170013 MOTOR, FAN LIQUID D-SHAFT CONNECTORMOTOR, FAN LIQUID D-SHAFT CONNECTOR
-
255241355-067 BRACKET, COOLING FAN (BLACK)BRACKET, COOLING FAN (BLACK)
-
265242550 BLADE, FAN NYLONBLADE, FAN NYLON
-
277517475 SCREWSCREW
-
287512232 BOLTBOLT
-
295410584 BUSHING, MOUNT (LOWER/RED)BUSHING, MOUNT (LOWER/RED)
-
307558201 WASHER, FLATWASHER, FLAT
-
317547004 NUTNUT
-
324010369 SENSORSENSOR
