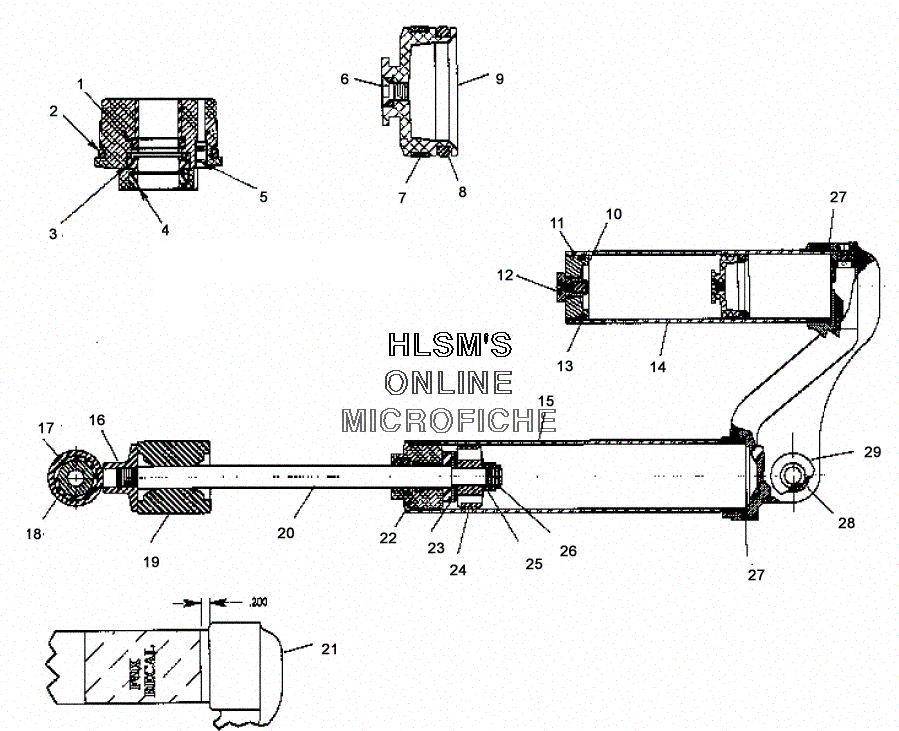

FOX SHOCK - GAS - RESERVOIR для Polaris SCRABMLER 500 (A00BG50AA) - 2000 года выпуска
-
№АртикулНазвание
-
11500021 O-RING INNERO-RING INNER
-
21500020 O-RING, 103W-1.299IDO-RING, 103W-1.299ID
-
31500025 U-CUP URETHANEU-CUP URETHANE
-
41500024 WIPER, (CLEAR/OUTER)WIPER, (CLEAR/OUTER)
-
51500287 SCREWSCREW
-
61500018 SCREWSCREW
-
61500023 O-RING, OUTERO-RING, OUTER
-
71500006 RING, PISTON FLOATING FOXRING, PISTON FLOATING FOX
-
81500003 O-RING, ENDCAP FOXO-RING, ENDCAP FOX
-
91500011 PISTONPISTON
-
101500099 CAP, RESERVE ASSY. (INCL. 11,12,13)CAP, RESERVE ASSY. (INCL. 11,12,13)
-
111500097 RING, RETAINERRING, RETAINER
-
121500019 SCREWSCREW
-
121500022 O-RING, DRUM (OUTER)O-RING, DRUM (OUTER)
-
121500072 VALVE ASSY. AIRVALVE ASSY. AIR
-
131500098 O-RINGO-RING
-
141500286 RESERVOIR, N/ARESERVOIR, N/A
-
151500283 BODYBODY
-
161500013 EYELETEYELET
-
171500102 BUSHING, EYELETBUSHING, EYELET
-
181500103 BUSHING, EYELETBUSHING, EYELET
-
195410987 BUMPER, REAR COMPRESS.BUMPER, REAR COMPRESS.
-
201500284 SHAFTSHAFT
-
211500282 CAP, BODY P/BCAP, BODY P/B
-
221500285 BEARINGBEARING
-
231500017 PLATE (TOP/OUTER)PLATE (TOP/OUTER)
-
241500002 DAMPER, PISTON RINGDAMPER, PISTON RING
-
251500015 BUSHING, BACKUPBUSHING, BACKUP
-
261500016 NUT, LOCKNUT, LOCK
-
271500004 O-RING, BODYO-RING, BODY
-
285020657 BUSHINGBUSHING
-
291500104 BUSHING, EYELETBUSHING, EYELET
-
07041867 SHOCK-MONO, GAS CH 19.08LGSHOCK-MONO, GAS CH 19.08LG
