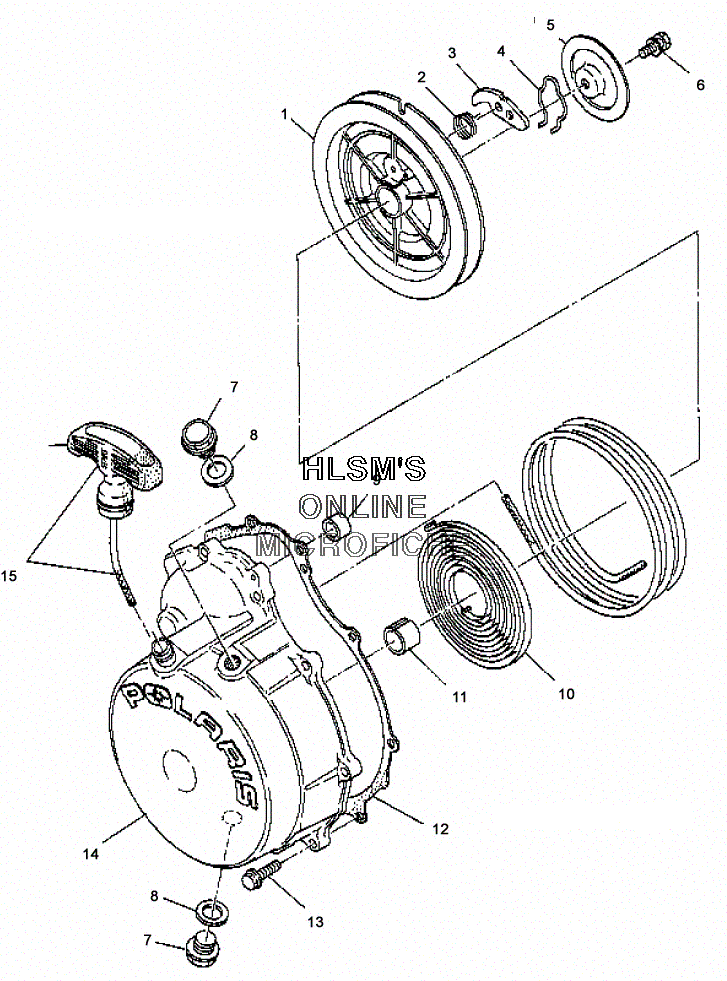

STARTER - RECOIL для Polaris SCRABMLER 500 (A00BG50AA) - 2000 года выпуска
-
№АртикулНазвание
-
13084822 REEL, STARTERREEL, STARTER
-
23083463 SPRING, RETURNSPRING, RETURN
-
33083378 RATCHETRATCHET
-
43083379 SPRING, FRICTIONSPRING, FRICTION
-
53084744 PLATE, FRICTIONPLATE, FRICTION
-
63085266 BOLT AND WASHER ASSY.BOLT AND WASHER ASSY.
-
73083453 PLUGPLUG
-
83082956 GASKETGASKET
-
93083669 BUSHING, STARTERBUSHING, STARTER
-
103083185 SPRINGSPRING
-
113084750 BUSHBUSH
-
123084933 GASKET, RECOILGASKET, RECOIL
-
133084877 BOLT, FLANGEBOLT, FLANGE
-
143085856 RECOIL ASSY. (INCL.1-6,9-11,14,15)RECOIL ASSY. (INCL.1-6,9-11,14,15)
-
143085943 STARTER CASE COMPLETE (INCL. 11)STARTER CASE COMPLETE (INCL. 11)
-
153085083 ROPE ASSY.ROPE ASSY.
