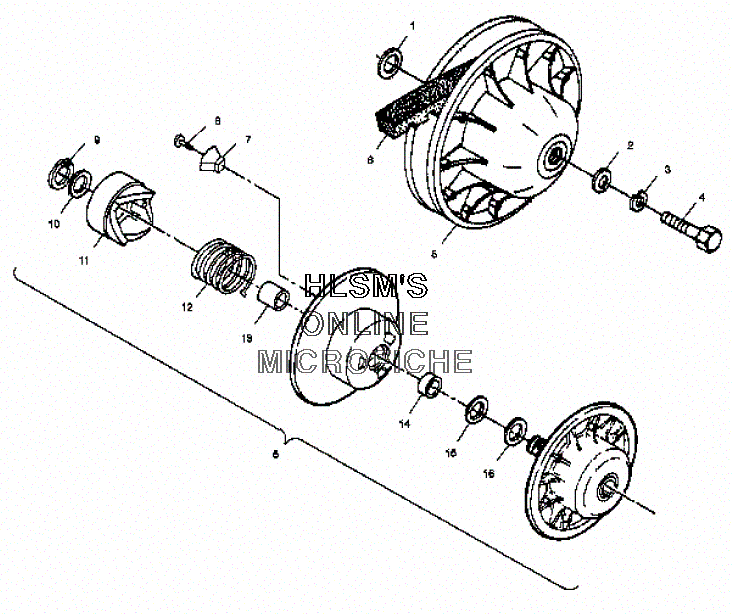

CLUTCH - DRIVEN для Polaris MAGNUM 325 4X4 (A01CD32AA) (GUN METAL) - 2001 года выпуска
-
№АртикулНазвание
-
17556120 BUSHING, GA-Y (OPT)BUSHING, GA-Y (OPT)
-
25220646 WASHER, DOMEDWASHER, DOMED
-
37552901 LOCK WASHERLOCK WASHER
-
47515382 BOLTBOLT
-
51321874 CLUTCH, DRIVEN, ASSY (INCL. 7-16)CLUTCH, DRIVEN, ASSY (INCL. 7-16)
-
63211077 BELT, DRIVE, CLOSE TOLERANCEBELT, DRIVE, CLOSE TOLERANCE
-
75430766 BUTTON, RAMPBUTTON, RAMP
-
87511854 BOLTBOLT
-
97710448 RING, RET.RING, RET.
-
105244116 SPACER, YW/TABSPACER, YW/TAB
-
115132344 RAMP, STA, COMPRAMP, STA, COMP
-
127041782 SPRING, CLUTCH DRI (CHROME/SILICON/BLACK)SPRING, CLUTCH DRI (CHROME/SILICON/BLACK)
-
133576511 BUSHING (1'')BUSHING (1'')
-
143576504 BUSHING, DRIVEN (1/2'')BUSHING, DRIVEN (1/2'')
-
157556804 WASHER (.030'') (OPT)WASHER (.030'') (OPT)
-
167555898 WASHER (.020'') (OPT)WASHER (.020'') (OPT)
-
167556076 WASHER (.025'') (OPT)WASHER (.025'') (OPT)
